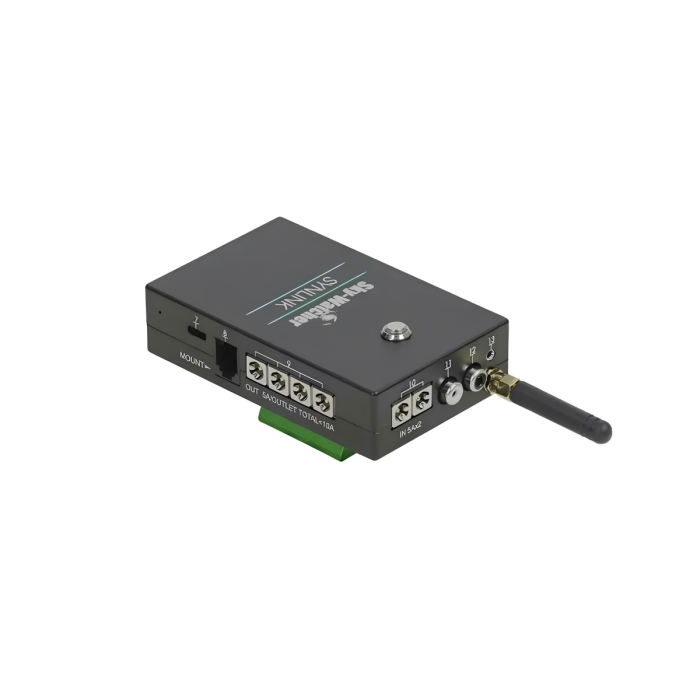

Sky-Watcher SynLink Universal Astroimaging Controller
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Universal imaging controller box with dovetail mount
- Four DC power ports (10 amp max output)
- Two dew heater outlets
- 4x USB 3.0 ports, 2x USB 2.0 ports, and 1x USB-C port
- Direct connect port & cable for Sky-Watcher EQ mounts
- 2.4G/5G Wi-Fi connection
- 64GB internal storage
- Android, iOS, Mac & Windows compatible
- Power supply sold separately
SynLink Astroimaging Controller: Simplify Your Setup!
The Sky-Watcher SynLink Universal Astroimaging Controller brings your imaging setup together in one compact, easy-to-manage hub. It combines equipment control, power distribution, USB connectivity, Wi-Fi, and imaging automation while supporting a wide range of popular astronomy gear. From polar alignment and guiding to autofocus and sequencing, SynLink helps simplify your entire night under the stars from one convenient app!
Watch a Quick Overview of the SynLink
Check out our overview of the SynLink! In this video, we take a closer look at the Sky-Watcher SynLink Universal Astroimaging Controller, an all-in-one hub designed to simplify your astrophotography setup.

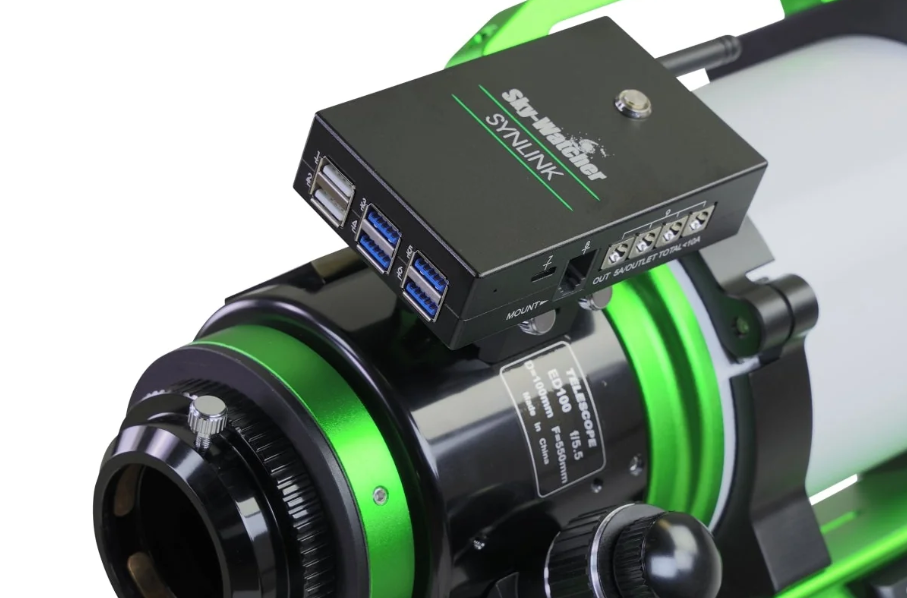

Replace the Clutter
The SynLink Universal Astroimaging Controller replaces the stack of hardware that usually sits between your telescope and your images — the mini PC, the hub, the tangle of USB and power cables — with one box that mounts directly to the rig. Everything runs from the free SynLink app on Android, iOS, Windows, or Mac. Telescope not included with SynLink

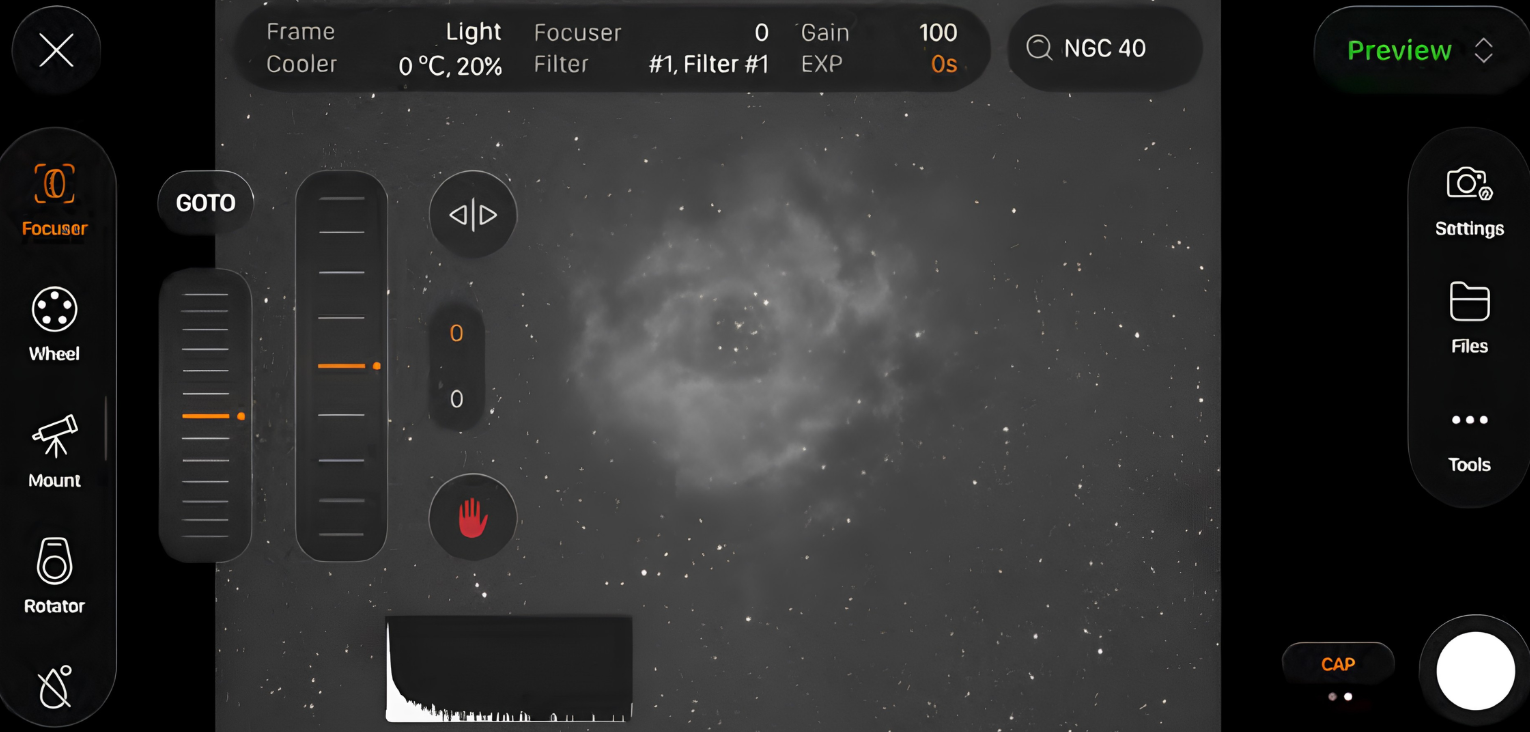

From Setup to Shutdown
SynLink keeps your entire imaging session moving from start to finish. Handle polar alignment, autofocus, guiding, GoTo, and target selection, then build your sequence and let SynLink take over. Choose simple or advanced sequencing with tools like dithering, cloud recovery, and meridian flips, plus automatic parking and shutdown when the night is done.
App Requirments:
- iOS / iPadOS: 12.0 or higher
- Android: 7.0 or higher
- macOS: 12.4 or higher
- Windows: Windows 7 or higher

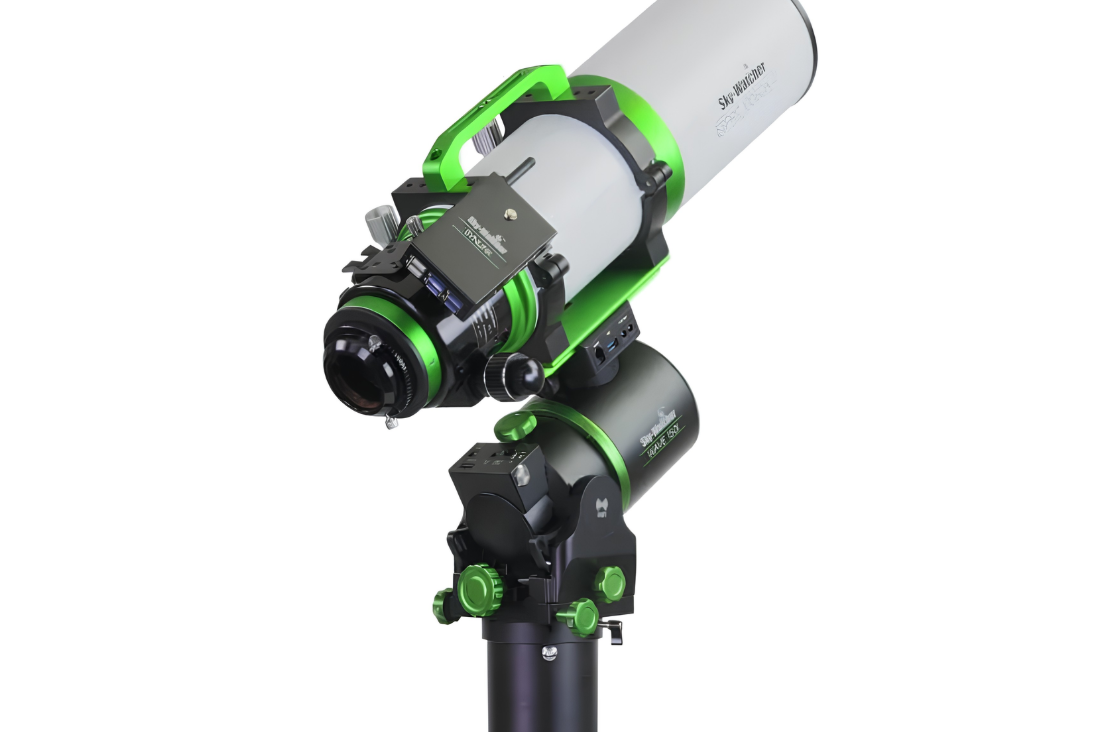

Compatible with Your Favorite Gear
The part that matters most: SynLink isn’t locked to Sky-Watcher equipment, so you can use the gear you already own! Most devices are recognized automatically when you connect them. SynLink app downloads for iOS and Android.
| Cameras + Guide Cameras | ATIK, Sony, Starlight Xpress, ToupTek, QHY, ZWO |
|---|---|
| Filter Wheels | ATIK, Starlight Xpress, ZWO |
| Focusers | Optec, QHY, ZWO |
| Mounts | Astro-Physics (CP3+), Celestron, Losmandy Gemini, Sky-Watcher SynScan |
* Additional hardware compatibility will be added through future SynLink software and firmware updates.

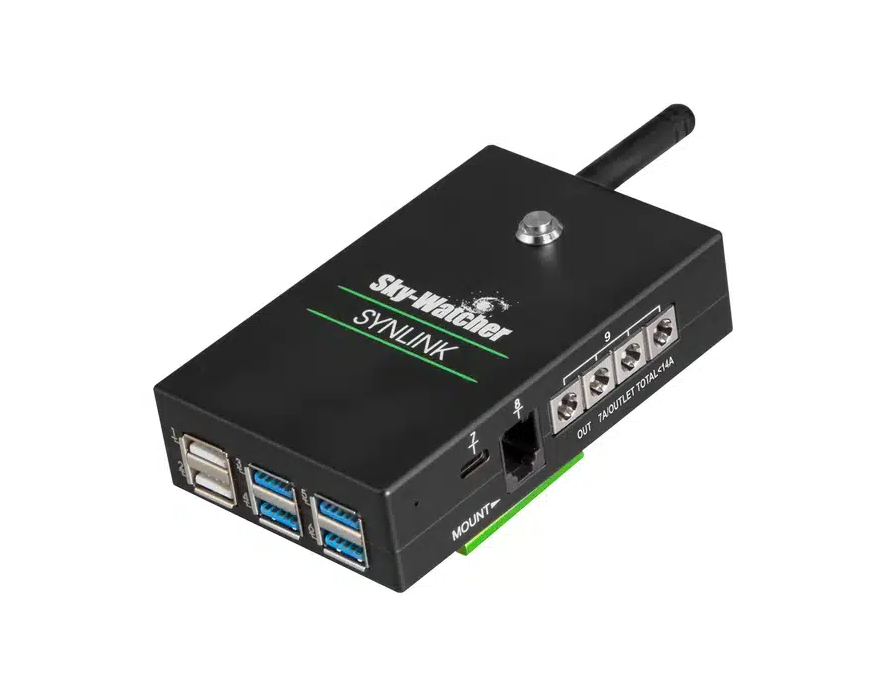

Plug In and Power Up
Connectivity is built for a full imaging train. Six full-size USB ports (four USB 3.0, two USB 2.0) plus a USB-C port. Four DC outputs deliver 5A each, up to10A total, alongside two DC inputs, two independently controlled dew heater channels, and a dedicated serial port for supported Sky-Watcher mounts.
Specifications
- Power Input: 2 x 2.1mm, 5A
- Power Output: 4 x 2.1mm, 5A each; 10A maximum total
- USB Ports: 2 x USB-A 2.0, 4 x USB-A 3.0, 1 x USB-C
- Dew Heater Ports: 2
- Serial Port: 1 x direct Sky-Watcher connection
- Wi-Fi: 2.4GHz / 5GHz
- Internal Storage: 64GB / Unlimited Exteneral memory
- Sensor Port: For future sensor accessories
- Mounting Options: M4 and 1/4"-20 mounting holes
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- App Compatibility: Android, iOS, macOS & Windows
- Processor: RK3566
- RAM: 4GB LPDDR4
- Storage (ROM): 64GB eMMC
- Hardware Support: Compatible with many popular astrophotography equipment brands
- Product Dimensions: 113 x 30 x 68.25 mm (4.44" x 1.18" x 6.68") — without antenna
- Product Weight: 255 g (9 oz)
- Shipping Dimensions: 19 x 9.5 x 7 cm (7.5" x 3.75" x 2.75")
- Shipping Weight: 624 g (1.38 lb)
Other Information
- Country of Manufacture: China
SynLink Astroimaging Controller: Simplify Your Setup!
The Sky-Watcher SynLink Universal Astroimaging Controller brings your imaging setup together in one compact, easy-to-manage hub. It combines equipment control, power distribution, USB connectivity, Wi-Fi, and imaging automation while supporting a wide range of popular astronomy gear. From polar alignment and guiding to autofocus and sequencing, SynLink helps simplify your entire night under the stars from one convenient app!
Watch a Quick Overview of the SynLink
Check out our overview of the SynLink! In this video, we take a closer look at the Sky-Watcher SynLink Universal Astroimaging Controller, an all-in-one hub designed to simplify your astrophotography setup.
Replace the Clutter
The SynLink Universal Astroimaging Controller replaces the stack of hardware that usually sits between your telescope and your images — the mini PC, the hub, the tangle of USB and power cables — with one box that mounts directly to the rig. Everything runs from the free SynLink app on Android, iOS, Windows, or Mac. Telescope not included with SynLink
From Setup to Shutdown
SynLink keeps your entire imaging session moving from start to finish. Handle polar alignment, autofocus, guiding, GoTo, and target selection, then build your sequence and let SynLink take over. Choose simple or advanced sequencing with tools like dithering, cloud recovery, and meridian flips, plus automatic parking and shutdown when the night is done.
App Requirments:
- iOS / iPadOS: 12.0 or higher
- Android: 7.0 or higher
- macOS: 12.4 or higher
- Windows: Windows 7 or higher
Compatible with Your Favorite Gear
The part that matters most: SynLink isn’t locked to Sky-Watcher equipment, so you can use the gear you already own! Most devices are recognized automatically when you connect them. SynLink app downloads for iOS and Android.
| Cameras + Guide Cameras | ATIK, Sony, Starlight Xpress, ToupTek, QHY, ZWO |
|---|---|
| Filter Wheels | ATIK, Starlight Xpress, ZWO |
| Focusers | Optec, QHY, ZWO |
| Mounts | Astro-Physics (CP3+), Celestron, Losmandy Gemini, Sky-Watcher SynScan |
* Additional hardware compatibility will be added through future SynLink software and firmware updates.
Plug In and Power Up
Connectivity is built for a full imaging train. Six full-size USB ports (four USB 3.0, two USB 2.0) plus a USB-C port. Four DC outputs deliver 5A each, up to10A total, alongside two DC inputs, two independently controlled dew heater channels, and a dedicated serial port for supported Sky-Watcher mounts.
Specifications
- Power Input: 2 x 2.1mm, 5A
- Power Output: 4 x 2.1mm, 5A each; 10A maximum total
- USB Ports: 2 x USB-A 2.0, 4 x USB-A 3.0, 1 x USB-C
- Dew Heater Ports: 2
- Serial Port: 1 x direct Sky-Watcher connection
- Wi-Fi: 2.4GHz / 5GHz
- Internal Storage: 64GB / Unlimited Exteneral memory
- Sensor Port: For future sensor accessories
- Mounting Options: M4 and 1/4"-20 mounting holes
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- App Compatibility: Android, iOS, macOS & Windows
- Processor: RK3566
- RAM: 4GB LPDDR4
- Storage (ROM): 64GB eMMC
- Hardware Support: Compatible with many popular astrophotography equipment brands
- Product Dimensions: 113 x 30 x 68.25 mm (4.44" x 1.18" x 6.68") — without antenna
- Product Weight: 255 g (9 oz)
- Shipping Dimensions: 19 x 9.5 x 7 cm (7.5" x 3.75" x 2.75")
- Shipping Weight: 624 g (1.38 lb)

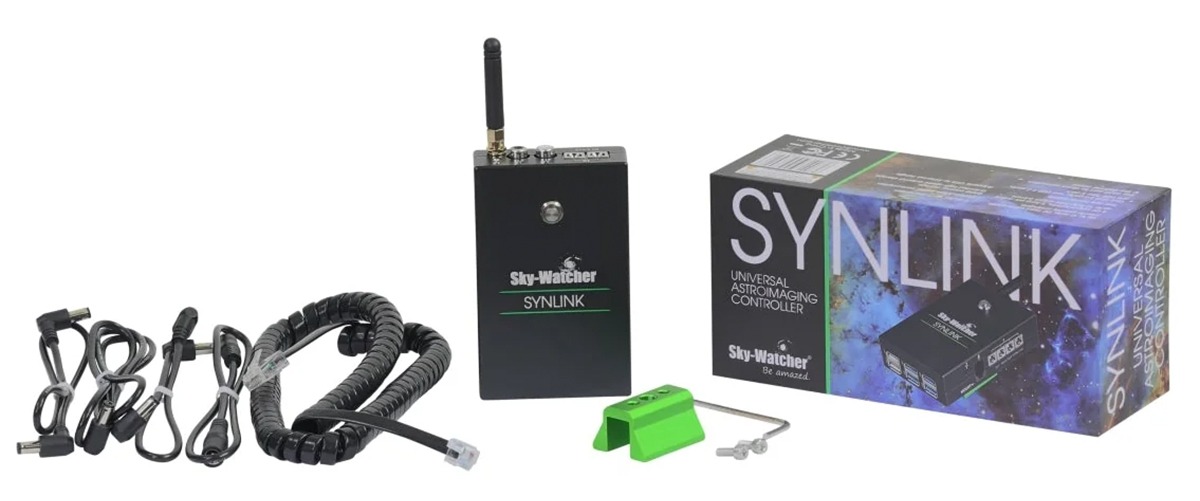

- 1x SynLink Controller
- 1x Dovetail mounting foot with mounter hardware
- 1x WiFi Antenna
- 1x Sky-Watcher cable
- 1x 0.3 meter Male-to-Male DC Power cable
- 1x 0.5 meter Male-to-Male DC Power cable
- 1x 1.0 meter Male-to-Male DC Power cable
- 1x 0.5 meter Male-to-Female DC Power cable
- Universal imaging controller box with dovetail mount
- Four DC power ports (10 amp max output)
- Two dew heater outlets
- 4x USB 3.0 ports, 2x USB 2.0 ports, and 1x USB-C port
- Direct connect port & cable for Sky-Watcher EQ mounts
- 2.4G/5G Wi-Fi connection
- 64GB internal storage
- Android, iOS, Mac & Windows compatible
- Power supply sold separately
SynLink Astroimaging Controller: Simplify Your Setup!
The Sky-Watcher SynLink Universal Astroimaging Controller brings your imaging setup together in one compact, easy-to-manage hub. It combines equipment control, power distribution, USB connectivity, Wi-Fi, and imaging automation while supporting a wide range of popular astronomy gear. From polar alignment and guiding to autofocus and sequencing, SynLink helps simplify your entire night under the stars from one convenient app!
Watch a Quick Overview of the SynLink
Check out our overview of the SynLink! In this video, we take a closer look at the Sky-Watcher SynLink Universal Astroimaging Controller, an all-in-one hub designed to simplify your astrophotography setup.
Replace the Clutter
The SynLink Universal Astroimaging Controller replaces the stack of hardware that usually sits between your telescope and your images — the mini PC, the hub, the tangle of USB and power cables — with one box that mounts directly to the rig. Everything runs from the free SynLink app on Android, iOS, Windows, or Mac. Telescope not included with SynLink
From Setup to Shutdown
SynLink keeps your entire imaging session moving from start to finish. Handle polar alignment, autofocus, guiding, GoTo, and target selection, then build your sequence and let SynLink take over. Choose simple or advanced sequencing with tools like dithering, cloud recovery, and meridian flips, plus automatic parking and shutdown when the night is done.
App Requirments:
- iOS / iPadOS: 12.0 or higher
- Android: 7.0 or higher
- macOS: 12.4 or higher
- Windows: Windows 7 or higher
Compatible with Your Favorite Gear
The part that matters most: SynLink isn’t locked to Sky-Watcher equipment, so you can use the gear you already own! Most devices are recognized automatically when you connect them. SynLink app downloads for iOS and Android.
| Cameras + Guide Cameras | ATIK, Sony, Starlight Xpress, ToupTek, QHY, ZWO |
|---|---|
| Filter Wheels | ATIK, Starlight Xpress, ZWO |
| Focusers | Optec, QHY, ZWO |
| Mounts | Astro-Physics (CP3+), Celestron, Losmandy Gemini, Sky-Watcher SynScan |
* Additional hardware compatibility will be added through future SynLink software and firmware updates.
Plug In and Power Up
Connectivity is built for a full imaging train. Six full-size USB ports (four USB 3.0, two USB 2.0) plus a USB-C port. Four DC outputs deliver 5A each, up to10A total, alongside two DC inputs, two independently controlled dew heater channels, and a dedicated serial port for supported Sky-Watcher mounts.
Specifications
- Power Input: 2 x 2.1mm, 5A
- Power Output: 4 x 2.1mm, 5A each; 10A maximum total
- USB Ports: 2 x USB-A 2.0, 4 x USB-A 3.0, 1 x USB-C
- Dew Heater Ports: 2
- Serial Port: 1 x direct Sky-Watcher connection
- Wi-Fi: 2.4GHz / 5GHz
- Internal Storage: 64GB / Unlimited Exteneral memory
- Sensor Port: For future sensor accessories
- Mounting Options: M4 and 1/4"-20 mounting holes
- Operating Temperature: -10°C to 40°C (14°F to 104°F)
- App Compatibility: Android, iOS, macOS & Windows
- Processor: RK3566
- RAM: 4GB LPDDR4
- Storage (ROM): 64GB eMMC
- Hardware Support: Compatible with many popular astrophotography equipment brands
- Product Dimensions: 113 x 30 x 68.25 mm (4.44" x 1.18" x 6.68") — without antenna
- Product Weight: 255 g (9 oz)
- Shipping Dimensions: 19 x 9.5 x 7 cm (7.5" x 3.75" x 2.75")
- Shipping Weight: 624 g (1.38 lb)
Other Information
- Country of Manufacture: China
- 1x SynLink Controller
- 1x Dovetail mounting foot with mounter hardware
- 1x WiFi Antenna
- 1x Sky-Watcher cable
- 1x 0.3 meter Male-to-Male DC Power cable
- 1x 0.5 meter Male-to-Male DC Power cable
- 1x 1.0 meter Male-to-Male DC Power cable
- 1x 0.5 meter Male-to-Female DC Power cable
Sky-Watcher SynLink Universal Astroimaging Controller
