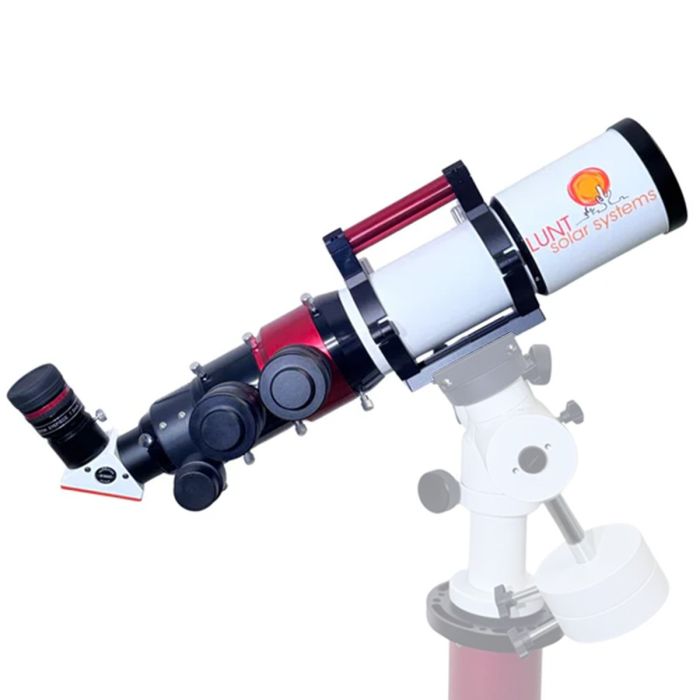

Lunt 80mm Universal Ha Solar Telescope with B1800, SFPTP & 10:1 R&P Focuser - Premium Kit

- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Lunt Solar Systems has recently upgraded this telescope with a new 0.4Å etalon (standard), delivering even higher contrast and finer solar detail than previous versions. All orders will ship with this latest, improved configuration—no action needed.
- Premium solar kit includes everything needed to begin exploring the Sun in hydrogen-alpha right out of the box (mount and camera not included)
- Pressure-tuned etalons reveal incredible solar detail—prominences, filaments, and surface texture
- Dramatic H-alpha solar activity observation by day, then switch to deep-sky imaging at night in minutes
- Including the SFPT Internal Double Stack for ultra-narrow <0.28Ã…, delivering exceptional solar contrast
LS80MT Premium Kit — 80mm Universal Day & Night Modular Telescope
The LS80MT Premium Kit is the finest 80mm solar telescope Lunt makes. Built around a premium FPL53 ED doublet objective with ion-assisted broadband AR coatings, it delivers exceptional contrast and colour correction for both solar and nighttime observation. The SFPT internal double-stack module places two independently pressure-tuned etalons in series, reducing combined system bandpass to <0.28Å — with dual independent Doppler True pressure tuners giving you complete control over bandpass optimisation.
Two pressure-tuned etalons working in series, each with its own tuning knob, each responding instantly to adjustment. The internal architecture maintains perfect optical alignment across the entire bandpass adjustment range. The result is sub-quarter-angstrom performance with the tuning flexibility that only dual pressure systems can provide.
Why This Package?
The SFPT internal double-stack module is included. The internal double-stack architecture means both etalons benefit from pressure tuning rather than mechanical tilt, maintaining perfect optical alignment across the entire bandpass adjustment range. Two independent tuners give you separate control over each etalon for maximum flexibility in dialling in the exact bandpass position you want. The B1800 blocking filter provides 18mm of clear aperture for full-frame imaging capability. The 2" dual-speed focuser with 10:1 fine focus and ZWO EAF compatibility handles every accessory and imaging workflow you throw at it.
Please note: Mounts and tripods shown are for display purposes only and are not included with Solar Ready packages.


What You'll See
At <0.28Å combined bandpass through 80mm of premium FPL53 ED optics, the chromosphere reveals structure that single-stack instruments at any aperture struggle to match. Plage boundaries resolve into sharp cellular networks. Filaments show multi-strand complexity with defined dark cores. Active regions display their full magnetic architecture — penumbral detail, light bridges, and small-scale evolution visible in real time. Prominences show internal threading and flow patterns from base to tip with a clarity that rewards patient observation.
By night, remove the H-alpha module and you have a premium 80mm f/7 FPL53 ED doublet refractor. The same glass that delivers exceptional solar contrast delivers the colour correction and contrast that serious observers demand for lunar, planetary, and deep-sky work. The same 2" dual-speed focuser. The same optical quality. A complete second telescope built into the one you already own.
Specifications
-
Aperture: 80 mm
-
Focal Length: 560 mm
-
Focal Ratio: f/7
-
Objective: FPL53 ED Doublet — ion-assisted broadband anti-reflective (AR) coatings
-
Etalon System: Internal pressure-tuned (Doppler True) + SFPT internal double stack
-
Tuning: Dual independent Doppler True Barometric pressure tuners
-
Single Stack Bandpass: 0.4Å — individually verified
-
Double Stack Bandpass: <0.28Å combined — individually verified
-
Blocking Filter: B1800 (18 mm / 0.71" clear aperture, full-frame compatible)
-
Focuser:
-
-
2" R&P dual-speed 10:1
-
ZWO EAF compatible
- 55-60 mm (2.2-2.4 in) focus travel
- 6.6 lb (3 kg) capacity
-
-
Included Eyepiece: 7.2 mm to 21.5 mm (0.28" to 0.85") zoom — 7 elements, 15 mm (0.59") eye relief, 0.1% AR coatings
-
Finder: Solar handle with integrated red dot finder
-
Dovetail: 5.5" Vixen-style
-
Night Use: Yes — modular; remove solar module. Doublet objective operates without FPL53 colour correction.
Other Information
- Country of Manufacture: United States
LS80MT Premium Kit — 80mm Universal Day & Night Modular Telescope
The LS80MT Premium Kit is the finest 80mm solar telescope Lunt makes. Built around a premium FPL53 ED doublet objective with ion-assisted broadband AR coatings, it delivers exceptional contrast and colour correction for both solar and nighttime observation. The SFPT internal double-stack module places two independently pressure-tuned etalons in series, reducing combined system bandpass to <0.28Å — with dual independent Doppler True pressure tuners giving you complete control over bandpass optimisation.
Two pressure-tuned etalons working in series, each with its own tuning knob, each responding instantly to adjustment. The internal architecture maintains perfect optical alignment across the entire bandpass adjustment range. The result is sub-quarter-angstrom performance with the tuning flexibility that only dual pressure systems can provide.
Why This Package?
The SFPT internal double-stack module is included. The internal double-stack architecture means both etalons benefit from pressure tuning rather than mechanical tilt, maintaining perfect optical alignment across the entire bandpass adjustment range. Two independent tuners give you separate control over each etalon for maximum flexibility in dialling in the exact bandpass position you want. The B1800 blocking filter provides 18mm of clear aperture for full-frame imaging capability. The 2" dual-speed focuser with 10:1 fine focus and ZWO EAF compatibility handles every accessory and imaging workflow you throw at it.
Please note: Mounts and tripods shown are for display purposes only and are not included with Solar Ready packages.


What You'll See
At <0.28Å combined bandpass through 80mm of premium FPL53 ED optics, the chromosphere reveals structure that single-stack instruments at any aperture struggle to match. Plage boundaries resolve into sharp cellular networks. Filaments show multi-strand complexity with defined dark cores. Active regions display their full magnetic architecture — penumbral detail, light bridges, and small-scale evolution visible in real time. Prominences show internal threading and flow patterns from base to tip with a clarity that rewards patient observation.
By night, remove the H-alpha module and you have a premium 80mm f/7 FPL53 ED doublet refractor. The same glass that delivers exceptional solar contrast delivers the colour correction and contrast that serious observers demand for lunar, planetary, and deep-sky work. The same 2" dual-speed focuser. The same optical quality. A complete second telescope built into the one you already own.
Specifications
-
Aperture: 80 mm
-
Focal Length: 560 mm
-
Focal Ratio: f/7
-
Objective: FPL53 ED Doublet — ion-assisted broadband anti-reflective (AR) coatings
-
Etalon System: Internal pressure-tuned (Doppler True) + SFPT internal double stack
-
Tuning: Dual independent Doppler True Barometric pressure tuners
-
Single Stack Bandpass: 0.4Å — individually verified
-
Double Stack Bandpass: <0.28Å combined — individually verified
-
Blocking Filter: B1800 (18 mm / 0.71" clear aperture, full-frame compatible)
-
Focuser:
-
-
2" R&P dual-speed 10:1
-
ZWO EAF compatible
- 55-60 mm (2.2-2.4 in) focus travel
- 6.6 lb (3 kg) capacity
-
-
Included Eyepiece: 7.2 mm to 21.5 mm (0.28" to 0.85") zoom — 7 elements, 15 mm (0.59") eye relief, 0.1% AR coatings
-
Finder: Solar handle with integrated red dot finder
-
Dovetail: 5.5" Vixen-style
-
Night Use: Yes — modular; remove solar module. Doublet objective operates without FPL53 colour correction.
| Manufacturer | Lunt Solar Systems |
|---|---|
| Telescope Focal Length | 501 - 600mm |
- 1x Lunt 80mm Refractor Telescope
- 1x Internal Double Stack Module
- 1x 18 mm Blocking Filter Diagonal - 1.25"
- 1x 2" Rack & Pinion Focuser
- 1x Solar Handle with Integrated Red Dot Finder
- 1x 5.5" Vixen-Style Dovetail Bar
- 1x 7.2 mm to 21.5 mm Zoom Eyepiece
- 1x Aluminium Hard Case with Custom-Fit Foam Insert
Lunt Solar Systems has recently upgraded this telescope with a new 0.4Å etalon (standard), delivering even higher contrast and finer solar detail than previous versions. All orders will ship with this latest, improved configuration—no action needed.
- Premium solar kit includes everything needed to begin exploring the Sun in hydrogen-alpha right out of the box (mount and camera not included)
- Pressure-tuned etalons reveal incredible solar detail—prominences, filaments, and surface texture
- Dramatic H-alpha solar activity observation by day, then switch to deep-sky imaging at night in minutes
- Including the SFPT Internal Double Stack for ultra-narrow <0.28Ã…, delivering exceptional solar contrast
LS80MT Premium Kit — 80mm Universal Day & Night Modular Telescope
The LS80MT Premium Kit is the finest 80mm solar telescope Lunt makes. Built around a premium FPL53 ED doublet objective with ion-assisted broadband AR coatings, it delivers exceptional contrast and colour correction for both solar and nighttime observation. The SFPT internal double-stack module places two independently pressure-tuned etalons in series, reducing combined system bandpass to <0.28Å — with dual independent Doppler True pressure tuners giving you complete control over bandpass optimisation.
Two pressure-tuned etalons working in series, each with its own tuning knob, each responding instantly to adjustment. The internal architecture maintains perfect optical alignment across the entire bandpass adjustment range. The result is sub-quarter-angstrom performance with the tuning flexibility that only dual pressure systems can provide.
Why This Package?
The SFPT internal double-stack module is included. The internal double-stack architecture means both etalons benefit from pressure tuning rather than mechanical tilt, maintaining perfect optical alignment across the entire bandpass adjustment range. Two independent tuners give you separate control over each etalon for maximum flexibility in dialling in the exact bandpass position you want. The B1800 blocking filter provides 18mm of clear aperture for full-frame imaging capability. The 2" dual-speed focuser with 10:1 fine focus and ZWO EAF compatibility handles every accessory and imaging workflow you throw at it.
Please note: Mounts and tripods shown are for display purposes only and are not included with Solar Ready packages.


What You'll See
At <0.28Å combined bandpass through 80mm of premium FPL53 ED optics, the chromosphere reveals structure that single-stack instruments at any aperture struggle to match. Plage boundaries resolve into sharp cellular networks. Filaments show multi-strand complexity with defined dark cores. Active regions display their full magnetic architecture — penumbral detail, light bridges, and small-scale evolution visible in real time. Prominences show internal threading and flow patterns from base to tip with a clarity that rewards patient observation.
By night, remove the H-alpha module and you have a premium 80mm f/7 FPL53 ED doublet refractor. The same glass that delivers exceptional solar contrast delivers the colour correction and contrast that serious observers demand for lunar, planetary, and deep-sky work. The same 2" dual-speed focuser. The same optical quality. A complete second telescope built into the one you already own.
Specifications
-
Aperture: 80 mm
-
Focal Length: 560 mm
-
Focal Ratio: f/7
-
Objective: FPL53 ED Doublet — ion-assisted broadband anti-reflective (AR) coatings
-
Etalon System: Internal pressure-tuned (Doppler True) + SFPT internal double stack
-
Tuning: Dual independent Doppler True Barometric pressure tuners
-
Single Stack Bandpass: 0.4Å — individually verified
-
Double Stack Bandpass: <0.28Å combined — individually verified
-
Blocking Filter: B1800 (18 mm / 0.71" clear aperture, full-frame compatible)
-
Focuser:
-
-
2" R&P dual-speed 10:1
-
ZWO EAF compatible
- 55-60 mm (2.2-2.4 in) focus travel
- 6.6 lb (3 kg) capacity
-
-
Included Eyepiece: 7.2 mm to 21.5 mm (0.28" to 0.85") zoom — 7 elements, 15 mm (0.59") eye relief, 0.1% AR coatings
-
Finder: Solar handle with integrated red dot finder
-
Dovetail: 5.5" Vixen-style
-
Night Use: Yes — modular; remove solar module. Doublet objective operates without FPL53 colour correction.
Other Information
- Country of Manufacture: United States
| Manufacturer | Lunt Solar Systems |
|---|---|
| Telescope Focal Length | 501 - 600mm |
- 1x Lunt 80mm Refractor Telescope
- 1x Internal Double Stack Module
- 1x 18 mm Blocking Filter Diagonal - 1.25"
- 1x 2" Rack & Pinion Focuser
- 1x Solar Handle with Integrated Red Dot Finder
- 1x 5.5" Vixen-Style Dovetail Bar
- 1x 7.2 mm to 21.5 mm Zoom Eyepiece
- 1x Aluminium Hard Case with Custom-Fit Foam Insert

Lunt 80mm Universal Ha Solar Telescope with B1800, SFPTP & 10:1 R&P Focuser - Premium Kit
