- Portable pier for a wide variety of EQ, Alt/Az and strain wave/harmonic mount heads.
- Observatory-like stability in a field-ready platform.
- Thoughtful features like independent leveling legs, built-in carrying handle and locking pin.
- Compatible with ZWO AM5/3, Skywatcher Wave and Takahashi EM200 right out of the box.
- Other mount heads compatible with additional adapters (sold separately)

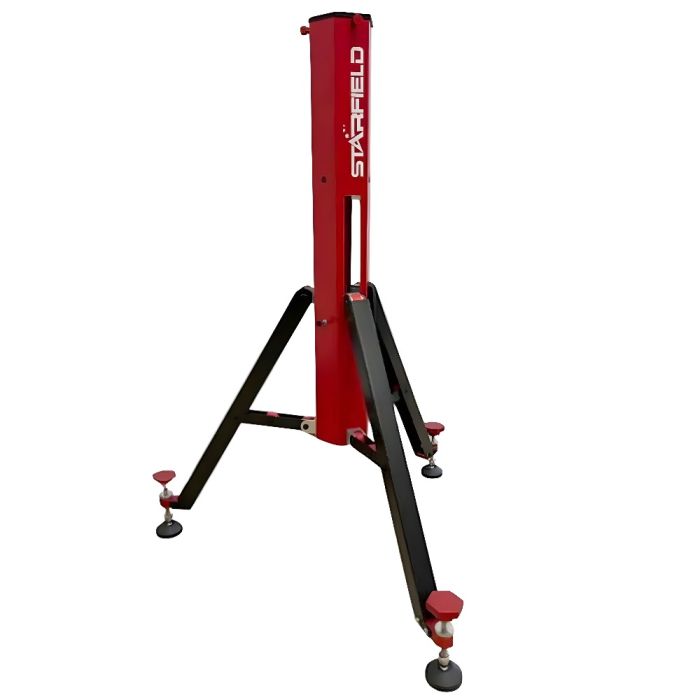

Starfield Tri-Pier 1000B: Field-Ready Precision Pier
The Starfield Pier-1000B is a next-generation portable pier built for astrophotographers and visual observers who want observatory-level stability in a truly field-ready design. Its redesigned internal leg deployment system, paired with a rigid hex-core center column, allows for quick, smooth setup while delivering excellent torsional stiffness and confident tracking performance. The Pier-1000B is well suited for German equatorial, Alt-Az, and modern strain-wave/harmonic-drive mounts alike.
Harmonic mounts that use a standard 3/8" tripod connection—including the ZWO AM3/AM5 series, Sky-Watcher Wave Mount, Rainbow Astro, and similar systems—can be mounted directly out of the box. With the optional Starfield Uni-Plate adapter (sold separately), the pier becomes compatible with a wide range of mounts from manufacturers such as Celestron, Sky-Watcher, iOptron, and more, making it a highly adaptable foundation for nearly any setup! Please note: this is just the Starfield pier, mount heads and other adapters sold seperately.
Versatile Mounting Options
Note: The Starfield Uni-Plate adapter and Pegasus Astro mount adapters are sold separately.
Internal Slide Leg System
A fully enclosed internal slide mechanism keeps setup clean and fast—deploy and retract legs smoothly, then lock down securely, without exposed clamps or bulky hardware.
Hex-Core Center Column
The hexagonal column profile increases rigidity and reduces torsional flex, helping your mount stay locked in for steadier imaging and stable high-magnification observing. Shipped with a 3/8 mount adapter to make attaching popular mounts like the ZWO AM5 or Skywatcher Wave series mount easy with no additional mounting adapters needed.
Vibration-Dampening, Quick-Adjust Feet
Industrial-grade feet help absorb vibration and make leveling easy on uneven ground. Locking collars provide quick visual confirmation that everything is secure. The large Hex head knobs make leveling very easy, even with gloves on.
Built for Real Use
Constructed from laser-cut steel with precision welding and CNC-formed components, the Pier-1000B is designed for repeatable performance whether you're in the backyard, at a dark-sky site, or building a mobile setup. Built-in handle for easy transport when not in carry bag.
Specifications
- Color: Red
- Material: High-grade laser-cut steel
- Construction: Welded frame, CNC precision bending
- Column design: Hexagonal profile
- Finish: Powder coated steel and anodized aluminum
- Leg deployment: Fully enclosed internal slide mechanism / bearing
- Feet: Quick-adjust vibration-dampening feet with locking collars
- Pier Height: 41" (105cm)
- Leveling range: 2 in (55 mm) per foot
- Weight: 22 lb (10 kg)
- Payload capacity: 180 lb (81.6 kg)
Other Information
- Country of Manufacture: Canada
Starfield Tri-Pier 1000B: Field-Ready Precision Pier
The Starfield Pier-1000B is a next-generation portable pier built for astrophotographers and visual observers who want observatory-level stability in a truly field-ready design. Its redesigned internal leg deployment system, paired with a rigid hex-core center column, allows for quick, smooth setup while delivering excellent torsional stiffness and confident tracking performance. The Pier-1000B is well suited for German equatorial, Alt-Az, and modern strain-wave/harmonic-drive mounts alike.
Harmonic mounts that use a standard 3/8" tripod connection—including the ZWO AM3/AM5 series, Sky-Watcher Wave Mount, Rainbow Astro, and similar systems—can be mounted directly out of the box. With the optional Starfield Uni-Plate adapter (sold separately), the pier becomes compatible with a wide range of mounts from manufacturers such as Celestron, Sky-Watcher, iOptron, and more, making it a highly adaptable foundation for nearly any setup! Please note: this is just the Starfield pier, mount heads and other adapters sold seperately.
Versatile Mounting Options
Note: The Starfield Uni-Plate adapter and Pegasus Astro mount adapters are sold separately.
Internal Slide Leg System
A fully enclosed internal slide mechanism keeps setup clean and fast—deploy and retract legs smoothly, then lock down securely, without exposed clamps or bulky hardware.
Hex-Core Center Column
The hexagonal column profile increases rigidity and reduces torsional flex, helping your mount stay locked in for steadier imaging and stable high-magnification observing. Shipped with a 3/8 mount adapter to make attaching popular mounts like the ZWO AM5 or Skywatcher Wave series mount easy with no additional mounting adapters needed.
Vibration-Dampening, Quick-Adjust Feet
Industrial-grade feet help absorb vibration and make leveling easy on uneven ground. Locking collars provide quick visual confirmation that everything is secure. The large Hex head knobs make leveling very easy, even with gloves on.
Built for Real Use
Constructed from laser-cut steel with precision welding and CNC-formed components, the Pier-1000B is designed for repeatable performance whether you're in the backyard, at a dark-sky site, or building a mobile setup. Built-in handle for easy transport when not in carry bag.
Specifications
- Color: Red
- Material: High-grade laser-cut steel
- Construction: Welded frame, CNC precision bending
- Column design: Hexagonal profile
- Finish: Powder coated steel and anodized aluminum
- Leg deployment: Fully enclosed internal slide mechanism / bearing
- Feet: Quick-adjust vibration-dampening feet with locking collars
- Pier Height: 41" (105cm)
- Leveling range: 2 in (55 mm) per foot
- Weight: 22 lb (10 kg)
- Payload capacity: 180 lb (81.6 kg)
- Starfield Tri-Pier 1000B - Red
- 3/8 Mount adapter
- 3x retaining thumb screws
- Carry bag
- Portable pier for a wide variety of EQ, Alt/Az and strain wave/harmonic mount heads.
- Observatory-like stability in a field-ready platform.
- Thoughtful features like independent leveling legs, built-in carrying handle and locking pin.
- Compatible with ZWO AM5/3, Skywatcher Wave and Takahashi EM200 right out of the box.
- Other mount heads compatible with additional adapters (sold separately)
Starfield Tri-Pier 1000B: Field-Ready Precision Pier
The Starfield Pier-1000B is a next-generation portable pier built for astrophotographers and visual observers who want observatory-level stability in a truly field-ready design. Its redesigned internal leg deployment system, paired with a rigid hex-core center column, allows for quick, smooth setup while delivering excellent torsional stiffness and confident tracking performance. The Pier-1000B is well suited for German equatorial, Alt-Az, and modern strain-wave/harmonic-drive mounts alike.
Harmonic mounts that use a standard 3/8" tripod connection—including the ZWO AM3/AM5 series, Sky-Watcher Wave Mount, Rainbow Astro, and similar systems—can be mounted directly out of the box. With the optional Starfield Uni-Plate adapter (sold separately), the pier becomes compatible with a wide range of mounts from manufacturers such as Celestron, Sky-Watcher, iOptron, and more, making it a highly adaptable foundation for nearly any setup! Please note: this is just the Starfield pier, mount heads and other adapters sold seperately.
Versatile Mounting Options
Note: The Starfield Uni-Plate adapter and Pegasus Astro mount adapters are sold separately.
Internal Slide Leg System
A fully enclosed internal slide mechanism keeps setup clean and fast—deploy and retract legs smoothly, then lock down securely, without exposed clamps or bulky hardware.
Hex-Core Center Column
The hexagonal column profile increases rigidity and reduces torsional flex, helping your mount stay locked in for steadier imaging and stable high-magnification observing. Shipped with a 3/8 mount adapter to make attaching popular mounts like the ZWO AM5 or Skywatcher Wave series mount easy with no additional mounting adapters needed.
Vibration-Dampening, Quick-Adjust Feet
Industrial-grade feet help absorb vibration and make leveling easy on uneven ground. Locking collars provide quick visual confirmation that everything is secure. The large Hex head knobs make leveling very easy, even with gloves on.
Built for Real Use
Constructed from laser-cut steel with precision welding and CNC-formed components, the Pier-1000B is designed for repeatable performance whether you're in the backyard, at a dark-sky site, or building a mobile setup. Built-in handle for easy transport when not in carry bag.
Specifications
- Color: Red
- Material: High-grade laser-cut steel
- Construction: Welded frame, CNC precision bending
- Column design: Hexagonal profile
- Finish: Powder coated steel and anodized aluminum
- Leg deployment: Fully enclosed internal slide mechanism / bearing
- Feet: Quick-adjust vibration-dampening feet with locking collars
- Pier Height: 41" (105cm)
- Leveling range: 2 in (55 mm) per foot
- Weight: 22 lb (10 kg)
- Payload capacity: 180 lb (81.6 kg)
Other Information
- Country of Manufacture: Canada
- Starfield Tri-Pier 1000B - Red
- 3/8 Mount adapter
- 3x retaining thumb screws
- Carry bag
