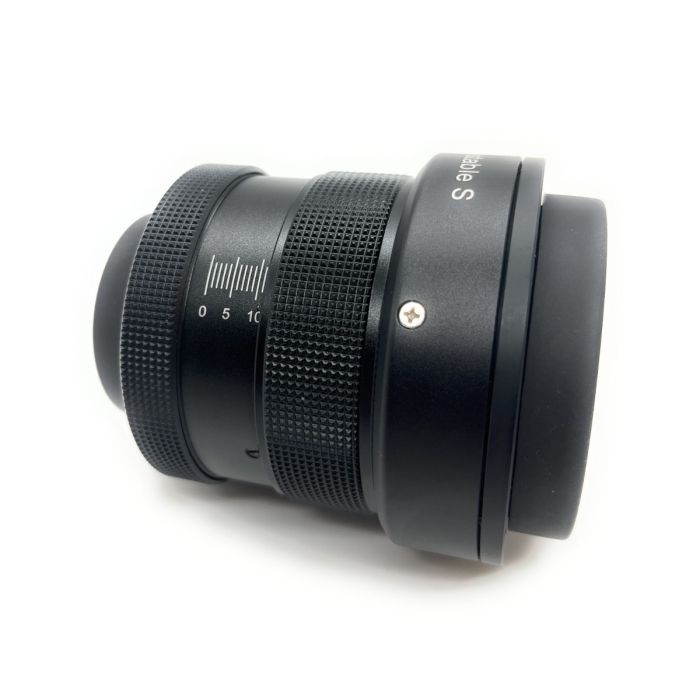

Starfield 0.8x Reducer / Adjustable Field Flattener for 70mm to 102mm Telescopes
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
The Starfield 0.8x adjustable reducer and flattener makes finding the correct back focus easy! Fighting with adapters is a thing of the past! By adjusting the reducer to achieve 55mm of back focus is simple, and if more adjustment is needed for fine tuning all that is needed is a small twist even when using accessories such as filter wheels and rotators. Illumination and correction up to 42 mm sensor diameter - can be used up to full frame size
Just add up the thickness of all the accessories, plus the distance to your sensor and adjust based on the table below and then set the reducer to the number that is calculated. The reducer attaches directly to the Géar 80 / 90 mm telescope focuser by removing the Axil lock.
Using the supplied 1.5mm Allen key, loosen the three screws a half turn and then unscrew the lock. Thread the reducer onto the focuser.
Filters can be added inside the reducer.
This Reducer can also be used for other telescopes than range from 70mm to 102mm aperture
- 102 mm / focal ratio f/7 - 55 mm
- 90 mm / focal ration f/6 - 56 mm
- 80 mm / focal ratio f/7 - 57.6 mm
- 80 mm / focal ratio f/6 - 59.6 mm
- 70 mm / focal ratio f/6 - 61.6 mm
Specifications
- Design: Corrector and reducer for refractor telescopes
- Telescope connection: M63x1 external thread
- Camera connection: M48x0.75 external thread
- Reduction factor:0.8 xLenses: 3 lenses with ED element
- Coating: multi-coating and internal blackening
- Working distance: variable (adjustable)
- Adjustment range of the distance: 0-17 mm stepless
- Suitable for: Refractor telescopes from 102 mm to 155 mm aperture with focusers from 2.5"
Other Information
- Country of Manufacture: China
