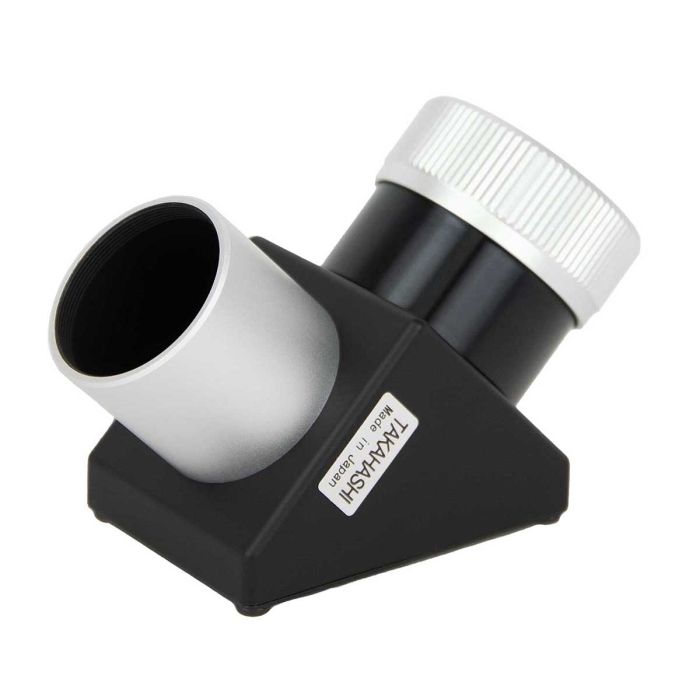

Takahashi 1.25" Telescope Prism Star Diagonal
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Takahashi 1.25" diagonal allows the use of 1.25" eyepieces
- Utilizes a high quality prism instead of a mirror
- Design uses a non-marring compression ring to hold your eyepieces in place
Takahashi's 1.25-Inch star diagonal uses a high quality prism instead of a mirror. This means a lifetime of service where the coatings won't erode. The prism inside the Takahashi star diagonal returns 100-percent internal reflectivity. Its exit and entry surfaces of the prism are multi-coated for minimum light loss.
To protect the barrels of your good eyepieces, Takahashi has designed its star diagonal with a non-marring molded compression ring to hold the eyepiece in place. The compression ring is tightened by a ribbed thread-on grip around the eyepiece which simply turns to tighten its hold on your precision cargo.
Specifications:
- Angle: 90 degree
- Diagonal Barrel Size: 1.25"
- Diagonal Type: Star Diagonal
- Weight: 4 oz / 114 gm
- Prism body/housing material: Plastic
- 1.25" nosepiece on telescope side is threaded for standard 1.25" filters (M28.5x0.6 female thread)
- Insertion depth in 1.25" eyepiece holder: 32mm
- Optical path length (as measured by Agena): 63mm
- No dust plugs or caps included
Other Information
- Country of Manufacture: Japan
