Takahashi E-160 Epsilon 160mm f/3.3 ED Astrograph OTA
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Fast f/3.3 system for capturing faint nebulae in dramatically shorter exposures.
- Hyperbolic optics + ED corrector deliver sharp, coma-free stars edge to edge.
- Wide, flat 44mm image circle ideal for full-frame sensors and wide-field imaging.
- Precision focuser ensures stable, repeatable focus even with heavier cameras.
Medium-Aperture Model, Prioritizing Imaging Performance over Brightness
The Epsilon series astrographs are engineered specifically for high-performance astrophotography. Takahashi’s proprietary design combines a hyperbolic concave primary mirror with a two-element corrector, dramatically reducing spherical aberration, coma, and chromatic aberration—by nearly 50% compared to traditional Schmidt camera designs.
The E-160ED blends the easy handling of the E-130D with the advanced performance of the E-180ED. Its 160 mm aperture and 530 mm focal length deliver a flat, fully corrected field optimized for full-frame sensors. An ED glass corrector achieves pinpoint stars with spot sizes as small as 3 μm at the edge of the frame, while the offset secondary and refined spider design suppress stray light. A precision push-pull collimation system and removable center cover ensure accurate alignment and quick thermal acclimation. Note: Price includes OTA only. Mount, tripod, tube holder, and finder sold separately. The E-160ED corrector is not compatible with older E-160 OTAs.

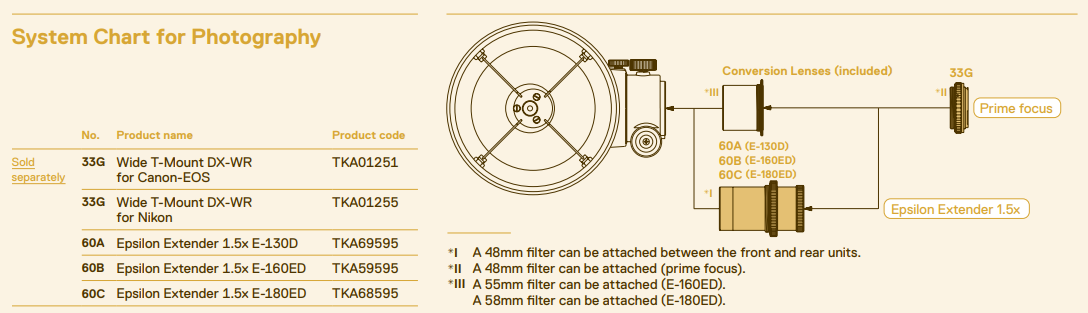

System Chart for Photography
Takahashi E-160ED Specifications
- Optical Design: Hyperbolic Newtonian
- Effective aperture: 160 mm
- Oblique mirror minor diameter: 63 mm
- Correction lens: 2 elements in 2 groups (1 of which is ED glass)
- Focal length: 530 mm
- Focal ratio: f/3.3
- Image circle: φ44 mm (angle of view: 4.8°)
- Lens barrel diameter: 8.0 in (204 mm)
- Tube length: 22.8 in (580 mm)
- Weight: 15.2 lb (6.9 kg)
- Viewfinder: 6x30 or 7x50, Sold separately
Other Information
- Country of Manufacture: Japan
Medium-Aperture Model, Prioritizing Imaging Performance over Brightness
The Epsilon series astrographs are engineered specifically for high-performance astrophotography. Takahashi’s proprietary design combines a hyperbolic concave primary mirror with a two-element corrector, dramatically reducing spherical aberration, coma, and chromatic aberration—by nearly 50% compared to traditional Schmidt camera designs.
The E-160ED blends the easy handling of the E-130D with the advanced performance of the E-180ED. Its 160 mm aperture and 530 mm focal length deliver a flat, fully corrected field optimized for full-frame sensors. An ED glass corrector achieves pinpoint stars with spot sizes as small as 3 μm at the edge of the frame, while the offset secondary and refined spider design suppress stray light. A precision push-pull collimation system and removable center cover ensure accurate alignment and quick thermal acclimation. Note: Price includes OTA only. Mount, tripod, tube holder, and finder sold separately. The E-160ED corrector is not compatible with older E-160 OTAs.
System Chart for Photography
Takahashi E-160ED Specifications
- Optical Design: Hyperbolic Newtonian
- Effective aperture: 160 mm
- Oblique mirror minor diameter: 63 mm
- Correction lens: 2 elements in 2 groups (1 of which is ED glass)
- Focal length: 530 mm
- Focal ratio: f/3.3
- Image circle: φ44 mm (angle of view: 4.8°)
- Lens barrel diameter: 8.0 in (204 mm)
- Tube length: 22.8 in (580 mm)
- Weight: 15.2 lb (6.9 kg)
- Viewfinder: 6x30 or 7x50, Sold separately
- 1x Optical Tube Assembly
- 1x Visual adapter TKP69005
- 1x Visual coupling (S) TKP00103
- 1x Corrector lens TKP59580
- 1x Eyepiece adapter 31.7 TKP00101
- Fast f/3.3 system for capturing faint nebulae in dramatically shorter exposures.
- Hyperbolic optics + ED corrector deliver sharp, coma-free stars edge to edge.
- Wide, flat 44mm image circle ideal for full-frame sensors and wide-field imaging.
- Precision focuser ensures stable, repeatable focus even with heavier cameras.
Medium-Aperture Model, Prioritizing Imaging Performance over Brightness
The Epsilon series astrographs are engineered specifically for high-performance astrophotography. Takahashi’s proprietary design combines a hyperbolic concave primary mirror with a two-element corrector, dramatically reducing spherical aberration, coma, and chromatic aberration—by nearly 50% compared to traditional Schmidt camera designs.
The E-160ED blends the easy handling of the E-130D with the advanced performance of the E-180ED. Its 160 mm aperture and 530 mm focal length deliver a flat, fully corrected field optimized for full-frame sensors. An ED glass corrector achieves pinpoint stars with spot sizes as small as 3 μm at the edge of the frame, while the offset secondary and refined spider design suppress stray light. A precision push-pull collimation system and removable center cover ensure accurate alignment and quick thermal acclimation. Note: Price includes OTA only. Mount, tripod, tube holder, and finder sold separately. The E-160ED corrector is not compatible with older E-160 OTAs.
System Chart for Photography
Takahashi E-160ED Specifications
- Optical Design: Hyperbolic Newtonian
- Effective aperture: 160 mm
- Oblique mirror minor diameter: 63 mm
- Correction lens: 2 elements in 2 groups (1 of which is ED glass)
- Focal length: 530 mm
- Focal ratio: f/3.3
- Image circle: φ44 mm (angle of view: 4.8°)
- Lens barrel diameter: 8.0 in (204 mm)
- Tube length: 22.8 in (580 mm)
- Weight: 15.2 lb (6.9 kg)
- Viewfinder: 6x30 or 7x50, Sold separately
Other Information
- Country of Manufacture: Japan
| Telescope Focal Length | 501 - 600mm |
|---|
- 1x Optical Tube Assembly
- 1x Visual adapter TKP69005
- 1x Visual coupling (S) TKP00103
- 1x Corrector lens TKP59580
- 1x Eyepiece adapter 31.7 TKP00101
