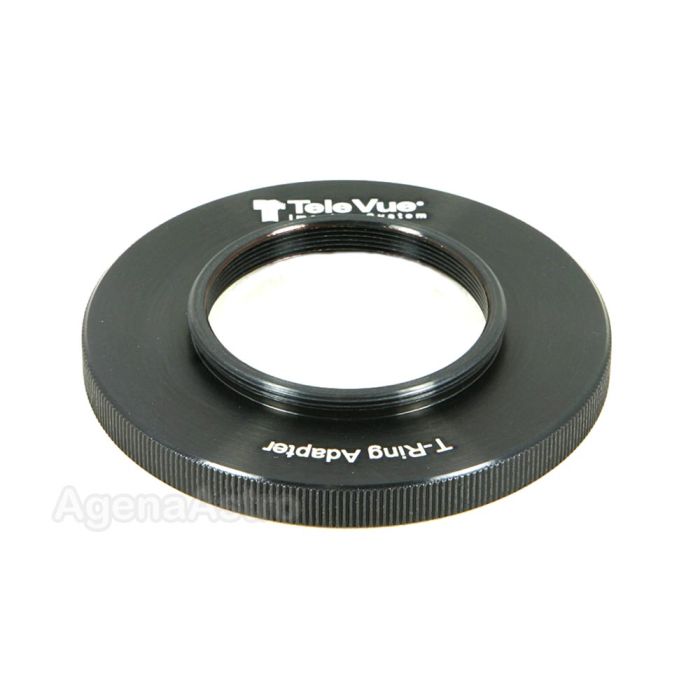

The Tele Vue Standard T-Ring Adaptor for 2.4" # TRG-1072 provides a standard M42x0.75 T-ring thread to attach your camera to. Recommended for cameras with APS-size or smaller chips. Not for use with wider M48 T rings.
Note that Tele Vue's reference to 2.4" refers to the minimum inside diameter of their focuser. The actual thread has a nominal diameter of 2.56" and features 24 threads per inch (2.56"-24tpi).
Specifications:
- Total length = 10.7mm (0.42in)
- Optical length = 6.6mm (0.26in)
- Length of male thread = 4.1mm (0.16in)
- Male thread specification = M42x0.75
- Length of female thread = 5.0mm (0.2in)
- Female thread specification = 2.56"-24
- Clear aperture = 37.2mm (1.46in)
- Maximum outside diameter = 69.5mm (2.74")
- Weight = 0.7oz (20g)
Other Information
- Country of Manufacture: United States
The Tele Vue Standard T-Ring Adaptor for 2.4" # TRG-1072 provides a standard M42x0.75 T-ring thread to attach your camera to. Recommended for cameras with APS-size or smaller chips. Not for use with wider M48 T rings.
Note that Tele Vue's reference to 2.4" refers to the minimum inside diameter of their focuser. The actual thread has a nominal diameter of 2.56" and features 24 threads per inch (2.56"-24tpi).
Specifications:
- Total length = 10.7mm (0.42in)
- Optical length = 6.6mm (0.26in)
- Length of male thread = 4.1mm (0.16in)
- Male thread specification = M42x0.75
- Length of female thread = 5.0mm (0.2in)
- Female thread specification = 2.56"-24
- Clear aperture = 37.2mm (1.46in)
- Maximum outside diameter = 69.5mm (2.74")
- Weight = 0.7oz (20g)
The Tele Vue Standard T-Ring Adaptor for 2.4" # TRG-1072 provides a standard M42x0.75 T-ring thread to attach your camera to. Recommended for cameras with APS-size or smaller chips. Not for use with wider M48 T rings.
Note that Tele Vue's reference to 2.4" refers to the minimum inside diameter of their focuser. The actual thread has a nominal diameter of 2.56" and features 24 threads per inch (2.56"-24tpi).
Specifications:
- Total length = 10.7mm (0.42in)
- Optical length = 6.6mm (0.26in)
- Length of male thread = 4.1mm (0.16in)
- Male thread specification = M42x0.75
- Length of female thread = 5.0mm (0.2in)
- Female thread specification = 2.56"-24
- Clear aperture = 37.2mm (1.46in)
- Maximum outside diameter = 69.5mm (2.74")
- Weight = 0.7oz (20g)
Other Information
- Country of Manufacture: United States
