Rouz Astro Tube Rings for 146mm (5.7 in) Diameter Telescopes (Set of 2)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Carbon Fiber Composite: CAD designed with the FDM process for strength and light weight
- Improved Results: Significantly increases mount performance & image quality
- Double-Hinge Design: two hinges help "wrap" around the tube for a stronger, more even grip over that of a simple single-hinge or clamp, improving stability.
- Machined Knobs: CNC hollowed & knurled aluminum red (with hex bolt)
- Modular Design: Various compatible & lightweight dovetails and handles
- Felt-lined: premium non-woven needled felt to prevent tube damage
Rouz Astro Carbon Fiber Tube Rings for 146mm (5.7 in) Telescope Tubes
Upgrade your telescope setup with the Rouz Astro precision-engineered carbon fiber optical tube mounting rings, designed to deliver a secure hold without adding unnecessary weight. CAD-designed using the FDM process for an ideal balance of strength and lightweight performance, these rings can help improve mount stability, tracking accuracy, and overall image quality. The double-hinge design wraps evenly around the tube for a stronger, more secure grip than basic single-hinge styles, while premium felt lining helps protect your optical tube from scratches or damage. Finished with CNC-machined red aluminum knobs and a modular platform compatible with optional carbon fiber top plates, aluminum bottom plates, or accessory handles (sold separately), these rings make it easy to build a setup tailored to your needs.
Check out Rouz Astro put these tube rings to the test below!
Engineered for Maximum Stability

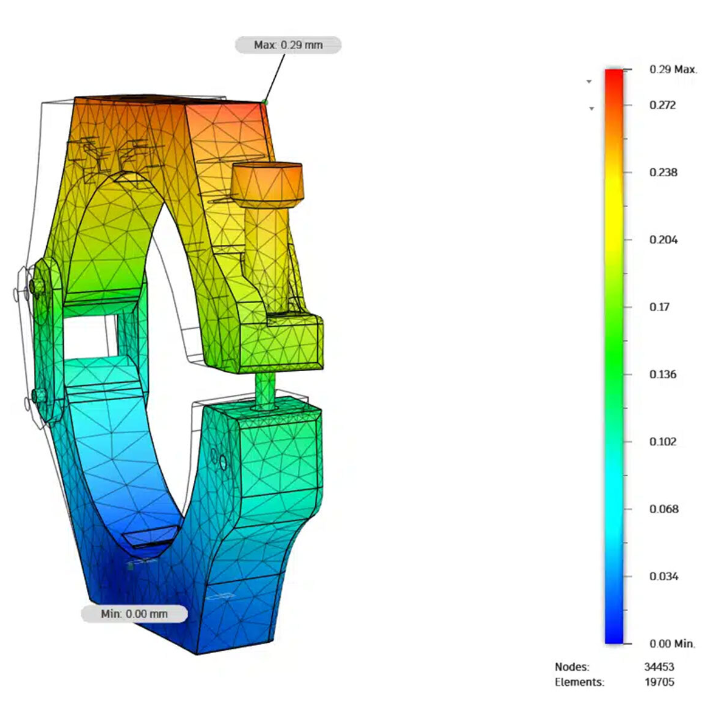

These Rouz Astro tube rings feature a precision-engineered design validated through finite element analysis (FEA), demonstrating exceptionally low flexure under load, measuring just 0.29 mm at maximum deformation. The color-mapped stress simulation highlights their rigid, vibration-resistant construction, ensuring reliable alignment and secure support for imaging-grade optical setups. Machined with tight tolerances and optimized geometry, these rings deliver the structural stability astrophotographers need for long-exposure performance and consistent guiding accuracy.
Specifications:
- Size: 5.7" (146 mm)
- Threads: stainless steel M6
- Material: composite of polymers and carbon fiber, fused over 282°C (540°F)
- Bolt spacing: 50.8 mm (2.0 in)
- Adjustable size: tolerance of +/- 2.5 mm (0.1 in) larger or smaller than listed
- Wide ring width: 22 mm – 28 mm (0.9 in – 1.1 in) for extra stability
- Stainless steel hinges & hardware: powder coated, aluminum T6061 knobs
- Weight per ring: 7.05-24.7 oz (0.44-1.54 lb) per ring, depending on size
- High UV, water and temperature resistant up to 66°C (150°F)
- Sold as a pair: 2x rings
Other Information
- Country of Manufacture: Canada
Rouz Astro Carbon Fiber Tube Rings for 146mm (5.7 in) Telescope Tubes
Upgrade your telescope setup with the Rouz Astro precision-engineered carbon fiber optical tube mounting rings, designed to deliver a secure hold without adding unnecessary weight. CAD-designed using the FDM process for an ideal balance of strength and lightweight performance, these rings can help improve mount stability, tracking accuracy, and overall image quality. The double-hinge design wraps evenly around the tube for a stronger, more secure grip than basic single-hinge styles, while premium felt lining helps protect your optical tube from scratches or damage. Finished with CNC-machined red aluminum knobs and a modular platform compatible with optional carbon fiber top plates, aluminum bottom plates, or accessory handles (sold separately), these rings make it easy to build a setup tailored to your needs.
Check out Rouz Astro put these tube rings to the test below!
Engineered for Maximum Stability
These Rouz Astro tube rings feature a precision-engineered design validated through finite element analysis (FEA), demonstrating exceptionally low flexure under load, measuring just 0.29 mm at maximum deformation. The color-mapped stress simulation highlights their rigid, vibration-resistant construction, ensuring reliable alignment and secure support for imaging-grade optical setups. Machined with tight tolerances and optimized geometry, these rings deliver the structural stability astrophotographers need for long-exposure performance and consistent guiding accuracy.
Specifications:
- Size: 5.7" (146 mm)
- Threads: stainless steel M6
- Material: composite of polymers and carbon fiber, fused over 282°C (540°F)
- Bolt spacing: 50.8 mm (2.0 in)
- Adjustable size: tolerance of +/- 2.5 mm (0.1 in) larger or smaller than listed
- Wide ring width: 22 mm – 28 mm (0.9 in – 1.1 in) for extra stability
- Stainless steel hinges & hardware: powder coated, aluminum T6061 knobs
- Weight per ring: 7.05-24.7 oz (0.44-1.54 lb) per ring, depending on size
- High UV, water and temperature resistant up to 66°C (150°F)
- Sold as a pair: 2x rings
- 2x 5.7-inch tube rings (set of 2)
- 8x bolts
- Carbon Fiber Composite: CAD designed with the FDM process for strength and light weight
- Improved Results: Significantly increases mount performance & image quality
- Double-Hinge Design: two hinges help "wrap" around the tube for a stronger, more even grip over that of a simple single-hinge or clamp, improving stability.
- Machined Knobs: CNC hollowed & knurled aluminum red (with hex bolt)
- Modular Design: Various compatible & lightweight dovetails and handles
- Felt-lined: premium non-woven needled felt to prevent tube damage
Rouz Astro Carbon Fiber Tube Rings for 146mm (5.7 in) Telescope Tubes
Upgrade your telescope setup with the Rouz Astro precision-engineered carbon fiber optical tube mounting rings, designed to deliver a secure hold without adding unnecessary weight. CAD-designed using the FDM process for an ideal balance of strength and lightweight performance, these rings can help improve mount stability, tracking accuracy, and overall image quality. The double-hinge design wraps evenly around the tube for a stronger, more secure grip than basic single-hinge styles, while premium felt lining helps protect your optical tube from scratches or damage. Finished with CNC-machined red aluminum knobs and a modular platform compatible with optional carbon fiber top plates, aluminum bottom plates, or accessory handles (sold separately), these rings make it easy to build a setup tailored to your needs.
Check out Rouz Astro put these tube rings to the test below!
Engineered for Maximum Stability
These Rouz Astro tube rings feature a precision-engineered design validated through finite element analysis (FEA), demonstrating exceptionally low flexure under load, measuring just 0.29 mm at maximum deformation. The color-mapped stress simulation highlights their rigid, vibration-resistant construction, ensuring reliable alignment and secure support for imaging-grade optical setups. Machined with tight tolerances and optimized geometry, these rings deliver the structural stability astrophotographers need for long-exposure performance and consistent guiding accuracy.
Specifications:
- Size: 5.7" (146 mm)
- Threads: stainless steel M6
- Material: composite of polymers and carbon fiber, fused over 282°C (540°F)
- Bolt spacing: 50.8 mm (2.0 in)
- Adjustable size: tolerance of +/- 2.5 mm (0.1 in) larger or smaller than listed
- Wide ring width: 22 mm – 28 mm (0.9 in – 1.1 in) for extra stability
- Stainless steel hinges & hardware: powder coated, aluminum T6061 knobs
- Weight per ring: 7.05-24.7 oz (0.44-1.54 lb) per ring, depending on size
- High UV, water and temperature resistant up to 66°C (150°F)
- Sold as a pair: 2x rings
Other Information
- Country of Manufacture: Canada
- 2x 5.7-inch tube rings (set of 2)
- 8x bolts
Rouz Astro Tube Rings for 146mm (5.7 in) Diameter Telescopes (Set of 2)
