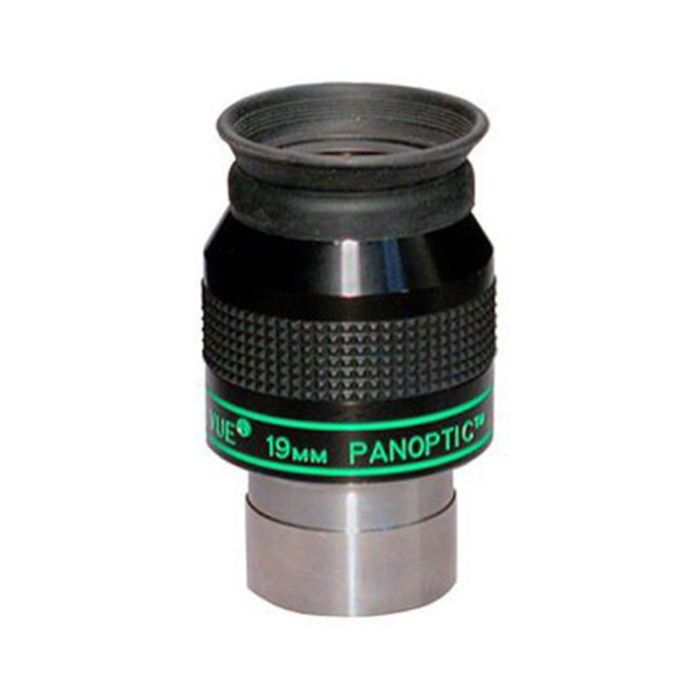

Tele Vue 1.25" Panoptic Eyepiece - 19mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Size, weight, and performance make the Tele Vue 19mm Panoptic eyepiece an ideal mid-power chioce. It is the ideal "soul-mate" to TeleVue's Bino Vue. It is parfocal with smaller Plossls and Naglers.
The Tack-Sharp, Long Eye-Relief 68 degree Field Eyepiece
With the Panoptic series, Tele Vue has taken the Wide-Field concept to Nagler-like performance levels - A meaningful advance over any eyepiece in its 68° field class.
All Tele Vue Panoptic eyepieces have proprietary tuned full multi-coatings, blackened lens edges, high index glasses, fold-down eyeguards, rubber grip rings, cover for the eyeguard, an undercut in the barrel for extra locking security, and filter threads. All Tele Vue eyepiece lines are proprietary, in-house designs manufactured to their specifications and tolerances. Every eyepiece is individually tested at Tele Vue to ensure it meets high optical and cosmetic standards.
Concept: Using my Wide-Field design as a starting point, I looked to bring Nagler-like performance to the 60+° field class with the Panoptic series. The idea of a lens to "interface" between the eyepiece and Barlow struck me as the proper way to keep size, weight and cost to a minimum while improving edge of field performance even further. I later developed this idea into the Powermates. — Al Nagler
Other Information
- Country of Manufacture: Japan
Size, weight, and performance make the Tele Vue 19mm Panoptic eyepiece an ideal mid-power chioce. It is the ideal "soul-mate" to TeleVue's Bino Vue. It is parfocal with smaller Plossls and Naglers.
The Tack-Sharp, Long Eye-Relief 68 degree Field Eyepiece
With the Panoptic series, Tele Vue has taken the Wide-Field concept to Nagler-like performance levels - A meaningful advance over any eyepiece in its 68° field class.
All Tele Vue Panoptic eyepieces have proprietary tuned full multi-coatings, blackened lens edges, high index glasses, fold-down eyeguards, rubber grip rings, cover for the eyeguard, an undercut in the barrel for extra locking security, and filter threads. All Tele Vue eyepiece lines are proprietary, in-house designs manufactured to their specifications and tolerances. Every eyepiece is individually tested at Tele Vue to ensure it meets high optical and cosmetic standards.
Concept: Using my Wide-Field design as a starting point, I looked to bring Nagler-like performance to the 60+° field class with the Panoptic series. The idea of a lens to "interface" between the eyepiece and Barlow struck me as the proper way to keep size, weight and cost to a minimum while improving edge of field performance even further. I later developed this idea into the Powermates. — Al Nagler
| Manufacturer | Tele Vue |
|---|---|
| Eyepiece Series | Panoptic |
| Focal Length | 19mm |
| Barrel Size | 1.25" (31.7mm) |
| Apparent Field of View (Mfg Specified) | 68° |
| Eye Relief (Designed) | 13mm |
| Filter Threads | Standard 1.25" Filter Thread (M28.5 x 0.6) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 6 |
| Lens Groups | 4 |
| Blackened Lens Edges | Yes |
| Barrel Type | With safety undercut |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 52x80mm |
| Maximum Width | 1.7" (43.2mm) |
| Field Stop Diameter | 21.3mm |
| Rubber Eye Guard | Yes |
| Warranty | Limited lifetime warranty |
| Weight | 6.6 oz |
| Misc. Information | - Suitable for use with Tele Vue Bino Vue binoviewer |
