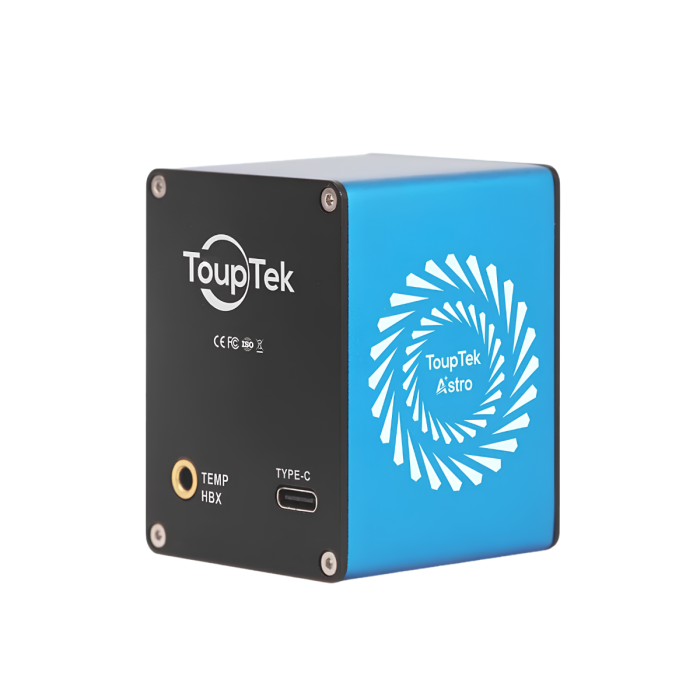

ToupTek AAF Astro Automatic Focuser
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Fully compatible with ASCOM drivers offering broad support for a wide range of third-party astronomy software
- Allows for direct manual focusing control using the included hand controller
- Features an onboard temperature sensor that works alongside software
- Plug-and-play setup providing exceptionally stable hardware and software performance

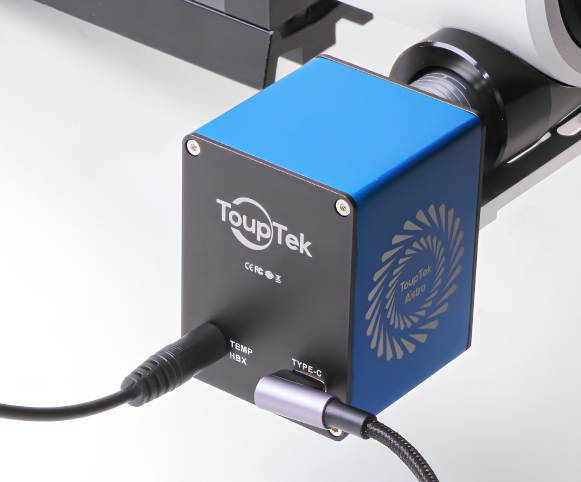

ToupTek Astro Auto Focuser: Your New Partner in Astrophotography
The ToupTek AAF (Astro Auto Focuser) is one of the essentail asscessories for astrophotography and observation. It precisely adjusts the position of the telescope's focuser with automated operation, ensuring accuracy and efficiency in astrophotography and observation. The AAF is plug-and-play, significantly enhancing the efficiency and precision of astrophotography observation. It supports the focusing needs of the most telescopes on the market and adapts to various environmental conditions.
All-in-One Automated Focusing System
Engineered as a complete plug-and-play solution, this integrated focuser delivers incredibly stable hardware and software performance across all major astrophotography environments. It offers seamless, wide compatibility with ASCOM drivers and a massive range of third-party astronomy software, alongside multi-platform availability via comprehensive INDI drivers. Software-driven automatic control ensures precise, worry-free focusing adjustments, while an onboard temperature sensor automatically corrects focus shifts in real time based on environmental temperature changes. For ultimate on-the-fly versatility, the system also supports convenient, zero-software manual adjustments using the included hand controller.
Specifications
-
Housing Material: Aluminum Alloy
-
Dimensions: 45 x 60 x 47 mm (1.77 x 2.36 x 1.85 in)
-
Motor Specifications: 35mm Stepper Motor
-
Torque: 1.2 N·m (10.62 in-lbs)
-
Effective Load Capacity: 5 kg (11 lbs)
-
Data Interface: Type-C (5V USB)
-
Driver & Software Support: ASCOM and comprehensive INDI drivers
-
Temperature Sensor: Onboard sensor for automated temperature compensation and focus adjustment
-
Manual Control: Supports manual adjustments using the included handle
- Support list:
- Sky Watcher: Bull series, Black Diamond series, DOB series, etc.
- Sharpstar: All series
- SKYROVER: All series
- Germany TS refractive / Astro tech series

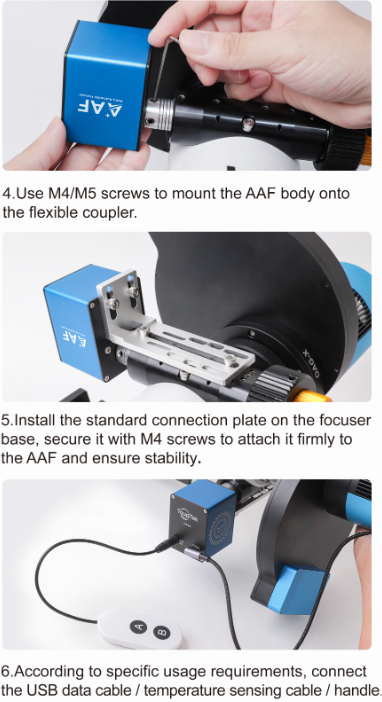

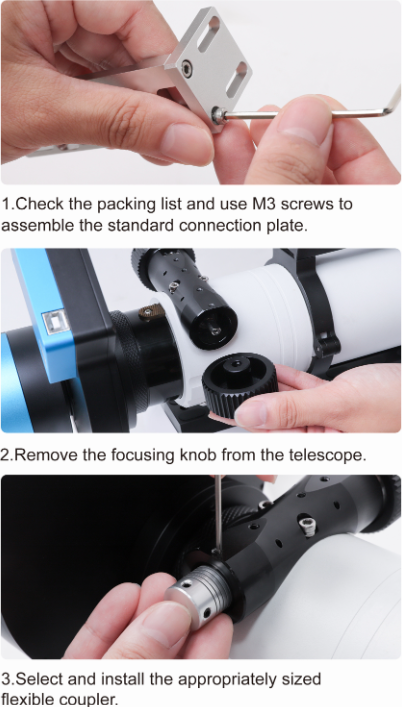

Installation Overview

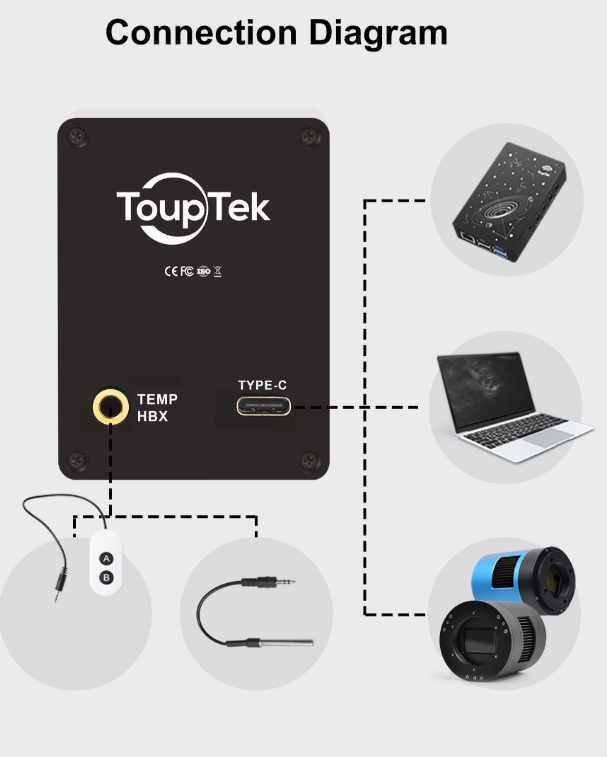

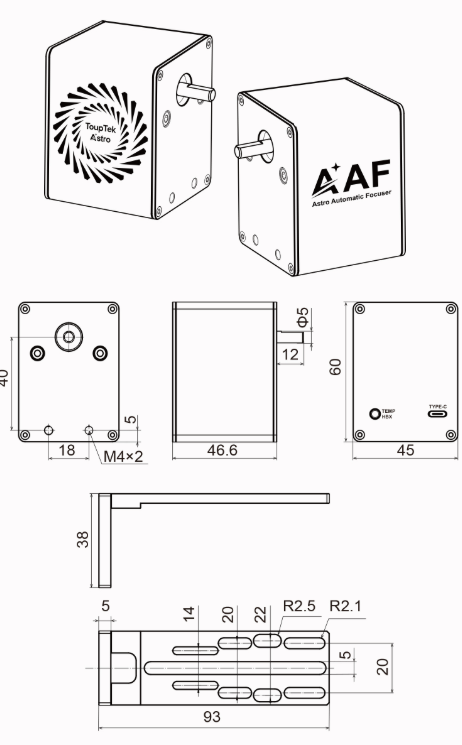

Important Diagrams
Other Information
- Country of Manufacture: China
ToupTek Astro Auto Focuser: Your New Partner in Astrophotography
The ToupTek AAF (Astro Auto Focuser) is one of the essentail asscessories for astrophotography and observation. It precisely adjusts the position of the telescope's focuser with automated operation, ensuring accuracy and efficiency in astrophotography and observation. The AAF is plug-and-play, significantly enhancing the efficiency and precision of astrophotography observation. It supports the focusing needs of the most telescopes on the market and adapts to various environmental conditions.
All-in-One Automated Focusing System
Engineered as a complete plug-and-play solution, this integrated focuser delivers incredibly stable hardware and software performance across all major astrophotography environments. It offers seamless, wide compatibility with ASCOM drivers and a massive range of third-party astronomy software, alongside multi-platform availability via comprehensive INDI drivers. Software-driven automatic control ensures precise, worry-free focusing adjustments, while an onboard temperature sensor automatically corrects focus shifts in real time based on environmental temperature changes. For ultimate on-the-fly versatility, the system also supports convenient, zero-software manual adjustments using the included hand controller.
Specifications
-
Housing Material: Aluminum Alloy
-
Dimensions: 45 x 60 x 47 mm (1.77 x 2.36 x 1.85 in)
-
Motor Specifications: 35mm Stepper Motor
-
Torque: 1.2 N·m (10.62 in-lbs)
-
Effective Load Capacity: 5 kg (11 lbs)
-
Data Interface: Type-C (5V USB)
-
Driver & Software Support: ASCOM and comprehensive INDI drivers
-
Temperature Sensor: Onboard sensor for automated temperature compensation and focus adjustment
-
Manual Control: Supports manual adjustments using the included handle
- Support list:
- Sky Watcher: Bull series, Black Diamond series, DOB series, etc.
- Sharpstar: All series
- SKYROVER: All series
- Germany TS refractive / Astro tech series
Installation Overview
Important Diagrams
- 1x AAF body
- 1x Standard connection bracket
- 1x Handle (Controller)
- 4x Flexible couplings
- 4x M3 screws
- 2x M4 Screws
- 4x Washers
- 1x Type-C data cable (1m)
- 1x Temp sensor (0.1m)
- 1x Hex wrench set (M2.5, M3, M4, M5)
- 1x Quick start guide
- Fully compatible with ASCOM drivers offering broad support for a wide range of third-party astronomy software
- Allows for direct manual focusing control using the included hand controller
- Features an onboard temperature sensor that works alongside software
- Plug-and-play setup providing exceptionally stable hardware and software performance
ToupTek Astro Auto Focuser: Your New Partner in Astrophotography
The ToupTek AAF (Astro Auto Focuser) is one of the essentail asscessories for astrophotography and observation. It precisely adjusts the position of the telescope's focuser with automated operation, ensuring accuracy and efficiency in astrophotography and observation. The AAF is plug-and-play, significantly enhancing the efficiency and precision of astrophotography observation. It supports the focusing needs of the most telescopes on the market and adapts to various environmental conditions.
All-in-One Automated Focusing System
Engineered as a complete plug-and-play solution, this integrated focuser delivers incredibly stable hardware and software performance across all major astrophotography environments. It offers seamless, wide compatibility with ASCOM drivers and a massive range of third-party astronomy software, alongside multi-platform availability via comprehensive INDI drivers. Software-driven automatic control ensures precise, worry-free focusing adjustments, while an onboard temperature sensor automatically corrects focus shifts in real time based on environmental temperature changes. For ultimate on-the-fly versatility, the system also supports convenient, zero-software manual adjustments using the included hand controller.
Specifications
-
Housing Material: Aluminum Alloy
-
Dimensions: 45 x 60 x 47 mm (1.77 x 2.36 x 1.85 in)
-
Motor Specifications: 35mm Stepper Motor
-
Torque: 1.2 N·m (10.62 in-lbs)
-
Effective Load Capacity: 5 kg (11 lbs)
-
Data Interface: Type-C (5V USB)
-
Driver & Software Support: ASCOM and comprehensive INDI drivers
-
Temperature Sensor: Onboard sensor for automated temperature compensation and focus adjustment
-
Manual Control: Supports manual adjustments using the included handle
- Support list:
- Sky Watcher: Bull series, Black Diamond series, DOB series, etc.
- Sharpstar: All series
- SKYROVER: All series
- Germany TS refractive / Astro tech series
Installation Overview
Important Diagrams
Other Information
- Country of Manufacture: China
- 1x AAF body
- 1x Standard connection bracket
- 1x Handle (Controller)
- 4x Flexible couplings
- 4x M3 screws
- 2x M4 Screws
- 4x Washers
- 1x Type-C data cable (1m)
- 1x Temp sensor (0.1m)
- 1x Hex wrench set (M2.5, M3, M4, M5)
- 1x Quick start guide
