ToupTek AFW-M 5x2 Filter Wheel for 2" Filters
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 5-Position Capacity that holds 2" filters, allowing LRGB or SHO filter sets to remain image ready
- Optimized for Full-Frame Cameras and designed to accommodate large filters, making it ideal for full-frame sensors
- Motorized Filter Changing enables fast filter switching without removing the camera, streamlining your imaging sessions
ToupTek AFW-L: 5 Position Astro Filter Wheel
Designed for serious monochrome astrophotography systems, the ToupTek Astro AFW-M Motorized Filter Wheel provides fast, automated filter changes while maintaining a compact and lightweight imaging train. Featuring five positions for 2-inch mounted filters, the AFW-M offers ample capacity for a complete LRGB filter set or a customized combination of broadband and narrowband filters, allowing you to keep your most-used filters installed and ready for imaging. Its slim 20mm profile helps minimize backfocus requirements, making it easy to integrate into a wide range of imaging systems.
Driven by a high-precision stepper motor, the AFW-M delivers accurate and repeatable filter positioning for fully automated imaging sessions. The wheel supports USB connectivity and includes power-loss position memory, allowing it to automatically return to the correct filter position after a restart. Designed for use with large-format astronomy cameras, the AFW-M accommodates 2-inch filters to help reduce vignetting and maintain excellent illumination across larger sensors. Whether you're capturing galaxies, nebulae, or star clusters, the AFW-M provides the reliability, precision, and convenience needed for efficient astrophotography.
Specifications
-
Filter Capacity: 5 Positions
-
Supported Filter Sizes:
-
2" Mounted Filters
-
50mm Unmounted Filters
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB

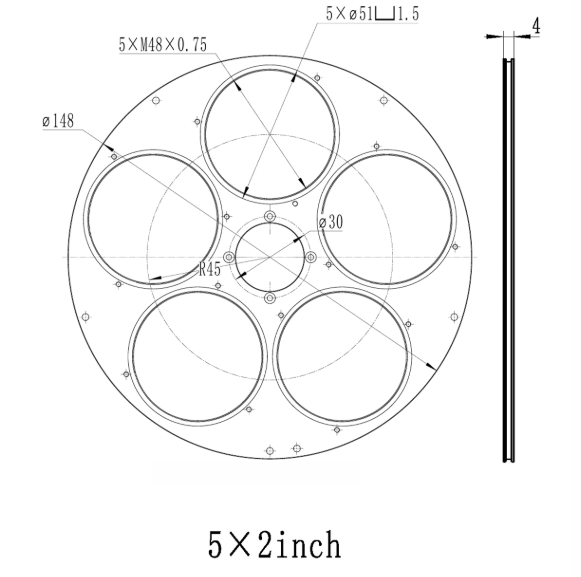

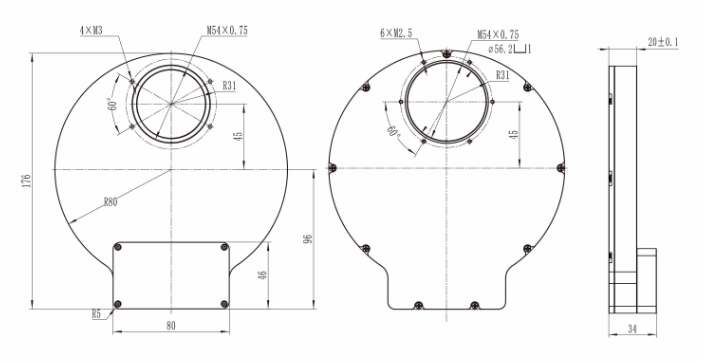

Important Diagrams
Other Information
- Country of Manufacture: China
ToupTek AFW-L: 5 Position Astro Filter Wheel
Designed for serious monochrome astrophotography systems, the ToupTek Astro AFW-M Motorized Filter Wheel provides fast, automated filter changes while maintaining a compact and lightweight imaging train. Featuring five positions for 2-inch mounted filters, the AFW-M offers ample capacity for a complete LRGB filter set or a customized combination of broadband and narrowband filters, allowing you to keep your most-used filters installed and ready for imaging. Its slim 20mm profile helps minimize backfocus requirements, making it easy to integrate into a wide range of imaging systems.
Driven by a high-precision stepper motor, the AFW-M delivers accurate and repeatable filter positioning for fully automated imaging sessions. The wheel supports USB connectivity and includes power-loss position memory, allowing it to automatically return to the correct filter position after a restart. Designed for use with large-format astronomy cameras, the AFW-M accommodates 2-inch filters to help reduce vignetting and maintain excellent illumination across larger sensors. Whether you're capturing galaxies, nebulae, or star clusters, the AFW-M provides the reliability, precision, and convenience needed for efficient astrophotography.
Specifications
-
Filter Capacity: 5 Positions
-
Supported Filter Sizes:
-
2" Mounted Filters
-
50mm Unmounted Filters
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB

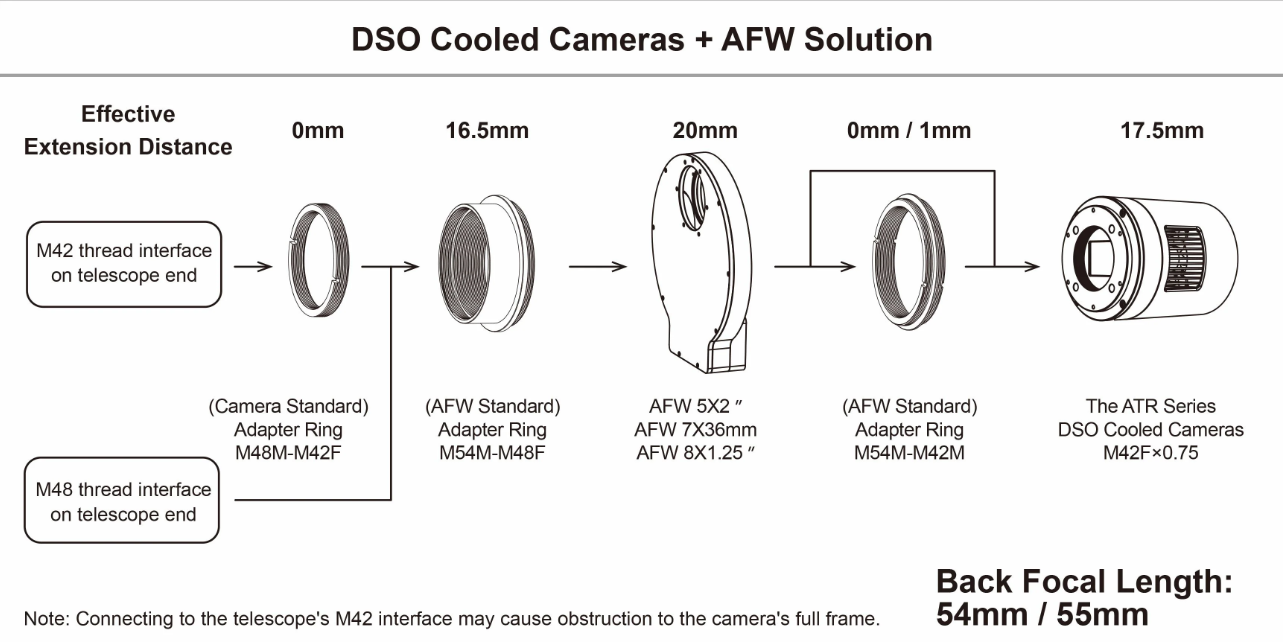

Important Diagrams
- 1x AFW-M electronic filter wheel
- 1x USB2.0 (2m)
- 1x M42-M54 adapter (1mm)
- 1x M48-M42 adapter (0mm)
- 1x M54-M48 adapter (16.5mm)
- 1x Screwdriver
- M2 screws (8mm)
- M2 screws (4mm)
- 5-Position Capacity that holds 2" filters, allowing LRGB or SHO filter sets to remain image ready
- Optimized for Full-Frame Cameras and designed to accommodate large filters, making it ideal for full-frame sensors
- Motorized Filter Changing enables fast filter switching without removing the camera, streamlining your imaging sessions
ToupTek AFW-L: 5 Position Astro Filter Wheel
Designed for serious monochrome astrophotography systems, the ToupTek Astro AFW-M Motorized Filter Wheel provides fast, automated filter changes while maintaining a compact and lightweight imaging train. Featuring five positions for 2-inch mounted filters, the AFW-M offers ample capacity for a complete LRGB filter set or a customized combination of broadband and narrowband filters, allowing you to keep your most-used filters installed and ready for imaging. Its slim 20mm profile helps minimize backfocus requirements, making it easy to integrate into a wide range of imaging systems.
Driven by a high-precision stepper motor, the AFW-M delivers accurate and repeatable filter positioning for fully automated imaging sessions. The wheel supports USB connectivity and includes power-loss position memory, allowing it to automatically return to the correct filter position after a restart. Designed for use with large-format astronomy cameras, the AFW-M accommodates 2-inch filters to help reduce vignetting and maintain excellent illumination across larger sensors. Whether you're capturing galaxies, nebulae, or star clusters, the AFW-M provides the reliability, precision, and convenience needed for efficient astrophotography.
Specifications
-
Filter Capacity: 5 Positions
-
Supported Filter Sizes:
-
2" Mounted Filters
-
50mm Unmounted Filters
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB
Important Diagrams
Other Information
- Country of Manufacture: China
- 1x AFW-M electronic filter wheel
- 1x USB2.0 (2m)
- 1x M42-M54 adapter (1mm)
- 1x M48-M42 adapter (0mm)
- 1x M54-M48 adapter (16.5mm)
- 1x Screwdriver
- M2 screws (8mm)
- M2 screws (4mm)
ToupTek AFW-M 5x2 Filter Wheel for 2" Filters
