ToupTek AFW-M 8x1.25 Filter Wheel for 1.25" Filters
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 8-Position Capacity that holds 1.25" mounted filters, allowing LRGB + SHO filter sets to remain image-ready
- Compact Imaging Train Design with a slim 20mm optical thickness, ideal for systems with limited backfocus
- Motorized Filter Changing enables fast filter switching without removing the camera, streamlining automated imaging sessions
ToupTek AFW-L: 8 Position Astro Filter Wheel
Specifications
-
Filter Capacity: 8 Positions
-
Supported Filter Sizes: 1.25" mounted
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB

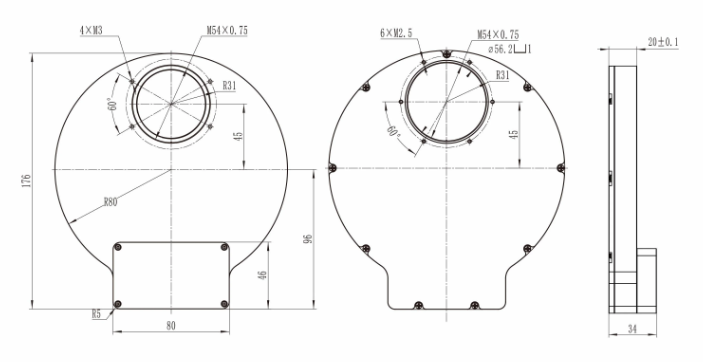

Important Diagrams
Other Information
- Country of Manufacture: China
ToupTek AFW-L: 8 Position Astro Filter Wheel
Specifications
-
Filter Capacity: 8 Positions
-
Supported Filter Sizes: 1.25" mounted
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB

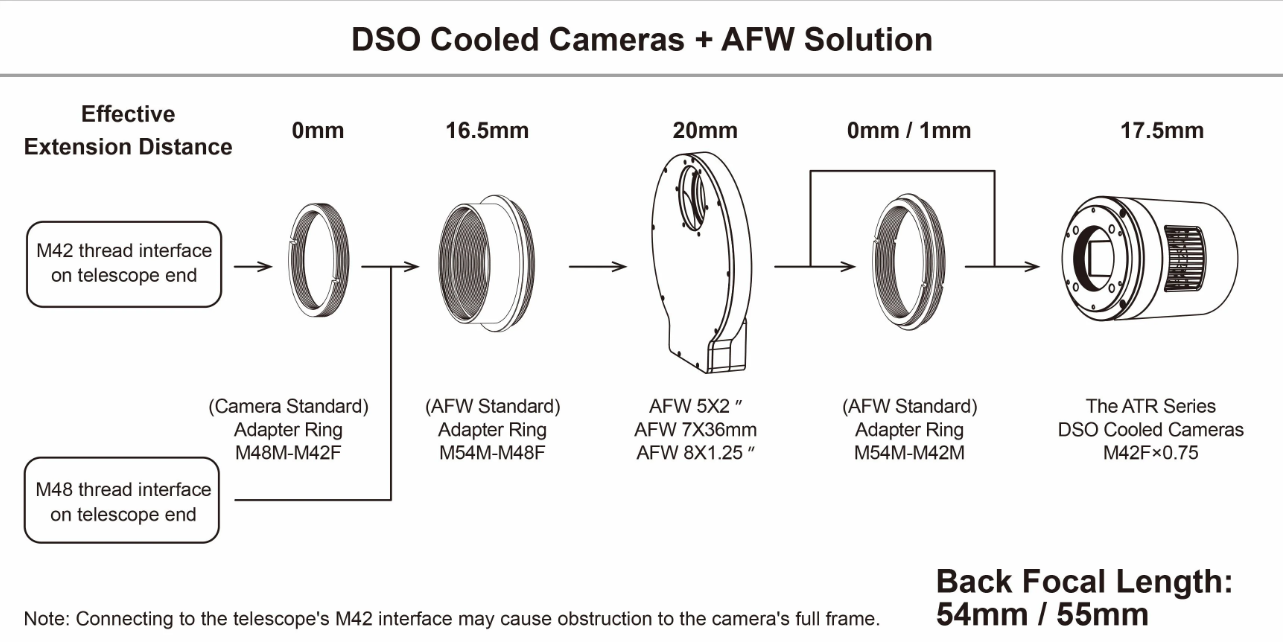

Important Diagrams
- 1x AFW-M electronic filter wheel
- 1x USB2.0 (2m)
- 1x M42-M54 adapter (1mm)
- 1x M48-M42 adapter (0mm)
- 1x M54-M48 adapter (16.5mm)
- 1x M54-M42 (1mm)
- 1x Screwdriver
- M2 screws (8mm)
- M2 screws (4mm)
- 8-Position Capacity that holds 1.25" mounted filters, allowing LRGB + SHO filter sets to remain image-ready
- Compact Imaging Train Design with a slim 20mm optical thickness, ideal for systems with limited backfocus
- Motorized Filter Changing enables fast filter switching without removing the camera, streamlining automated imaging sessions
ToupTek AFW-L: 8 Position Astro Filter Wheel
Specifications
-
Filter Capacity: 8 Positions
-
Supported Filter Sizes: 1.25" mounted
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB

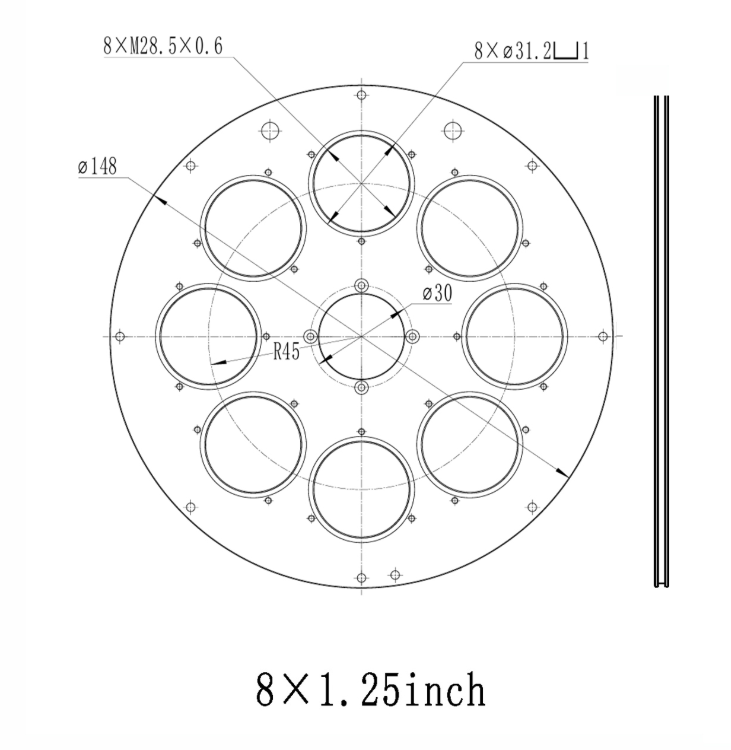

Important Diagrams
Other Information
- Country of Manufacture: China
- 1x AFW-M electronic filter wheel
- 1x USB2.0 (2m)
- 1x M42-M54 adapter (1mm)
- 1x M48-M42 adapter (0mm)
- 1x M54-M48 adapter (16.5mm)
- 1x M54-M42 (1mm)
- 1x Screwdriver
- M2 screws (8mm)
- M2 screws (4mm)
ToupTek AFW-M 8x1.25 Filter Wheel for 1.25" Filters
