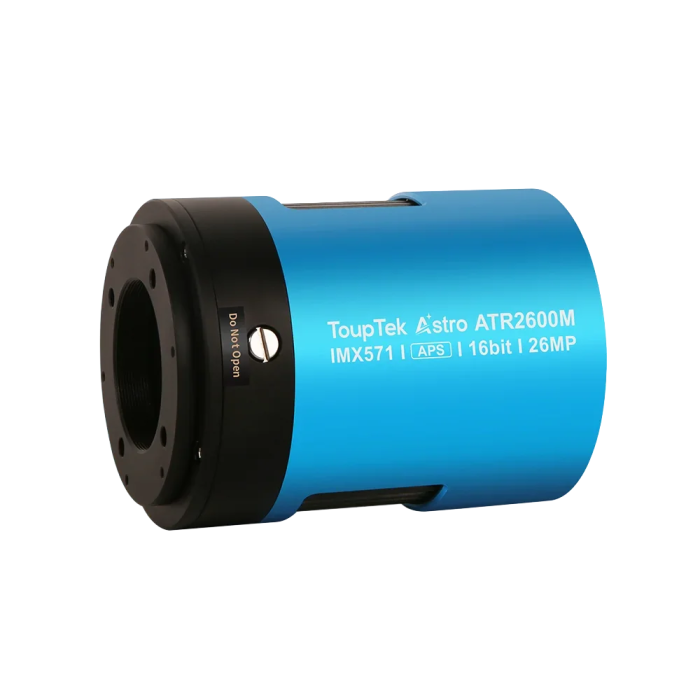

ToupTek ATR2600M Cooled Mono Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines ultra-large pixels for high light sensitivity with an anti-reflective (AR) coated glass window to maximize light throughput and prevent ghosting
- Cools the sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR2600M is a professional astronomy camera that combines high precision, high sensitivity, and high stability, bringing users an unprecedented experience in deep-sky photo shooting. ATR2600M features a Sony back-illuminated IMX571 sensor, high gain mode and low noise mode with a readout noise as low as 0.883e-. Native 16bit ADC offers an ultra-high 14 stops of dynamic range, zero amp-glow, and an extra high full well mode! The full well capacity can reach 51 ke- in normal mode, and up to 100 ke- in high full well mode. Its extraordinary performance and extensive usage will give astrophiles a great astrophotography experience.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications

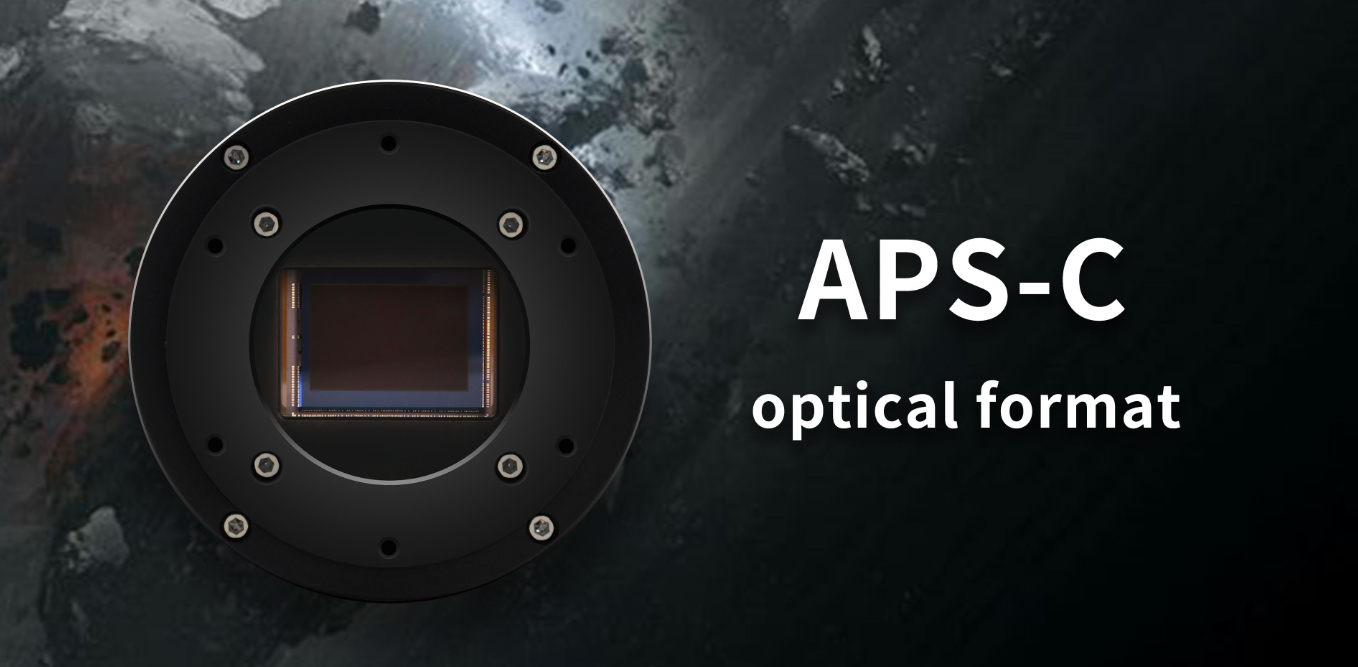

ATR2600M features Sony IMX571 APS-C Optical Format
Resolution: 6224x4168
Pixel Size: 3.76μm*3.76μm
Image Area: 23.5mmx15.7mm,
Diagonal: 28.3mm
Fast DDR3 Memory
ATR2600M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission
TEC cooling system
ATR2600M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR2600M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR2600M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Anti-dew technology
ATR2600M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX571 Mono
-
Format: APS-C
-
Sensor Dimensions: 23.4 mm x 15.7 mm (0.92 in x 0.62 in)
-
Diagonal: 28.3 mm (1.11 in)
-
MAX fps: 13.3 fps (at full resolution, 16-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by using the included M42 short adapter)
-
Resolution: 26 MP (6224 x 4168 px)
-
Pixel Size: 3.76 µm x 3.76 µm
-
ADC: 16-bit
-
Peak Quantum Efficiency (QE): >91%
-
Full-Well: Up to 51,000ke- (reaches up to 100,000ke- in ultra-high full-well mode)
-
DDR Memory: 512MB DDR3
-
Readout Noise: 0.88e to 2.4e
-
Backlit: Yes (Back-illuminated technology)
-
Weight: Approx. 540 g (1.19 lb) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100 nm)

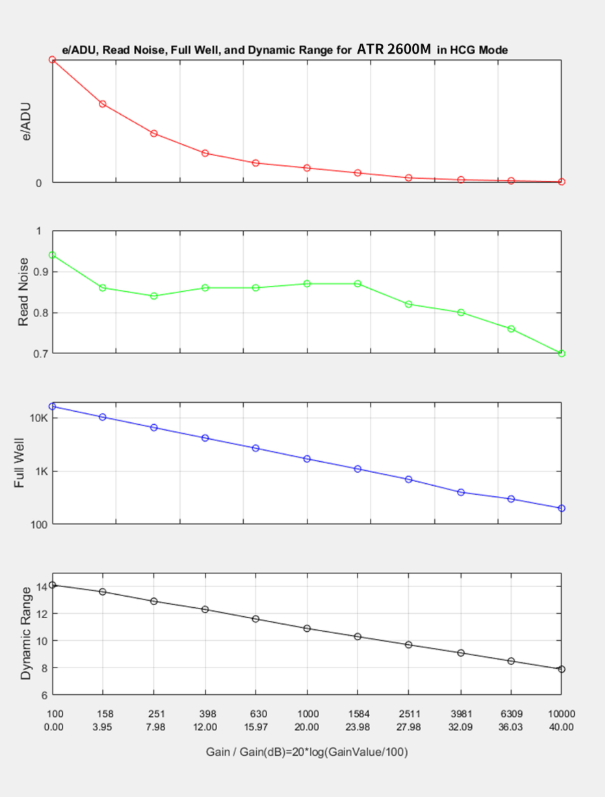

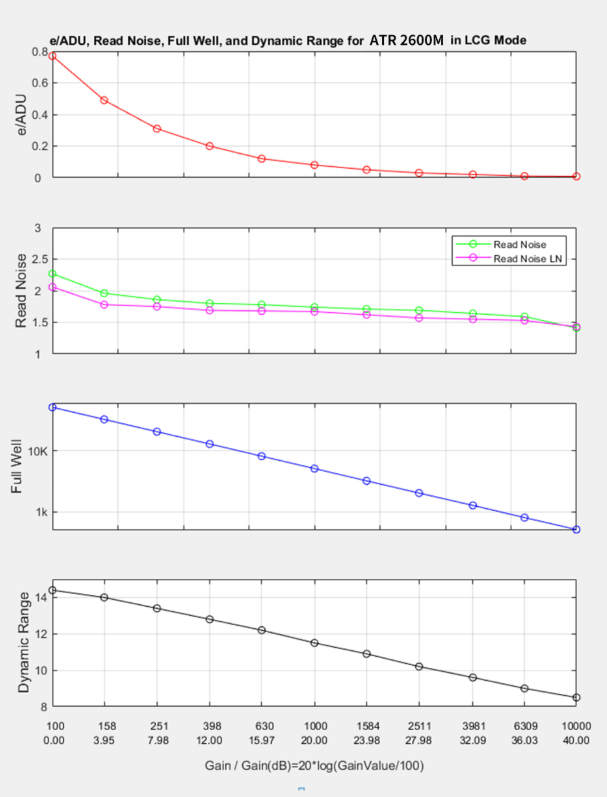

Performance Analysis Charts
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
Other Information
- Country of Manufacture: China
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR2600M is a professional astronomy camera that combines high precision, high sensitivity, and high stability, bringing users an unprecedented experience in deep-sky photo shooting. ATR2600M features a Sony back-illuminated IMX571 sensor, high gain mode and low noise mode with a readout noise as low as 0.883e-. Native 16bit ADC offers an ultra-high 14 stops of dynamic range, zero amp-glow, and an extra high full well mode! The full well capacity can reach 51 ke- in normal mode, and up to 100 ke- in high full well mode. Its extraordinary performance and extensive usage will give astrophiles a great astrophotography experience.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
ATR2600M features Sony IMX571 APS-C Optical Format
Resolution: 6224x4168
Pixel Size: 3.76μm*3.76μm
Image Area: 23.5mmx15.7mm,
Diagonal: 28.3mm
Fast DDR3 Memory
ATR2600M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission
TEC cooling system
ATR2600M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR2600M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR2600M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Anti-dew technology
ATR2600M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX571 Mono
-
Format: APS-C
-
Sensor Dimensions: 23.4 mm x 15.7 mm (0.92 in x 0.62 in)
-
Diagonal: 28.3 mm (1.11 in)
-
MAX fps: 13.3 fps (at full resolution, 16-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by using the included M42 short adapter)
-
Resolution: 26 MP (6224 x 4168 px)
-
Pixel Size: 3.76 µm x 3.76 µm
-
ADC: 16-bit
-
Peak Quantum Efficiency (QE): >91%
-
Full-Well: Up to 51,000ke- (reaches up to 100,000ke- in ultra-high full-well mode)
-
DDR Memory: 512MB DDR3
-
Readout Noise: 0.88e to 2.4e
-
Backlit: Yes (Back-illuminated technology)
-
Weight: Approx. 540 g (1.19 lb) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100 nm)
Performance Analysis Charts
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
- 1x Camera Body
- 1x M42 adapter (12.5mm)
- 1x Extender (16.5mm)
- 1x Extender (21mm)
- 1x M48-M42 Extender (0mm)
- 1x Power Adapter
- 1x Power Cable
- 1x USB 3.0 Cable (1.5mm)
- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines ultra-large pixels for high light sensitivity with an anti-reflective (AR) coated glass window to maximize light throughput and prevent ghosting
- Cools the sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
