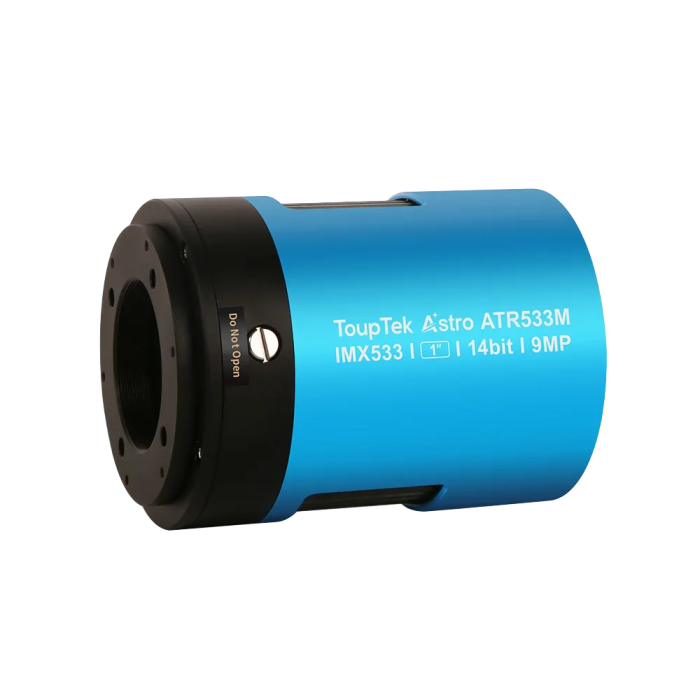

ToupTek ATR533M Cooled Mono Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines ultra-large pixels for high light sensitivity with an anti-reflective (AR) coated glass window to maximize light throughput and prevent ghosting
- Cools the sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR533M leverages SONY advanced optical technology boasting 9 megapixels and high QE, allowing users to easily capture clearer deep-sky images. With no amp-glow, an ultra-low readout noise as low as 1.1e, and 3.76μm square pixels, it ensures exceptional image quality. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance. It is a camera specially created for beginners of deep-sky photography!
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications

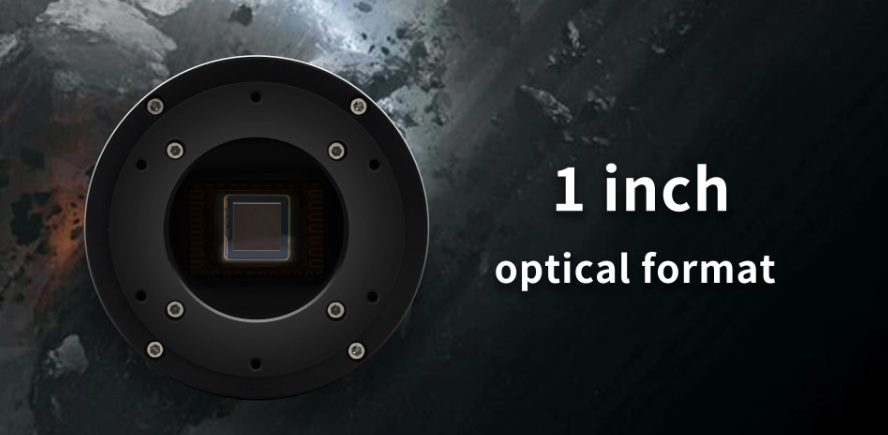

ATR533M features Sony imx533 1-inch Optical Format Color sensor Resolution: 3008*3008 Pixel Size: 3.76μm*3.76μm Image Area: 11.31mmx11.28mm Diagonal: 15.97mm
Fast DDR3 Memory
ATR533M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission
TEC cooling system
ATR533M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR533M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR533M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Anti-dew technology
ATR533M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX533 Mono
-
Format: 1-inch
-
Sensor Dimensions: 11.31 mm x 11.28 mm (0.45 in x 0.44 in)
-
Diagonal: 15.97 mm (0.63 in)
-
MAX fps: 40 fps (at full resolution, 14-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by using the included M42 adapter)
-
Resolution: 9 MP (3008 x 3008 px)
-
Pixel Size: 3.76µm x 3.76µm
-
ADC: 14-bit
-
Peak Quantum Efficiency (QE): >90%
-
Full-Well: Up to 52,000e
-
DDR Memory: 512MB DDR3
-
Readout Noise: 1.1e to 1.11e
-
Backlit: Yes (Back-illuminated technology)
-
Weight: Approx. 540 g (1.19 lb) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100 nm)

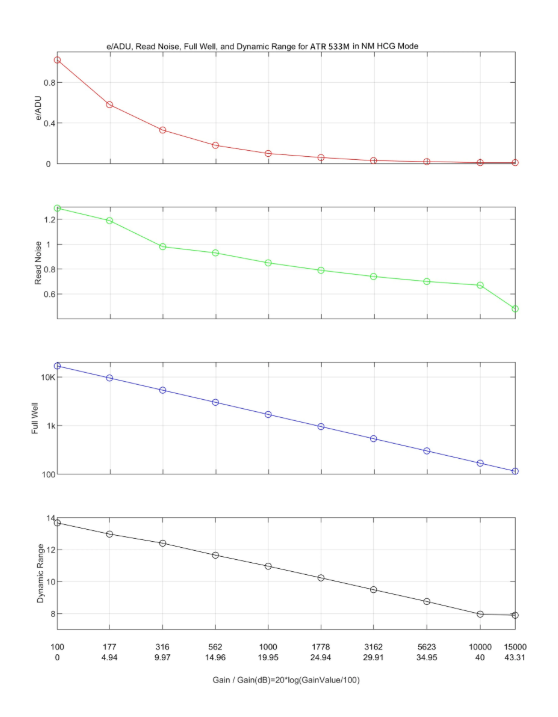

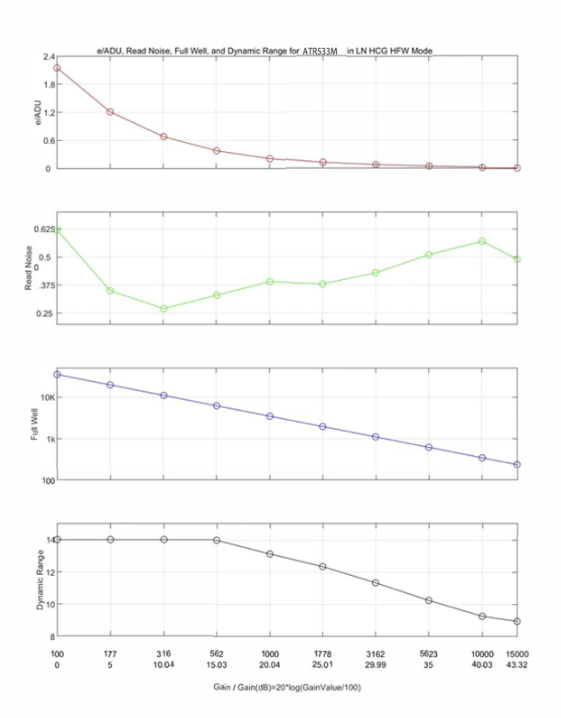

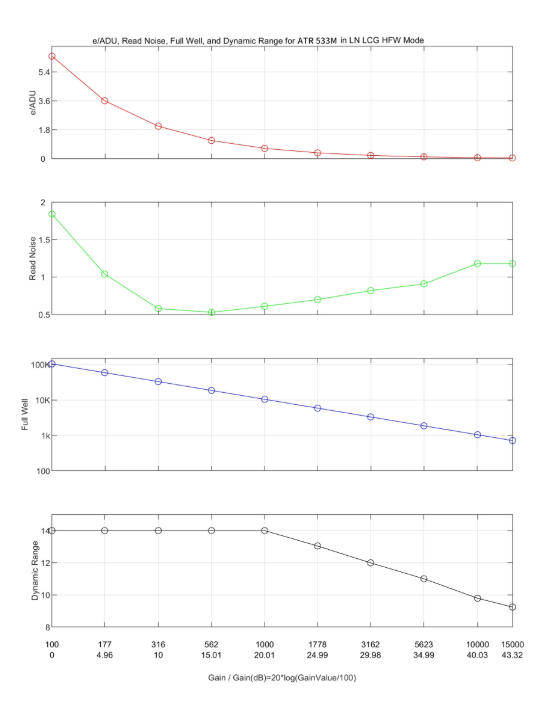

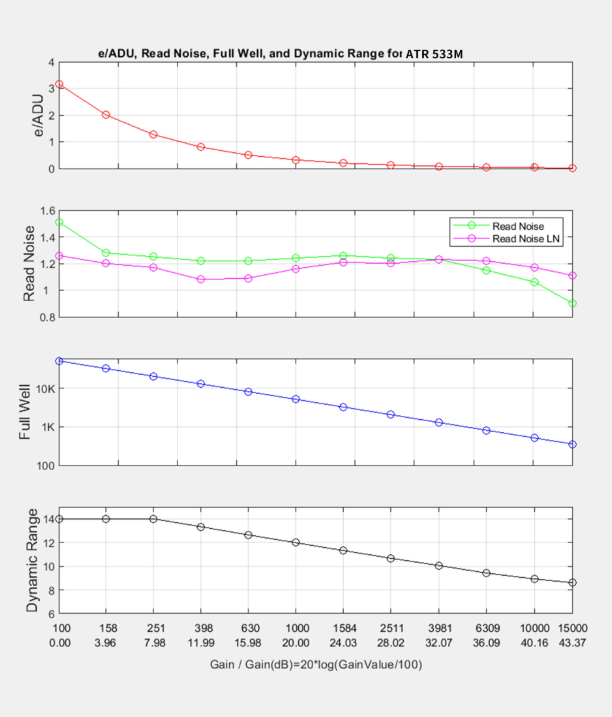

Performance Analysis Charts
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
Other Information
- Country of Manufacture: China
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR533M leverages SONY advanced optical technology boasting 9 megapixels and high QE, allowing users to easily capture clearer deep-sky images. With no amp-glow, an ultra-low readout noise as low as 1.1e, and 3.76μm square pixels, it ensures exceptional image quality. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance. It is a camera specially created for beginners of deep-sky photography!
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
ATR533M features Sony imx533 1-inch Optical Format Color sensor Resolution: 3008*3008 Pixel Size: 3.76μm*3.76μm Image Area: 11.31mmx11.28mm Diagonal: 15.97mm
Fast DDR3 Memory
ATR533M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission
TEC cooling system
ATR533M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR533M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR533M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Anti-dew technology
ATR533M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX533 Mono
-
Format: 1-inch
-
Sensor Dimensions: 11.31 mm x 11.28 mm (0.45 in x 0.44 in)
-
Diagonal: 15.97 mm (0.63 in)
-
MAX fps: 40 fps (at full resolution, 14-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by using the included M42 adapter)
-
Resolution: 9 MP (3008 x 3008 px)
-
Pixel Size: 3.76µm x 3.76µm
-
ADC: 14-bit
-
Peak Quantum Efficiency (QE): >90%
-
Full-Well: Up to 52,000e
-
DDR Memory: 512MB DDR3
-
Readout Noise: 1.1e to 1.11e
-
Backlit: Yes (Back-illuminated technology)
-
Weight: Approx. 540 g (1.19 lb) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100 nm)
Performance Analysis Charts
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
- 1x Camera Body
- 1x M42 adapter (12.5mm)
- 1x Extender (16.5mm)
- 1x Extender (21mm)
- 1x M48-M42 Extender (0mm)
- 1x Power Adapter
- 1x Power Cable
- 1x USB 3.0 Cable (1.5mm)
- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines ultra-large pixels for high light sensitivity with an anti-reflective (AR) coated glass window to maximize light throughput and prevent ghosting
- Cools the sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR533M leverages SONY advanced optical technology boasting 9 megapixels and high QE, allowing users to easily capture clearer deep-sky images. With no amp-glow, an ultra-low readout noise as low as 1.1e, and 3.76μm square pixels, it ensures exceptional image quality. Additionally ,the camera have an excellent TEC cooling system maintains precise temperature control within a deviation of 0.1℃, while the dew prevention heater (window heating) further enhances performance. It is a camera specially created for beginners of deep-sky photography!
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
ATR533M features Sony imx533 1-inch Optical Format Color sensor Resolution: 3008*3008 Pixel Size: 3.76μm*3.76μm Image Area: 11.31mmx11.28mm Diagonal: 15.97mm
Fast DDR3 Memory
ATR533M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission
TEC cooling system
ATR533M is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR533M features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 42 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR533M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Anti-dew technology
ATR533M adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, the dew heater on the protective window has four adjustable levels. Users can choose the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX533 Mono
-
Format: 1-inch
-
Sensor Dimensions: 11.31 mm x 11.28 mm (0.45 in x 0.44 in)
-
Diagonal: 15.97 mm (0.63 in)
-
MAX fps: 40 fps (at full resolution, 14-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by using the included M42 adapter)
-
Resolution: 9 MP (3008 x 3008 px)
-
Pixel Size: 3.76µm x 3.76µm
-
ADC: 14-bit
-
Peak Quantum Efficiency (QE): >90%
-
Full-Well: Up to 52,000e
-
DDR Memory: 512MB DDR3
-
Readout Noise: 1.1e to 1.11e
-
Backlit: Yes (Back-illuminated technology)
-
Weight: Approx. 540 g (1.19 lb) (Camera body only)
-
Protective Window: AR Anti-Reflective Coating glass (380-1100 nm)
Performance Analysis Charts
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
Other Information
- Country of Manufacture: China
