- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines a back-illuminated STARVIS 2 sensor with a built-in IR-cut filter, capturing faint deep-sky details without clipping bright star cores
- Uses dual-stage cooling to freeze sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR585C camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
ATR585C is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.
Fast DDR3 Memory
ATR585C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
TEC cooling system
ATR585C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR585C has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes
Anti-dew technology
ATR585C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX585 Color
-
Format: 1/1.2-inch
-
Sensor Dimensions: 11.2 mm x 6.3 mm (0.44 in x 0.25 in)
-
Diagonal: 12.85 mm (0.51 in)
-
MAX fps: 47 fps (at full resolution, 12-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by removing the front ring adapter)
-
Resolution: 8.3 MP (3840 x 2160 px)
-
Pixel Size: 2.9µm x 2.9µm
-
ADC: 12-bit (supports 16-bit processing in HDR mode)
-
Peak Quantum Efficiency (QE): ~91%
-
Full-Well: Up to 40ke
-
DDR Memory: 512MB DDR3
-
Readout Noise: 0.55e to 5.18e
-
Backlit: Yes (Back-illuminated STARVIS 2 technology)
-
Weight: Approx. 580 g (1.28 lb) (Camera body only)
-
Protective Window: Integrated UV/IR-Cut filter glass

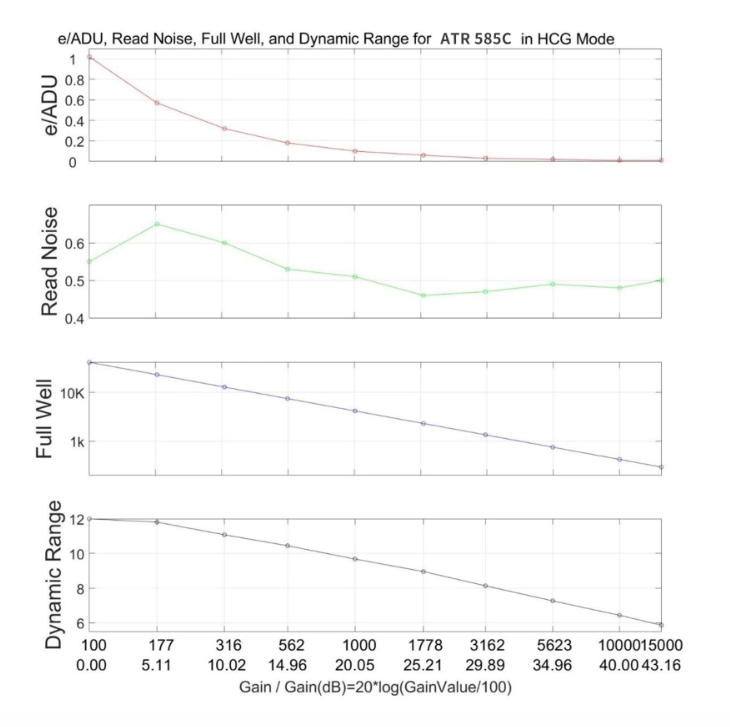

Performance Analysis in HCG

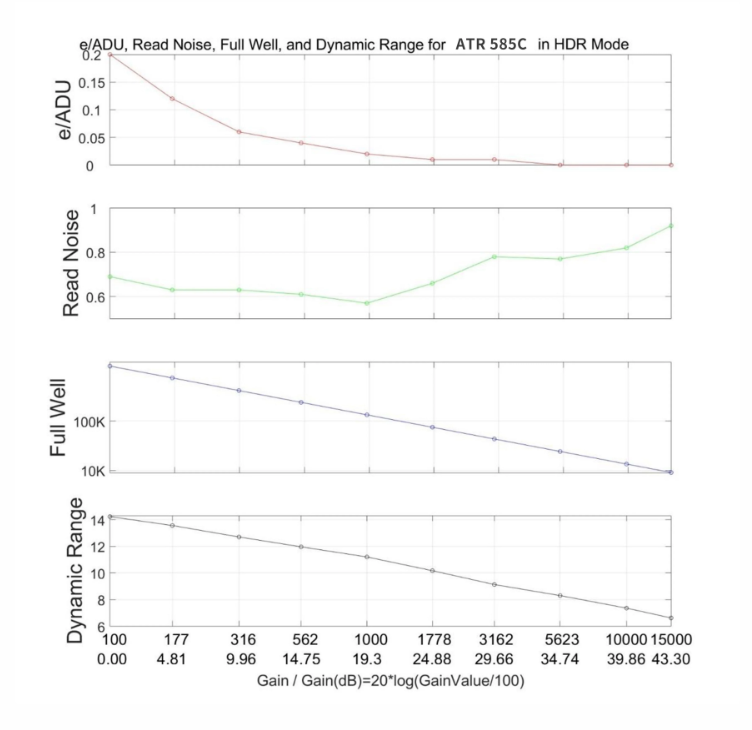

Performance Analysis in HDR

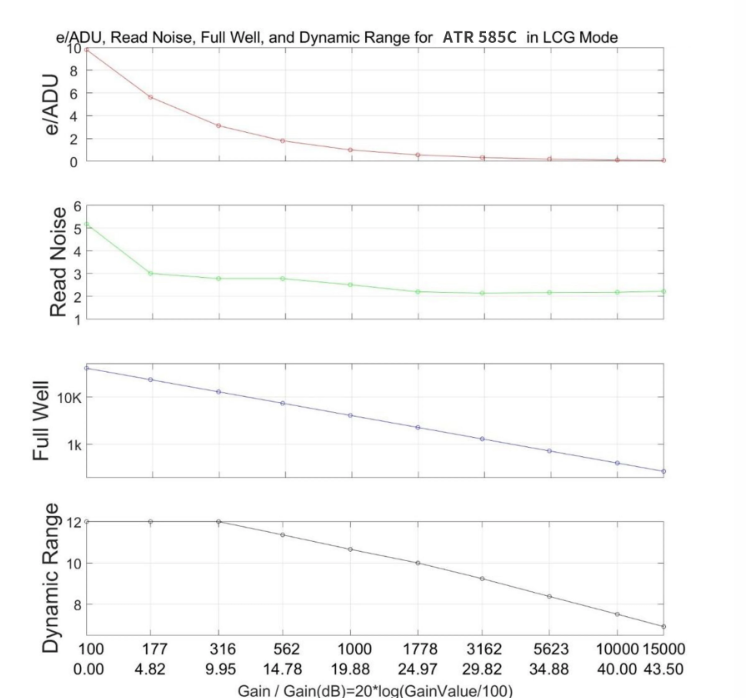

Performance Analysis in LCG
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
Other Information
- Country of Manufacture: China
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR585C camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
ATR585C is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.
Fast DDR3 Memory
ATR585C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
TEC cooling system
ATR585C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR585C has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes
Anti-dew technology
ATR585C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX585 Color
-
Format: 1/1.2-inch
-
Sensor Dimensions: 11.2 mm x 6.3 mm (0.44 in x 0.25 in)
-
Diagonal: 12.85 mm (0.51 in)
-
MAX fps: 47 fps (at full resolution, 12-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by removing the front ring adapter)
-
Resolution: 8.3 MP (3840 x 2160 px)
-
Pixel Size: 2.9µm x 2.9µm
-
ADC: 12-bit (supports 16-bit processing in HDR mode)
-
Peak Quantum Efficiency (QE): ~91%
-
Full-Well: Up to 40ke
-
DDR Memory: 512MB DDR3
-
Readout Noise: 0.55e to 5.18e
-
Backlit: Yes (Back-illuminated STARVIS 2 technology)
-
Weight: Approx. 580 g (1.28 lb) (Camera body only)
-
Protective Window: Integrated UV/IR-Cut filter glass
Performance Analysis in HCG
Performance Analysis in HDR
Performance Analysis in LCG
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
- 1x Camera Body
- 1x M42 adapter (12.5mm)
- 1x Extender (16.5mm)
- 1x Extender (21mm)
- 1x M48-M42 Extender (0mm)
- 1x Power Adapter
- 1x Power Cable
- 1x USB 3.0 Cable (1.5mm)
- Captures the entire frame at once to eliminate rolling shutter artifacts, delivering distortion-free images
- Combines a back-illuminated STARVIS 2 sensor with a built-in IR-cut filter, capturing faint deep-sky details without clipping bright star cores
- Uses dual-stage cooling to freeze sensor up to 42°C below ambient temperature, reducing thermal noise during long exposures
- Prevent condensation buildup on humid nights with the adjustable power levels built-in dew heater
ToupTek ATR Series DeepSky Astrophotography Camera!
ATR585C camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
ATR585C is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.
Fast DDR3 Memory
ATR585C camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission.
TEC cooling system
ATR585C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR585C has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes
Anti-dew technology
ATR585C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts, which can be turned off via software to save power.
Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Specifications
-
Sensor: Sony IMX585 Color
-
Format: 1/1.2-inch
-
Sensor Dimensions: 11.2 mm x 6.3 mm (0.44 in x 0.25 in)
-
Diagonal: 12.85 mm (0.51 in)
-
MAX fps: 47 fps (at full resolution, 12-bit RAW via USB 3.0)
-
Back Focus: 17.5 mm (0.69 in) (reducible to 12.5 mm / 0.49 in by removing the front ring adapter)
-
Resolution: 8.3 MP (3840 x 2160 px)
-
Pixel Size: 2.9µm x 2.9µm
-
ADC: 12-bit (supports 16-bit processing in HDR mode)
-
Peak Quantum Efficiency (QE): ~91%
-
Full-Well: Up to 40ke
-
DDR Memory: 512MB DDR3
-
Readout Noise: 0.55e to 5.18e
-
Backlit: Yes (Back-illuminated STARVIS 2 technology)
-
Weight: Approx. 580 g (1.28 lb) (Camera body only)
-
Protective Window: Integrated UV/IR-Cut filter glass
Performance Analysis in HCG
Performance Analysis in HDR
Performance Analysis in LCG
Mechanical Diagram
Back Focus Distance
Connection w/ Accessories
Imaging Train
Other Information
- Country of Manufacture: China
- 1x Camera Body
- 1x M42 adapter (12.5mm)
- 1x Extender (16.5mm)
- 1x Extender (21mm)
- 1x M48-M42 Extender (0mm)
- 1x Power Adapter
- 1x Power Cable
- 1x USB 3.0 Cable (1.5mm)
