ToupTek G3CMOS Series Astronomy Cameras!
Unlock breathtaking celestial clarity with the ToupTek G3183M (also known as G3CMOS20000KPA) Mono Camera, a high-performance imaging solution powered by the ultra-sensitive Sony IMX183 CMOS sensor. Delivering razor-sharp, high-resolution views at 5440 x 3648 pixels paired with fine 2.4 µm pixels, this camera strikes the perfect balance between intricate detail and incredible light-gathering efficiency. Designed to conquer both planetary tracking and deep-sky exploration, it features an impressive dynamic range and exceptional low-light sensitivity while completely eliminating frustrating amp-glow. Backed by built-in fan-assisted cooling to keep thermal noise at bay and a blazing fast USB 3.0 interface for smooth frame rates, the G3183M offers premium, low-noise performance at an unbeatable value—making it an essential upgrade for any astrophotographer's arsenal.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.

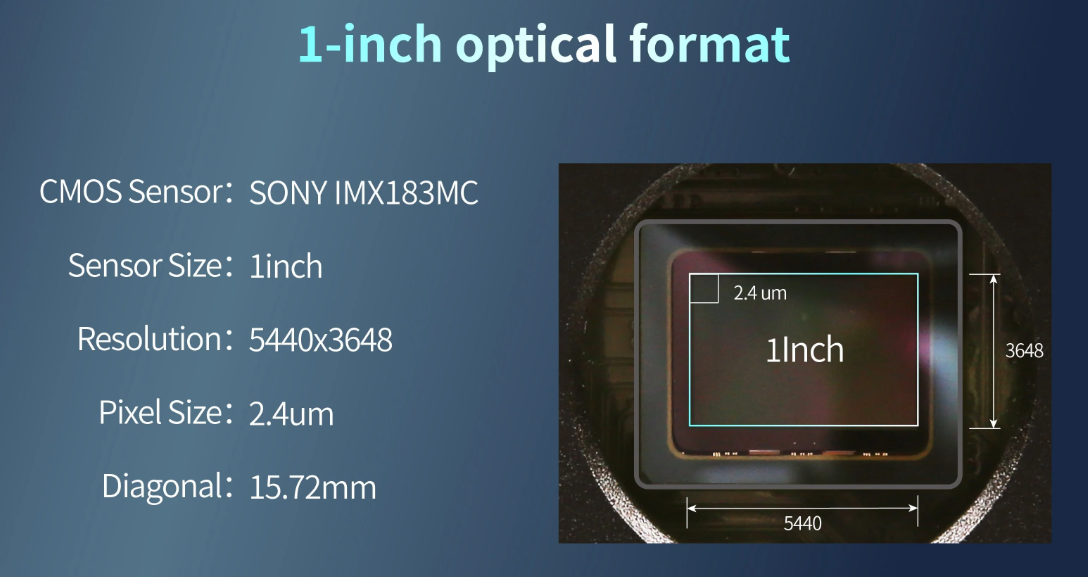

Sony Sensor
Featuring a high-performance 1-inch optical format, this camera is equipped with the premium Sony IMX183M CMOS sensor, boasting an expansive 15.72 mm diagonal that yields a wide celestial field of view. It delivers stunning, high-density 4K Ultra-HD imaging across a sharp 540 x 3648 resolution grid, revealing intricate details in planetaries and deep-sky structures alike. Furthermore, its finely tuned 2.4 µm pixels provide the ideal balance between high spatial resolution and excellent light-gathering efficiency, ensuring low-noise, clean data for breathtaking astrophotography results.
Fast DDR3 & Pixel Binning Technology
The ToupTek G3183M features 512MB (4Gb) DDR3 cache, helping maintain data transmission stability and effectively reducing amp-glow phenomena, as image data can be buffered without rushing to send data to the receiving end.
Zero Amp-Glow
The G3183M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.

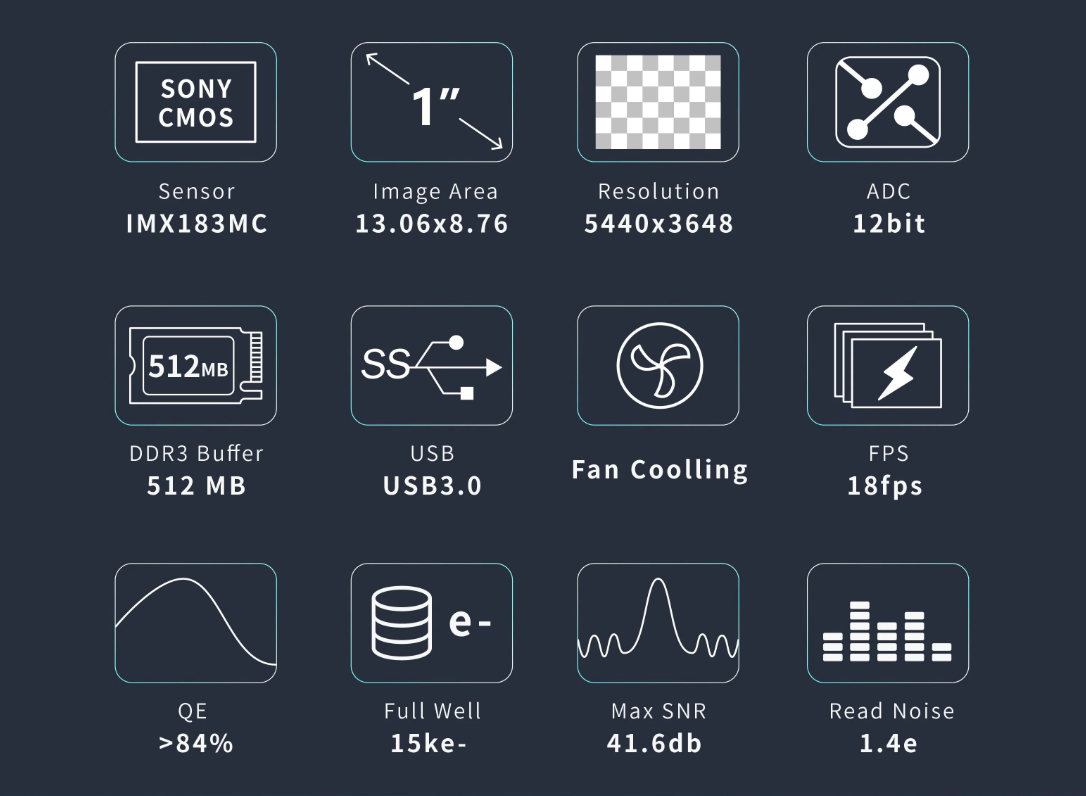

Specifications
-
Sensor: Sony IMX183 Mono CMOS
-
Image Resolution: 20 Megapixels (5440 x 3648)
-
Pixel Size: 2.4 µm x 2.4 µm
-
Sensor Size: 1-inch Optical Format (13.06 mm x 8.76 mm, 15.72 mm Diagonal)
-
Imaging Area: 13.06 mm x 8.76 mm
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 12-bit
-
DDR3 Cache: 512 MB
-
Maximum Frame Rate (USB 3.0): 17.5 FPS @ 5440 x 3648
-
Exposure Time Range: 0.1 ms – 1000 s
-
Cooling Method: Fan-Assisted Passive Cooling
-
Data Interface: USB 3.0
-
Camera Interface: M42 x 0.75 Thread
Spectral Chart
Other Information
- Country of Manufacture: China
ToupTek G3CMOS Series Astronomy Cameras!
Unlock breathtaking celestial clarity with the ToupTek G3183M (also known as G3CMOS20000KPA) Mono Camera, a high-performance imaging solution powered by the ultra-sensitive Sony IMX183 CMOS sensor. Delivering razor-sharp, high-resolution views at 5440 x 3648 pixels paired with fine 2.4 µm pixels, this camera strikes the perfect balance between intricate detail and incredible light-gathering efficiency. Designed to conquer both planetary tracking and deep-sky exploration, it features an impressive dynamic range and exceptional low-light sensitivity while completely eliminating frustrating amp-glow. Backed by built-in fan-assisted cooling to keep thermal noise at bay and a blazing fast USB 3.0 interface for smooth frame rates, the G3183M offers premium, low-noise performance at an unbeatable value—making it an essential upgrade for any astrophotographer's arsenal.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sony Sensor
Featuring a high-performance 1-inch optical format, this camera is equipped with the premium Sony IMX183M CMOS sensor, boasting an expansive 15.72 mm diagonal that yields a wide celestial field of view. It delivers stunning, high-density 4K Ultra-HD imaging across a sharp 540 x 3648 resolution grid, revealing intricate details in planetaries and deep-sky structures alike. Furthermore, its finely tuned 2.4 µm pixels provide the ideal balance between high spatial resolution and excellent light-gathering efficiency, ensuring low-noise, clean data for breathtaking astrophotography results.
Fast DDR3 & Pixel Binning Technology
The ToupTek G3183M features 512MB (4Gb) DDR3 cache, helping maintain data transmission stability and effectively reducing amp-glow phenomena, as image data can be buffered without rushing to send data to the receiving end.
Zero Amp-Glow
The G3183M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Specifications
-
Sensor: Sony IMX183 Mono CMOS
-
Image Resolution: 20 Megapixels (5440 x 3648)
-
Pixel Size: 2.4 µm x 2.4 µm
-
Sensor Size: 1-inch Optical Format (13.06 mm x 8.76 mm, 15.72 mm Diagonal)
-
Imaging Area: 13.06 mm x 8.76 mm
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 12-bit
-
DDR3 Cache: 512 MB
-
Maximum Frame Rate (USB 3.0): 17.5 FPS @ 5440 x 3648
-
Exposure Time Range: 0.1 ms – 1000 s
-
Cooling Method: Fan-Assisted Passive Cooling
-
Data Interface: USB 3.0
-
Camera Interface: M42 x 0.75 Thread
Spectral Chart
- 1x Camera
- 1x ST4 Auto Guiding Cable
- 1x USB 3.0 Cable (1.5 m)
- 1x T2 Adapter
ToupTek G3CMOS Series Astronomy Cameras!
Unlock breathtaking celestial clarity with the ToupTek G3183M (also known as G3CMOS20000KPA) Mono Camera, a high-performance imaging solution powered by the ultra-sensitive Sony IMX183 CMOS sensor. Delivering razor-sharp, high-resolution views at 5440 x 3648 pixels paired with fine 2.4 µm pixels, this camera strikes the perfect balance between intricate detail and incredible light-gathering efficiency. Designed to conquer both planetary tracking and deep-sky exploration, it features an impressive dynamic range and exceptional low-light sensitivity while completely eliminating frustrating amp-glow. Backed by built-in fan-assisted cooling to keep thermal noise at bay and a blazing fast USB 3.0 interface for smooth frame rates, the G3183M offers premium, low-noise performance at an unbeatable value—making it an essential upgrade for any astrophotographer's arsenal.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sony Sensor
Featuring a high-performance 1-inch optical format, this camera is equipped with the premium Sony IMX183M CMOS sensor, boasting an expansive 15.72 mm diagonal that yields a wide celestial field of view. It delivers stunning, high-density 4K Ultra-HD imaging across a sharp 540 x 3648 resolution grid, revealing intricate details in planetaries and deep-sky structures alike. Furthermore, its finely tuned 2.4 µm pixels provide the ideal balance between high spatial resolution and excellent light-gathering efficiency, ensuring low-noise, clean data for breathtaking astrophotography results.
Fast DDR3 & Pixel Binning Technology
The ToupTek G3183M features 512MB (4Gb) DDR3 cache, helping maintain data transmission stability and effectively reducing amp-glow phenomena, as image data can be buffered without rushing to send data to the receiving end.
Zero Amp-Glow
The G3183M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.
Specifications
-
Sensor: Sony IMX183 Mono CMOS
-
Image Resolution: 20 Megapixels (5440 x 3648)
-
Pixel Size: 2.4 µm x 2.4 µm
-
Sensor Size: 1-inch Optical Format (13.06 mm x 8.76 mm, 15.72 mm Diagonal)
-
Imaging Area: 13.06 mm x 8.76 mm
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 12-bit
-
DDR3 Cache: 512 MB
-
Maximum Frame Rate (USB 3.0): 17.5 FPS @ 5440 x 3648
-
Exposure Time Range: 0.1 ms – 1000 s
-
Cooling Method: Fan-Assisted Passive Cooling
-
Data Interface: USB 3.0
-
Camera Interface: M42 x 0.75 Thread
Spectral Chart
Other Information
- Country of Manufacture: China
- 1x Camera
- 1x ST4 Auto Guiding Cable
- 1x USB 3.0 Cable (1.5 m)
- 1x T2 Adapter
