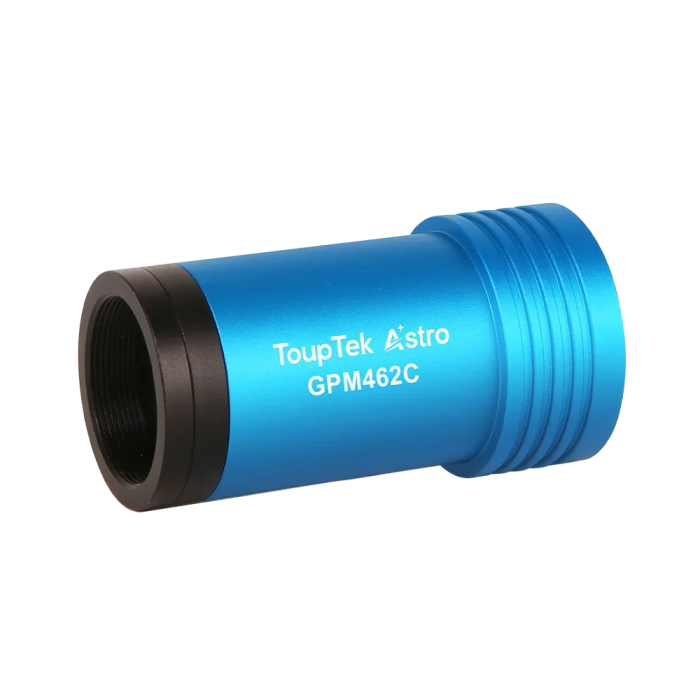

ToupTek GPM462C Color Guide Camera
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Back-illuminated Sony IMX462 color CMOS sensor
- Utilizes High Conversion Gain (HCG) mode to deliver ultra-low read noise down to 0.70e-
- Offers a flexible dual-gain architecture, allowing seamless switching to Low Conversion Gain (LCG) mode to expand the full well capacity to 12.7ke-
- Built-in frame buffer to optimize data flow over its USB Type-C interface, and an onboard ST4 autoguider port for direct mount integration
ToupTek GPM Series Guide Camera!
A professional color guide camera featuring Sony IMX462 back-illuminated CMOS sensor, offering exceptionally strong infrared light capture capability with high QE value at 500nm, large full well capacity, high dynamic range, high sensitivity, and low readout noise for outstanding performance in planetary, solar, and lunar photography. The GPM462C camera possesses an exceptionally strong capability to capture infrared light with high QE values at 500nm. It features a large full well capacity, high dynamic range, high sensitivity, and low readout noise among other advantages. Equipped with HCG/LCG dual gain mode switching, the minimum read noise can reach 0.76e⁻. This results in outstanding performance in planetary photography, as well as in solar and lunar photography!

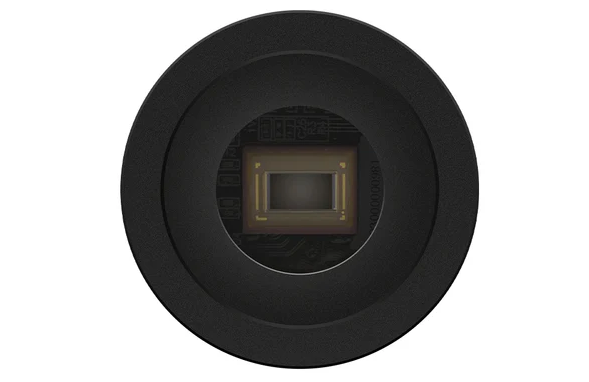

Sony IMX462 Color Sensor Technology
The GPM462C features Sony's IMX462 color back-illuminated sensor with exceptional infrared sensitivity. With read noise as low as 0.76e⁻, full well capacity of 12.7ke⁻, and dynamic range reaching 74.1dB, the GPM462C delivers outstanding performance for astronomical applications. The color sensor provides natural color reproduction while maintaining excellent sensitivity across the visible spectrum.

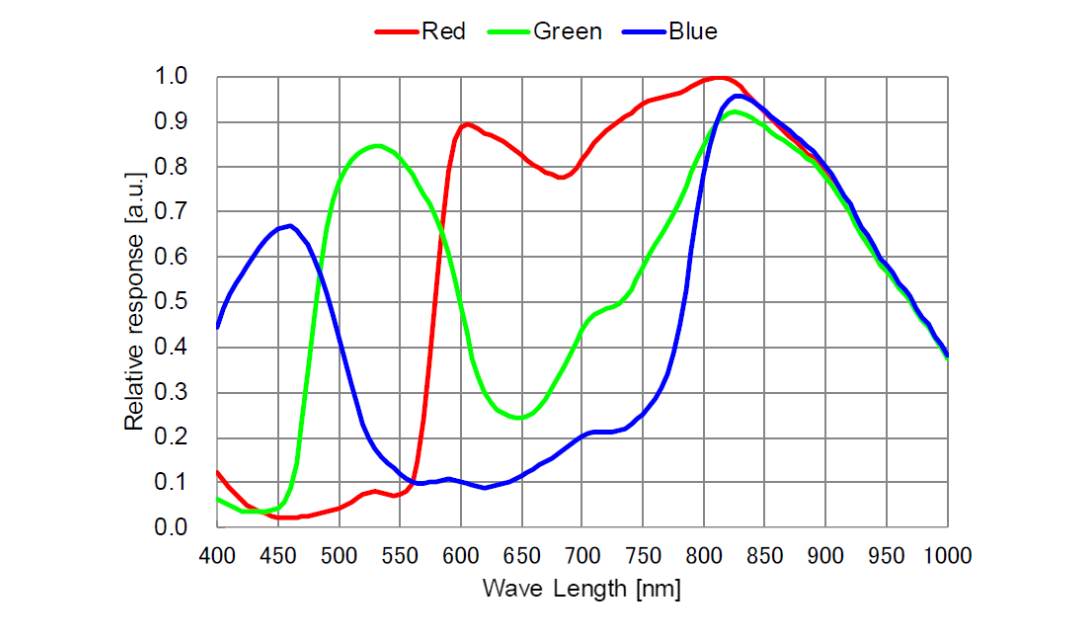

Sony IMX462 Spectral Sensitivity
The GPM462C sensor has a G sensitivity of 2376mv at 1/30s. Its spectral response range covers 380-690nm (with IR cut window), delivering excellent sensitivity across the visible spectrum. The sensitivity is measured with a testing standard lens with CM500S (t = 1.0mm) as an IR-cut filter and image at F5.6.
Built-in ST4 Autoguider Interface
The GPM462C features a built-in standard ST4 autoguider port for easy connection to the autoguider. This design simplifies guiding system configuration, reduces cable connections, and improves system reliability. Compatible with mainstream guiding software like PHD Guiding, MetaGuide, Nebulosity, MaxIm DL, and others for precise autoguiding control.
Comprehensive Connection Options
The GPM series cameras offer versatile connection options designed for seamless integration with various telescope setups and guiding systems. The diagram below illustrates the complete connection architecture, showing how the camera interfaces with your mount, computer, and other astronomical equipment for optimal guiding performance.
12-bit ADC and Intelligent ROI
The GPM462C features native 12-bit ADC, providing 4096 gray levels for capturing subtle tonal gradations and color information. The camera supports hardware ROI (Region of Interest) functionality - smaller ROI sizes achieve higher frame rates, which is particularly useful in guiding applications where only a small area containing the guide star needs high-speed acquisition.
Specifications
-
Sensor: Sony IMX462 Color Back-illuminated CMOS
-
Image Resolution: 2.1 Megapixels (1920 x 1080)
-
Pixel Size: 2.9 µm x 2.9 µm
-
Sensor Size: 1/2.8-inch (6.39 mm Diagonal)
-
Imaging Area: 5.57 mm x 3.13 mm (0.22 in x 0.12 in)
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 12-bit
-
Frame Buffer: Built-in
-
Gain Modes: HCG/LCG dual mode switching
-
Spectral Response Range: 380–690 nm (with IR cut window)
-

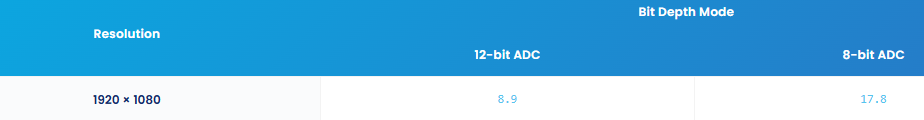

Maximum Frame Rate (USB 2.0):
-
12-bit: 8.9 FPS @ 1920 x 1080
-
8-bit: 17.8 FPS @ 1920 x 1080
-
-
Read Noise:
-
HCG Mode: 0.70 – 1.08 e-
-
LCG Mode: 1.48 – 2.4 e-
-
-
Full Well Capacity:
-
HCG Mode: 4.8 ke-
-
LCG Mode: 12.7 ke-
-
-
Peak Quantum Efficiency: >89%
-
Dynamic Range: 74.1 dB
-
Signal-to-Noise Ratio: 40.8 dB
-
Exposure Time Range: 0.1 ms – 1000 s
-
Gain Range: 1x – 500x
-
Data Interface: USB 2.0 Type-C
-
Guide Interface: Built-in ST4 autoguider port
-
Camera Adapter: Standard 1.25-inch for telescope connection / Standard C adapter for industrial lens
-
Back Focal Distance: 8.5 mm (17.5 mm with C-mount, 12.5 mm with CS-mount) / (0.33 in / 0.69 in / 0.49 in)
-
Protective Window: IR-cut filter/AR-window
-
External Dimensions: Diameter 37 mm x Height 72.4 mm (1.46 in x 2.85 in)
-
Weight: 70 g (0.15 lb)
-
Cooling Method: Passive cooling
-
Supported Systems: Windows XP/Vista/7/8/10/11 (32 & 64 bit), Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.

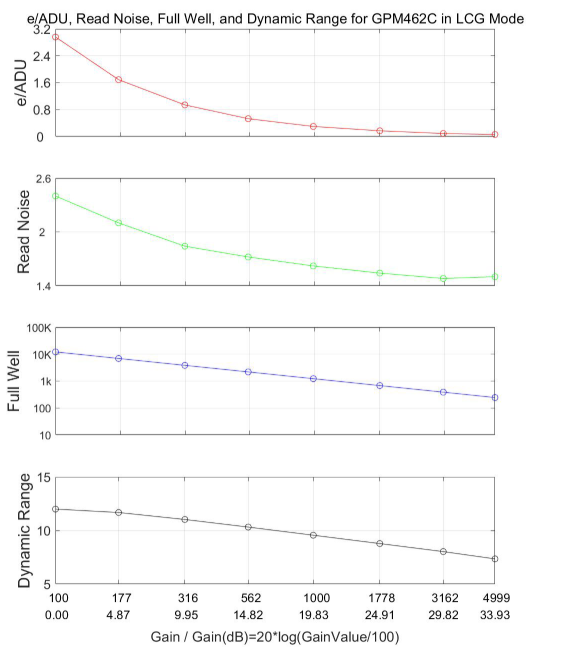

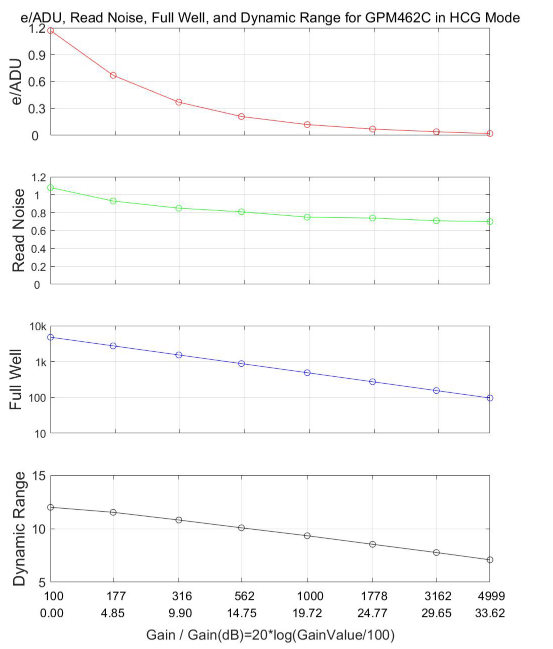

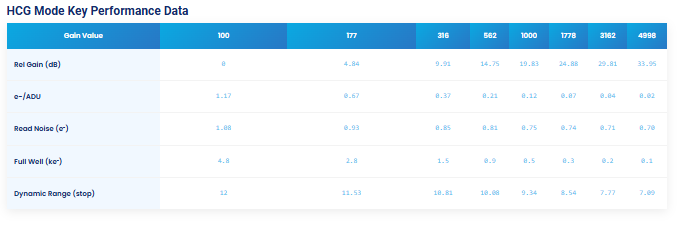

Performance Analysis Charts
Interface Description
- Directly connects with 1.25-inch telescope eyepiece holders
- GPM with 1.25-inch extender can be inserted directly into 1.25-inch telescope eyepiece holders
- Standard C adapter connects to industrial C-mount adapter lenses
- Built-in ST4 autoguider port for easy connection to the autoguider
- USB 2.0 Type-C interface provides data transfer and power supply
- High-quality IR-CUT or AR protective window blocks IR and eliminates reflection
Other Information
- Country of Manufacture: China
