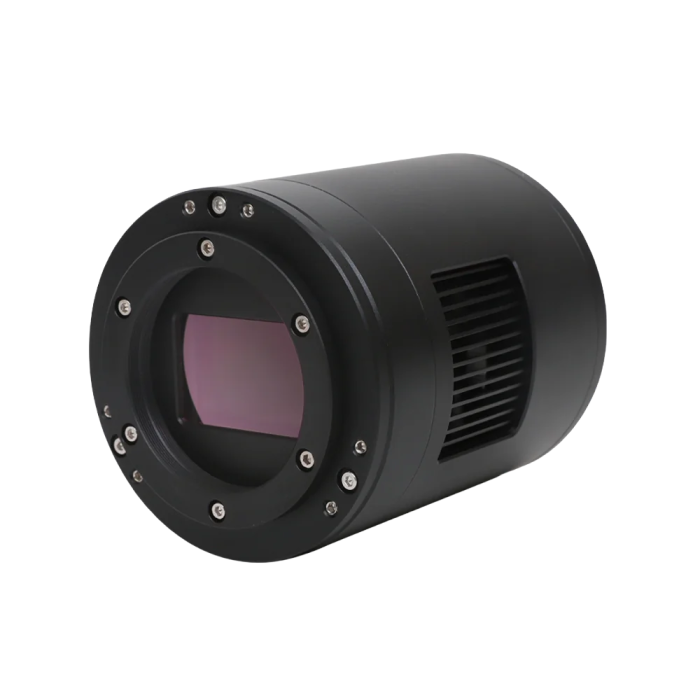

ToupTek SkyEye 62AM Cooled Mono Astronomy Camera
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Featuring the SONY IMX455 mono sensor to capture expansive wide-field vistas of large nebulae and galaxies without cropping your view
- Holds a large amount of signal per pixel in LCG mode, preventing bright stars from overexposing and saturating during long integration times
- Engineered to completely eliminate internal circuitry glow, ensuring perfectly clean backgrounds that make calibration and processing effortless
- TEC two-stage cooling sensor temperatures up to -35°C below ambient to drastically suppress thermal noise and maximize clarity during deep-sky exposures
ToupTek SkyEye Series Astronomy Cameras!
The ToupTek SkyEye64AM is a professional deep sky astrophotography camera featuring Sony IMX455 full-frame monochrome CMOS sensor with 61-megapixel ultra-high resolution, precise temperature control, ultra-low read noise, and zero amp-glow characteristics, delivering exceptional performance for deep sky object imaging. The SkyEye62AM features a full-frame image sensor, precise temperature control, ultra-low read noise, and zero amp-glow characteristics, making it ideal for deep sky object photography. Its exceptional performance and versatile applications provide users with an extraordinary astrophotography experience.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
SkyEye62AM features the Sony IMX455 monochrome sensor with 61-megapixel ultra-high resolution (9568×6380) and a full-frame size of 35.976mm × 23.989mm. The 3.76μm pixel size ensures excellent light gathering capability while maintaining high resolution. The full-frame sensor guarantees an extremely large field of view, making it the ideal choice for capturing large nebulae, galaxies, and wide-field deep sky objects.
Fast DDR3 & Pixel Binning Technology
SkyEye62AM features 512MB (4Gb) DDR3 cache, helping maintain data transmission stability and effectively reducing amp-glow phenomena, as image data can be buffered without rushing to send data to the receiving end. SkyEye62AM supports digital pixel binning from 1 x 1 to 8 x 8 (stacking or averaging methods) and hardware pixel binning from 1 x 1 to 3 x 3 (averaging method). Hardware pixel binning is much more efficient than software pixel binning.
Zero Amp-Glow
SkyEye62AM is carefully designed to achieve zero amp-glow photography. It's easy to see that images captured by SkyEye62AM exhibit no amp-glow phenomena. SkyEye62AM's read noise is as low as 0.9 - 1.95 e⁻ (Low Noise Mode). This is impressive, as SkyEye62AM features a low noise mode, which means users can select low noise mode to achieve even lower read noise at the cost of reduced frame rate.
16-bit ADC and Flexible ROI
SkyEye62AM outputs native 16-bit ADC, providing 65,536 grayscale levels capable of capturing extremely fine brightness variations. This high bit depth is crucial for deep sky photography, enabling simultaneous recording of the bright core and faint outer details of nebulae. The camera supports hardware ROI, with smaller ROI sizes achieving higher frame rates.
Anti-dew technology
The camera front end is equipped with an intelligent anti-dew heating system that automatically monitors environmental humidity and temperature, activating heating when necessary to prevent optical window condensation.
TEC Cooling
Adopts two-stage semiconductor cooling chip series design, where the first stage directly cools the sensor and the second stage efficiently conducts heat to the heat dissipation system.

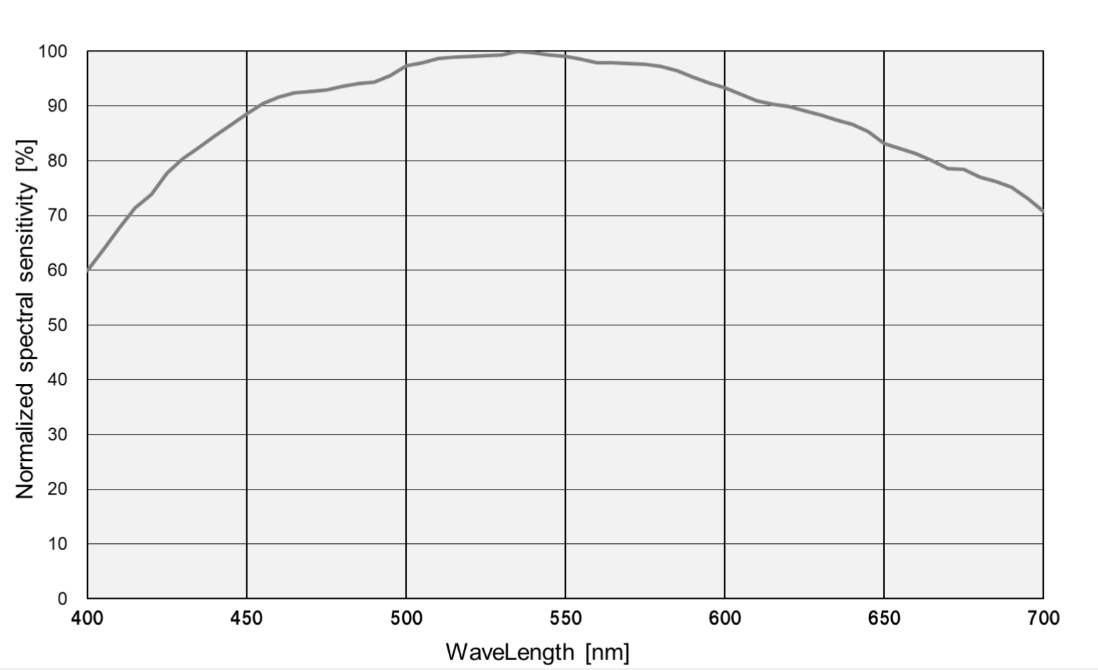

Sony IMX455 Spectral Response Curve
The SkyEye62AM sensor has a G sensitivity of 435.5mV at 1/30s. Its quantum efficiency peak exceeds 80% and maintains excellent response throughout the visible and near-infrared ranges. With an AR anti-reflection filter installed, its spectral response range is 380-1100nm. The sensor's high quantum efficiency ensures clear image capture even in low-light conditions, making it particularly suitable for photographing faint deep sky objects.
Specifications:
-
Sensor: Sony IMX455 Monochrome CMOS
-
Image Resolution: 61 Megapixels (9568 x 6380)
-
Pixel Size: 3.76 µm x 3.76 µm
-
Sensor Size: Full Frame (43.3 mm / 1.70 in Diagonal)
-
Imaging Area: 35.976 mm x 23.989 mm (1.42 in x 0.94 in)
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 16-bit
-
DDR3 Cache: 512 MB (4 Gb)
-
Spectral Response Range: 380–1100 nm (with AR Anti-Reflection Filter)
-
Front Window Protection Glass: AR Anti-Reflection Filter
-

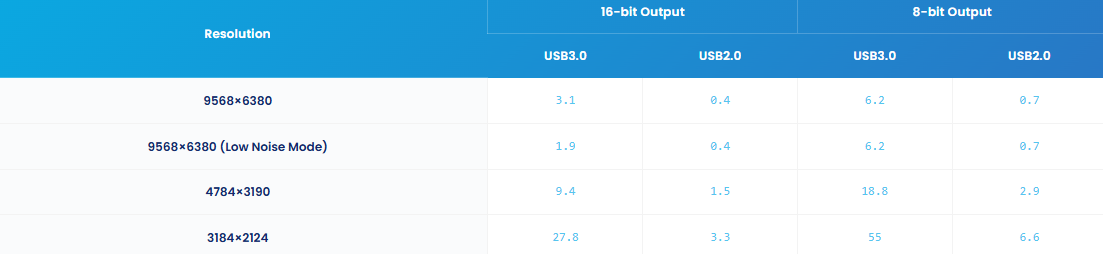

Maximum Frame Rate (USB 3.0):
-
16-bit: 3.1 FPS @ 9568 x 6380
-
16-bit (Low Noise Mode): 1.9 FPS @ 9568 x 6380
-
8-bit: 6.2 FPS @ 9568 x 6380
-
8-bit: 55 FPS @ 3184 x 2124
-
-
Read Noise:
-
Standard Mode: 2.8 – 0.97 e-
-
Low Noise Mode: 1.95 – 0.9 e-
-
LCG Mode: 4.29 – 1.47 e-
-
-
Full Well Capacity:
-
HCG Mode: 51 ke-
-
LCG Mode: 111 ke-
-
-
Peak Quantum Efficiency: >80%
-
Dynamic Range: 88.3 dB (Low Noise Mode)
-
Signal-to-Noise Ratio: 47.0 dB
-
Exposure Time Range: 0.1 ms – 3600 s
-
Gain Range: 1x – 150x
-
Cooling Method: Two-Stage TEC Cooling
-
Cooling Capability:
-
Short Exposure: ΔT = -30°C (-54°F) below ambient
-
Long Exposure (>1s): ΔT = -35°C (-63°F) below ambient
-
-
Power Requirements: DC 12V 3A
-
Data Interface: USB 3.0 / USB 2.0
-
Camera Interface: M54 x 0.75 Thread
-
Back Focus: 17.5 mm / 12.5 mm (0.69 in / 0.49 in) (Adjustable)
-
USB Hub: USB 2.0 Hub for Accessory Connection
-
Dimensions: Diameter 89 mm x Height 107 mm (3.50 in x 4.21 in)
-
Weight: 713 g (1.57 lb)
-
Supported Systems: Windows XP/Vista/7/8/10/11 (32 & 64-bit), Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, ASCOM, etc.

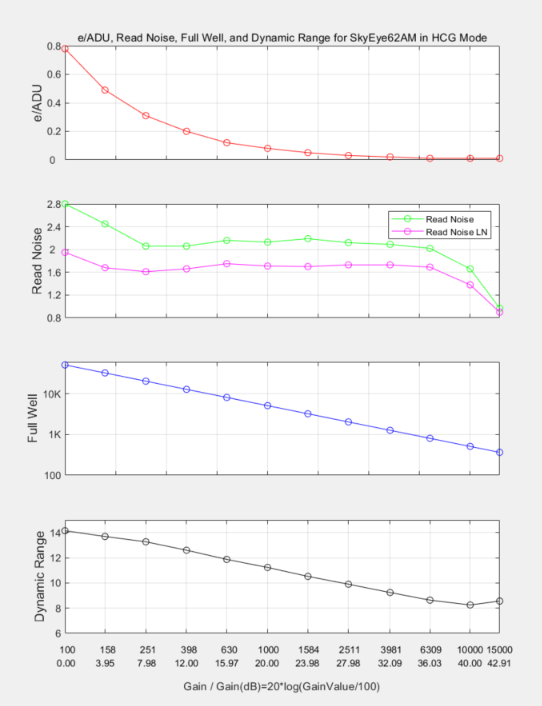

Performance Analysis Charts
HCG (High Conversion Gain) mode is optimized for deep sky astrophotography. In this mode, read noise can be as low as 0.97e⁻, making it ideal for capturing faint nebulae, galaxies, and other deep sky objects. With a full well capacity of 51ke⁻ and dynamic range reaching 14.15 stops, it can simultaneously capture both the bright core and faint outer structures of celestial objects.
LCG (Low Conversion Gain) mode provides larger full well capacity (111ke⁻), suitable for capturing high dynamic range celestial objects. Dynamic range can reach 14.7 stops, ensuring complete recording of all details from brightest to darkest.
Flexible Back Focus Design
The upgraded SkyEye62AM with new housing has the capability to switch back focus lengths. By removing the 5mm back focus ring from the camera's front end, the camera's occupied back focus length changes from 17.5mm to 12.5mm, effectively adapting to non-standard back focus optical systems and more flexible equipment configurations.
Other Information
- Country of Manufacture: China
ToupTek SkyEye Series Astronomy Cameras!
The ToupTek SkyEye64AM is a professional deep sky astrophotography camera featuring Sony IMX455 full-frame monochrome CMOS sensor with 61-megapixel ultra-high resolution, precise temperature control, ultra-low read noise, and zero amp-glow characteristics, delivering exceptional performance for deep sky object imaging. The SkyEye62AM features a full-frame image sensor, precise temperature control, ultra-low read noise, and zero amp-glow characteristics, making it ideal for deep sky object photography. Its exceptional performance and versatile applications provide users with an extraordinary astrophotography experience.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
SkyEye62AM features the Sony IMX455 monochrome sensor with 61-megapixel ultra-high resolution (9568×6380) and a full-frame size of 35.976mm × 23.989mm. The 3.76μm pixel size ensures excellent light gathering capability while maintaining high resolution. The full-frame sensor guarantees an extremely large field of view, making it the ideal choice for capturing large nebulae, galaxies, and wide-field deep sky objects.
Fast DDR3 & Pixel Binning Technology
SkyEye62AM features 512MB (4Gb) DDR3 cache, helping maintain data transmission stability and effectively reducing amp-glow phenomena, as image data can be buffered without rushing to send data to the receiving end. SkyEye62AM supports digital pixel binning from 1 x 1 to 8 x 8 (stacking or averaging methods) and hardware pixel binning from 1 x 1 to 3 x 3 (averaging method). Hardware pixel binning is much more efficient than software pixel binning.
Zero Amp-Glow
SkyEye62AM is carefully designed to achieve zero amp-glow photography. It's easy to see that images captured by SkyEye62AM exhibit no amp-glow phenomena. SkyEye62AM's read noise is as low as 0.9 - 1.95 e⁻ (Low Noise Mode). This is impressive, as SkyEye62AM features a low noise mode, which means users can select low noise mode to achieve even lower read noise at the cost of reduced frame rate.
16-bit ADC and Flexible ROI
SkyEye62AM outputs native 16-bit ADC, providing 65,536 grayscale levels capable of capturing extremely fine brightness variations. This high bit depth is crucial for deep sky photography, enabling simultaneous recording of the bright core and faint outer details of nebulae. The camera supports hardware ROI, with smaller ROI sizes achieving higher frame rates.
Anti-dew technology
The camera front end is equipped with an intelligent anti-dew heating system that automatically monitors environmental humidity and temperature, activating heating when necessary to prevent optical window condensation.
TEC Cooling
Adopts two-stage semiconductor cooling chip series design, where the first stage directly cools the sensor and the second stage efficiently conducts heat to the heat dissipation system.
Sony IMX455 Spectral Response Curve
The SkyEye62AM sensor has a G sensitivity of 435.5mV at 1/30s. Its quantum efficiency peak exceeds 80% and maintains excellent response throughout the visible and near-infrared ranges. With an AR anti-reflection filter installed, its spectral response range is 380-1100nm. The sensor's high quantum efficiency ensures clear image capture even in low-light conditions, making it particularly suitable for photographing faint deep sky objects.
Specifications:
-
Sensor: Sony IMX455 Monochrome CMOS
-
Image Resolution: 61 Megapixels (9568 x 6380)
-
Pixel Size: 3.76 µm x 3.76 µm
-
Sensor Size: Full Frame (43.3 mm / 1.70 in Diagonal)
-
Imaging Area: 35.976 mm x 23.989 mm (1.42 in x 0.94 in)
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 16-bit
-
DDR3 Cache: 512 MB (4 Gb)
-
Spectral Response Range: 380–1100 nm (with AR Anti-Reflection Filter)
-
Front Window Protection Glass: AR Anti-Reflection Filter
-
Maximum Frame Rate (USB 3.0):
-
16-bit: 3.1 FPS @ 9568 x 6380
-
16-bit (Low Noise Mode): 1.9 FPS @ 9568 x 6380
-
8-bit: 6.2 FPS @ 9568 x 6380
-
8-bit: 55 FPS @ 3184 x 2124
-
-
Read Noise:
-
Standard Mode: 2.8 – 0.97 e-
-
Low Noise Mode: 1.95 – 0.9 e-
-
LCG Mode: 4.29 – 1.47 e-
-
-
Full Well Capacity:
-
HCG Mode: 51 ke-
-
LCG Mode: 111 ke-
-
-
Peak Quantum Efficiency: >80%
-
Dynamic Range: 88.3 dB (Low Noise Mode)
-
Signal-to-Noise Ratio: 47.0 dB
-
Exposure Time Range: 0.1 ms – 3600 s
-
Gain Range: 1x – 150x
-
Cooling Method: Two-Stage TEC Cooling
-
Cooling Capability:
-
Short Exposure: ΔT = -30°C (-54°F) below ambient
-
Long Exposure (>1s): ΔT = -35°C (-63°F) below ambient
-
-
Power Requirements: DC 12V 3A
-
Data Interface: USB 3.0 / USB 2.0
-
Camera Interface: M54 x 0.75 Thread
-
Back Focus: 17.5 mm / 12.5 mm (0.69 in / 0.49 in) (Adjustable)
-
USB Hub: USB 2.0 Hub for Accessory Connection
-
Dimensions: Diameter 89 mm x Height 107 mm (3.50 in x 4.21 in)
-
Weight: 713 g (1.57 lb)
-
Supported Systems: Windows XP/Vista/7/8/10/11 (32 & 64-bit), Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, ASCOM, etc.
Performance Analysis Charts
HCG (High Conversion Gain) mode is optimized for deep sky astrophotography. In this mode, read noise can be as low as 0.97e⁻, making it ideal for capturing faint nebulae, galaxies, and other deep sky objects. With a full well capacity of 51ke⁻ and dynamic range reaching 14.15 stops, it can simultaneously capture both the bright core and faint outer structures of celestial objects.
LCG (Low Conversion Gain) mode provides larger full well capacity (111ke⁻), suitable for capturing high dynamic range celestial objects. Dynamic range can reach 14.7 stops, ensuring complete recording of all details from brightest to darkest.
Flexible Back Focus Design
The upgraded SkyEye62AM with new housing has the capability to switch back focus lengths. By removing the 5mm back focus ring from the camera's front end, the camera's occupied back focus length changes from 17.5mm to 12.5mm, effectively adapting to non-standard back focus optical systems and more flexible equipment configurations.
- 1x Cardboard Packaging Box: L:21.9cm W:21.9cm H:13.6cm (A)
- 1x SkyEye62AM Camera Body (M54F×0.75 Interface) (B)
- 1x Power Adapter: AC 100-240V 50/60Hz, Output DC 12V 3A (C)
- 1x High-Speed USB 3.0 Data Cable (A-Male to B-Male Gold-Plated Connection Cable, 1.5m) (D)
- 1x Rubber Plug (E)
- 1x Hex Wrench H 2.0 (F)
- 1x M54M-M48F 21mm Extension Tube (G)
- 1x M48M-M48F 16.5mm Extension Tube (H)
- 1x M48M-M42F Adapter Ring (I)
- Featuring the SONY IMX455 mono sensor to capture expansive wide-field vistas of large nebulae and galaxies without cropping your view
- Holds a large amount of signal per pixel in LCG mode, preventing bright stars from overexposing and saturating during long integration times
- Engineered to completely eliminate internal circuitry glow, ensuring perfectly clean backgrounds that make calibration and processing effortless
- TEC two-stage cooling sensor temperatures up to -35°C below ambient to drastically suppress thermal noise and maximize clarity during deep-sky exposures
ToupTek SkyEye Series Astronomy Cameras!
The ToupTek SkyEye64AM is a professional deep sky astrophotography camera featuring Sony IMX455 full-frame monochrome CMOS sensor with 61-megapixel ultra-high resolution, precise temperature control, ultra-low read noise, and zero amp-glow characteristics, delivering exceptional performance for deep sky object imaging. The SkyEye62AM features a full-frame image sensor, precise temperature control, ultra-low read noise, and zero amp-glow characteristics, making it ideal for deep sky object photography. Its exceptional performance and versatile applications provide users with an extraordinary astrophotography experience.
Please note: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
Sensor Specifications
SkyEye62AM features the Sony IMX455 monochrome sensor with 61-megapixel ultra-high resolution (9568×6380) and a full-frame size of 35.976mm × 23.989mm. The 3.76μm pixel size ensures excellent light gathering capability while maintaining high resolution. The full-frame sensor guarantees an extremely large field of view, making it the ideal choice for capturing large nebulae, galaxies, and wide-field deep sky objects.
Fast DDR3 & Pixel Binning Technology
SkyEye62AM features 512MB (4Gb) DDR3 cache, helping maintain data transmission stability and effectively reducing amp-glow phenomena, as image data can be buffered without rushing to send data to the receiving end. SkyEye62AM supports digital pixel binning from 1 x 1 to 8 x 8 (stacking or averaging methods) and hardware pixel binning from 1 x 1 to 3 x 3 (averaging method). Hardware pixel binning is much more efficient than software pixel binning.
Zero Amp-Glow
SkyEye62AM is carefully designed to achieve zero amp-glow photography. It's easy to see that images captured by SkyEye62AM exhibit no amp-glow phenomena. SkyEye62AM's read noise is as low as 0.9 - 1.95 e⁻ (Low Noise Mode). This is impressive, as SkyEye62AM features a low noise mode, which means users can select low noise mode to achieve even lower read noise at the cost of reduced frame rate.
16-bit ADC and Flexible ROI
SkyEye62AM outputs native 16-bit ADC, providing 65,536 grayscale levels capable of capturing extremely fine brightness variations. This high bit depth is crucial for deep sky photography, enabling simultaneous recording of the bright core and faint outer details of nebulae. The camera supports hardware ROI, with smaller ROI sizes achieving higher frame rates.
Anti-dew technology
The camera front end is equipped with an intelligent anti-dew heating system that automatically monitors environmental humidity and temperature, activating heating when necessary to prevent optical window condensation.
TEC Cooling
Adopts two-stage semiconductor cooling chip series design, where the first stage directly cools the sensor and the second stage efficiently conducts heat to the heat dissipation system.
Sony IMX455 Spectral Response Curve
The SkyEye62AM sensor has a G sensitivity of 435.5mV at 1/30s. Its quantum efficiency peak exceeds 80% and maintains excellent response throughout the visible and near-infrared ranges. With an AR anti-reflection filter installed, its spectral response range is 380-1100nm. The sensor's high quantum efficiency ensures clear image capture even in low-light conditions, making it particularly suitable for photographing faint deep sky objects.
Specifications:
-
Sensor: Sony IMX455 Monochrome CMOS
-
Image Resolution: 61 Megapixels (9568 x 6380)
-
Pixel Size: 3.76 µm x 3.76 µm
-
Sensor Size: Full Frame (43.3 mm / 1.70 in Diagonal)
-
Imaging Area: 35.976 mm x 23.989 mm (1.42 in x 0.94 in)
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: 16-bit
-
DDR3 Cache: 512 MB (4 Gb)
-
Spectral Response Range: 380–1100 nm (with AR Anti-Reflection Filter)
-
Front Window Protection Glass: AR Anti-Reflection Filter
-
Maximum Frame Rate (USB 3.0):
-
16-bit: 3.1 FPS @ 9568 x 6380
-
16-bit (Low Noise Mode): 1.9 FPS @ 9568 x 6380
-
8-bit: 6.2 FPS @ 9568 x 6380
-
8-bit: 55 FPS @ 3184 x 2124
-
-
Read Noise:
-
Standard Mode: 2.8 – 0.97 e-
-
Low Noise Mode: 1.95 – 0.9 e-
-
LCG Mode: 4.29 – 1.47 e-
-
-
Full Well Capacity:
-
HCG Mode: 51 ke-
-
LCG Mode: 111 ke-
-
-
Peak Quantum Efficiency: >80%
-
Dynamic Range: 88.3 dB (Low Noise Mode)
-
Signal-to-Noise Ratio: 47.0 dB
-
Exposure Time Range: 0.1 ms – 3600 s
-
Gain Range: 1x – 150x
-
Cooling Method: Two-Stage TEC Cooling
-
Cooling Capability:
-
Short Exposure: ΔT = -30°C (-54°F) below ambient
-
Long Exposure (>1s): ΔT = -35°C (-63°F) below ambient
-
-
Power Requirements: DC 12V 3A
-
Data Interface: USB 3.0 / USB 2.0
-
Camera Interface: M54 x 0.75 Thread
-
Back Focus: 17.5 mm / 12.5 mm (0.69 in / 0.49 in) (Adjustable)
-
USB Hub: USB 2.0 Hub for Accessory Connection
-
Dimensions: Diameter 89 mm x Height 107 mm (3.50 in x 4.21 in)
-
Weight: 713 g (1.57 lb)
-
Supported Systems: Windows XP/Vista/7/8/10/11 (32 & 64-bit), Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, ASCOM, etc.
Performance Analysis Charts
HCG (High Conversion Gain) mode is optimized for deep sky astrophotography. In this mode, read noise can be as low as 0.97e⁻, making it ideal for capturing faint nebulae, galaxies, and other deep sky objects. With a full well capacity of 51ke⁻ and dynamic range reaching 14.15 stops, it can simultaneously capture both the bright core and faint outer structures of celestial objects.
LCG (Low Conversion Gain) mode provides larger full well capacity (111ke⁻), suitable for capturing high dynamic range celestial objects. Dynamic range can reach 14.7 stops, ensuring complete recording of all details from brightest to darkest.
Flexible Back Focus Design
The upgraded SkyEye62AM with new housing has the capability to switch back focus lengths. By removing the 5mm back focus ring from the camera's front end, the camera's occupied back focus length changes from 17.5mm to 12.5mm, effectively adapting to non-standard back focus optical systems and more flexible equipment configurations.
Other Information
- Country of Manufacture: China
