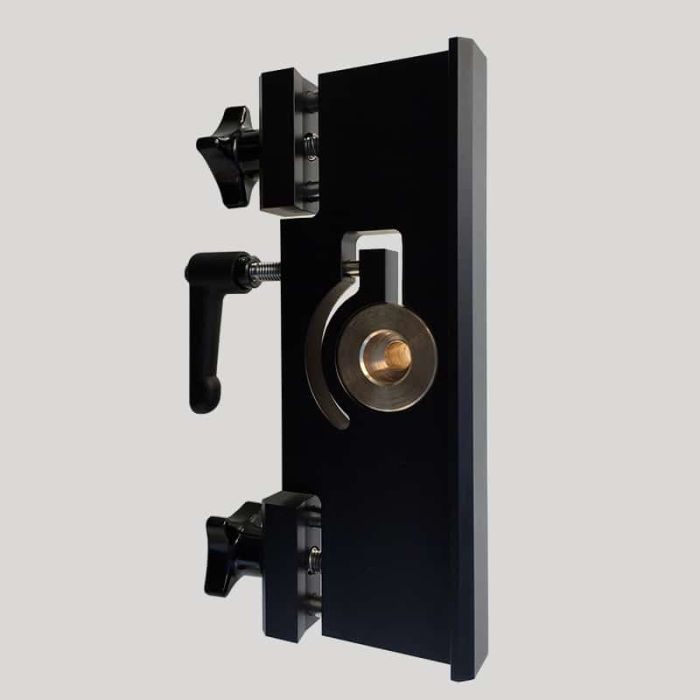

Track The Stars Telescope Vixen-Style Side Mount Dovetail Saddle for TTS-160 Panther Mount
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
A lighter setup for travelling or quick looks
With the Vixen style dovetail saddle mounted on the side of the TTS-160 Mount Head, there is no need for counterweights giving a lightweight setup.
Setup with dual telescopes
It’s possible to install a dovetail saddle on one side or both sides. With two telescopes mounted you can benefit from different views of the same object.
Also for astroimaging
It’s possible to image the planets and many of the brighter deep sky objects with this setup. Even though there is no telescope rOTAtor installed it’s possible to use many short unguided exposures. With no polar alignment, no guiding and no derotation it’s great for beginners and the fast travel setup.
Specifications
- Weight: 0.5 kg
- Materials: Aluminum, black hard anodized, Brass bushings
- Telescope Capacity: 15 kg -less for large aperture telescope
- Drive Motors: DC Servo motor with high resolution encoder
- Dovetail Size: Vixen style dovetail: Width 43.5mm, side angles 12 degrees
Other Information
- Country of Manufacture: Denmark
A lighter setup for travelling or quick looks
With the Vixen style dovetail saddle mounted on the side of the TTS-160 Mount Head, there is no need for counterweights giving a lightweight setup.
Setup with dual telescopes
It’s possible to install a dovetail saddle on one side or both sides. With two telescopes mounted you can benefit from different views of the same object.
Also for astroimaging
It’s possible to image the planets and many of the brighter deep sky objects with this setup. Even though there is no telescope rOTAtor installed it’s possible to use many short unguided exposures. With no polar alignment, no guiding and no derotation it’s great for beginners and the fast travel setup.
Specifications
- Weight: 0.5 kg
- Materials: Aluminum, black hard anodized, Brass bushings
- Telescope Capacity: 15 kg -less for large aperture telescope
- Drive Motors: DC Servo motor with high resolution encoder
- Dovetail Size: Vixen style dovetail: Width 43.5mm, side angles 12 degrees
- Dovetail saddle for Vixen style dovetails
- Brass bushing for the installation on the mount head
- M8x60 Bolt for the installation on the mount head
A lighter setup for travelling or quick looks
With the Vixen style dovetail saddle mounted on the side of the TTS-160 Mount Head, there is no need for counterweights giving a lightweight setup.
Setup with dual telescopes
It’s possible to install a dovetail saddle on one side or both sides. With two telescopes mounted you can benefit from different views of the same object.
Also for astroimaging
It’s possible to image the planets and many of the brighter deep sky objects with this setup. Even though there is no telescope rOTAtor installed it’s possible to use many short unguided exposures. With no polar alignment, no guiding and no derotation it’s great for beginners and the fast travel setup.
Specifications
- Weight: 0.5 kg
- Materials: Aluminum, black hard anodized, Brass bushings
- Telescope Capacity: 15 kg -less for large aperture telescope
- Drive Motors: DC Servo motor with high resolution encoder
- Dovetail Size: Vixen style dovetail: Width 43.5mm, side angles 12 degrees
Other Information
- Country of Manufacture: Denmark
- Dovetail saddle for Vixen style dovetails
- Brass bushing for the installation on the mount head
- M8x60 Bolt for the installation on the mount head
