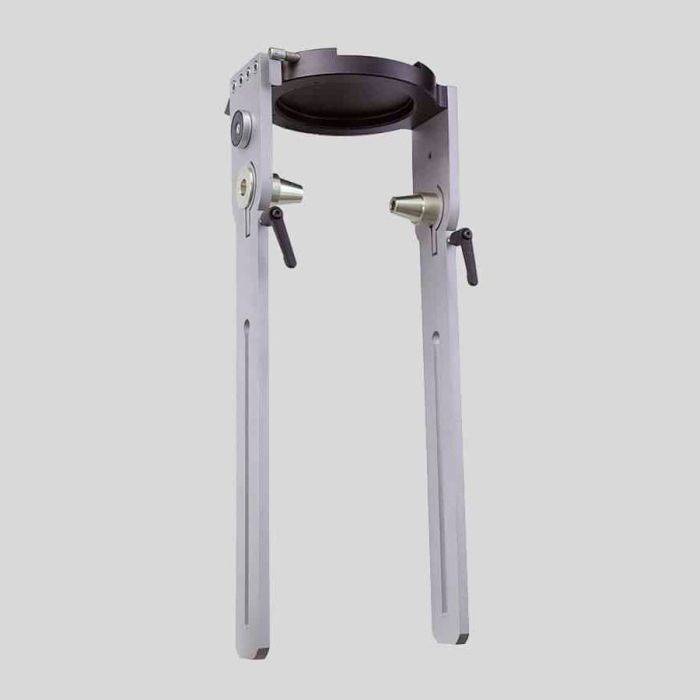

Track The Stars Top Mount & Arms for TTS-160 Panther Mount
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
An adjustable clutch on the altitude axle
The Topmount easily installs on the mount head via two conical brass bushings inserted into the ends of the altitude axle. The two lock handles work as clutches that can be released completely when balancing the telescope and lock completely when only running the mount via the motors. If wished the clutches can be set so that the mount can be moved manually and still stays in position.
Dual size dovetail saddle – Vixen & Losmandy size
The top dovetail saddle takes either 3 inches wide (Losmandy style) or Vixen size and locks securely onto the dovetail bar via two brass cylinders. The finger screws are small and compact designed to give the necessary force on the dovetail bar without taking up to much space.
Magnetic handpad holder
On each side of the Topmount is a magnetic holder for the handpad. Additional magnetic holders can be delivered if you want to place the handpad elsewhere on the telescope.
Adjustable counterweight slots
The Counterweight slots on each side can receive 2 counterweights.
Specifications
- Weight: 5 kg
- Materials: Brass bushings, Stainless Steel and Aluminum, black hard anodized
- Dovetail Size: 3 inch Losmandy Style (Width: 76.2mm, Angle 60 degrees)
Other Information
- Country of Manufacture: Denmark
An adjustable clutch on the altitude axle
The Topmount easily installs on the mount head via two conical brass bushings inserted into the ends of the altitude axle. The two lock handles work as clutches that can be released completely when balancing the telescope and lock completely when only running the mount via the motors. If wished the clutches can be set so that the mount can be moved manually and still stays in position.
Dual size dovetail saddle – Vixen & Losmandy size
The top dovetail saddle takes either 3 inches wide (Losmandy style) or Vixen size and locks securely onto the dovetail bar via two brass cylinders. The finger screws are small and compact designed to give the necessary force on the dovetail bar without taking up to much space.
Magnetic handpad holder
On each side of the Topmount is a magnetic holder for the handpad. Additional magnetic holders can be delivered if you want to place the handpad elsewhere on the telescope.
Adjustable counterweight slots
The Counterweight slots on each side can receive 2 counterweights.
Specifications
- Weight: 5 kg
- Materials: Brass bushings, Stainless Steel and Aluminum, black hard anodized
- Dovetail Size: 3 inch Losmandy Style (Width: 76.2mm, Angle 60 degrees)
- 1x Dovetail Saddle plate with counterweight arms
- 2x Magnetic handpad holders (installed on arms)
- 2x Brass bushings
- 2x M8x60 Stainless steel screws
An adjustable clutch on the altitude axle
The Topmount easily installs on the mount head via two conical brass bushings inserted into the ends of the altitude axle. The two lock handles work as clutches that can be released completely when balancing the telescope and lock completely when only running the mount via the motors. If wished the clutches can be set so that the mount can be moved manually and still stays in position.
Dual size dovetail saddle – Vixen & Losmandy size
The top dovetail saddle takes either 3 inches wide (Losmandy style) or Vixen size and locks securely onto the dovetail bar via two brass cylinders. The finger screws are small and compact designed to give the necessary force on the dovetail bar without taking up to much space.
Magnetic handpad holder
On each side of the Topmount is a magnetic holder for the handpad. Additional magnetic holders can be delivered if you want to place the handpad elsewhere on the telescope.
Adjustable counterweight slots
The Counterweight slots on each side can receive 2 counterweights.
Specifications
- Weight: 5 kg
- Materials: Brass bushings, Stainless Steel and Aluminum, black hard anodized
- Dovetail Size: 3 inch Losmandy Style (Width: 76.2mm, Angle 60 degrees)
Other Information
- Country of Manufacture: Denmark
- 1x Dovetail Saddle plate with counterweight arms
- 2x Magnetic handpad holders (installed on arms)
- 2x Brass bushings
- 2x M8x60 Stainless steel screws
