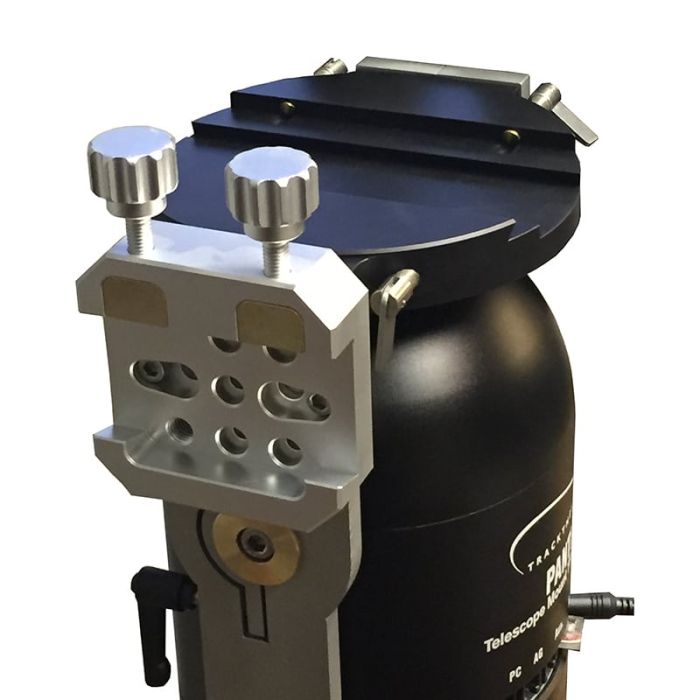

Track The Stars Telescope Vixen-Style Side Mount Dovetail Saddle for TTS-160 Panther Mount
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Vixen style dovetail saddle to be mounted on the counterweight arms.
Two or three telescopes on the mount at the same time
Enjoy different views of the objects with more telescopes in parallel on the mount head. Place your large main telescope on the top saddle and a smaller telescope on the side of the mount head.
Installation of the saddle
This Vixen size dovetail saddle is easily installed on the counterweight arm with two screws. The magnetic holder for the handpad must be removed first. Adjustment of the telescope pointing must be done on the telescope tube rings.
NOTE: Not all versions of the Panther mount have the necessary tapped holes for mounting the saddle. Check your mount before ordering.
The capacity of the Vixen dovetail saddle
The saddle will carry telescopes up to 10kg in parallel with a telescope mounted on the normal top dovetail saddle. It is possible to install telescopes on both arms at the same time. Be aware of the total capacity of the mount head.
Specifications
- Materials: Aluminum
- Telescope Capacity: 22lbs (10 kg) - less for large aperture telescope
- Dovetail Size: Vixen style dovetail: Width 43.5mm, side angles 12 degrees
Other Information
- Country of Manufacture: Denmark
Two or three telescopes on the mount at the same time
Enjoy different views of the objects with more telescopes in parallel on the mount head. Place your large main telescope on the top saddle and a smaller telescope on the side of the mount head.
Installation of the saddle
This Vixen size dovetail saddle is easily installed on the counterweight arm with two screws. The magnetic holder for the handpad must be removed first. Adjustment of the telescope pointing must be done on the telescope tube rings.
NOTE: Not all versions of the Panther mount have the necessary tapped holes for mounting the saddle. Check your mount before ordering.
The capacity of the Vixen dovetail saddle
The saddle will carry telescopes up to 10kg in parallel with a telescope mounted on the normal top dovetail saddle. It is possible to install telescopes on both arms at the same time. Be aware of the total capacity of the mount head.
Specifications
- Materials: Aluminum
- Telescope Capacity: 22lbs (10 kg) - less for large aperture telescope
- Dovetail Size: Vixen style dovetail: Width 43.5mm, side angles 12 degrees
- 1x Dovetail saddle for Vixen style dovetails
- 1x M6 Screws for the installation on the mount head
Vixen style dovetail saddle to be mounted on the counterweight arms.
Two or three telescopes on the mount at the same time
Enjoy different views of the objects with more telescopes in parallel on the mount head. Place your large main telescope on the top saddle and a smaller telescope on the side of the mount head.
Installation of the saddle
This Vixen size dovetail saddle is easily installed on the counterweight arm with two screws. The magnetic holder for the handpad must be removed first. Adjustment of the telescope pointing must be done on the telescope tube rings.
NOTE: Not all versions of the Panther mount have the necessary tapped holes for mounting the saddle. Check your mount before ordering.
The capacity of the Vixen dovetail saddle
The saddle will carry telescopes up to 10kg in parallel with a telescope mounted on the normal top dovetail saddle. It is possible to install telescopes on both arms at the same time. Be aware of the total capacity of the mount head.
Specifications
- Materials: Aluminum
- Telescope Capacity: 22lbs (10 kg) - less for large aperture telescope
- Dovetail Size: Vixen style dovetail: Width 43.5mm, side angles 12 degrees
Other Information
- Country of Manufacture: Denmark
- 1x Dovetail saddle for Vixen style dovetails
- 1x M6 Screws for the installation on the mount head
