Wanderer Astro 5-Position 2" Filter Cube / Wheel for RASA 11 / RASA 36
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 5-position motorized filter wheel designed specifically for RASA 11 and RASA 36 tubes
- Supports both 2" mounted and 50mm unmounted filters for flexible mono imaging setups
- Zero-obstruction design helps preserve image circle size and minimize vignetting on fast optical systems
- Integrated Camera Angle Adjuster (CAA) and rear tilt adjuster simplify framing and sensor alignment
- Constructed from robust aluminum alloy with partial carbon fiber components, the Wanderer FilterCube weighs only 385g while maintaining exceptional rigidity and durability.
Wanderer Astro 5-Position Filter Cube Wheel for RASA Imaging Systems
The Wanderer Astro 5-Position 2" Filter Cube Wheel for RASA is purpose-built for high-speed astrophotography systems, giving imagers a streamlined way to switch between filters without sacrificing backfocus or image quality. Designed specifically for RASA 11 and RASA 36 optical systems, this compact motorized filter cube supports both 2" mounted and 50 mm unmounted filters while maintaining a low-profile, zero-obstruction design ideal for fast focal ratios. With integrated camera rotation and tilt adjustment built directly into the system, the Filter Cube Wheel makes it easier to fine-tune framing, correct sensor tilt, and build a clean, efficient imaging train for serious deep-sky imaging.

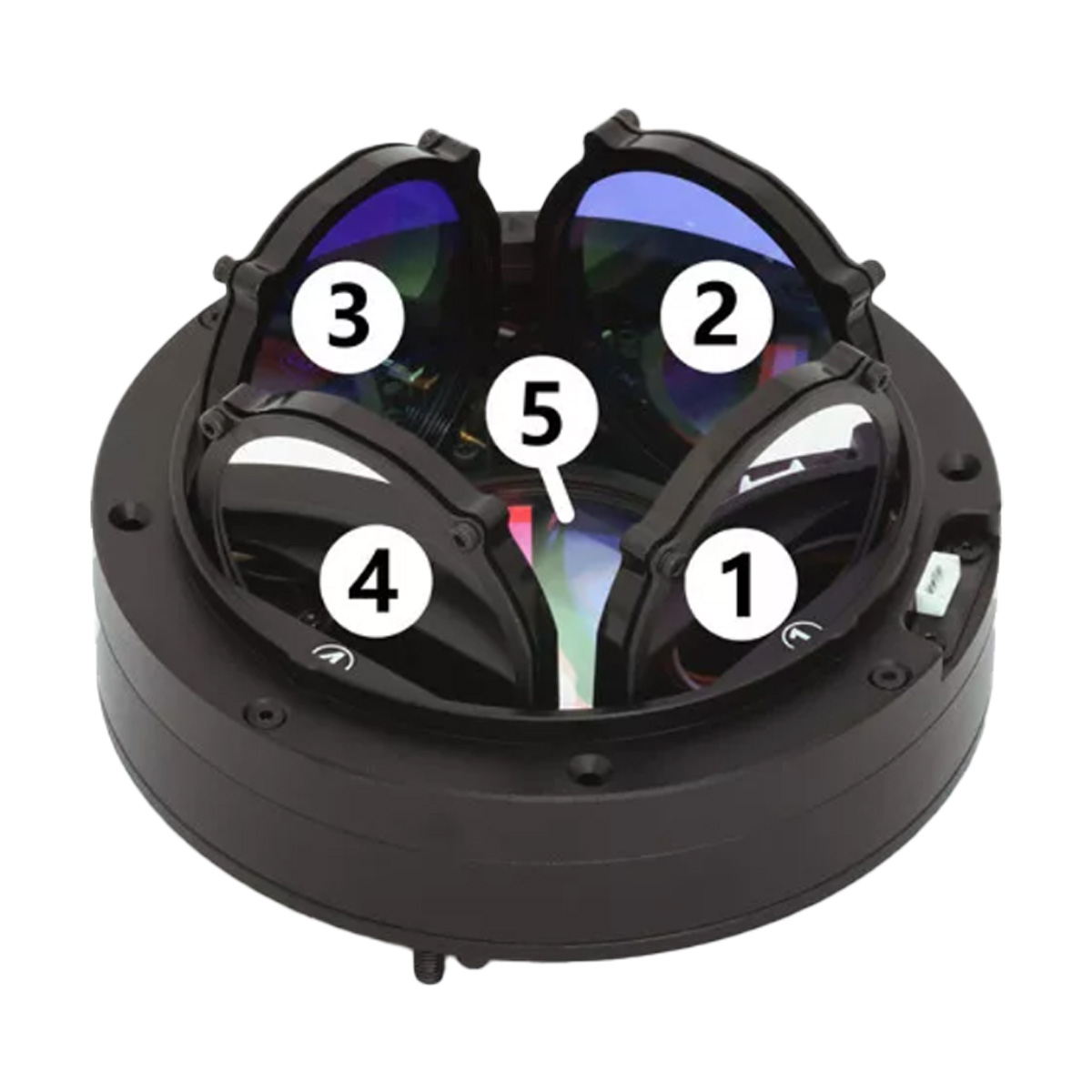

Patented Side-Flip Filter System
- 4 Side-Flip Filter Slots + 1 Dedicated L Slot
- Supports 2" Mounted & 50mm Unmounted Filters

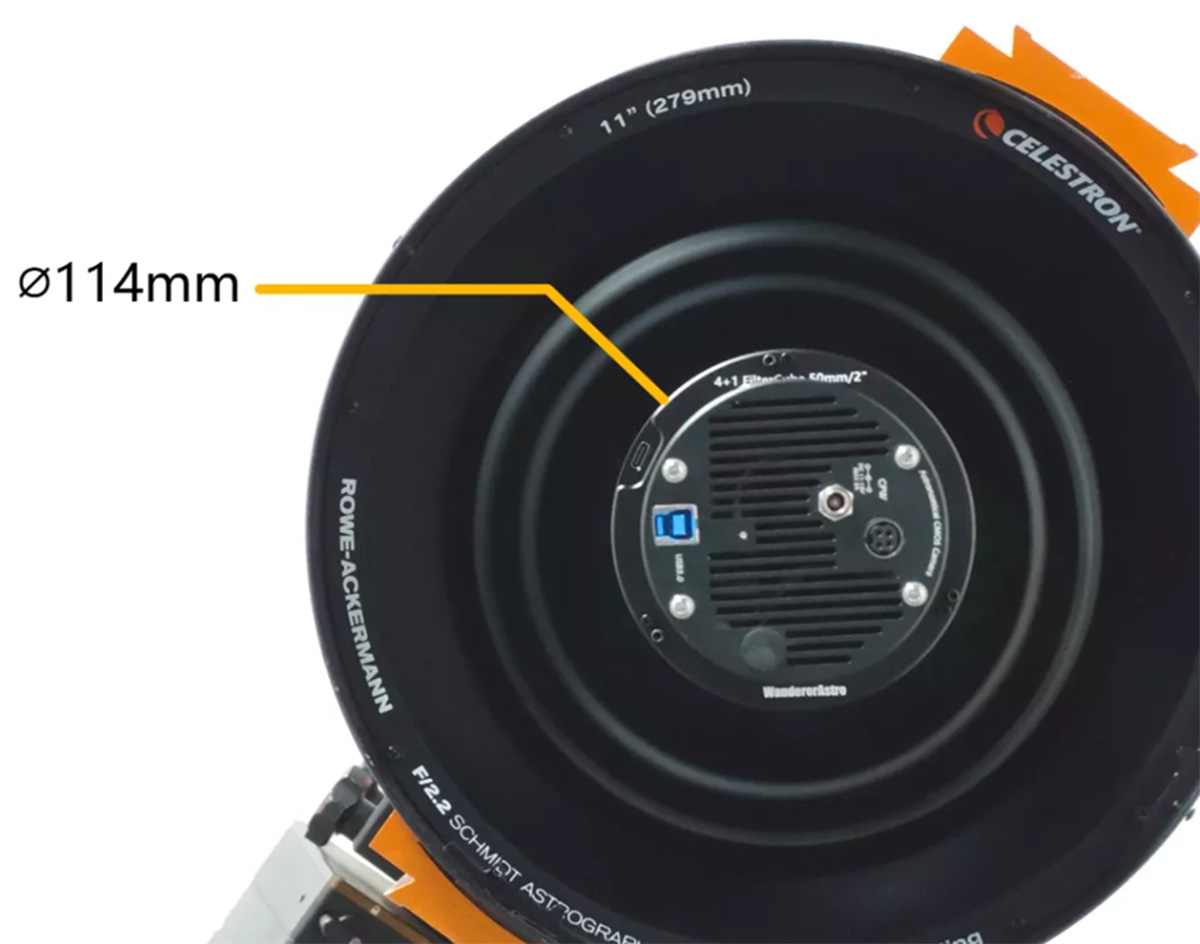

Zero Optical Obstruction
With an outer diameter of only 114mm, the Wanderer FilterCube introduces zero optical obstruction when installed on RASA 11/36 systems. It’s not just the magic of space efficiency — it’s a showcase of WandererAstro’s uncompromising industrial design philosophy.

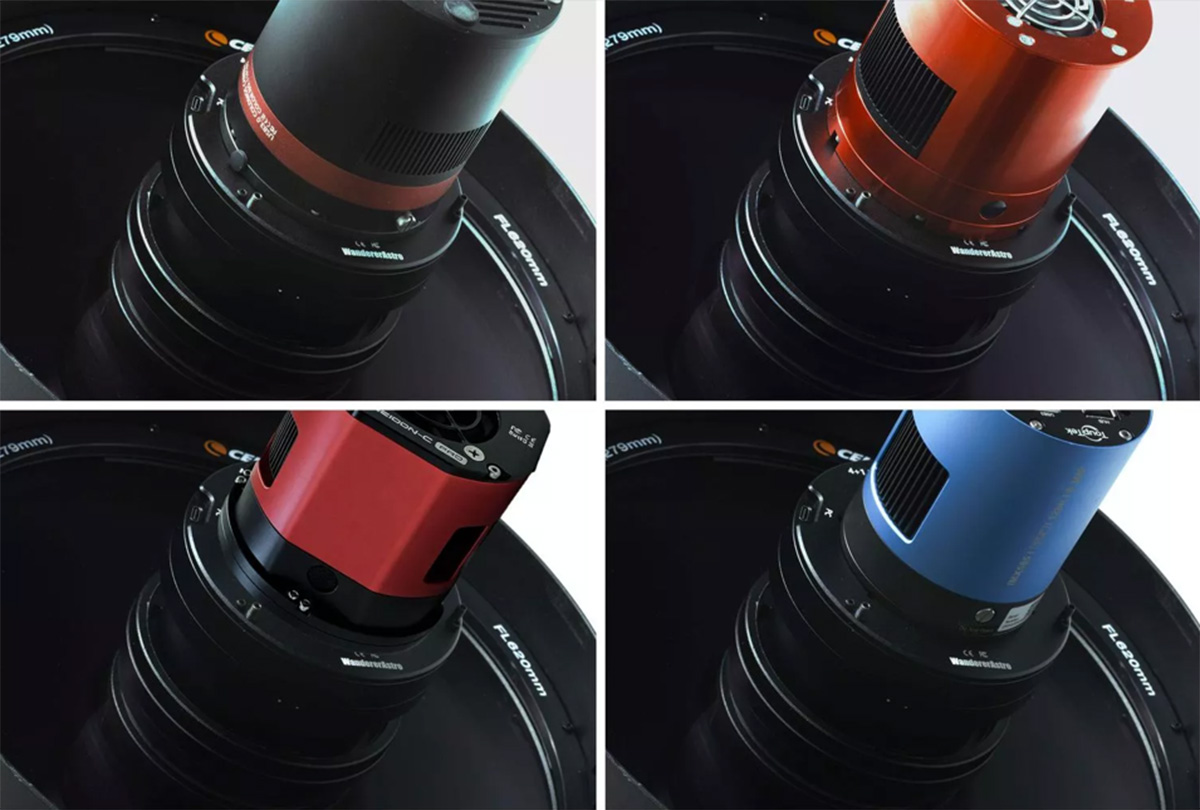

Compatible with Most Cameras
With an optical back focus of 60.3mm, the Wanderer FilterCube meets the back focus requirements of RASA 11 when used with cameras featuring a back focus of 12.5mm or less — no additional adapters needed. For RASA 36 systems, cameras with a back focus of 17.5mm or less are supported (requires additional adapter ring from WandererAstro). Compatible cameras include models from ZWO, QHYCCD, PlayerOne, Touptek, and Moravian C1x series.

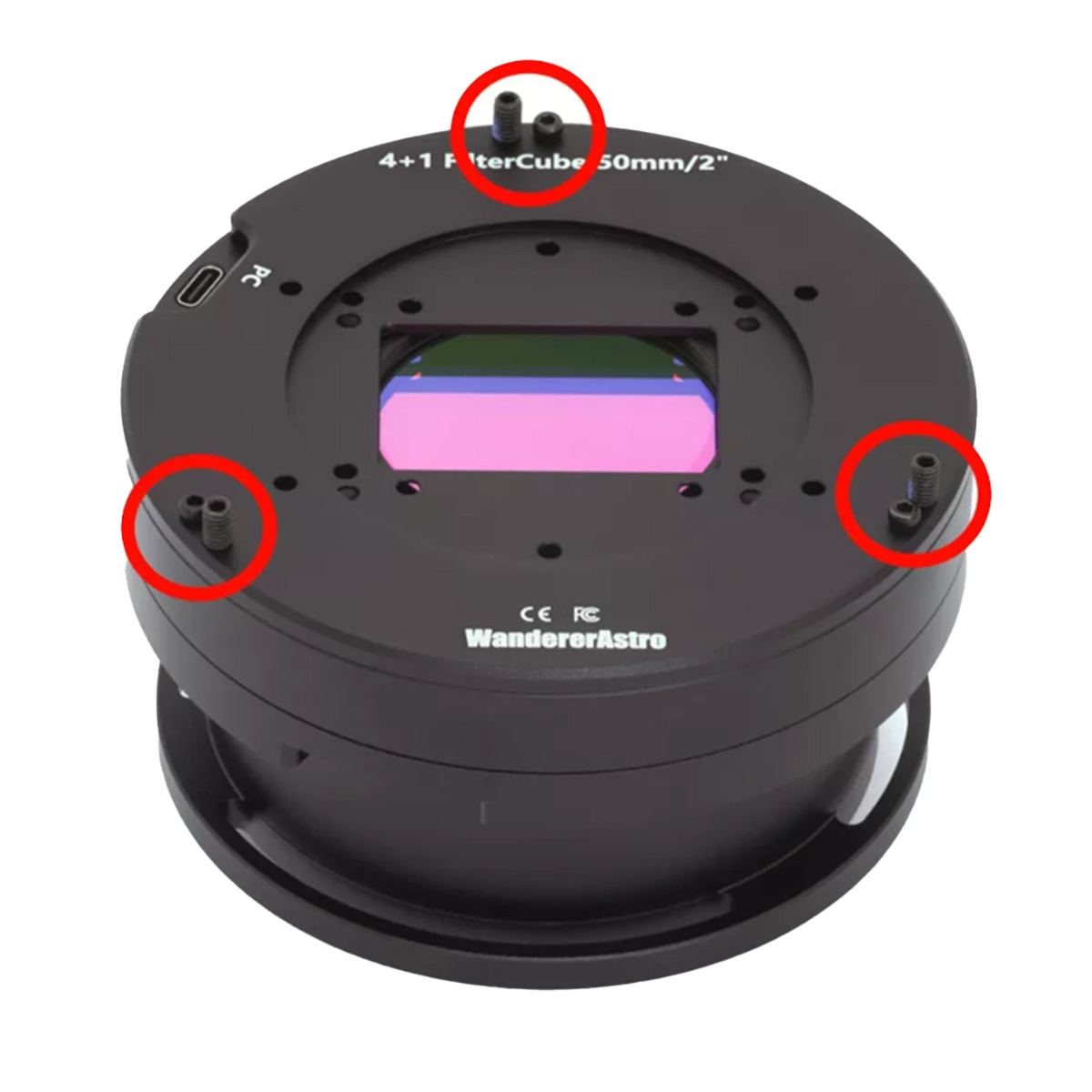

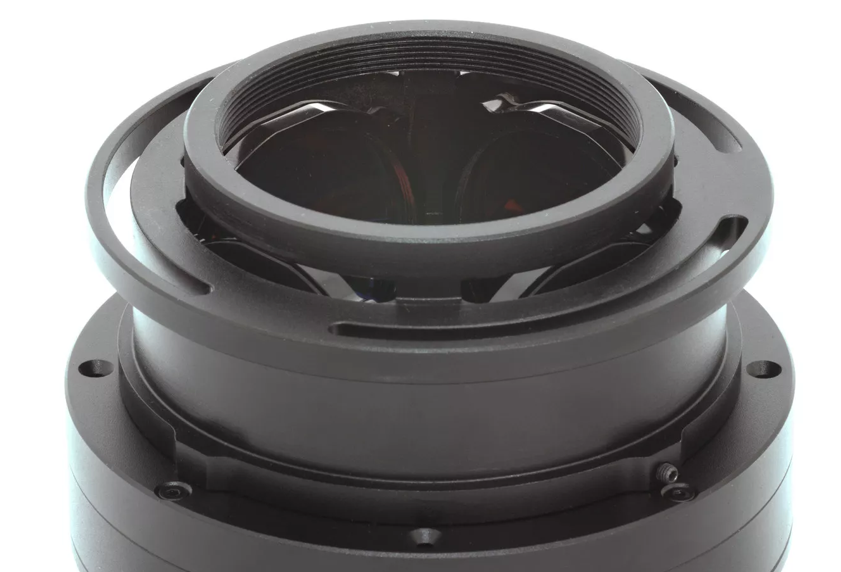

Built-in CAA & Tilt Adjuster
Integrated manual CAA and a 3-point rear tilt adjuster make operation simpler. A unique access-slot design also allows collimation when FilterCube is installed. Professional means thinking through every detail — with no compromises.
Anti-Reflection Baffles
After countless rounds of testing and real-world imaging, we engineered the FilterCube with optimized mechanical dimensions and extensive anti-reflection measures to minimize common RASA imaging issues such as ghosting, rainbow artifacts, strange halos, and flat frames calibration problems.

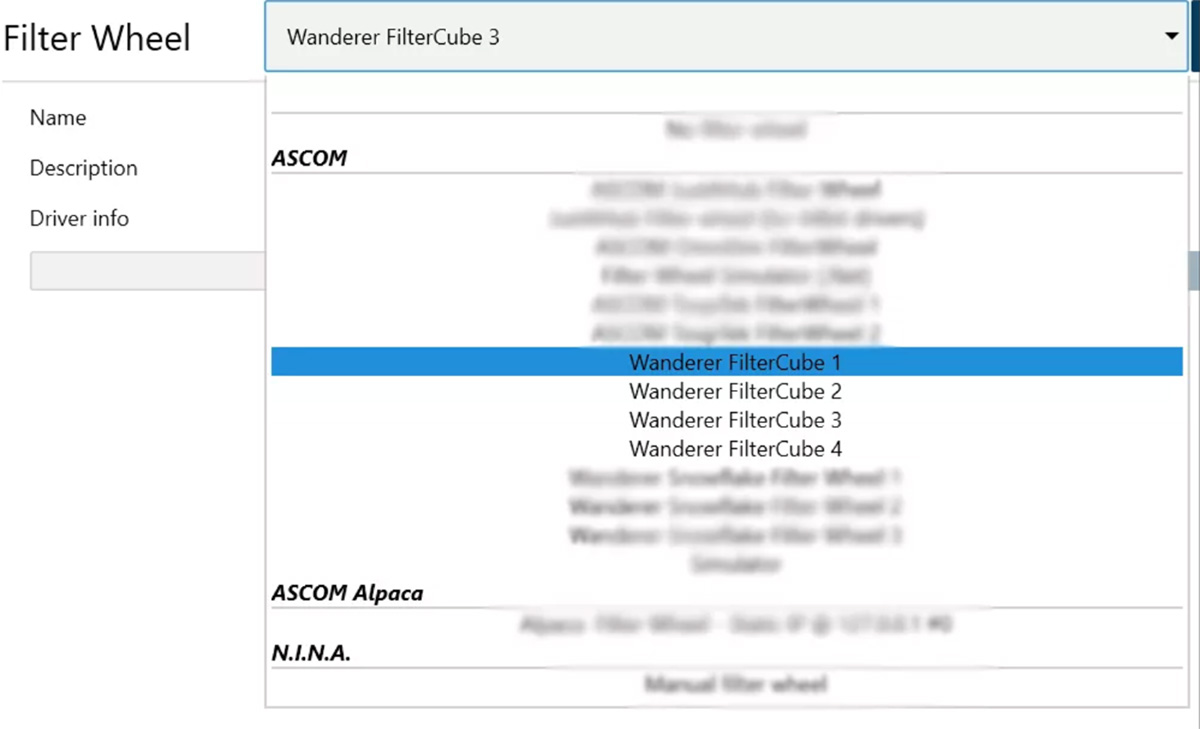

Multiple ASCOM Connections
You can connect multiple Wanderer FilterCubes to a single PC and control each device independently. This is especially useful for sky survey systems and users running multiple RASA telescopes simultaneously.

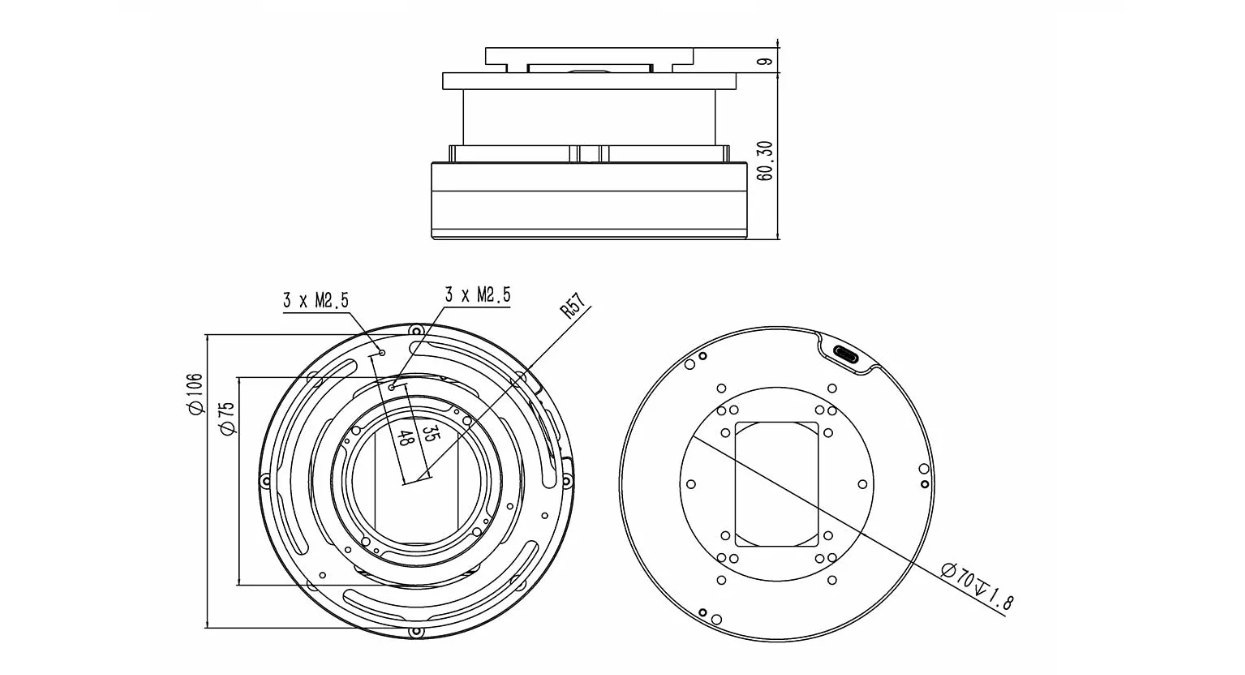

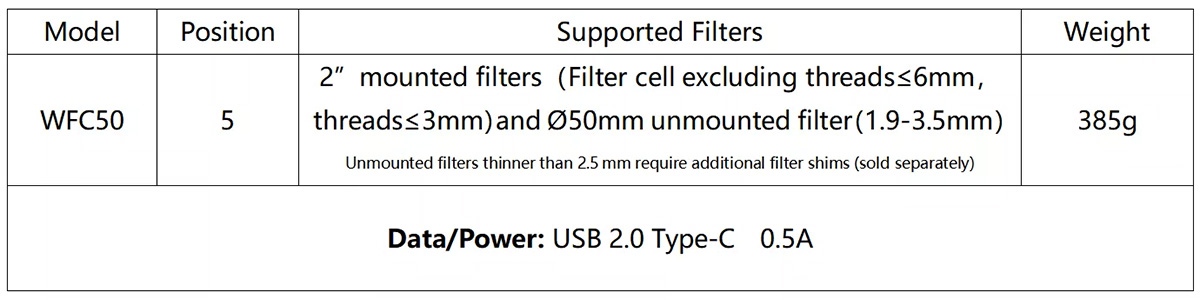

Specifications
- Filter Positions: 5 (4 side-flip + 1 center fixed)
- Supported Filters: 2-inch mounted / 50mm unmounted (mixable)
- Back Focus: 60.3mm
- Outer Diameter: 114mm
- Weight: 385 g / 13.58 oz
- Material: Aluminum alloy + carbon fiber
- Connection and Power: USB Type-C
- Driver: ASCOM
- Compatible Telescopes: RASA 11, RASA 36 (HyperStar and RASA 8 NOT supported)
- Compatible Cameras: ZWO/QHYCCD/PlayerOne/Touptek APS-C and full-frame cameras
- RASA 11 Camera Requirement: Back focus ≤ 12.5mm
- RASA 36 Camera Requirement: Back focus ≤ 17.5mm (additional adapter required)
Other Information
- Country of Manufacture: China
