William Optics Finder Bracket for 50mm Finders with Vixen/Synta-Style Base - Black # M-FB50-B

Our #: OFIN-WO-M-FB50-B
Mfg #: M-FB50-B
Our Price: $64.00
Free shipping for this item in the US
More Info

Contiguous US Customers:
All items we sell ship for free within the Contiguous US. Shipping will be via the cheapest shipping method which will vary depending on the items in your order. During checkout, you may also be shown other optional faster shipping choices.

US Customers in Hawaii and Alaska:
Free shipping applies to almost all products. A few large telescopes and mounts are excluded from this free shipping offer. For these items, please contact us to obtain a shipping quote before you check out using the online shopping cart.

International Customers:
Free shipping does not apply to international orders. During check-out, you will be presented with several shipping choices and costs. However, the export of some items may be restricted outside the US due to size or manufacturer restrictions.

In Stock (3 Available)
Stock listed above is accurate & shown in real time
Ships by Next Business Day

Product Details

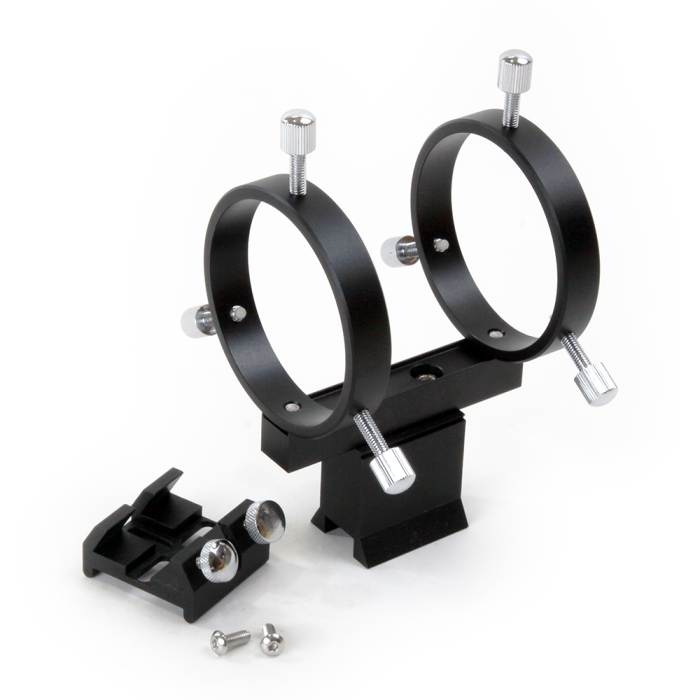

This excellent new quick-release finderscope bracket is easy to use, very convenient and a great value. It's a perfect addition to your telescope: no need to waste time mounting the bracket and finderscope every night! It will work with William Optics 50mm finders, as well as with many other finders on the market (see specifications below).

Mounting Base Information: Note that this bracket is attached to telescope focusers using a Vixen/Synta-style cross-slot base using two mounting screws. This bracket will fit only specific William Optics telescopes that use their standard R&P or Crayford focusers such as the GT71 and Star 71/71-II. It will NOT fit the new William Optics telescopes that use their V-Power focuser.

This base can be mounted on tubes that are 3.5" or larger in diameter (not telescope aperture), as well as flat surfaces. Perpendicular to the optical axis, this base can be used with mounting hole spacings ranging from 10mm - 29mm (0.39" - 1.14"). Note that this spacing is not sufficient to be used on 8" and larger SCT telescopes if you want to use two mounting screws.

Quick Release
Quick release mechanism.

Teflon
3 Teflon-tipped adjustment screws on both rings.

Elegant
Completely CNC machined, polished aluminum.

Perfect for WO Finderscope
Inside diameter of 67mm (usable ID is less because of delrin-tipped thumbscrews). Will fit WO 50mm finderscopes or many other finderscope tubes as small as Xmm tube diameter to as large as 60mm tube diameter. The outside distance between the two rings is 89.5mm (3.53") so please ensure that your finder's main tube is longer than this.

Weight:

  • Bracket only: 9.1 oz
  • Bracket with base: 10.6oz

Additional Information

When ordering any Vixen style dovetail base (shoe), bar or plate, please note that there are two different size standards and applications in the industry. A Vixen/Synta dovetail base for this William Optics Finder Bracket for 50mm finders is smaller and generally has a slot opening to accommodate 32-34mm finder bracket dovetails. A Vixen base/clamp/saddle for mounts and telescopes is wider at 42-44mm. The two are not the same and are not interchangeable.

Please check the specifications of this item provided above to ensure that it will be compatible with your accessory before purchasing

Other Information

  • Country of Manufacture: Taiwan
