William Optics Vixen-Style 8" Dovetail Plate - Hard Anodized Gray
Sku:
ZZPAMA-ZZWO-M-PVHAII
Mfg #:
M-PVHAII
$49.00
Discontinued by Manufacturer
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
SKU:
ZZPAMA-ZZWO-M-PVHAII
Mfg #:
M-PVHAII
Description
Description

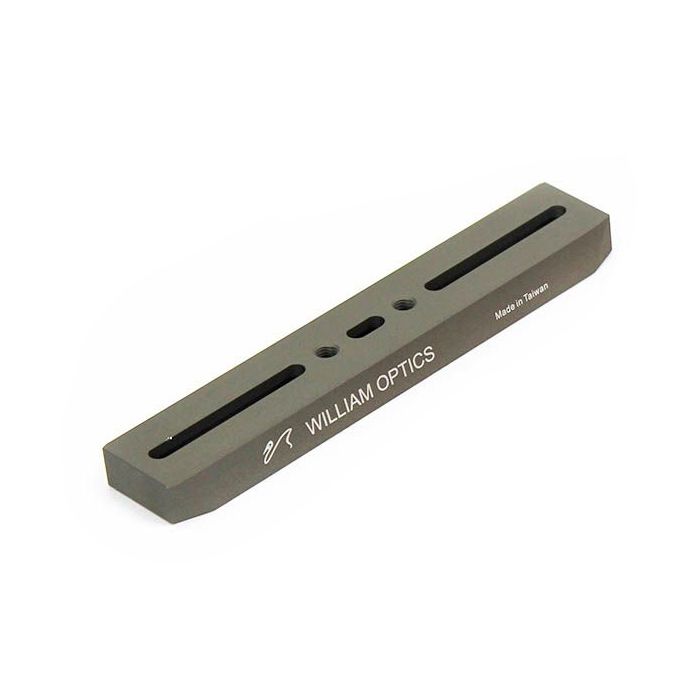

New from William Optics - Vixen-style hard anodized gray color dovetail plate # M-PVHAII
- Fits many mounts from WO (EZT), Vixen, Meade, Orion, Celestron, Synta, and others compatible with Vixen/Synta style dovetails
- Precision-machined out of solid aluminum, fully anodized for great looks, and life-long durability
- Hard anodizing offers superior wear protection compared to non-anodized plates
- Light but sturdy; mount any scope on it easily
- Weight = Xoz (Xg)
- Length = 7.9" / 200mm, Bottom width = 1.64" / 41.7mm, Top width = 1.33" / 33.7mm, Height = 0.61" / 15.5mm. See third product photo above for more info (all dimensions shown in mm)
- Does not include any mounting screws or bolts. You will need to provide these based on the holes you wish to use on this rail, this item's specifications (see drawing), and your mounting rings.
- William Optics Z61 telescope owners please note: The bottom of the L-base on the scope has two 1/4"-20 threaded screw holes. To attach this rail to the Z61, you need two socket-type screws with the following dimensions:
- Screw head maximum diameter = 12mm- Screw head maximum length = 5.5mm- Threaded shaft length of the screw can be between 14mm and 17mm, but 15-16mm would be best.Regular bolts with hexagonal head will not work.
New from William Optics - Vixen-style hard anodized gray color dovetail plate # M-PVHAII
- Fits many mounts from WO (EZT), Vixen, Meade, Orion, Celestron, Synta, and others compatible with Vixen/Synta style dovetails
- Precision-machined out of solid aluminum, fully anodized for great looks, and life-long durability
- Hard anodizing offers superior wear protection compared to non-anodized plates
- Light but sturdy; mount any scope on it easily
- Weight = Xoz (Xg)
- Length = 7.9" / 200mm, Bottom width = 1.64" / 41.7mm, Top width = 1.33" / 33.7mm, Height = 0.61" / 15.5mm. See third product photo above for more info (all dimensions shown in mm)
- Does not include any mounting screws or bolts. You will need to provide these based on the holes you wish to use on this rail, this item's specifications (see drawing), and your mounting rings.
- William Optics Z61 telescope owners please note: The bottom of the L-base on the scope has two 1/4"-20 threaded screw holes. To attach this rail to the Z61, you need two socket-type screws with the following dimensions:
- Screw head maximum diameter = 12mm- Screw head maximum length = 5.5mm- Threaded shaft length of the screw can be between 14mm and 17mm, but 15-16mm would be best.Regular bolts with hexagonal head will not work.
