William Optics Camera Angle Adjuster / Rotator with M92 Thread
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

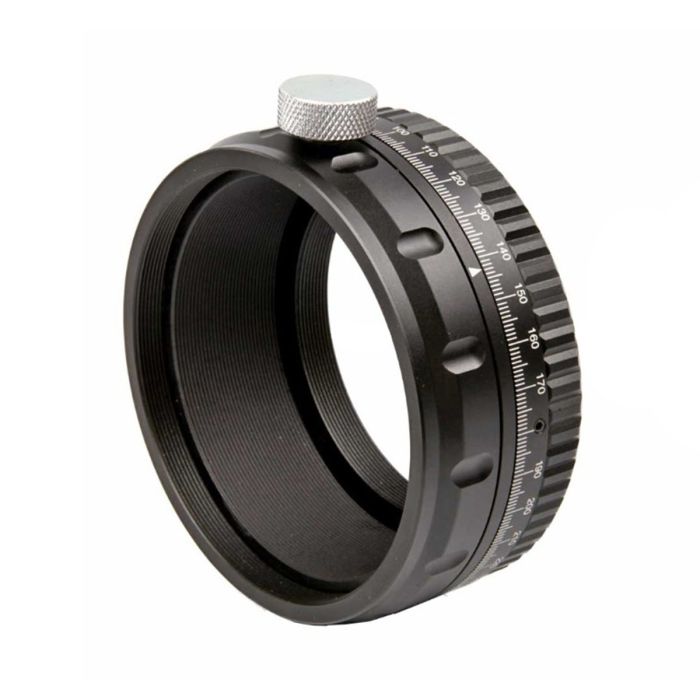

Camera Angle Adjuster / Rotator with M92 Thread
William Optics' newly designed 3" camera angle rotator. Fits: WO and other brands focusers with M92 and M83 threads (see details below). It allows you to rotate your camera over 360º in either direction, making it easier to frame your shot just the way you want it. Maximum load carrying capacity is approx. 6kgs (13lbs).
This adapter consists of two parts:
- An M92 rotator with male/female M92 threads
- An M92 to M83 step-down adapter
Specifications
M92 Rotator component only
- Male thread specification: M92x1
- Male thread length (including unthreaded undercut): 6mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 7.4oz
- Optical length: 31.5mm
- Total length: 37.5mm
- Clear aperture: 85.8mm
M92-M83 step down adapter only
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8mm
- Weight: 2.5oz
- Optical length: 10mm
- Total length: 18.1mm
- Clear aperture: 77mm
Combined
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 9.9oz
- Optical length: 41.5mm
- Total length: 49.6mm
- Clear aperture: 77mm
Other Information
- Country of Manufacture: Taiwan
Camera Angle Adjuster / Rotator with M92 Thread
William Optics' newly designed 3" camera angle rotator. Fits: WO and other brands focusers with M92 and M83 threads (see details below). It allows you to rotate your camera over 360º in either direction, making it easier to frame your shot just the way you want it. Maximum load carrying capacity is approx. 6kgs (13lbs).
This adapter consists of two parts:
- An M92 rotator with male/female M92 threads
- An M92 to M83 step-down adapter
Specifications
M92 Rotator component only
- Male thread specification: M92x1
- Male thread length (including unthreaded undercut): 6mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 7.4oz
- Optical length: 31.5mm
- Total length: 37.5mm
- Clear aperture: 85.8mm
M92-M83 step down adapter only
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8mm
- Weight: 2.5oz
- Optical length: 10mm
- Total length: 18.1mm
- Clear aperture: 77mm
Combined
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 9.9oz
- Optical length: 41.5mm
- Total length: 49.6mm
- Clear aperture: 77mm
- 1x M92 Rotator
- 1x M92-M83 step down adapter
Camera Angle Adjuster / Rotator with M92 Thread
William Optics' newly designed 3" camera angle rotator. Fits: WO and other brands focusers with M92 and M83 threads (see details below). It allows you to rotate your camera over 360º in either direction, making it easier to frame your shot just the way you want it. Maximum load carrying capacity is approx. 6kgs (13lbs).
This adapter consists of two parts:
- An M92 rotator with male/female M92 threads
- An M92 to M83 step-down adapter
Specifications
M92 Rotator component only
- Male thread specification: M92x1
- Male thread length (including unthreaded undercut): 6mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 7.4oz
- Optical length: 31.5mm
- Total length: 37.5mm
- Clear aperture: 85.8mm
M92-M83 step down adapter only
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8mm
- Weight: 2.5oz
- Optical length: 10mm
- Total length: 18.1mm
- Clear aperture: 77mm
Combined
- Male thread specification: M83x1
- Male thread length (including unthreaded undercut): 8.1mm
- Female thread specification: M92x1
- Female thread length: 8.5mm
- Weight: 9.9oz
- Optical length: 41.5mm
- Total length: 49.6mm
- Clear aperture: 77mm
Other Information
- Country of Manufacture: Taiwan
- 1x M92 Rotator
- 1x M92-M83 step down adapter
