ZWO ASI2600MM Air All-In-One Monochrome Smart Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 256G eMMC storage, 2GB DDR memory
- Multiple interface: 4x USB2.0, 3x DC12V10A, 1x USB Type-C
- Built-in guiding sensor
- APS-C sensor: 26MP, 16bit ADC, No amp glow
- One-button imaging processing
- Intelligent live stacking
- Stable self-development system
- High speed data transmission (Read 138MB/s, Write 112MB/s)
- Dual-band Wi-Fi (2.4Ghz/5Ghz)
- Unmanned operation
- Voice broadcast
- Built-in Bluetooth module to connect wirelessly to the AM3/AM5
Wireless Smart Camera ASI2600MM Air - 3 in 1: Guiding, Imaging and Smart Control
Get Rid of All These Hassles
- Complicated setups
- Cable snags
- Port damage due to cable snags
- Tough axis alignment
- On-axis guiding with improved accuracy

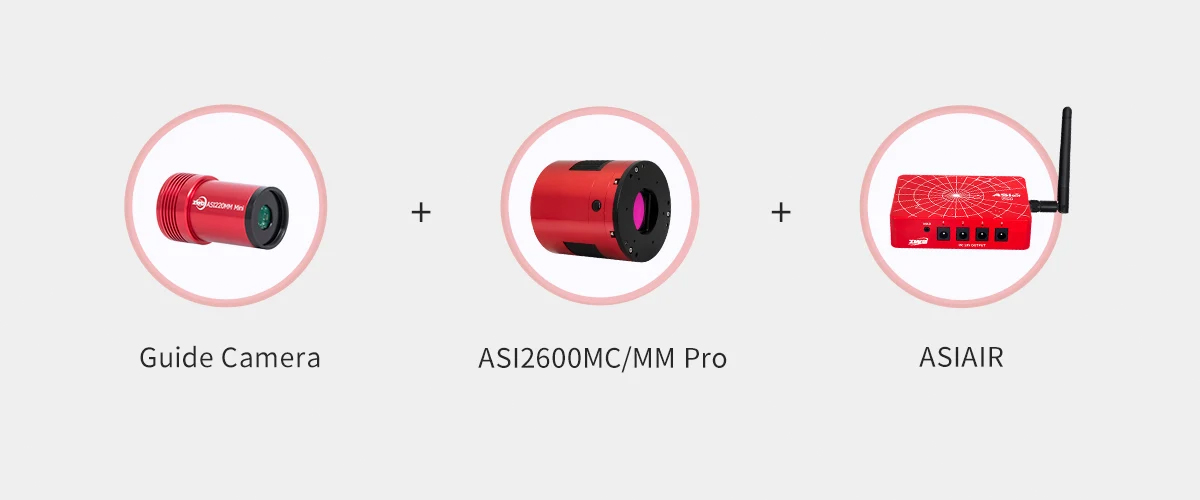

Start Your Astrophotography Journey with Great Convenience
The ASI2600MM Air combines guiding, imaging, and smart control into one compact, lightweight device. Say goodbye to complex setups and enjoy a seamless, hassle-free astrophotography experience.

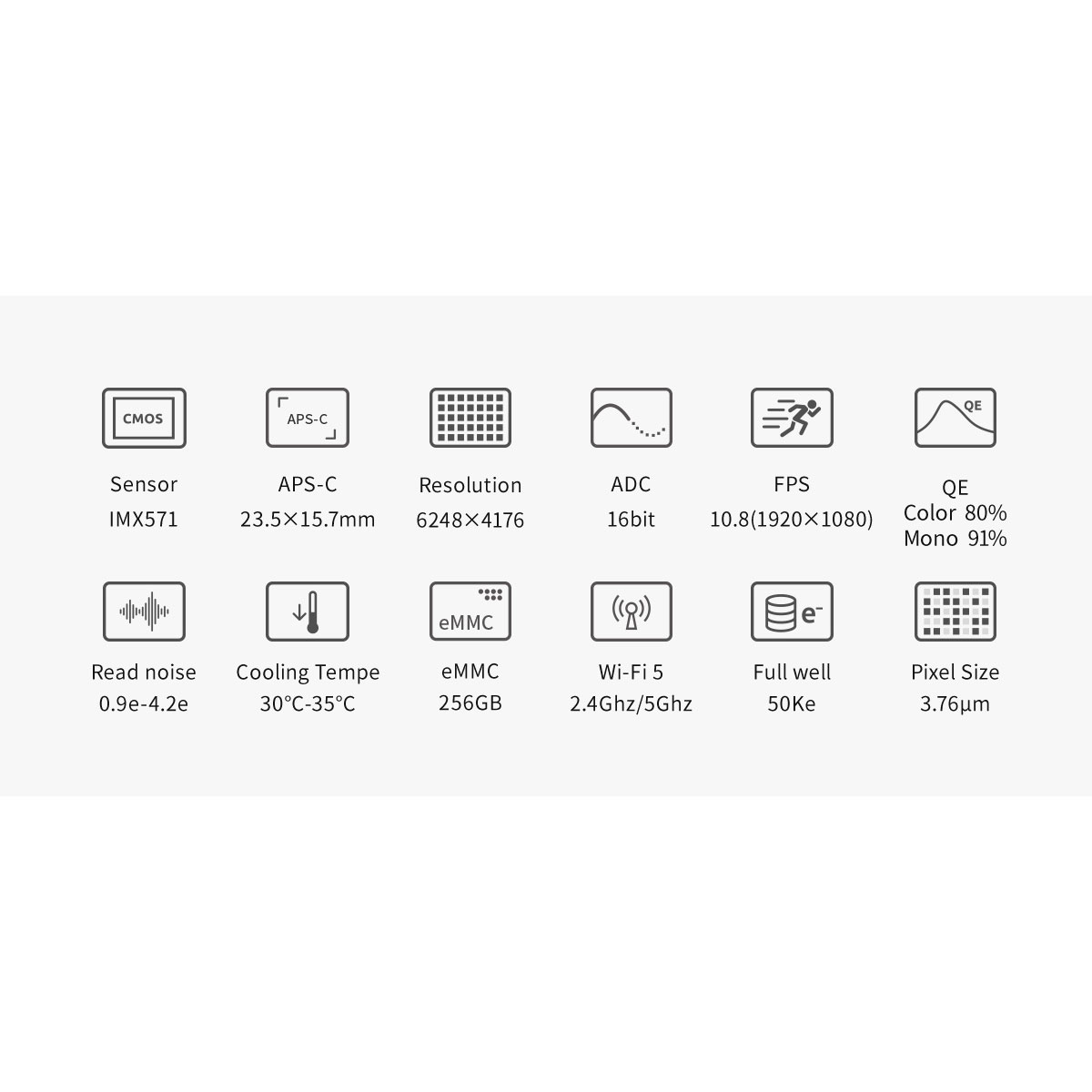

Main Sensor
The main sensor IMX571 features an APS-C format and 26MP total pixels. The size is 23.5mm in width x 15.7mm in height, and the diagonal is 28.3mm. The 3.76um x 3.76um small pixel size accommodates an impressive full depth of 50ke. With the new hardware technology, it is even extended to 73ke.
Guide Sensor
The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500nm. The read noise is as low as 0.6e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.

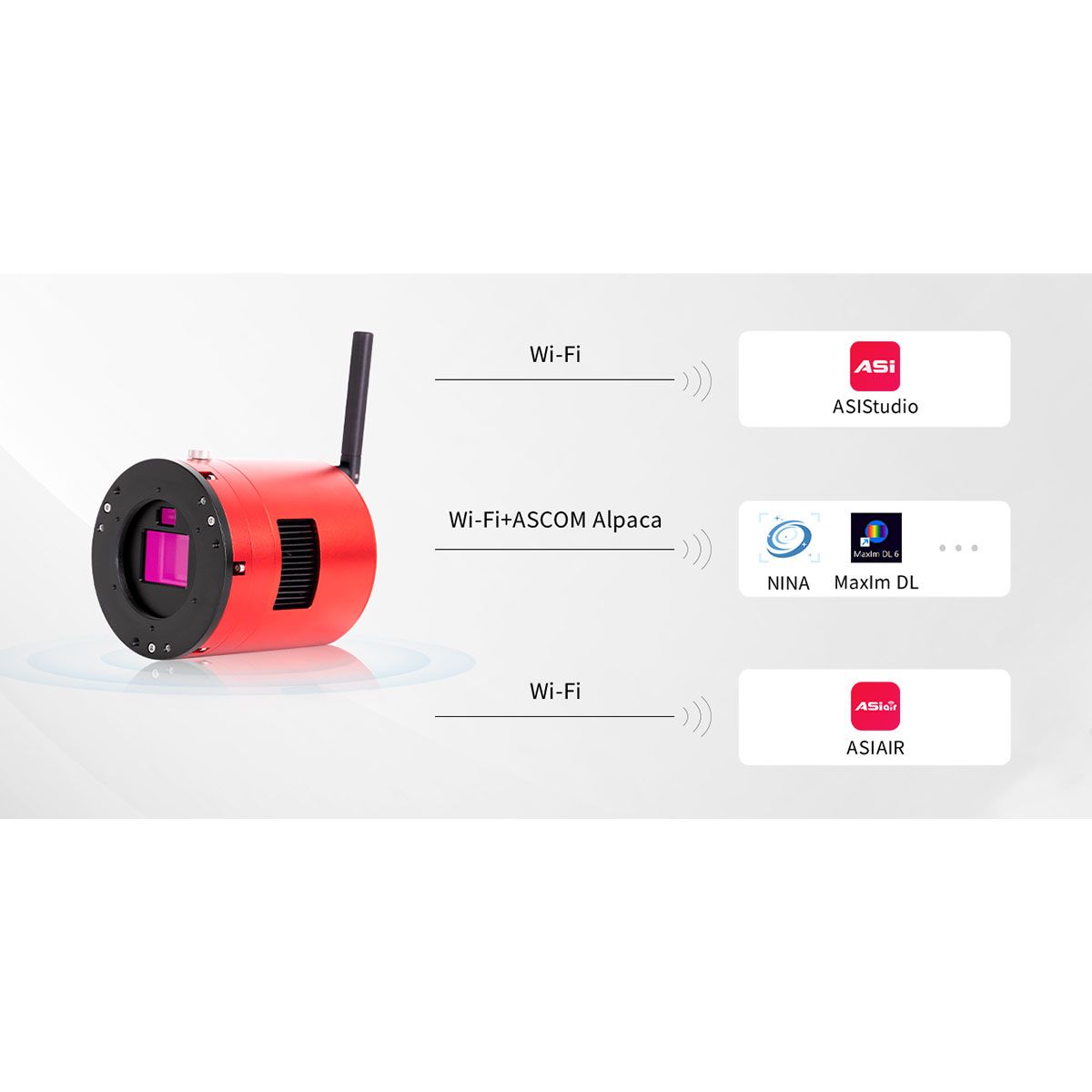

Cross-Platform Device Control
Except from ASIAIR App, ASI2600MM Air can also wirelessly connect to ZWO’s proprietary PC control software, ASIStudio, and also other 3rd-party PC software. 3rd-party software can be controlled through ASCOM extended protocol Alpaca (requires ASCOM Platform version V6.6 or higher).

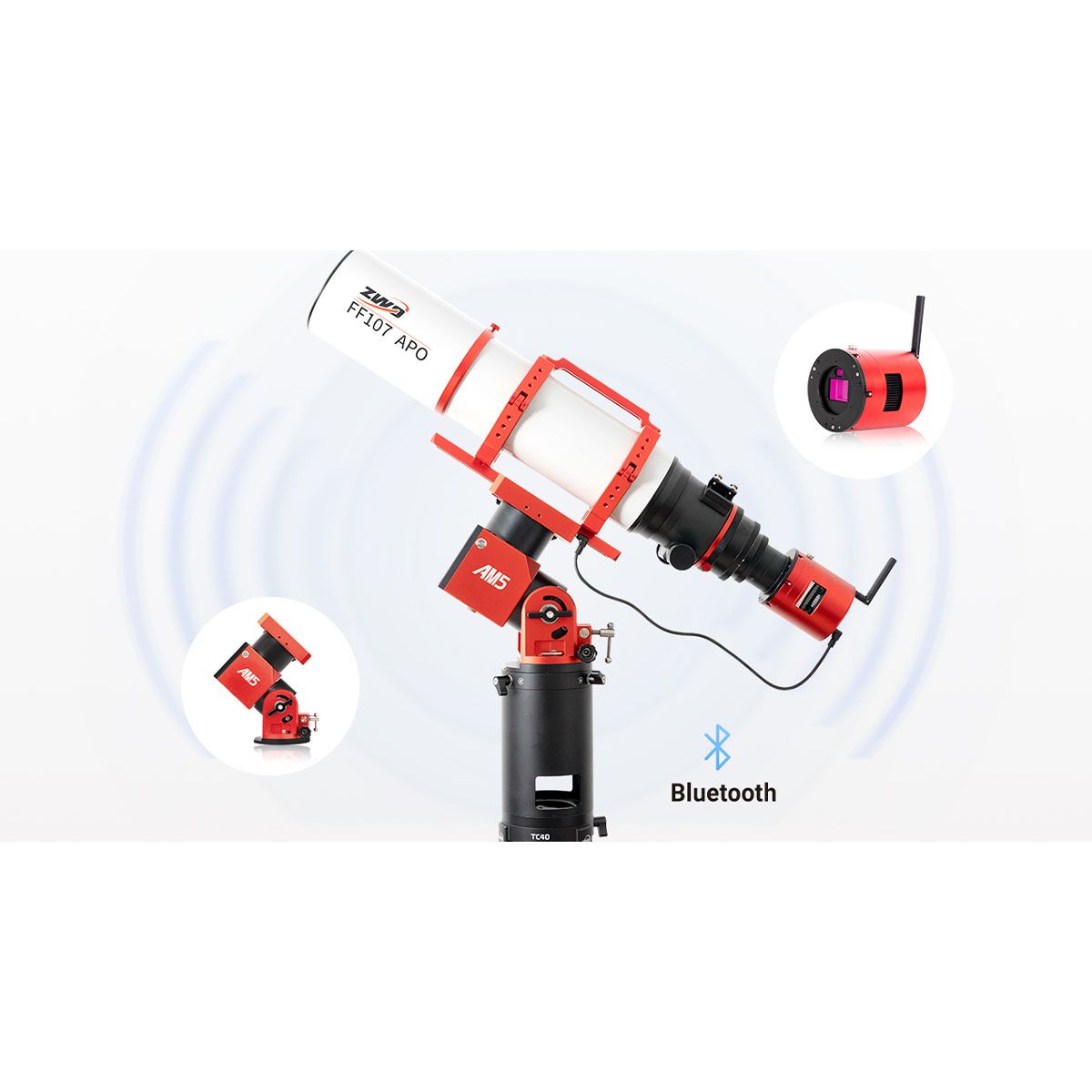

Bluetooth Connection Supported
Nice and Neat Wiring with AM3/AM5
Get Fully Control of Your Entire Rig at Your Fingertips
With the ASIAIR smart app, you can easily control guiding, imaging, your mount, and electronic focuser—all from your phone. It supports multiple imaging modes, making it easy for even beginners to quickly learn and capture professional-quality images.
Shoot with Confidence: Ample Storage and Stability
With a massive 256GB eMMC storage, the ASI2600MM Air allows you to capture multiple targets with ease. Rigorously tested with over 300 benchmarks, it ensures system stability. Plus, the USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs.
Effortlessly Connect Multiple Devices
4x USB2.0, 3x DC12V 10A, 1x USB Type-C
USB 2.0 ports for your focuser, filter wheel, and mount; DC 12V 10A input/output ports for reliable power; and USB Type-C port for fast file transfers—you can focus on capturing stunning images without worrying about connectivity issues.

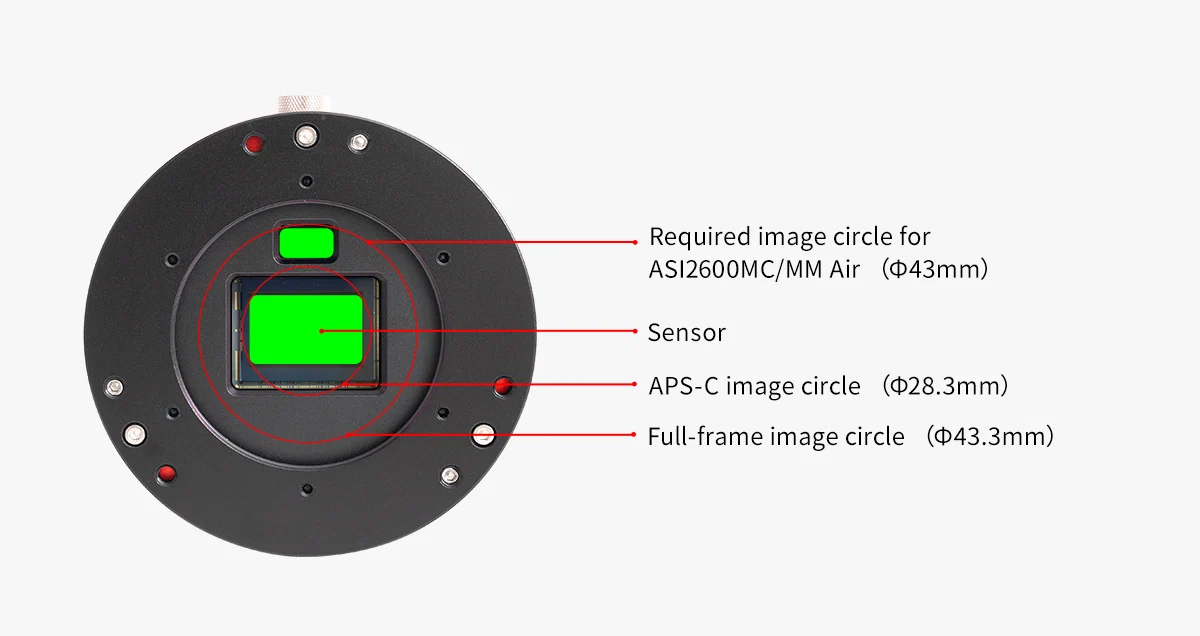

Image Circle Compatibility Reference
Please refer to the diagram on the left to understand how ASI2600MC/MM Air cameras match with various telescope image circles.
ZWO Air cameras are compatible with telescopes that support APS-C or larger image formats. Note: When using a telescope with an APS-C image circle, you may notice slight distortion in the guide star. If you're looking for more accurate and stable guiding performance, we recommend using a telescope with a full-frame or larger image circle.
Cooling Temperature
ASI2600MM-Air, has a cooling temperature of -30°C to -35°C refers to the camera’s TEC (thermoelectric) cooling capability. It can cool the camera sensor to as much as 30–35°C below ambient temperature, depending on conditions.
Dive into the Rich Details of the Celestial Targets
In expanded mode, the full well capacity of this camera reaches 73Ke, which is 1.46 times of that of the IMX571 sensor (51ke), making long-exposure shots less prone to overexposure. The large full well capacity and high dynamic range make capturing both light and dark areas with stunning clarity and detail possible. Witness the miracle details and colors of targets like never before!
Dual-Band Wi-Fi for Stable Signal
Experience unparalleled connectivity with our enhanced external dual-band antenna, supporting both 2.4G and 5G frequencies and offering stable and smooth usage within 20 meters.

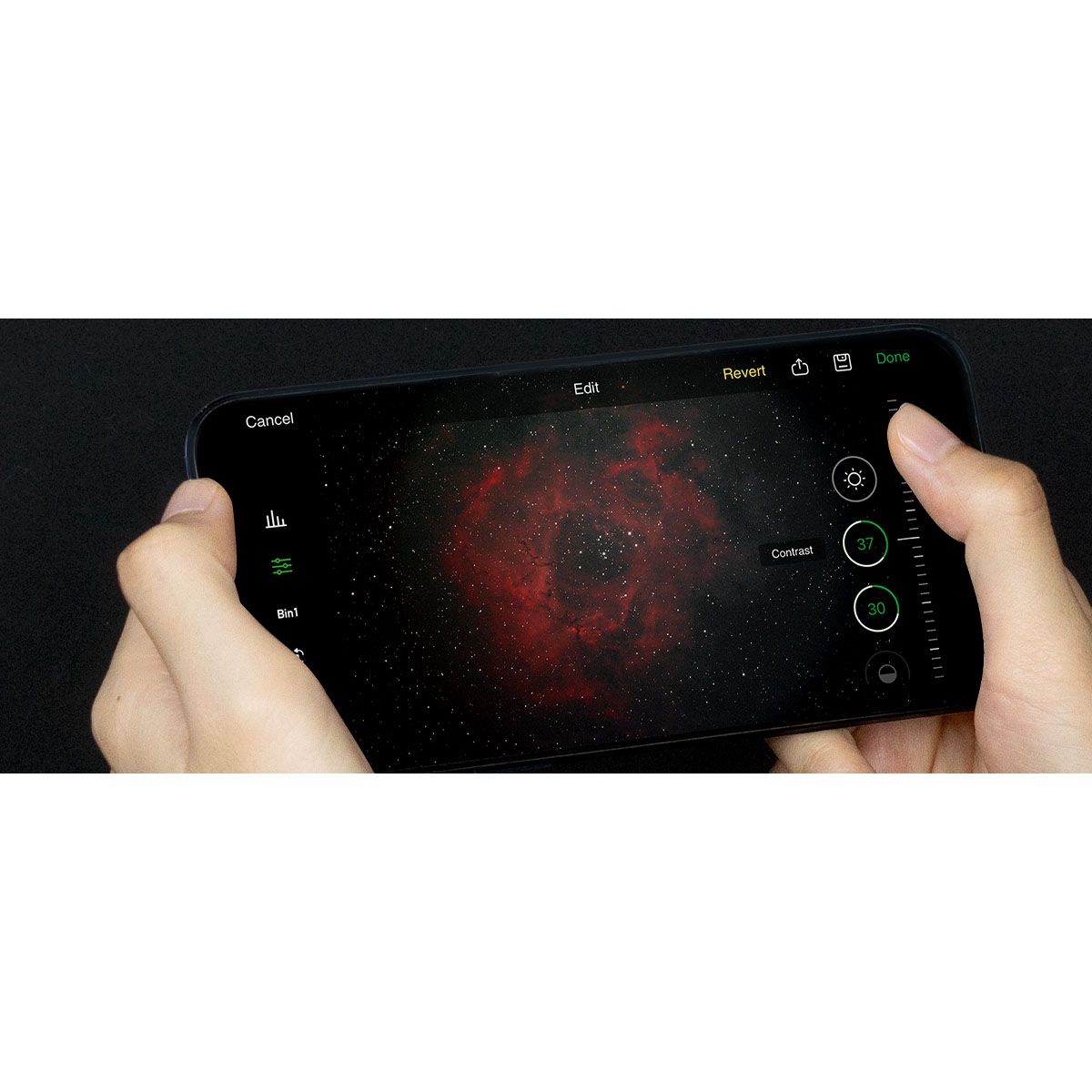

Instant Post-Processing and Sharing
Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.
Go Further with ZWO's Self-Developed System
Powered by ZWO's patented technologies, our system ensures stable astrophotography performance. Continuous App OTA updates keep your device up-to-date with the latest features, enhancing your user experience and expanding your capabilities.
Guide Sensor
The SC2210 sensor taken from the ASI220MM Mini camera features very high sensitivity. The QE peak value reaches 92% at 500nm. The read noise is as low as 0.6e. As the new generation of guide sensor, it has achieved great results in guiding, proved by hundreds of astrophotographers.
Main Sensor
The main sensor IMX571 features an APS-C format and 26MP total pixels. The size is 23.5mm in width x 15.7mm in height, and the diagonal is 28.3mm. The 3.76um x 3.76um small pixel size accommodates an impressive full depth of 50ke. With the new hardware technology, it is even extended to 73ke.

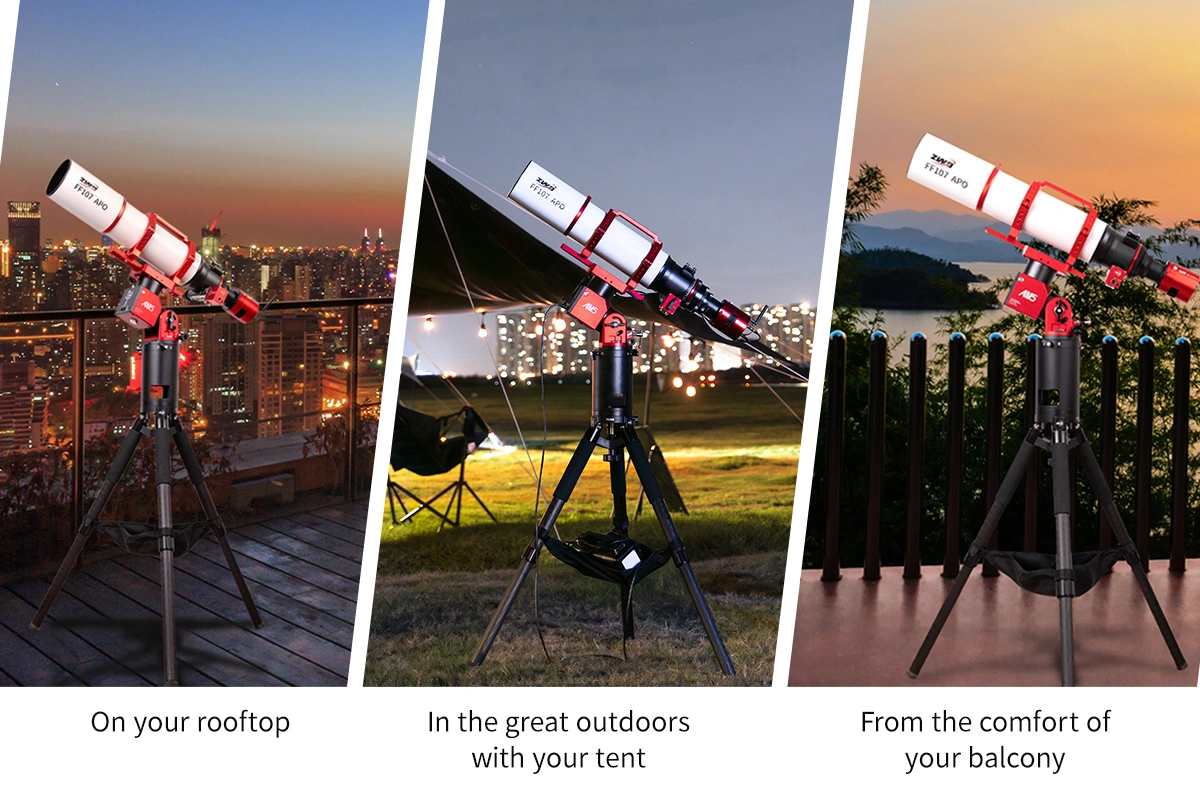

Enjoy The Night Sky Everywhere
Performance Charts

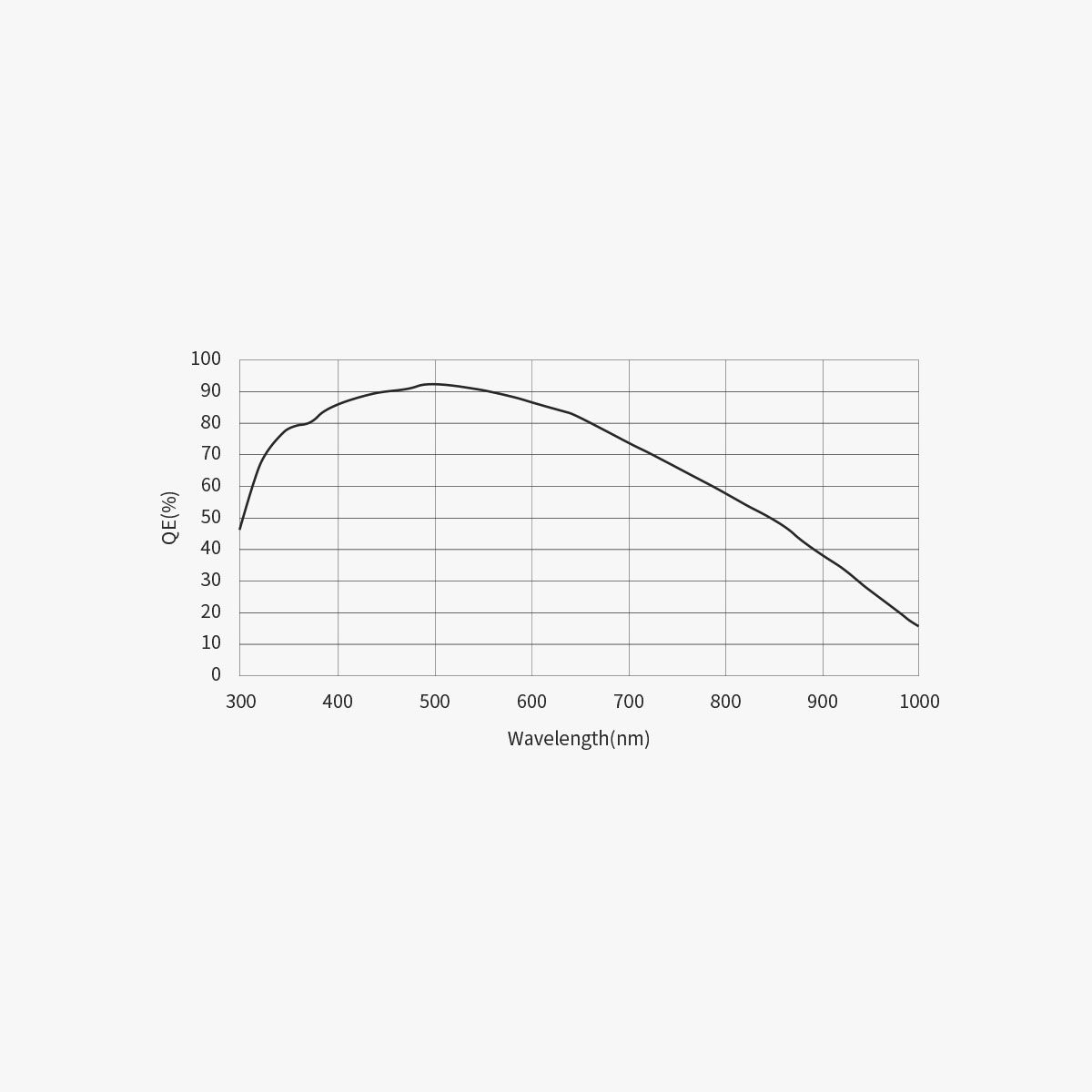

Quantum Efficiency (QE) – Guide Sensor

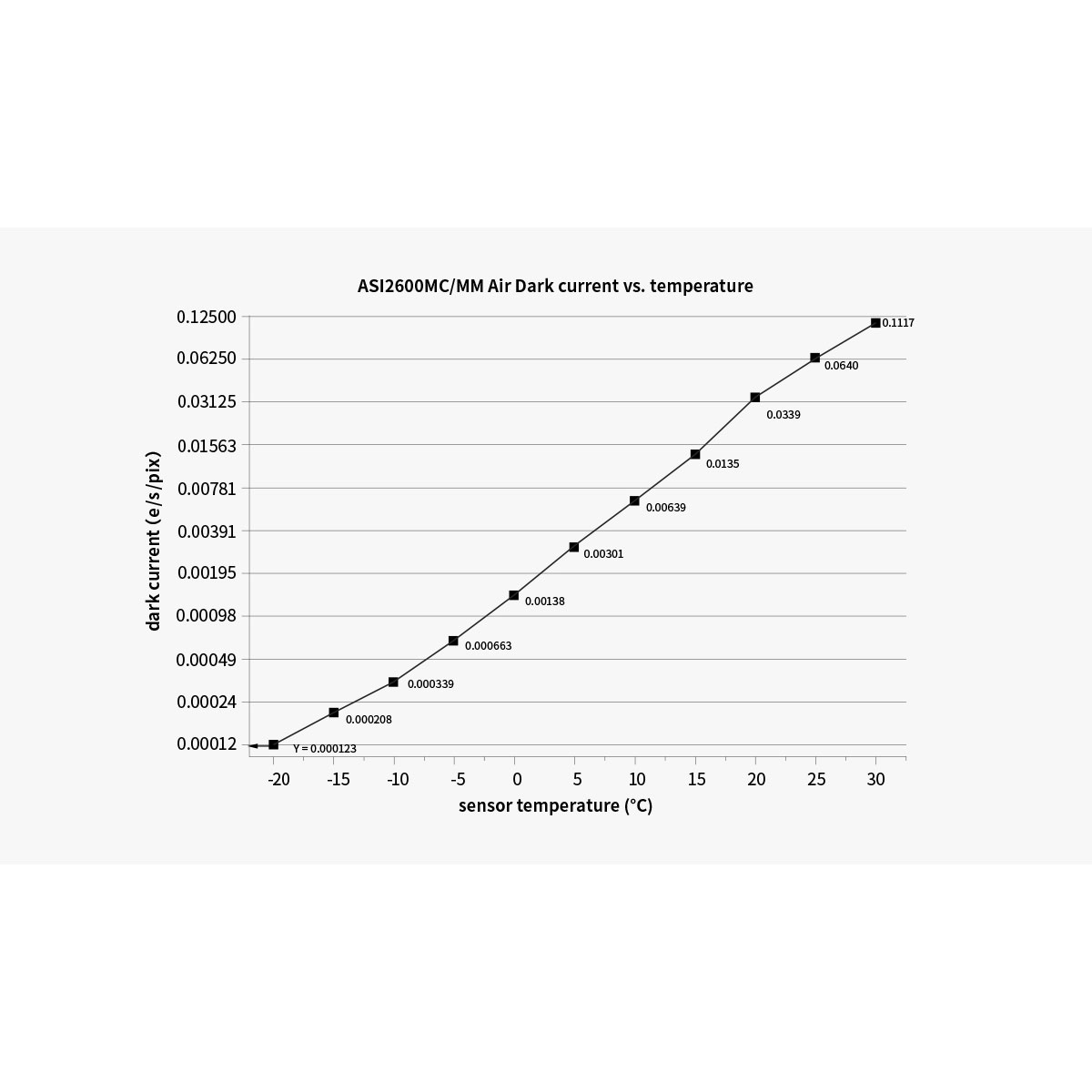

Dark Current

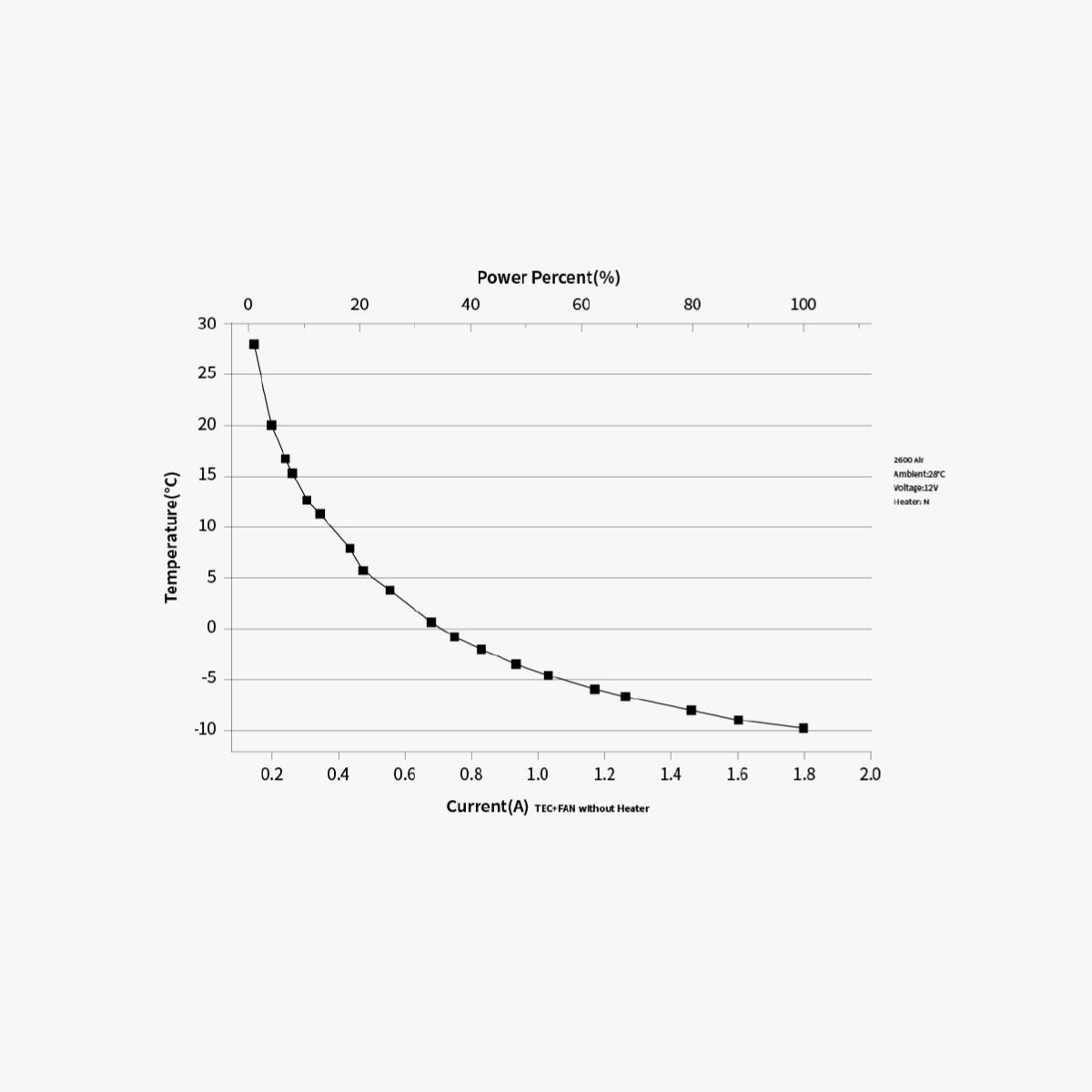

Power Consumption

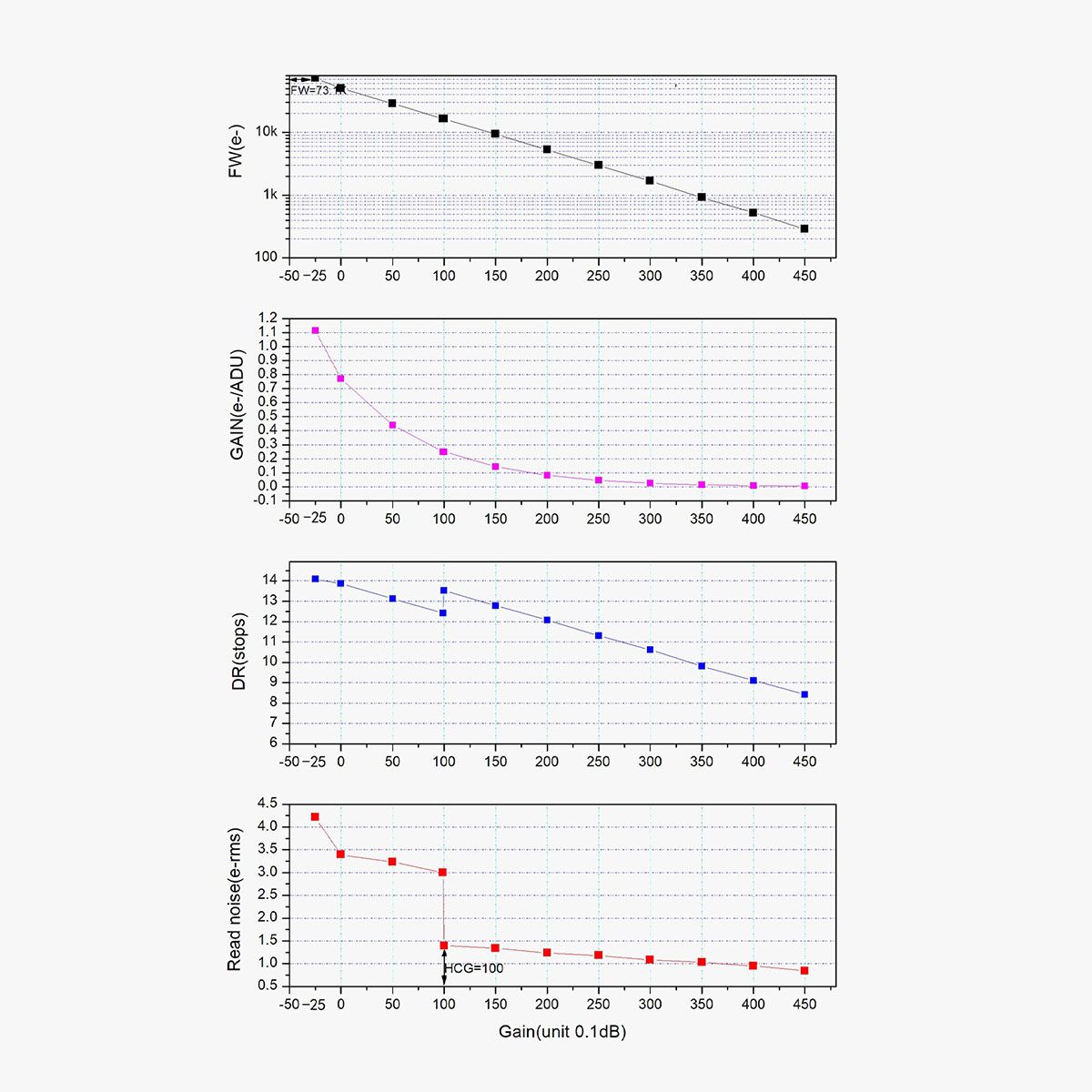

Noise & Gain
Specifications
- Dimensions:
- Camera body: 090mm, 98mm height
- Antenna: 94mm long
- Weight: 760g
- Operating Temperature: -20°C~50°C
- Storage Temperature: -20°C~60°C
- Operating Humidity: 20% ~ 90%
- Storage Humidity: 30% ~ 70%
- RAM: 2GB DDR4
- Storage Space: eMMC 256GB
- Wireless Network: IEEE 802.11a/b/g/n/ac,2.4Ghz/5Ghz, effective transmission distance: 20m.
- DC Power: 12V@3-10A input. All three DC ports can be used both as input and output. You can use any one among them as power input, meanwhile the other two can only be used as DC output.
- HUB: USB 2.0 - HUB *4
- OS: Windows,Linux, Mac OS
- Adapter Ring: M54x0.75
- Back Focus: 12.5mm or 17.5mm
- Power Mode: DC12V-3A
- Max Power Dissipation: 27.6W

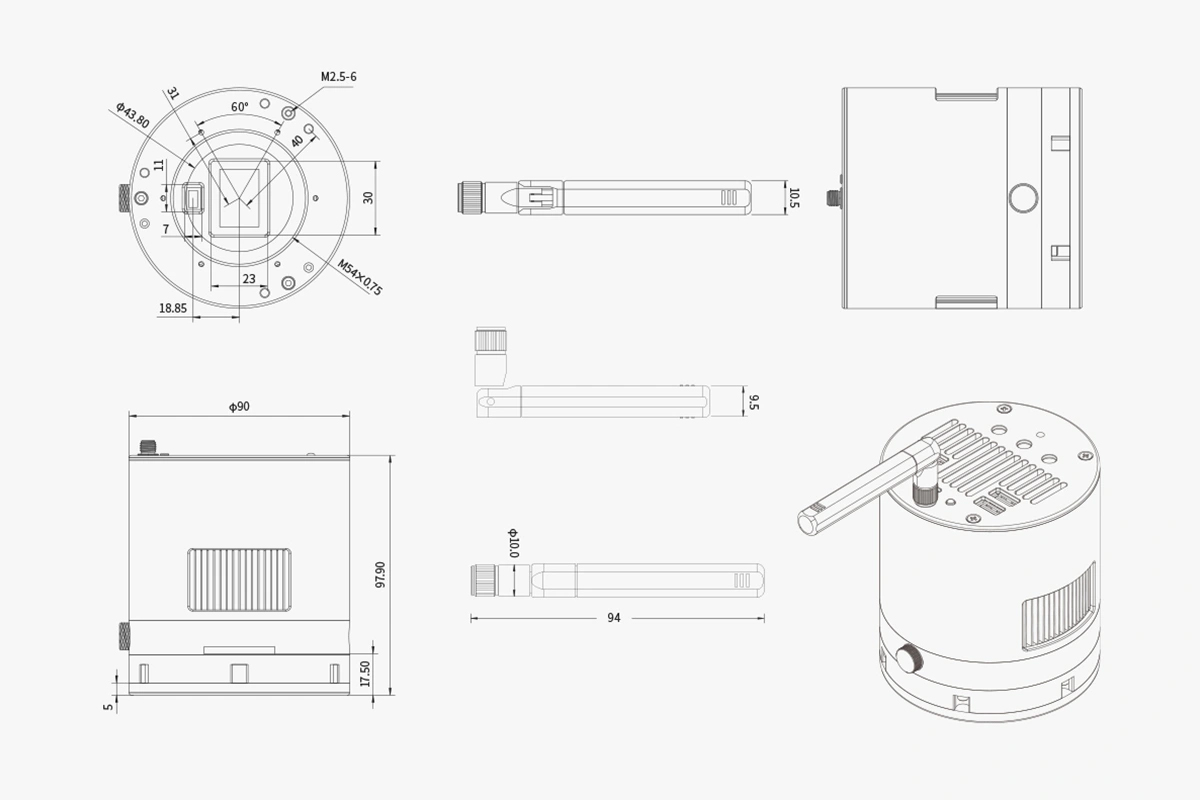

Mechanical Diagram

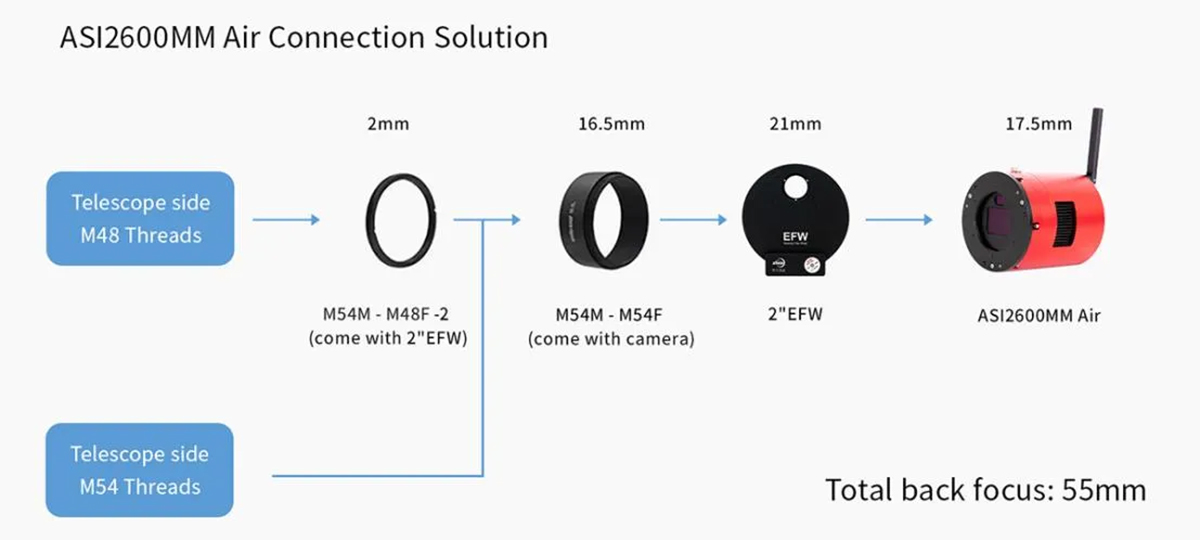

Connection Diagram
Other Information
- Country of Manufacture: China
