- Includes a built-in ZWO ASIAIR controller for seamless, all-in-one imaging and mount control
- 8.2MP monochrome sensor delivers stunning, artifact-free deep-sky detail
- Built-in guiding sensor
- 256 GB onboard storage for hours of imaging and fast, one-button stacking
- Dual-band Wi-Fi and Bluetooth for easy wireless control
- Seamless compatibility with ZWO accessories
- Power supply (required) sold separately
Meet the ASI585MM Air: All-In-One Smart Camera
Meet the ASI585MM Air and say goodbye to complex setups. Enjoy a seamless, hassle-free astrophotography experience that integrates imaging, guiding, and smart control of your entire setup. It uses the high-performance 26MP APS-C Sony IMX585 sensor, but now it has a powerful ASIAIR computer built right in. That means you can run your entire setup - mount, camera, filter wheel, and more, wirelessly from your phone or tablet! No cables, control boxes for a hassle free imaging experience.
The ASI585MM Air features a mono sensor, so you can capture all incoming light without a color filter, collecting significantly more signal per pixel. This results in brighter, cleaner images with shorter exposure times. Perfect for precise data, making the ASI585MM preferred for advanced imaging, research, and photometry. It features the same built-in guide sensor as the ASI220MM, so you don’t need a separate guide camera. Since it’s made to work perfectly with ZWO accessories, setup is quick and hassle-free. If you're ready to ditch the clutter and image from anywhere, the ASI585MM Air is your new go-to.
Notable Advantages

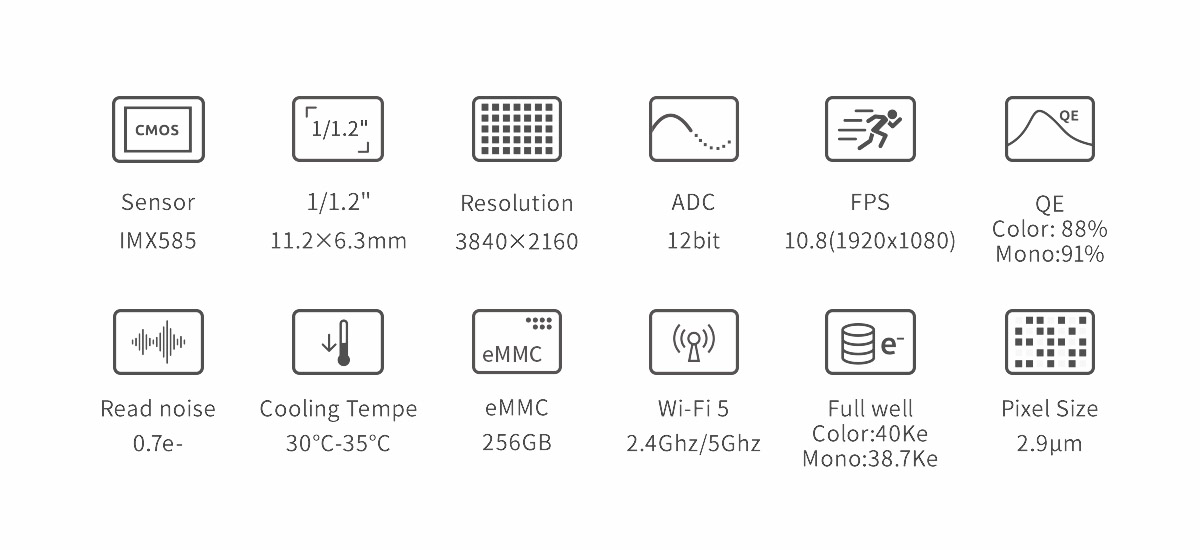

Key Features of the ASI585MM Air Sensor
Why Choose the ASI585MM Air

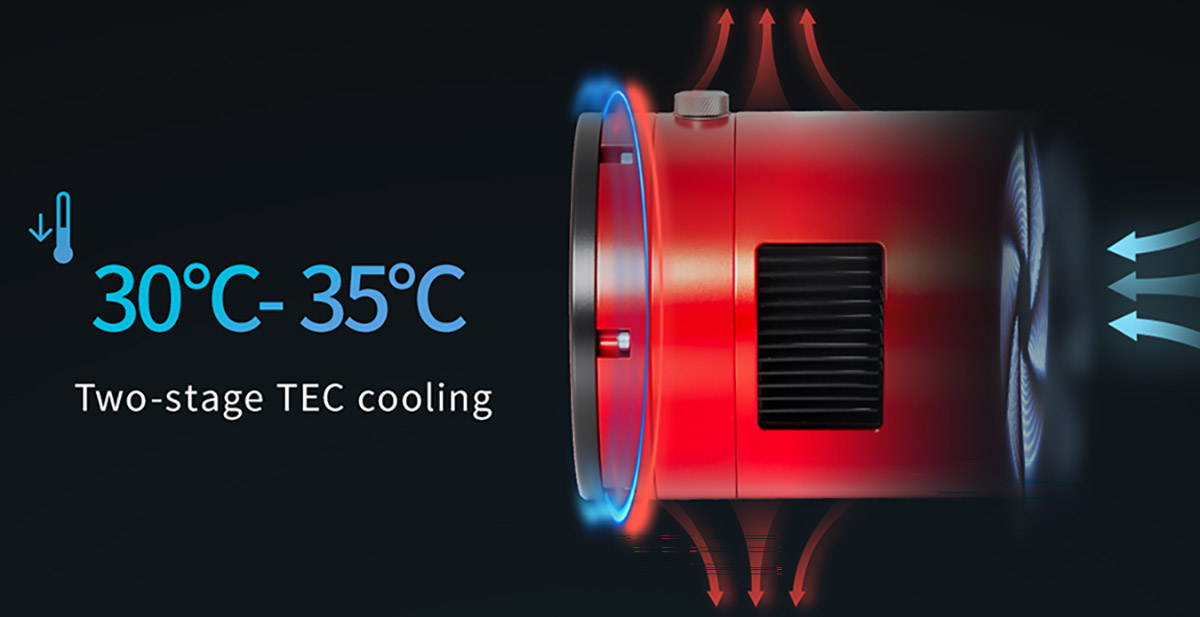

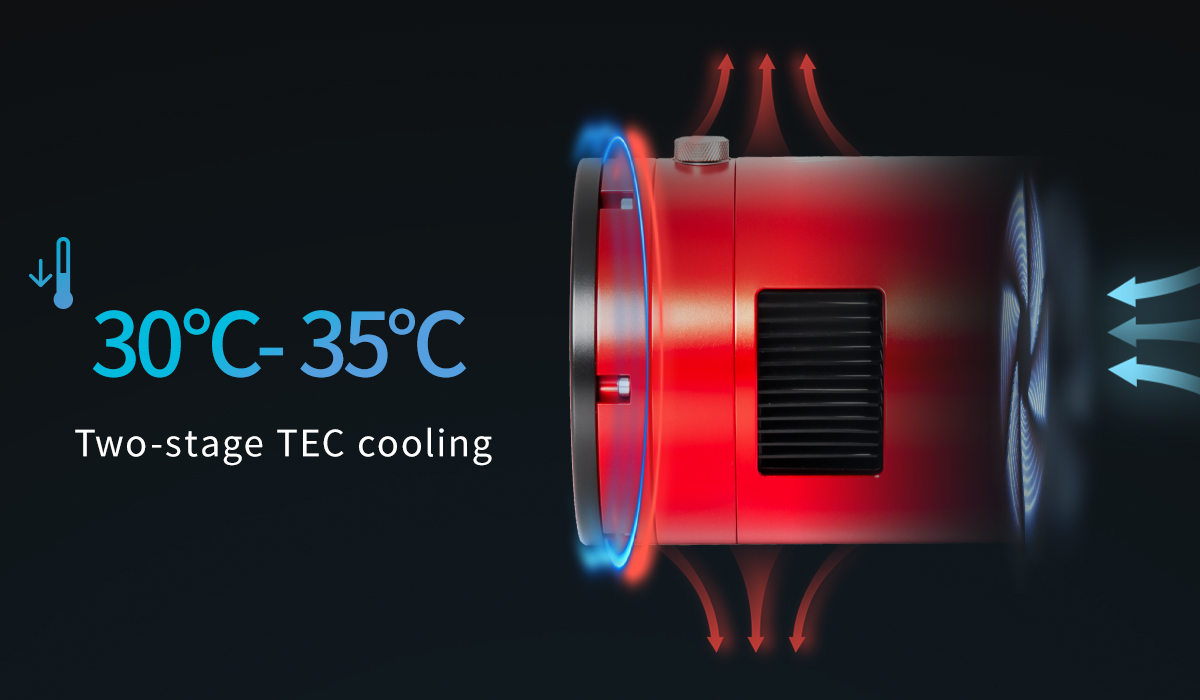

Efficient Cooling
The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C-35°C (86°F-95°F) below ambient, effectively reducing dark current generation. Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
4K Sensor
Equipped with the upgraded STARVIS 2 image sensor, supporting a higher dynamic range. With this technology, the sensitivity and signal-to-noise ratio of the ASI585MM Air are greatly enhanced, delivering exceptional image quality. Plus, the zero amp glow advantage ensures extremely clean dark-field images!
Explore Without Limits
With 256GB eMMC storage, the ASI585MM Air allows you to capture multiple targets with ease. Stress-tested across more than 300 performance benchmarks, ensureing system stability. The USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs!
A Convenient Solution for Astrophotography
Connect Multiple Devices
With 4 USB 2.0 ports for accessories like your focuser, filter wheel, and mount, plus two DC 12V 10A input/output ports for dependable power distribution, this system keeps your setup running smoothly. A USB Type-C port provides fast file transfers and streamlined connectivity, allowing you to concentrate on capturing stunning images instead of managing cables.

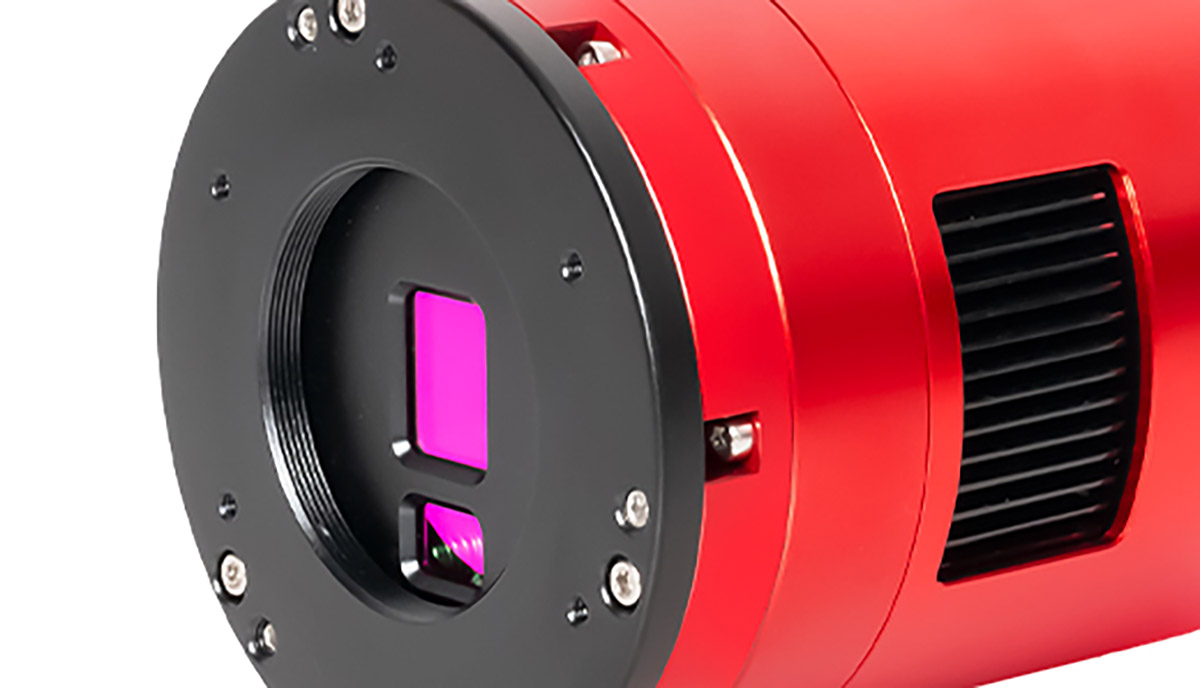

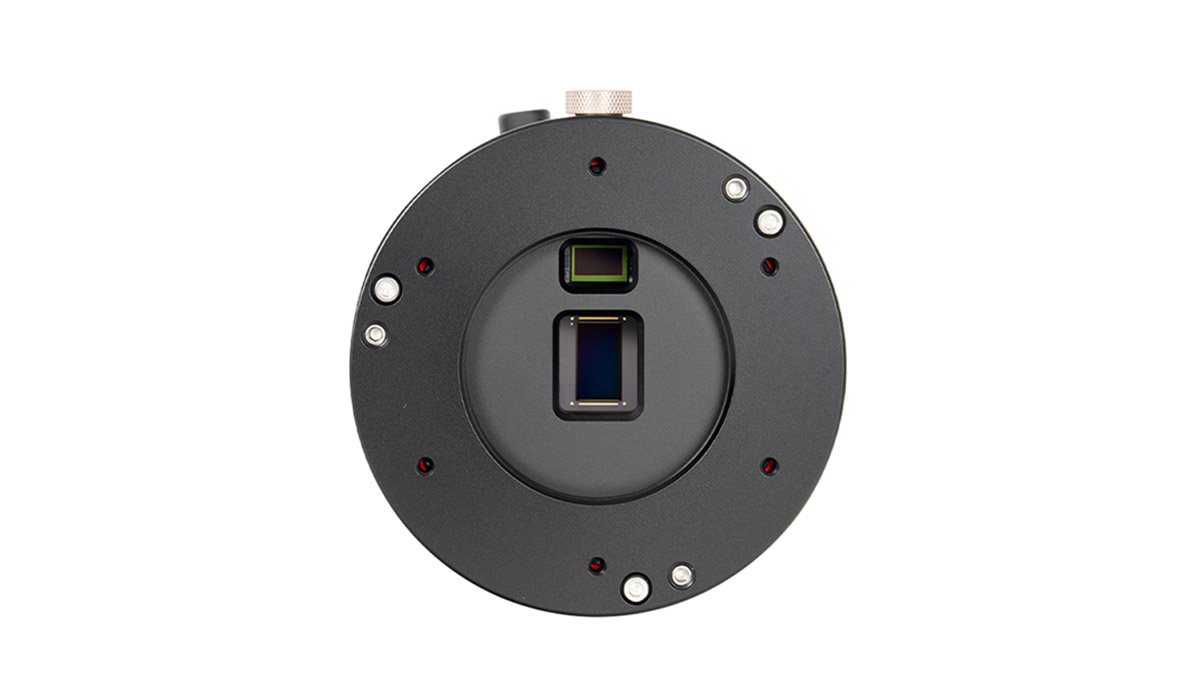

2-In-1 Imaging Solution
The ASI585MM Air packs two specialized sensors in one compact body - a high-resolution IMX585 main sensor for deep-sky imaging and an SC2210 guide sensor for real-time tracking. The guide sensor’s exceptional sensitivity (QE up to 92%) ensures accurate guiding without needing a separate off-axis guider

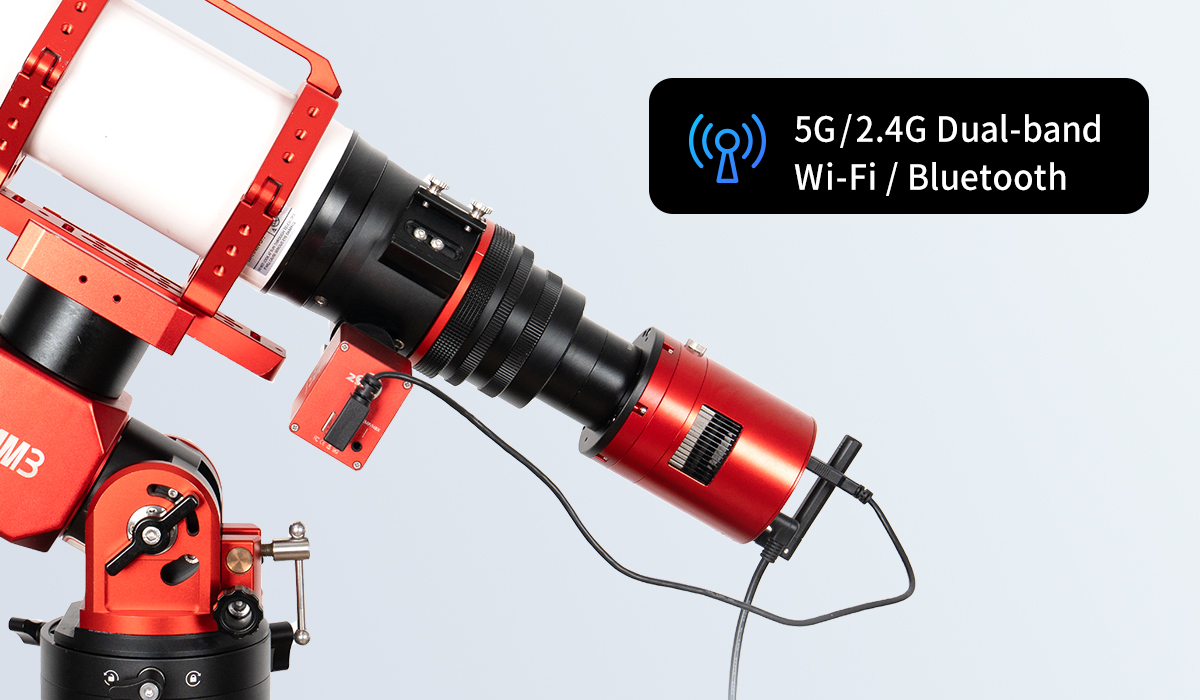

Dual-Band Wi-Fi
Beyond the ASIAIR app, the ASI585MM Air can also connect wirelessly to ZWO’s ASIStudio software as well as compatible third-party PC applications. These programs can interface with the device through the ASCOM Alpaca protocol (ASCOM Platform 6.6 or later), offering flexible control options for a wide range of setups.

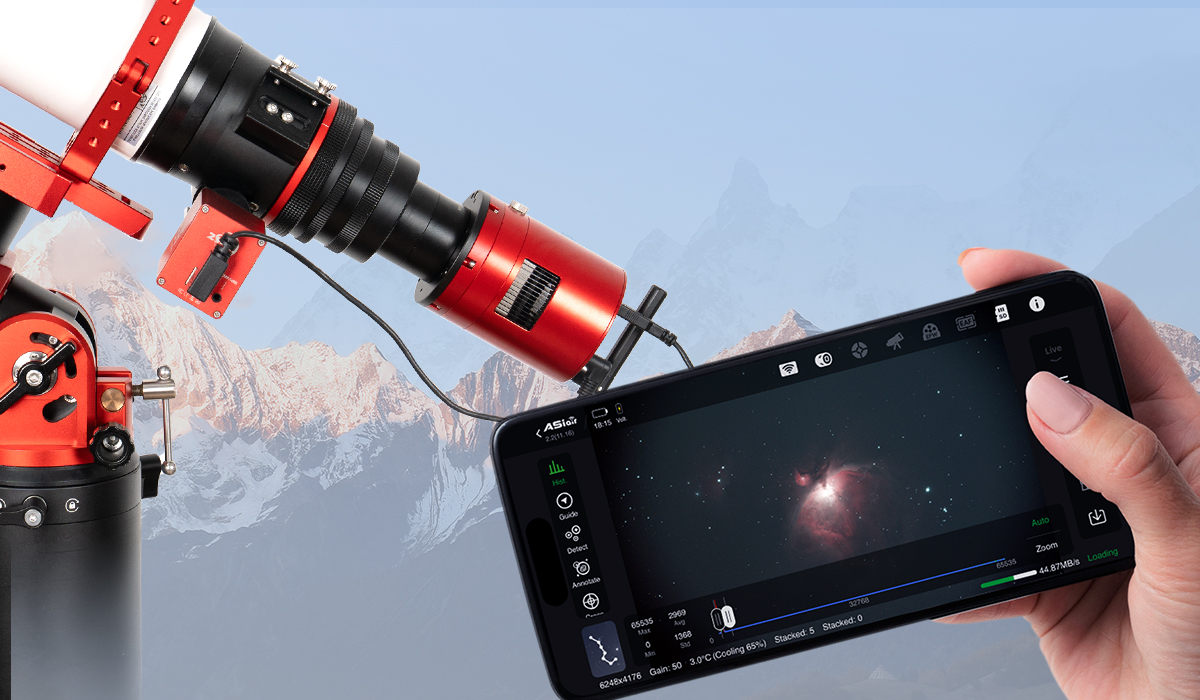

All-in-One Control with Built-In ASIAIR
The ASI585MM Air doesn’t just capture incredible images - it also runs your entire imaging session, thanks to a fully integrated ASIAIR smart computer built into the camera body. This onboard system replaces the need for a separate ASIAIR controller or external mini PC, streamlining your gear and minimizing cable clutter.
With the ASIAIR built in, you can wirelessly control every aspect of your setup from your tablet or smartphone using the ASIAIR app. The ASIAIR software supports key imaging modes such as:
- Preview Mode for quick framing and focus
- Autorun Mode for capturing calibrated image sequences using flats, darks, and bias frames
- Live Stacking Mode for real-time stacked previews of deep-sky targets
- Plan Mode for scheduling mosaics or multi-target sessions in a single night.
File management is handled automatically on the 256GB of fast onboard eMMC storage, with support for FITS, RAW, and JPEG formats.

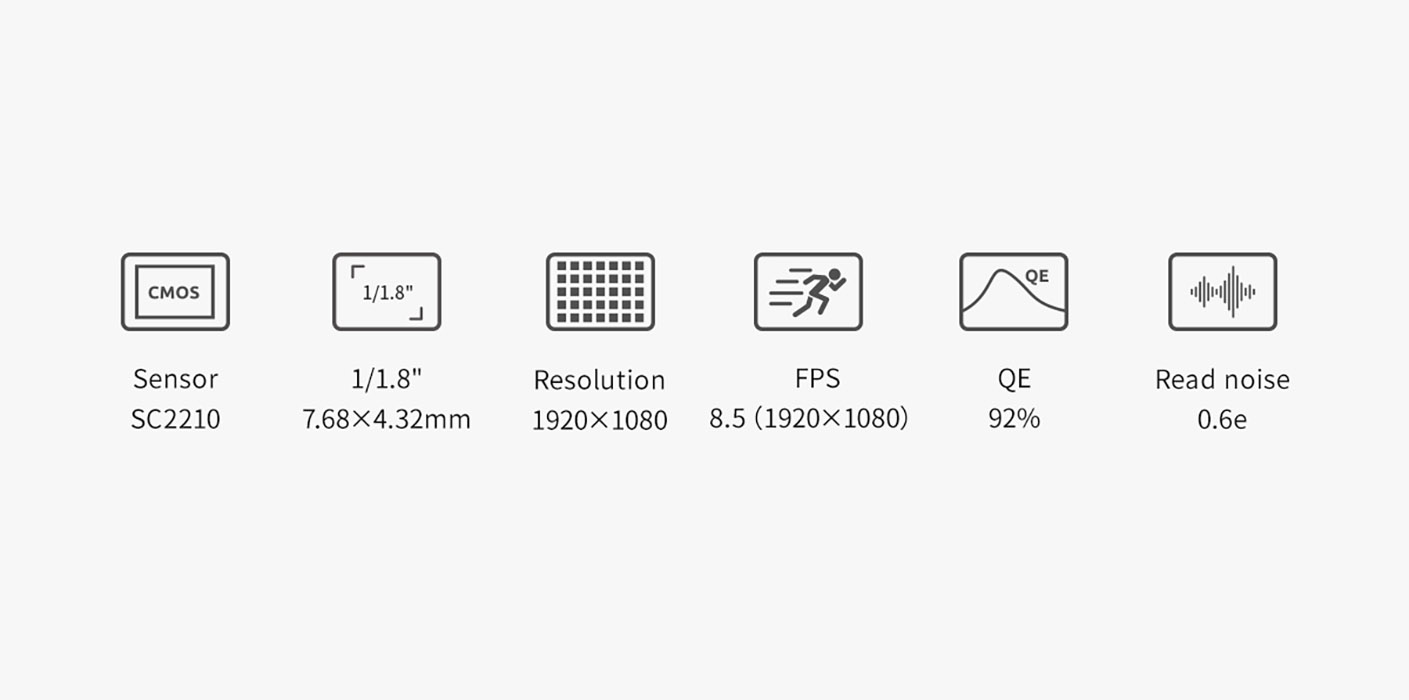

ASI585MM Guide Sensor
This camera includes a built-in guiding sensor - the SC2210 mono CMOS, that was originally used in the ASI220MM Mini. It’s exceptionally sensitive, with a peak quantum efficiency of 92% at 500 nm and a read noise as low as 0.6 e, per ZWO. That means you get highly accurate guide star tracking without needing an external guide camera, making your setup cleaner, simpler, and more reliable for long-exposure astrophotography.

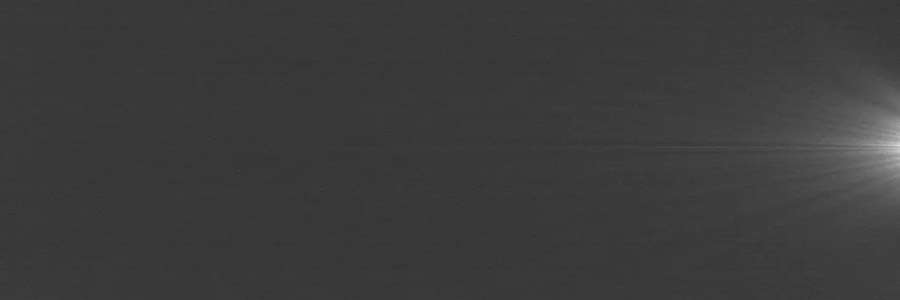

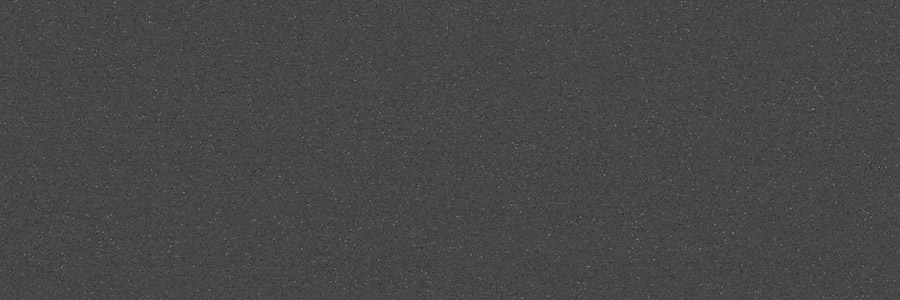

Easier Post-Processing with Zero Amp Glow
The ZWO ASI585MM Air eliminates amp glow - a common issue in older CMOS and CCD sensors where stray infrared light would create unwanted artifacts in your images. With advanced engineering and modern sensor design, including back-illuminated (BSI) architecture, onboard DDR4 RAM, and high-speed readout, the ASI585MMC Air delivers clean, high-quality data right out of the box. No extra processing tricks needed - just reliable, low-noise performance every time.

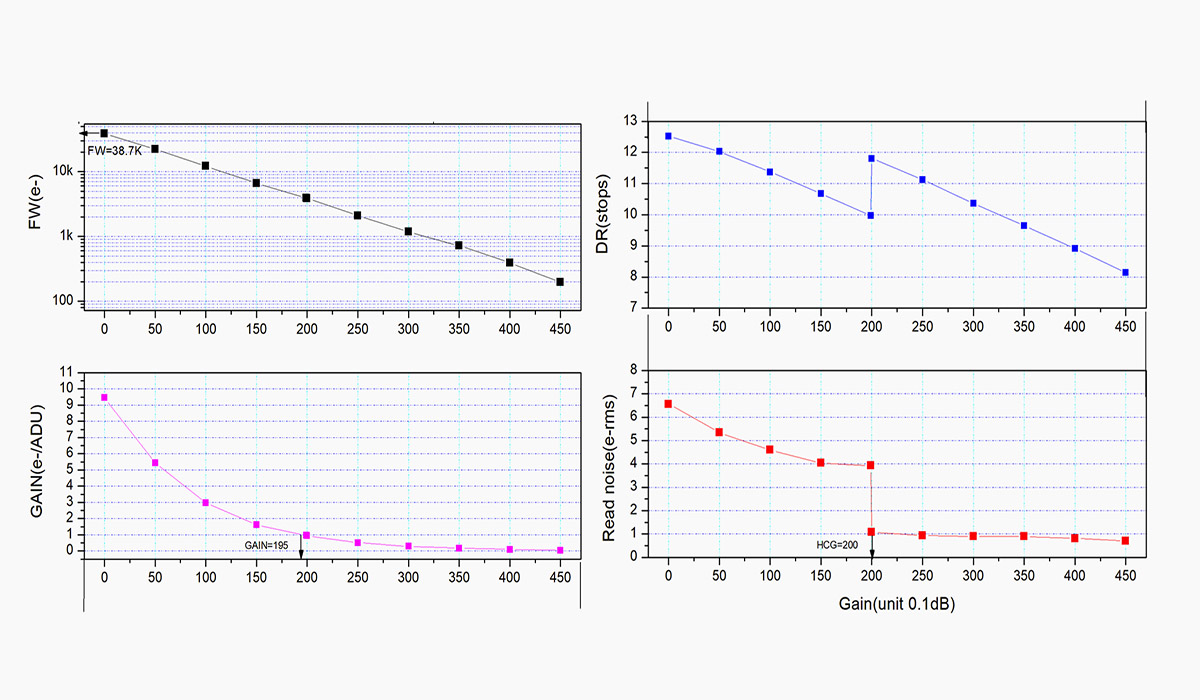

Low Noise Readout
The ASI585MM has a built-in HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. When the gain is 200, the HCG mode is automatically turned on and the Dynamic range reaches a level close to 12bit. The readout noise is as low as 0.7e.
Built-in Filters
The ASI585MM Air camera features an AR (Anti-Reflective) coated protective window, which enhances light transmission and minimizes reflections.

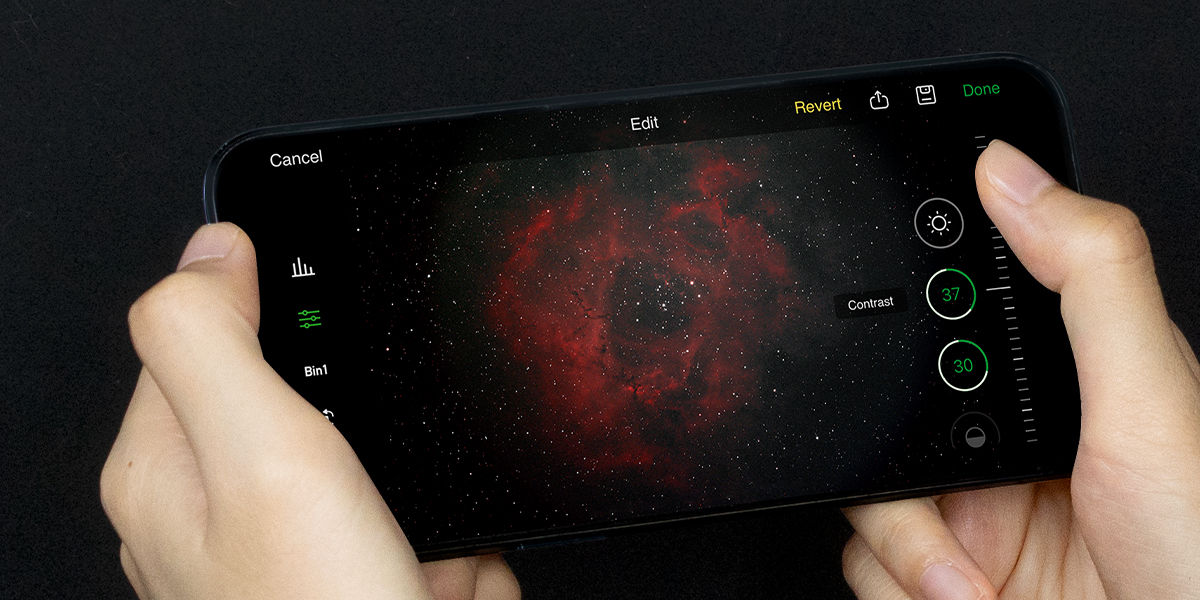

Instant Post-Processing and Sharing
Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.

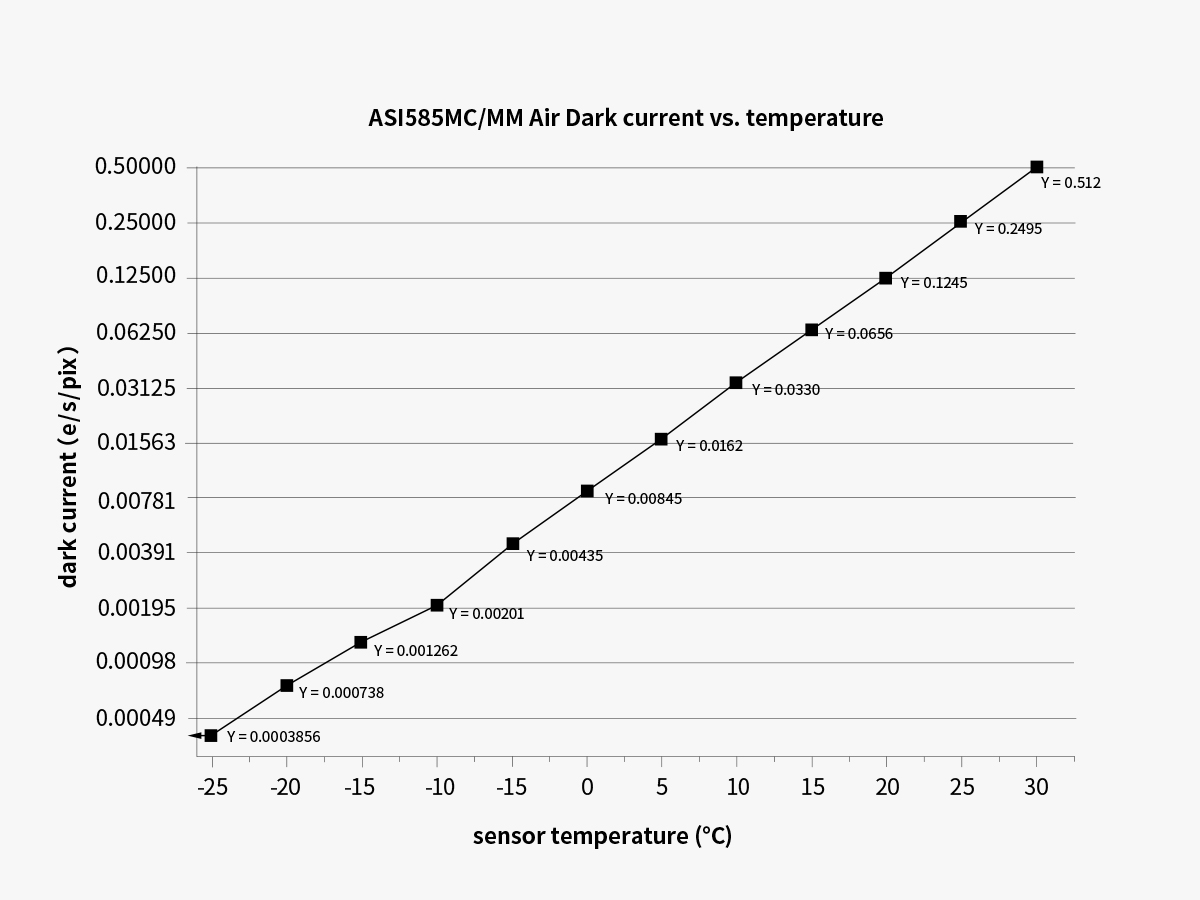

Dark Current Vs Temperature
The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0°C, the dark current noise is only 0.00845e/s/pix. This means a 300s exposure will only cause a dark current noise of 2.5 e/pix, which is completely negligible!

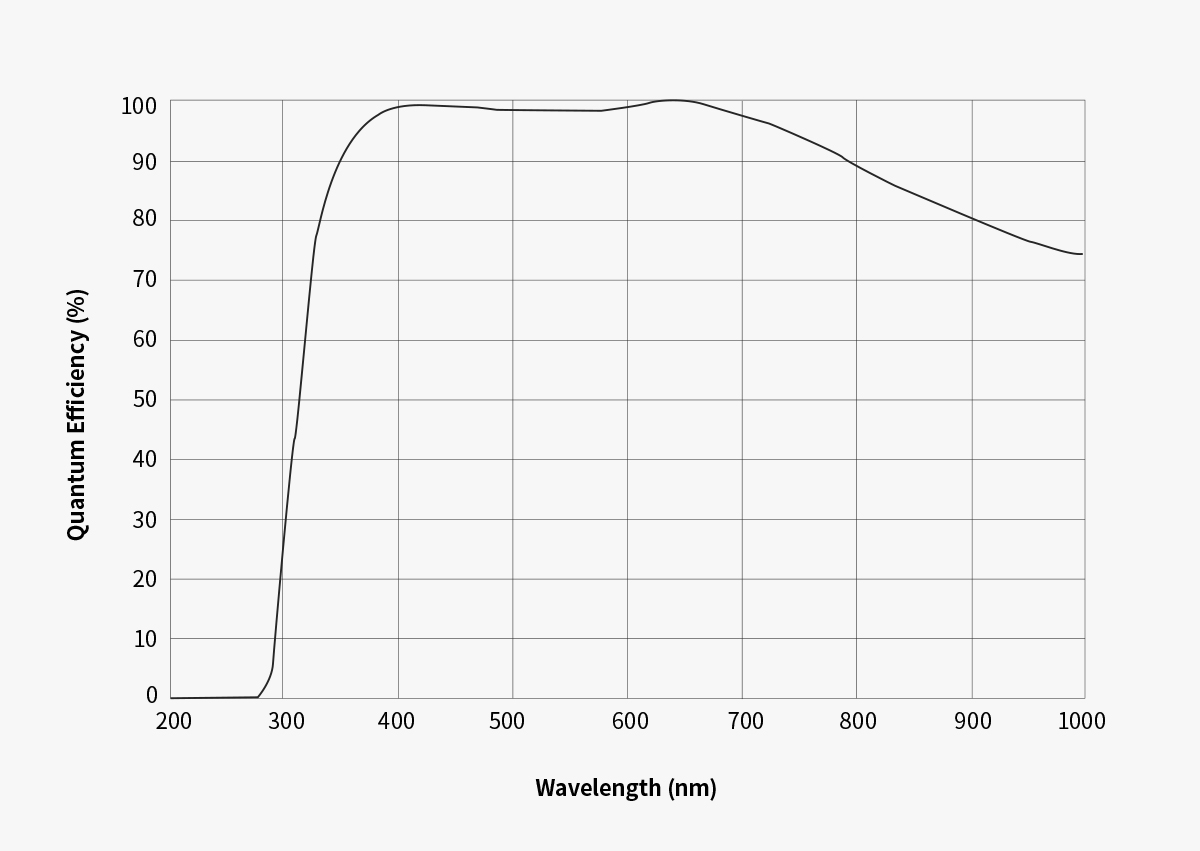

High Quantum Efficiency (QE)
After "ZWO Laboratory" calculation, the peak quantum efficiency of ASI585MM Air is 91%. Higher QE means the sensor captures more of the faint light from deep-sky objects, resulting in cleaner, brighter images with shorter exposure times.
*Data source: This data is from ZWO Laboratory. The actual quantum efficiency peak value is subject to real-world data.
Efficient Cooling, Superior Image Quality
The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C–35°C below ambient, effectively reducing dark current generation. Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
*Based on tests at 30°C ambient temperature. Cooling efficiency decreases as ambient temperature drops, and operation below –20°C is not recommended.

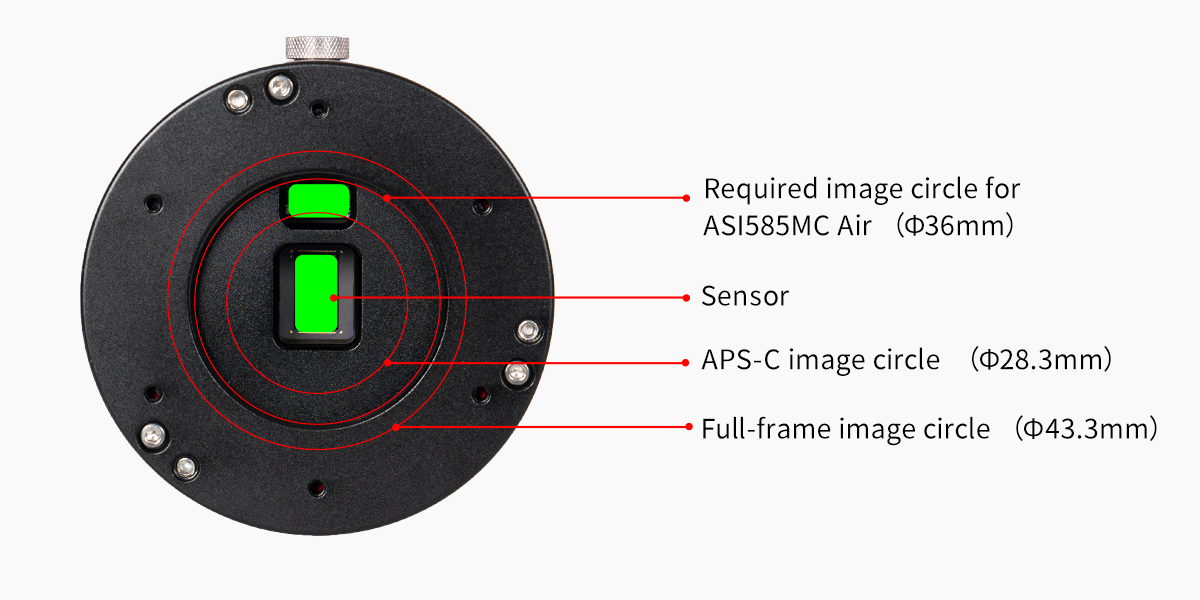

Image Circle Compatibility Reference
Please refer to the diagram below to understand how ASI585MC/MM Air cameras match with various telescope image circles. ZWO Air cameras are compatible with telescopes that support APS-C or larger image formats.
Note: When using a telescope with an APS-C image circle, you may notice slight distortion in the guide star. If you’re looking for more accurate and stable guiding performance, we recommend using a telescope with a full-frame or larger image circle.

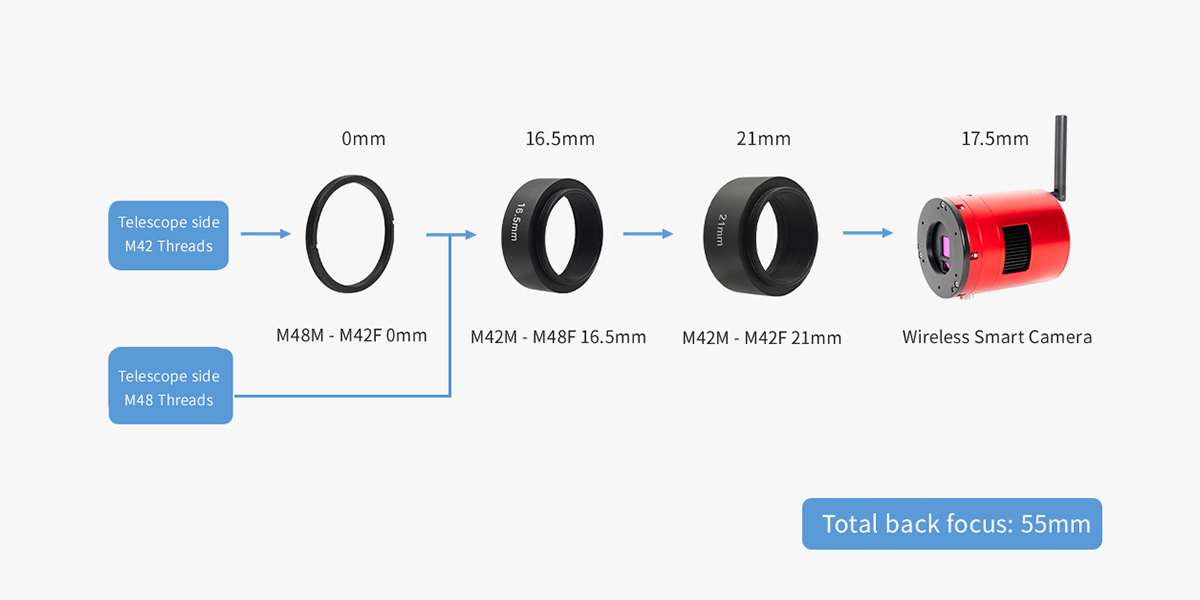

How to Connect the ASI585MM Air for the Recommended 55mm Back Focus
Specifications
- Feature: ZWO ASI585MM Air
- Sensor: Sony IMX585 BSI CMOS
- Sensor Size: 1/1.21 in CMOS
- Diagonal: 13.2 mm
- Resolution: 3840x2160 (8.29 MP)
- Pixel Size: 2.9 µm
- Full Well Capacity: 47 ke
- ADC: Native 12-bit
- Read Noise: As low as 0.7e
- Cooling: Two-stage TEC, ΔT 35°C below ambient
- Dark Current: 0.00845e/s/pix at 0°C
- QE Peak: 92%
- Max Frame Rate (main): 10.8fps
- Max Frame Rate (guide): 8.5fps
- Weight: 1.37 lb (0.621 kg)
- Body Finish: Matte Pro finish
- Connections: USB2.0 - HUB *4
- Power Requirement: 12V DC, 3–5A (not included)
- Back Focus: 12.5 mm

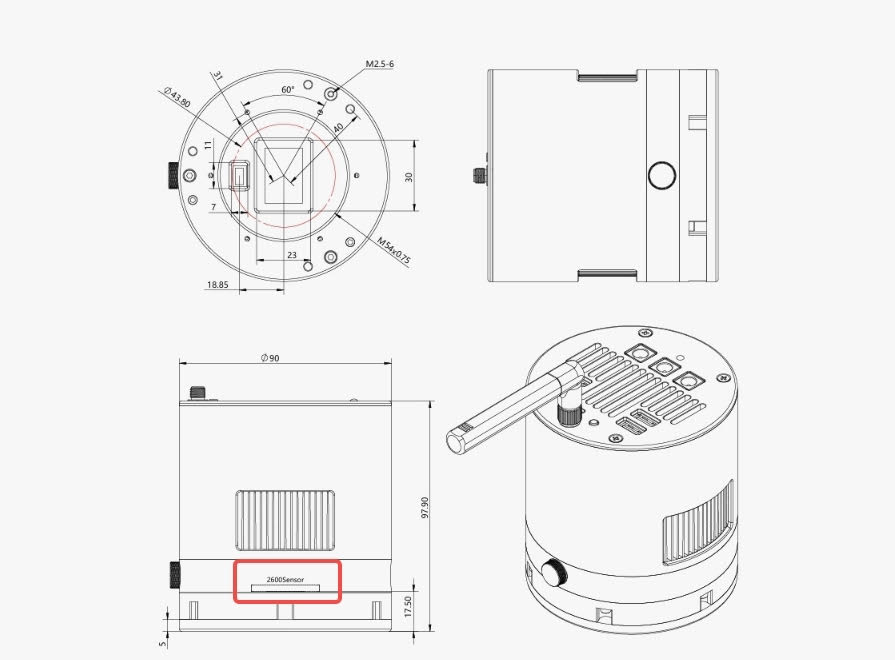

Mechanical Diagram

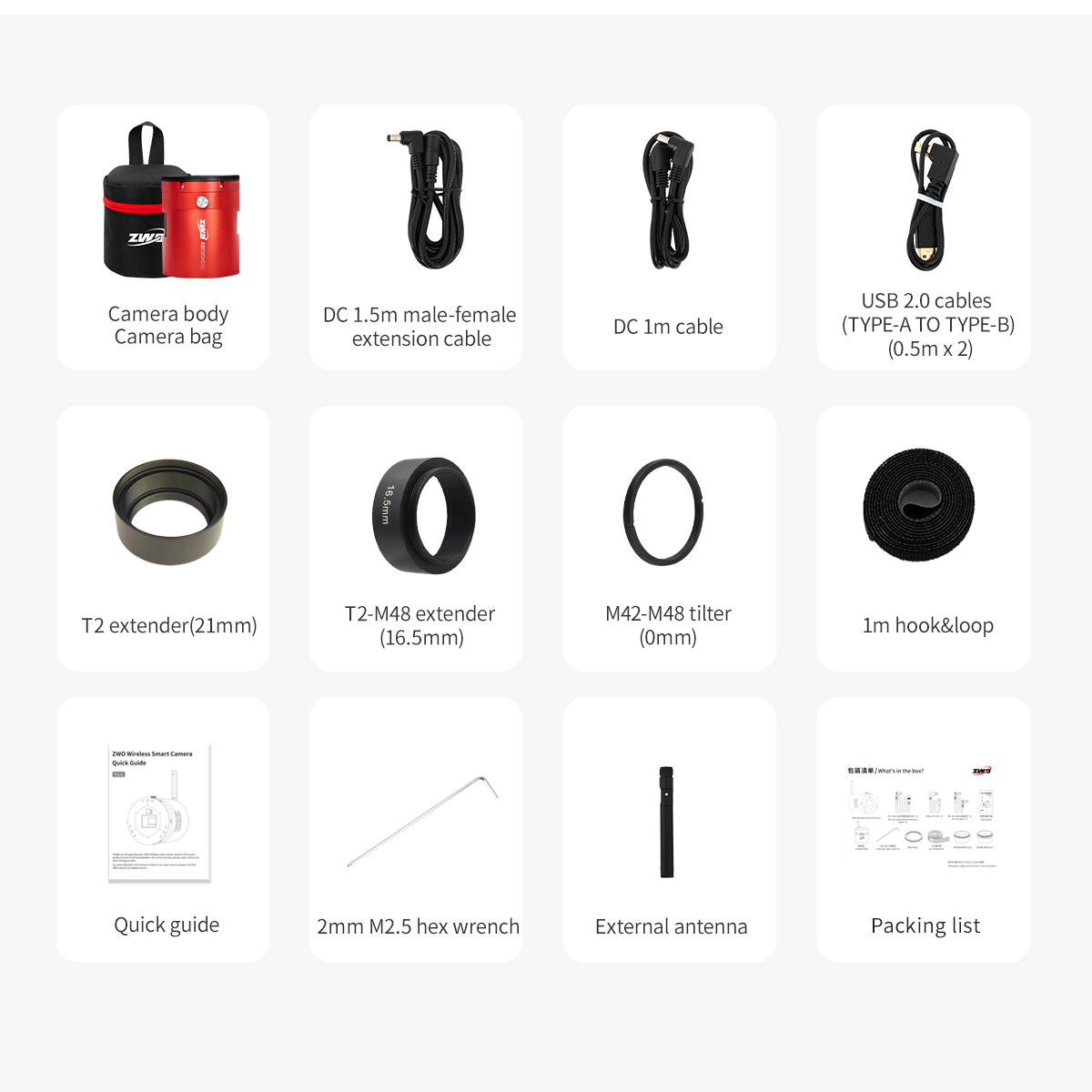

What's in the Box
Frequently Asked Questions
What power supply do I need?
The ASI585MM Air requires a 12V DC power source capable of 3–5A. You can use ZWO’s AC adapter, or a lithium battery (11–14V). A USB 3.0 connection alone isn’t enough to power the TEC cooler.
How do I connect my ZWO ASI585 Air to the rest of my imaging train while achieving the correct backspacing?
ZWO includes all the necessary spacers and adapters to connect with any system that requires 55mm of backspacing and which uses M48 threads.
What devices can be controlled by the ASI2600MC Air?
The ZWO ASI585MM Air has the same functions and abilities as a standalone ZWO ASIAIR unit. This means it can control any ZWO accessory like the Camera Angle Adjuster (CAA), the EAF or the new EAFN, and the ZWO AM3/AM5/AM5N mounts. With a built-in autoguider, there is no need to connect to an external guide camera, and even some of the newer mounts like the AM5N can be controlled wirelessly via Bluetooth or WiFi.
How does the two-stage TEC cooling and noise performance work?
The ASI585 Air incorporates a two-stage TEC cooling system that can lower the sensor temperature to more than 35°C below ambient. This cooling dramatically reduces dark current noise, and the innovative “zero amp glow” design further minimizes unwanted artifacts during long exposures.
Other Information
- Country of Manufacture: China
Meet the ASI585MM Air: All-In-One Smart Camera
Meet the ASI585MM Air and say goodbye to complex setups. Enjoy a seamless, hassle-free astrophotography experience that integrates imaging, guiding, and smart control of your entire setup. It uses the high-performance 26MP APS-C Sony IMX585 sensor, but now it has a powerful ASIAIR computer built right in. That means you can run your entire setup - mount, camera, filter wheel, and more, wirelessly from your phone or tablet! No cables, control boxes for a hassle free imaging experience.
The ASI585MM Air features a mono sensor, so you can capture all incoming light without a color filter, collecting significantly more signal per pixel. This results in brighter, cleaner images with shorter exposure times. Perfect for precise data, making the ASI585MM preferred for advanced imaging, research, and photometry. It features the same built-in guide sensor as the ASI220MM, so you don’t need a separate guide camera. Since it’s made to work perfectly with ZWO accessories, setup is quick and hassle-free. If you're ready to ditch the clutter and image from anywhere, the ASI585MM Air is your new go-to.
Notable Advantages
Key Features of the ASI585MM Air Sensor
Why Choose the ASI585MM Air
Efficient Cooling
The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C-35°C (86°F-95°F) below ambient, effectively reducing dark current generation. Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
4K Sensor
Equipped with the upgraded STARVIS 2 image sensor, supporting a higher dynamic range. With this technology, the sensitivity and signal-to-noise ratio of the ASI585MM Air are greatly enhanced, delivering exceptional image quality. Plus, the zero amp glow advantage ensures extremely clean dark-field images!
Explore Without Limits
With 256GB eMMC storage, the ASI585MM Air allows you to capture multiple targets with ease. Stress-tested across more than 300 performance benchmarks, ensureing system stability. The USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs!
A Convenient Solution for Astrophotography
Connect Multiple Devices
With 4 USB 2.0 ports for accessories like your focuser, filter wheel, and mount, plus two DC 12V 10A input/output ports for dependable power distribution, this system keeps your setup running smoothly. A USB Type-C port provides fast file transfers and streamlined connectivity, allowing you to concentrate on capturing stunning images instead of managing cables.
2-In-1 Imaging Solution
The ASI585MM Air packs two specialized sensors in one compact body - a high-resolution IMX585 main sensor for deep-sky imaging and an SC2210 guide sensor for real-time tracking. The guide sensor’s exceptional sensitivity (QE up to 92%) ensures accurate guiding without needing a separate off-axis guider
Dual-Band Wi-Fi
Beyond the ASIAIR app, the ASI585MM Air can also connect wirelessly to ZWO’s ASIStudio software as well as compatible third-party PC applications. These programs can interface with the device through the ASCOM Alpaca protocol (ASCOM Platform 6.6 or later), offering flexible control options for a wide range of setups.
All-in-One Control with Built-In ASIAIR
The ASI585MM Air doesn’t just capture incredible images - it also runs your entire imaging session, thanks to a fully integrated ASIAIR smart computer built into the camera body. This onboard system replaces the need for a separate ASIAIR controller or external mini PC, streamlining your gear and minimizing cable clutter.
With the ASIAIR built in, you can wirelessly control every aspect of your setup from your tablet or smartphone using the ASIAIR app. The ASIAIR software supports key imaging modes such as:
- Preview Mode for quick framing and focus
- Autorun Mode for capturing calibrated image sequences using flats, darks, and bias frames
- Live Stacking Mode for real-time stacked previews of deep-sky targets
- Plan Mode for scheduling mosaics or multi-target sessions in a single night.
File management is handled automatically on the 256GB of fast onboard eMMC storage, with support for FITS, RAW, and JPEG formats.
ASI585MM Guide Sensor
This camera includes a built-in guiding sensor - the SC2210 mono CMOS, that was originally used in the ASI220MM Mini. It’s exceptionally sensitive, with a peak quantum efficiency of 92% at 500 nm and a read noise as low as 0.6 e, per ZWO. That means you get highly accurate guide star tracking without needing an external guide camera, making your setup cleaner, simpler, and more reliable for long-exposure astrophotography.
Easier Post-Processing with Zero Amp Glow
The ZWO ASI585MM Air eliminates amp glow - a common issue in older CMOS and CCD sensors where stray infrared light would create unwanted artifacts in your images. With advanced engineering and modern sensor design, including back-illuminated (BSI) architecture, onboard DDR4 RAM, and high-speed readout, the ASI585MMC Air delivers clean, high-quality data right out of the box. No extra processing tricks needed - just reliable, low-noise performance every time.
Low Noise Readout
The ASI585MM has a built-in HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. When the gain is 200, the HCG mode is automatically turned on and the Dynamic range reaches a level close to 12bit. The readout noise is as low as 0.7e.
Built-in Filters
The ASI585MM Air camera features an AR (Anti-Reflective) coated protective window, which enhances light transmission and minimizes reflections.
Instant Post-Processing and Sharing
Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.
Dark Current Vs Temperature
The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0°C, the dark current noise is only 0.00845e/s/pix. This means a 300s exposure will only cause a dark current noise of 2.5 e/pix, which is completely negligible!
High Quantum Efficiency (QE)
After "ZWO Laboratory" calculation, the peak quantum efficiency of ASI585MM Air is 91%. Higher QE means the sensor captures more of the faint light from deep-sky objects, resulting in cleaner, brighter images with shorter exposure times.
*Data source: This data is from ZWO Laboratory. The actual quantum efficiency peak value is subject to real-world data.
Efficient Cooling, Superior Image Quality
The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C–35°C below ambient, effectively reducing dark current generation. Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
*Based on tests at 30°C ambient temperature. Cooling efficiency decreases as ambient temperature drops, and operation below –20°C is not recommended.
Image Circle Compatibility Reference
Please refer to the diagram below to understand how ASI585MC/MM Air cameras match with various telescope image circles. ZWO Air cameras are compatible with telescopes that support APS-C or larger image formats.
Note: When using a telescope with an APS-C image circle, you may notice slight distortion in the guide star. If you’re looking for more accurate and stable guiding performance, we recommend using a telescope with a full-frame or larger image circle.
How to Connect the ASI585MM Air for the Recommended 55mm Back Focus
Specifications
- Feature: ZWO ASI585MM Air
- Sensor: Sony IMX585 BSI CMOS
- Sensor Size: 1/1.21 in CMOS
- Diagonal: 13.2 mm
- Resolution: 3840x2160 (8.29 MP)
- Pixel Size: 2.9 µm
- Full Well Capacity: 47 ke
- ADC: Native 12-bit
- Read Noise: As low as 0.7e
- Cooling: Two-stage TEC, ΔT 35°C below ambient
- Dark Current: 0.00845e/s/pix at 0°C
- QE Peak: 92%
- Max Frame Rate (main): 10.8fps
- Max Frame Rate (guide): 8.5fps
- Weight: 1.37 lb (0.621 kg)
- Body Finish: Matte Pro finish
- Connections: USB2.0 - HUB *4
- Power Requirement: 12V DC, 3–5A (not included)
- Back Focus: 12.5 mm
Mechanical Diagram
What's in the Box
Frequently Asked Questions
What power supply do I need?
The ASI585MM Air requires a 12V DC power source capable of 3–5A. You can use ZWO’s AC adapter, or a lithium battery (11–14V). A USB 3.0 connection alone isn’t enough to power the TEC cooler.
How do I connect my ZWO ASI585 Air to the rest of my imaging train while achieving the correct backspacing?
ZWO includes all the necessary spacers and adapters to connect with any system that requires 55mm of backspacing and which uses M48 threads.
What devices can be controlled by the ASI2600MC Air?
The ZWO ASI585MM Air has the same functions and abilities as a standalone ZWO ASIAIR unit. This means it can control any ZWO accessory like the Camera Angle Adjuster (CAA), the EAF or the new EAFN, and the ZWO AM3/AM5/AM5N mounts. With a built-in autoguider, there is no need to connect to an external guide camera, and even some of the newer mounts like the AM5N can be controlled wirelessly via Bluetooth or WiFi.
How does the two-stage TEC cooling and noise performance work?
The ASI585 Air incorporates a two-stage TEC cooling system that can lower the sensor temperature to more than 35°C below ambient. This cooling dramatically reduces dark current noise, and the innovative “zero amp glow” design further minimizes unwanted artifacts during long exposures.
- ASI585MM Air
- Camera bag
- DC 1.5m male-female extension cable
- DC 1m cable
- USB 2.0 cables (Type-A to Type-B, 0.5m x 2)
- T2 extender (21 mm)
- T2-M48 extender (16.5 mm)
- M42-M48 tilter (0 mm)
- 1m hook and loop
- Quick guide
- 2mm M2.5 hex wrench
- External antenna
- Packing list
- Includes a built-in ZWO ASIAIR controller for seamless, all-in-one imaging and mount control
- 8.2MP monochrome sensor delivers stunning, artifact-free deep-sky detail
- Built-in guiding sensor
- 256 GB onboard storage for hours of imaging and fast, one-button stacking
- Dual-band Wi-Fi and Bluetooth for easy wireless control
- Seamless compatibility with ZWO accessories
- Power supply (required) sold separately
Meet the ASI585MM Air: All-In-One Smart Camera
Meet the ASI585MM Air and say goodbye to complex setups. Enjoy a seamless, hassle-free astrophotography experience that integrates imaging, guiding, and smart control of your entire setup. It uses the high-performance 26MP APS-C Sony IMX585 sensor, but now it has a powerful ASIAIR computer built right in. That means you can run your entire setup - mount, camera, filter wheel, and more, wirelessly from your phone or tablet! No cables, control boxes for a hassle free imaging experience.
The ASI585MM Air features a mono sensor, so you can capture all incoming light without a color filter, collecting significantly more signal per pixel. This results in brighter, cleaner images with shorter exposure times. Perfect for precise data, making the ASI585MM preferred for advanced imaging, research, and photometry. It features the same built-in guide sensor as the ASI220MM, so you don’t need a separate guide camera. Since it’s made to work perfectly with ZWO accessories, setup is quick and hassle-free. If you're ready to ditch the clutter and image from anywhere, the ASI585MM Air is your new go-to.
Notable Advantages
Key Features of the ASI585MM Air Sensor
Why Choose the ASI585MM Air
Efficient Cooling
The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C-35°C (86°F-95°F) below ambient, effectively reducing dark current generation. Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
4K Sensor
Equipped with the upgraded STARVIS 2 image sensor, supporting a higher dynamic range. With this technology, the sensitivity and signal-to-noise ratio of the ASI585MM Air are greatly enhanced, delivering exceptional image quality. Plus, the zero amp glow advantage ensures extremely clean dark-field images!
Explore Without Limits
With 256GB eMMC storage, the ASI585MM Air allows you to capture multiple targets with ease. Stress-tested across more than 300 performance benchmarks, ensureing system stability. The USB 2.0 ports support up to 1TB external storage, giving you plenty of room for all your astrophotography needs!
A Convenient Solution for Astrophotography
Connect Multiple Devices
With 4 USB 2.0 ports for accessories like your focuser, filter wheel, and mount, plus two DC 12V 10A input/output ports for dependable power distribution, this system keeps your setup running smoothly. A USB Type-C port provides fast file transfers and streamlined connectivity, allowing you to concentrate on capturing stunning images instead of managing cables.
2-In-1 Imaging Solution
The ASI585MM Air packs two specialized sensors in one compact body - a high-resolution IMX585 main sensor for deep-sky imaging and an SC2210 guide sensor for real-time tracking. The guide sensor’s exceptional sensitivity (QE up to 92%) ensures accurate guiding without needing a separate off-axis guider
Dual-Band Wi-Fi
Beyond the ASIAIR app, the ASI585MM Air can also connect wirelessly to ZWO’s ASIStudio software as well as compatible third-party PC applications. These programs can interface with the device through the ASCOM Alpaca protocol (ASCOM Platform 6.6 or later), offering flexible control options for a wide range of setups.
All-in-One Control with Built-In ASIAIR
The ASI585MM Air doesn’t just capture incredible images - it also runs your entire imaging session, thanks to a fully integrated ASIAIR smart computer built into the camera body. This onboard system replaces the need for a separate ASIAIR controller or external mini PC, streamlining your gear and minimizing cable clutter.
With the ASIAIR built in, you can wirelessly control every aspect of your setup from your tablet or smartphone using the ASIAIR app. The ASIAIR software supports key imaging modes such as:
- Preview Mode for quick framing and focus
- Autorun Mode for capturing calibrated image sequences using flats, darks, and bias frames
- Live Stacking Mode for real-time stacked previews of deep-sky targets
- Plan Mode for scheduling mosaics or multi-target sessions in a single night.
File management is handled automatically on the 256GB of fast onboard eMMC storage, with support for FITS, RAW, and JPEG formats.
ASI585MM Guide Sensor
This camera includes a built-in guiding sensor - the SC2210 mono CMOS, that was originally used in the ASI220MM Mini. It’s exceptionally sensitive, with a peak quantum efficiency of 92% at 500 nm and a read noise as low as 0.6 e, per ZWO. That means you get highly accurate guide star tracking without needing an external guide camera, making your setup cleaner, simpler, and more reliable for long-exposure astrophotography.
Easier Post-Processing with Zero Amp Glow
The ZWO ASI585MM Air eliminates amp glow - a common issue in older CMOS and CCD sensors where stray infrared light would create unwanted artifacts in your images. With advanced engineering and modern sensor design, including back-illuminated (BSI) architecture, onboard DDR4 RAM, and high-speed readout, the ASI585MMC Air delivers clean, high-quality data right out of the box. No extra processing tricks needed - just reliable, low-noise performance every time.
Low Noise Readout
The ASI585MM has a built-in HCG mode, which can effectively reduce readout noise at high gain and allow the camera to maintain the same high dynamic range as it does at low gain. When the gain is 200, the HCG mode is automatically turned on and the Dynamic range reaches a level close to 12bit. The readout noise is as low as 0.7e.
Built-in Filters
The ASI585MM Air camera features an AR (Anti-Reflective) coated protective window, which enhances light transmission and minimizes reflections.
Instant Post-Processing and Sharing
Live stack is supported during your imaging session. You may also make adjustments to brightness, contrast and others on the final image. Instantly share your masterpieces on social media platforms and astronomy communities, making your work stand out.
Dark Current Vs Temperature
The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0°C, the dark current noise is only 0.00845e/s/pix. This means a 300s exposure will only cause a dark current noise of 2.5 e/pix, which is completely negligible!
High Quantum Efficiency (QE)
After "ZWO Laboratory" calculation, the peak quantum efficiency of ASI585MM Air is 91%. Higher QE means the sensor captures more of the faint light from deep-sky objects, resulting in cleaner, brighter images with shorter exposure times.
*Data source: This data is from ZWO Laboratory. The actual quantum efficiency peak value is subject to real-world data.
Efficient Cooling, Superior Image Quality
The two-stage TEC cooling system lowers the CMOS sensor temperature by 30°C–35°C below ambient, effectively reducing dark current generation. Even during long exposures of several hundred seconds, noise remains minimal.
Note: The lower the ambient temperature, the smaller the cooling differential.
*Based on tests at 30°C ambient temperature. Cooling efficiency decreases as ambient temperature drops, and operation below –20°C is not recommended.
Image Circle Compatibility Reference
Please refer to the diagram below to understand how ASI585MC/MM Air cameras match with various telescope image circles. ZWO Air cameras are compatible with telescopes that support APS-C or larger image formats.
Note: When using a telescope with an APS-C image circle, you may notice slight distortion in the guide star. If you’re looking for more accurate and stable guiding performance, we recommend using a telescope with a full-frame or larger image circle.
How to Connect the ASI585MM Air for the Recommended 55mm Back Focus
Specifications
- Feature: ZWO ASI585MM Air
- Sensor: Sony IMX585 BSI CMOS
- Sensor Size: 1/1.21 in CMOS
- Diagonal: 13.2 mm
- Resolution: 3840x2160 (8.29 MP)
- Pixel Size: 2.9 µm
- Full Well Capacity: 47 ke
- ADC: Native 12-bit
- Read Noise: As low as 0.7e
- Cooling: Two-stage TEC, ΔT 35°C below ambient
- Dark Current: 0.00845e/s/pix at 0°C
- QE Peak: 92%
- Max Frame Rate (main): 10.8fps
- Max Frame Rate (guide): 8.5fps
- Weight: 1.37 lb (0.621 kg)
- Body Finish: Matte Pro finish
- Connections: USB2.0 - HUB *4
- Power Requirement: 12V DC, 3–5A (not included)
- Back Focus: 12.5 mm
Mechanical Diagram
What's in the Box
Frequently Asked Questions
What power supply do I need?
The ASI585MM Air requires a 12V DC power source capable of 3–5A. You can use ZWO’s AC adapter, or a lithium battery (11–14V). A USB 3.0 connection alone isn’t enough to power the TEC cooler.
How do I connect my ZWO ASI585 Air to the rest of my imaging train while achieving the correct backspacing?
ZWO includes all the necessary spacers and adapters to connect with any system that requires 55mm of backspacing and which uses M48 threads.
What devices can be controlled by the ASI2600MC Air?
The ZWO ASI585MM Air has the same functions and abilities as a standalone ZWO ASIAIR unit. This means it can control any ZWO accessory like the Camera Angle Adjuster (CAA), the EAF or the new EAFN, and the ZWO AM3/AM5/AM5N mounts. With a built-in autoguider, there is no need to connect to an external guide camera, and even some of the newer mounts like the AM5N can be controlled wirelessly via Bluetooth or WiFi.
How does the two-stage TEC cooling and noise performance work?
The ASI585 Air incorporates a two-stage TEC cooling system that can lower the sensor temperature to more than 35°C below ambient. This cooling dramatically reduces dark current noise, and the innovative “zero amp glow” design further minimizes unwanted artifacts during long exposures.
Other Information
- Country of Manufacture: China
- ASI585MM Air
- Camera bag
- DC 1.5m male-female extension cable
- DC 1m cable
- USB 2.0 cables (Type-A to Type-B, 0.5m x 2)
- T2 extender (21 mm)
- T2-M48 extender (16.5 mm)
- M42-M48 tilter (0 mm)
- 1m hook and loop
- Quick guide
- 2mm M2.5 hex wrench
- External antenna
- Packing list
ZWO ASI585MM Air All-In-One Monochrome Smart Camera
