ZWO ASI6200MM Pro Full Frame Cooled Monochrome Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Full-frame Sony IMX455 BSI monochrome sensor with 61.2 MP resolution
- Ultra-low 0.86e read noise
- Zero amp glow
- Two-stage TEC cooling - up to -35°C below ambient
- Native 16-bit ADC with 14 stops of dynamic range
- Built-in anti-dew heater
- Tiltable sensor
- 512MB DDR3 buffer
- 91% peak quantum efficiency (QE)
Meet the ASI6200MM Pro: Ultimate Flexibility in Deep-Sky Imaging
The ZWO ASI6200MM Pro is one of the most advanced monochrome astrophotography cameras available, now updated for 2025 with improved electronics and a premium matte finish. Built around Sony’s back-illuminated IMX455 full-frame sensor, it delivers 61.2 megapixels of ultra-sharp resolution, exceptional sensitivity, and extremely low noise, perfect for capturing even the faintest details in galaxies, nebulae, and star clusters.
Unlike a color camera, the ASI6200MM Pro uses a monochrome sensor that requires separate filters (such as LRGB or narrowband) to build your final image. While this adds extra steps, it gives you maximum control by allowing you to target specific emission lines. This makes the ASI6200MM a top choice for astrophotographers who want professional-quality results.
ZWO has refined the ASI6200MM with a new motherboard that reduces read noise to just 0.86e and increases frame rate for smoother data capture. When paired with high-quality filters and a filter wheel, the ASI6200MM Pro offers unmatched flexibility, allowing you to create images that a one-shot color camera simply can’t match.
Six Unmissable Advantages
Key Features of the ASI6200MM Pro
Why Choose the ASI6200MM Pro
Full-frame Imaging Power
At the heart of the ASI6200MC Pro is Sony’s IMX455 sensor, a full-frame chip measuring 36 x 24 mm with a 43.3 mm diagonal. With a resolution of 9576 x 6388 and small 3.76 µm pixels.

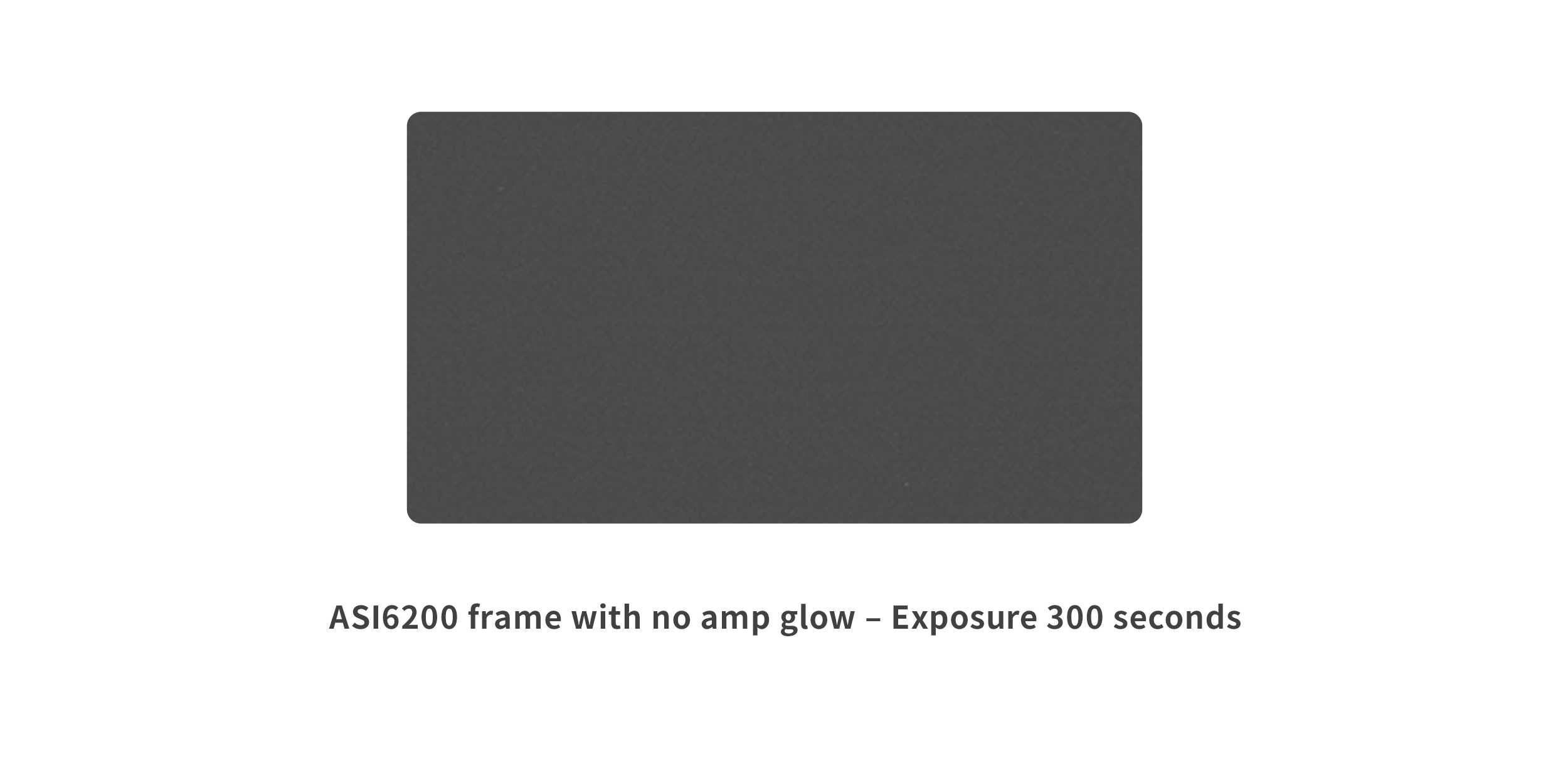

Zero Amp Glow
The true zero amp glow design guarantees clean, artifact-free images, even during long exposures at high gain. This means you can capture faint deep-sky details without unwanted bright spots or glow in the corners, giving you sharper, more professional results.

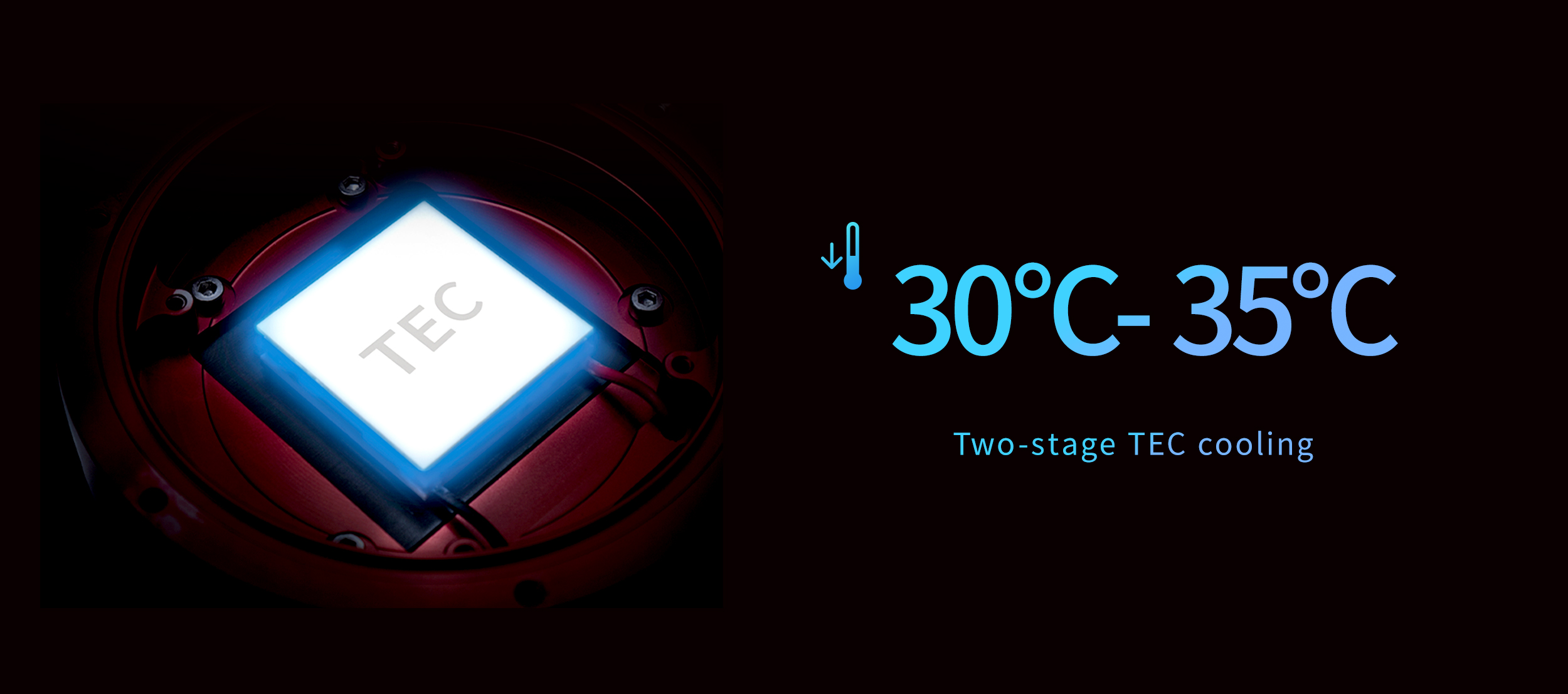

Advanced Cooling
A two-stage TEC cooling system allows the sensor to cool down up to 35°C below ambient temperature. This drastically reduces dark current noise. At 0°C, dark current noise is only 0.0017e/s/pix, effectively negligible, even in 5-minute exposures.
Tiltable Sensor Design
The ASI6200MM Pro includes a tiltable sensor mount with push-pull screw adjustments, allowing you to fine-tune tilt and achieve a perfectly flat imaging field across your entire frame.
Stable Data Transfer
With USB 3.0 connectivity and a 512MB DDR3 buffer, this camera ensures smooth, stable data transmission with no dropped frames, even during long exposures.

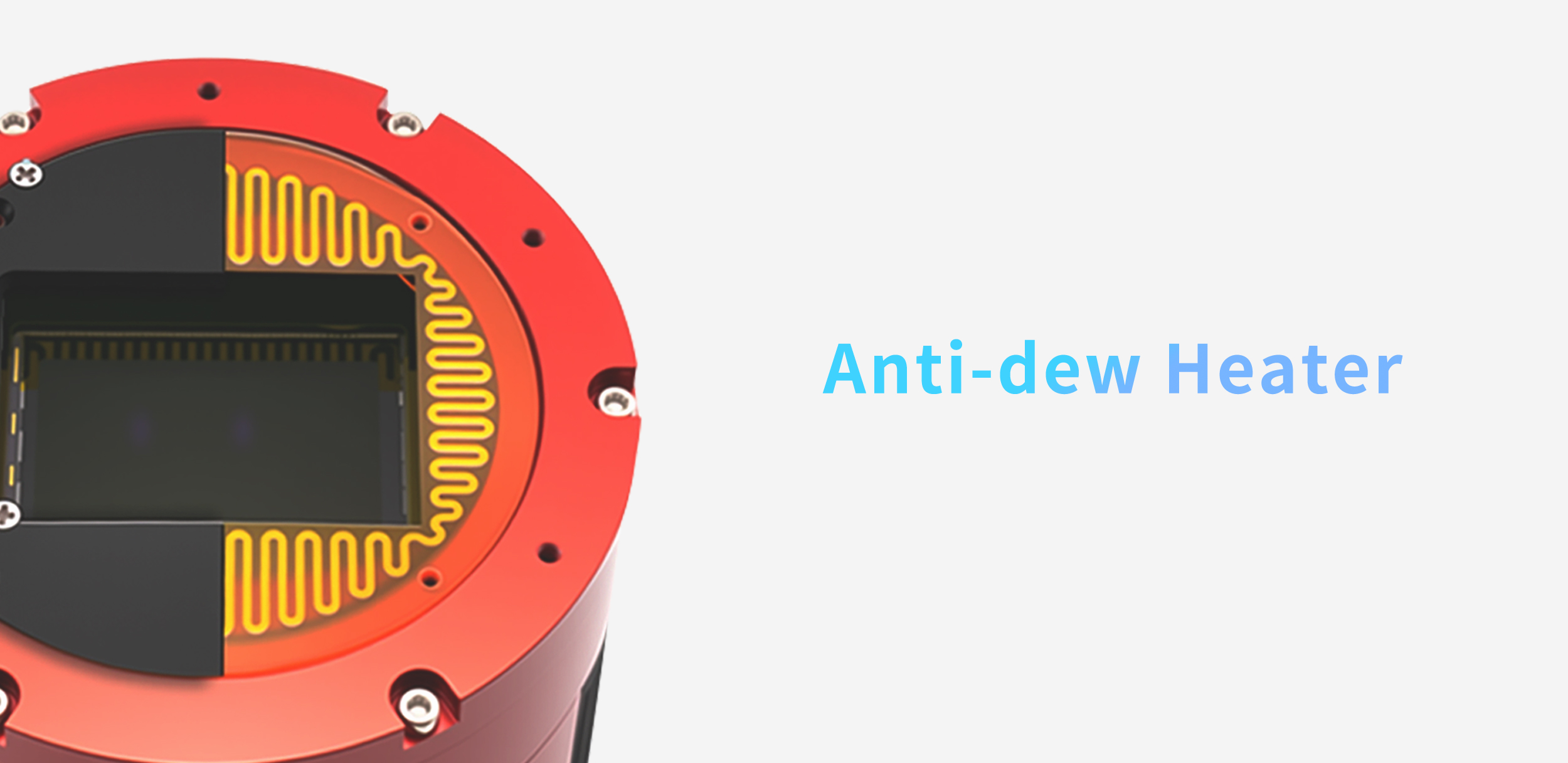

Built-in Anti-dew Heater
ZWO’s built-in polyimide anti-dew heater keeps the protective window clear, preventing condensation and ensuring you don’t lose imaging time. It fully covers the window and heats it evenly, eliminating dew problems during your imaging sessions.
Full Well Capacity Preserves Bright Stars
The 51.4ke full well capacity ensures bright stars are preserved without saturation, even in long exposures. The 51.4ke full well capacity ensures bright stars are preserved without star saturation. This means the cores of bright stars won’t blow out, so you retain fine detail even during long exposures.
Lightweight, Premium Build
Despite its advanced features, the camera weighs only 0.7 kg (1.54 lb), reducing stress on your imaging setup. The refreshed matte finish gives it a durable, professional look.
Wavelength Charts
High Quantum Efficiency
The IMX455 monochrome sensor achieves a peak QE of 91%, maximizing sensitivity and making the most of every photon collected by your telescope.

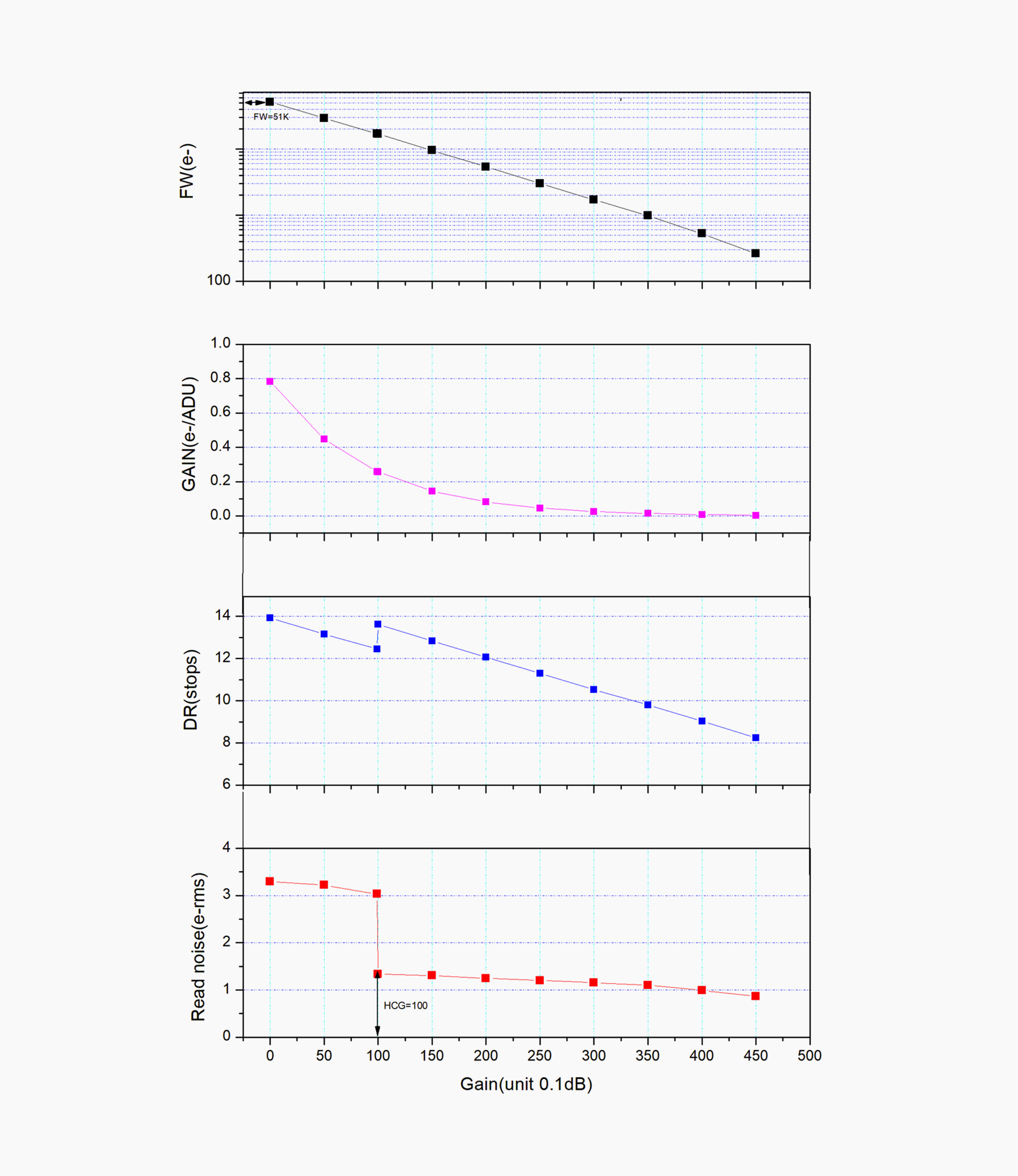

Low Readout Noise, High Dynamic Range
The updated electronics of the ASI6200MM Pro lower read noise to just 0.86e, making faint details easier to capture. Combined with a dynamic range of up to 14 stops, this reduces overexposed areas and delivers smoother, more natural color gradients.
The built-in high conversion gain (HCG) mode automatically engages at a gain of 100, further lowering read noise while maintaining the full dynamic range for high-gain imaging.

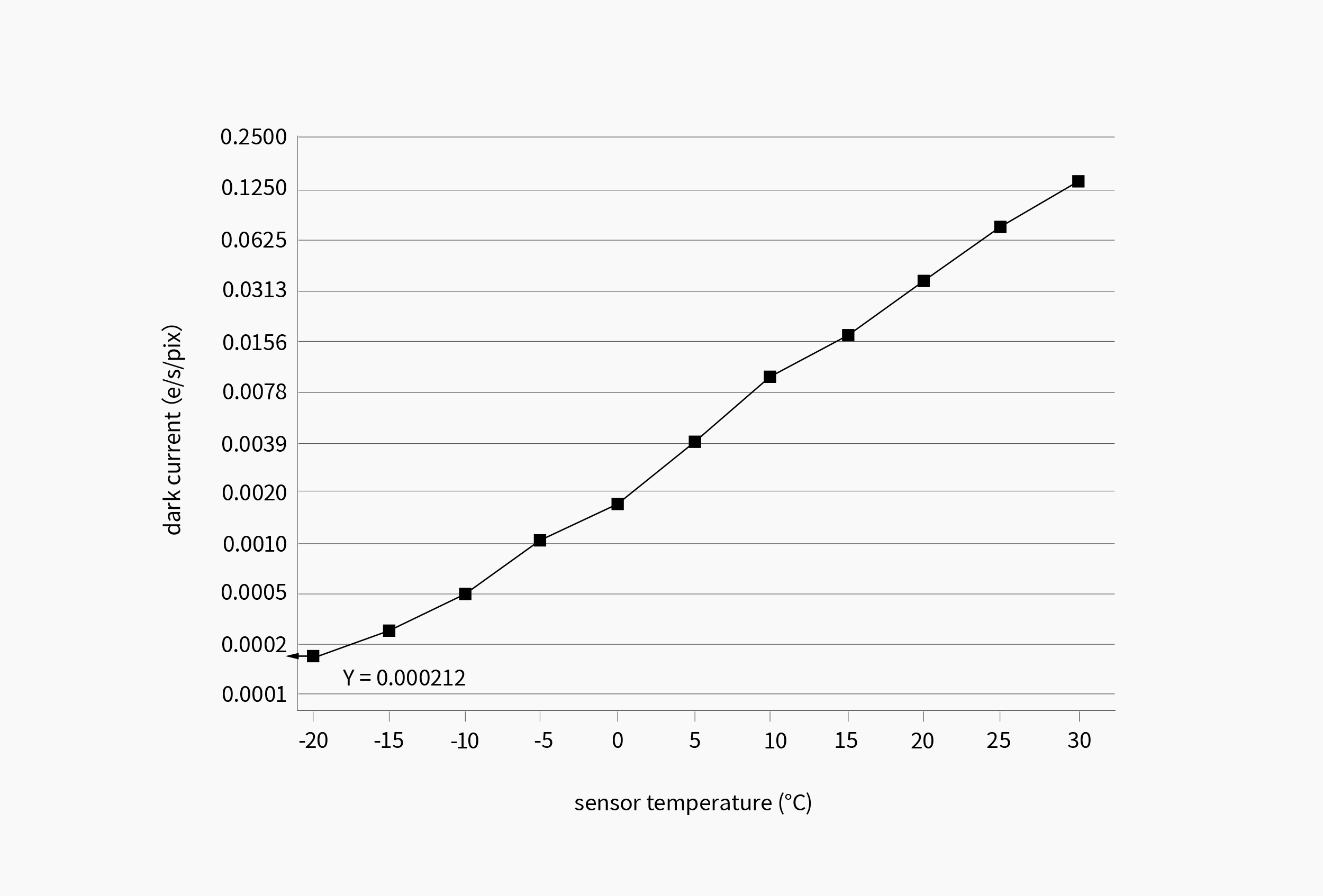

Ultra-Low Dark Current
The unique dark current suppression technology can further reduce dark current noise. At a cooling temperature of 0°C, the dark current noise is only 0.0017e/s/pix. This means a 300s exposure will only cause a dark current noise of 0.51 e/pix, which is completely negligible!
Specifications
- Feature: ZWO ASI6200MM Pro (2025 Model)
- Sensor: Sony IMX455 BSI CMOS Monochrome
- Sensor Size: 36 x 24 mm (Full Frame)
- Resolution: 9576 x 6388 (61.2 MP)
- Pixel Size: 3.76 µm
- Full Well Capacity: 51.4 ke
- ADC: Native 16-bit (14 stops dynamic range)
- Read Noise: As low as 0.86e
- Cooling: Two-stage TEC, ΔT 35°C below ambient
- Dark Current: 0.0017e/s/pix at 0°C
- QE Peak: 91%
- Buffer: 512MB DDR3
- Weight: 0.7 kg (1.54 lb)
- Body Finish: Matte Pro finish
- Anti-Dew Heater: Built-in polyimide heater
- Tiltable Sensor: Yes
- Connections: USB 3.0, 2x USB 2.0
- Power Requirement: 12V DC, 3–5A (not included)

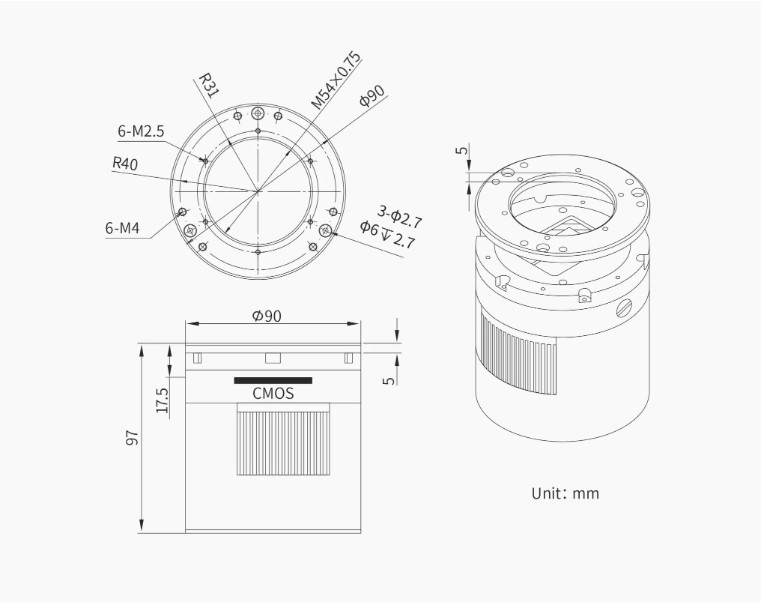

Mechanical Diagram

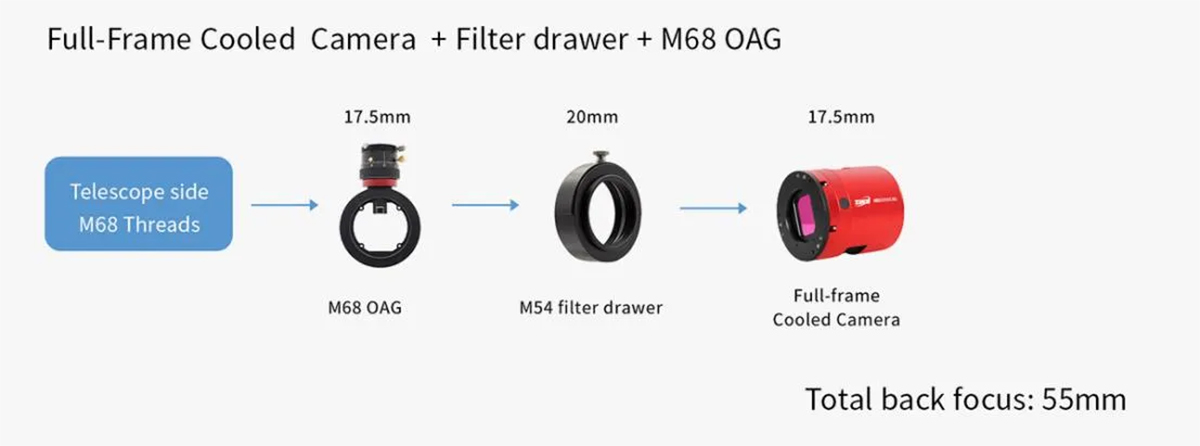

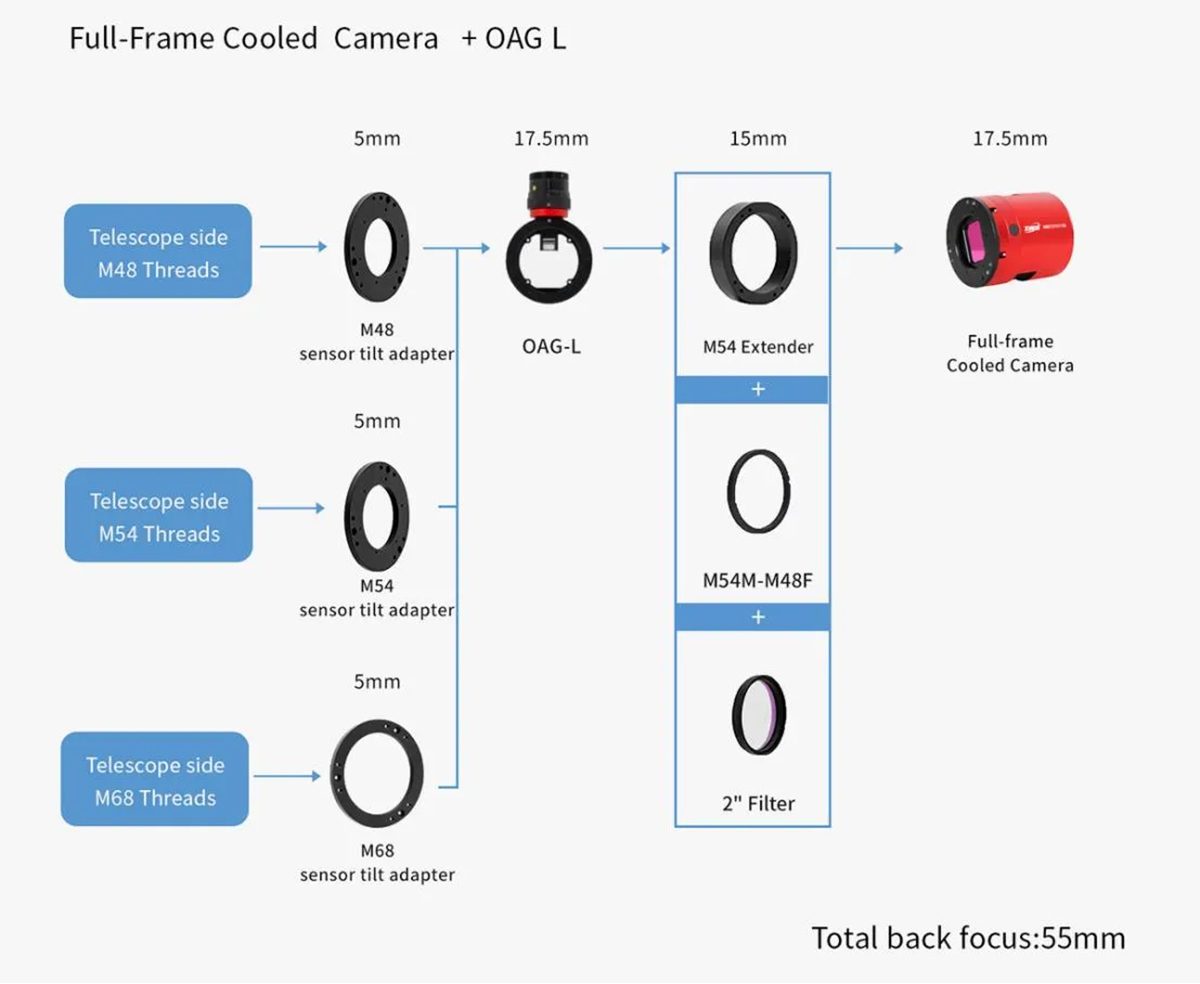

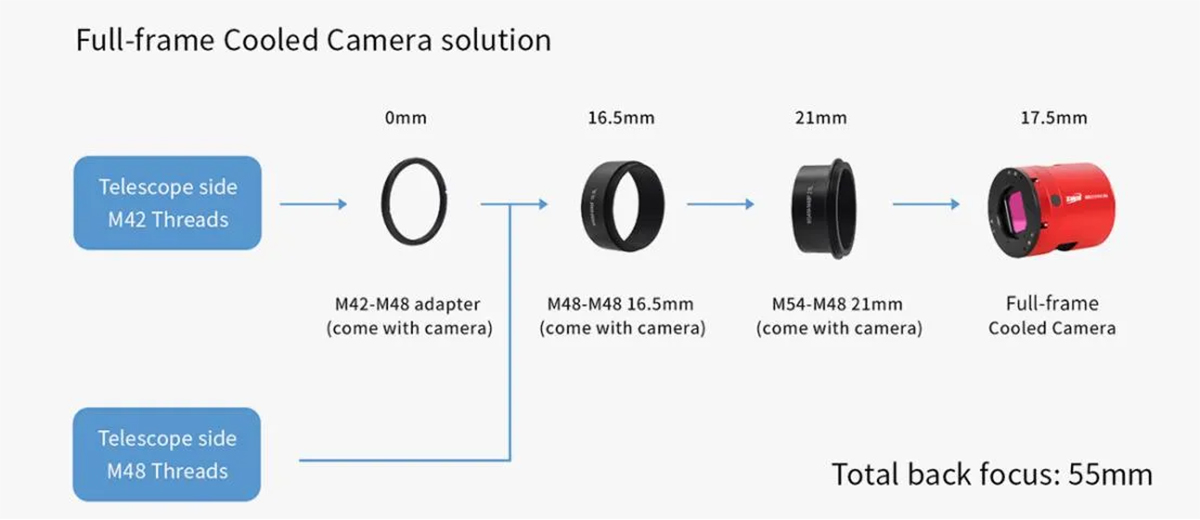

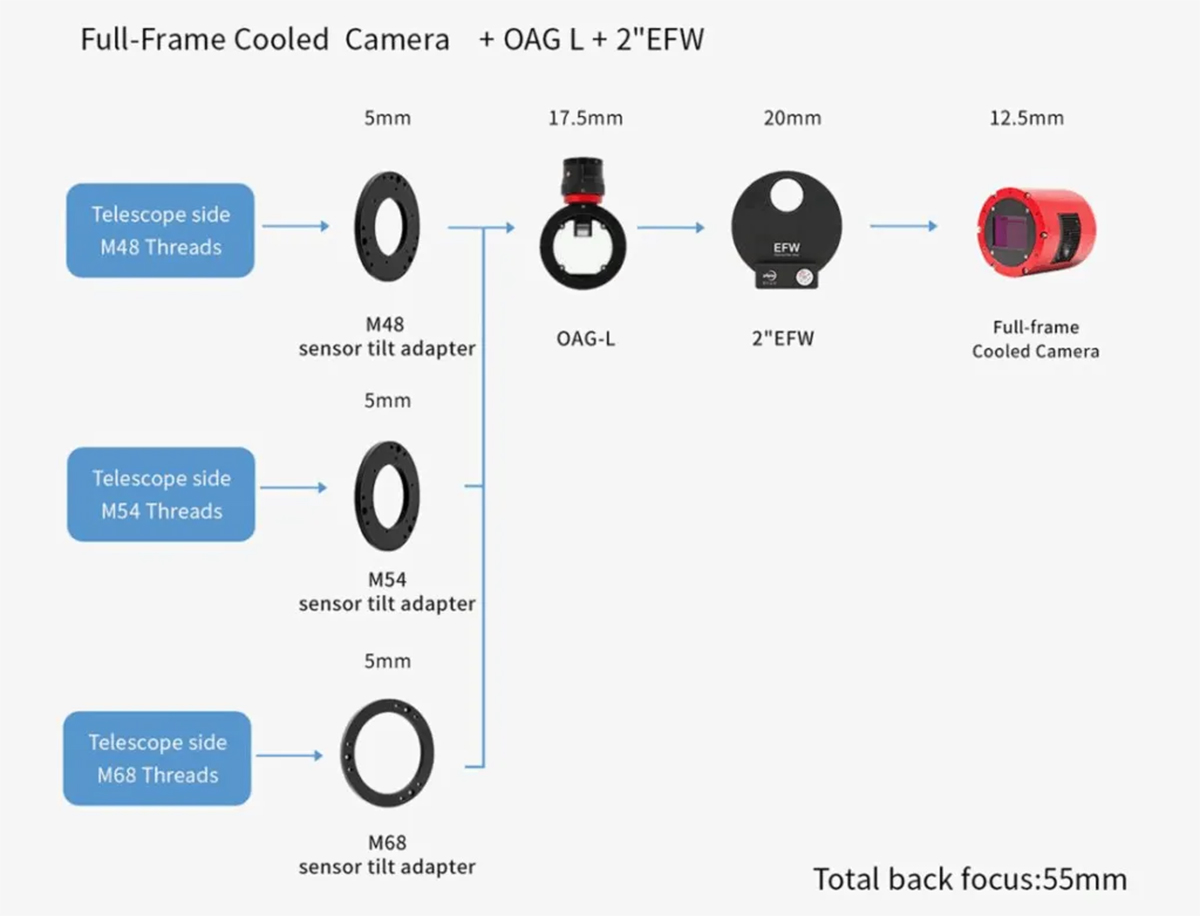

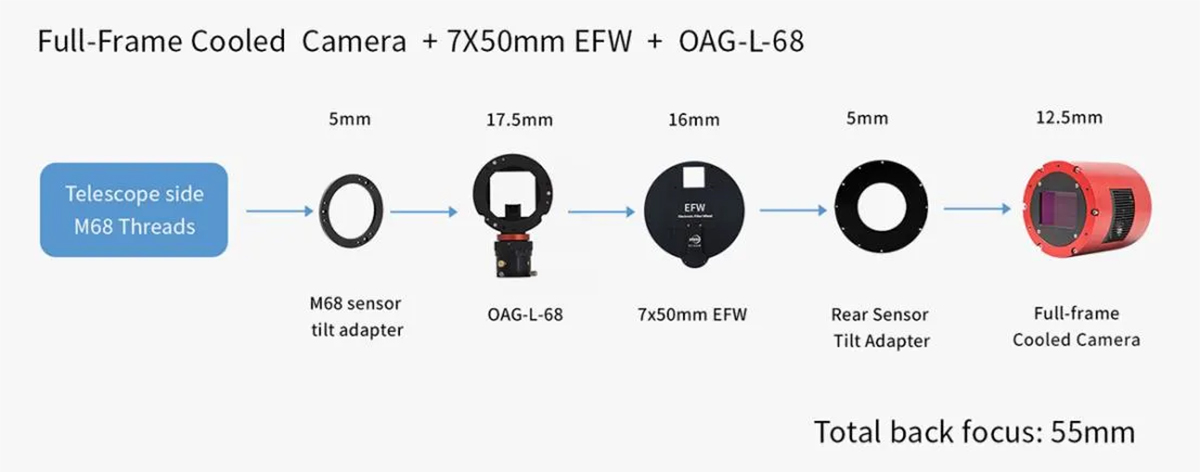

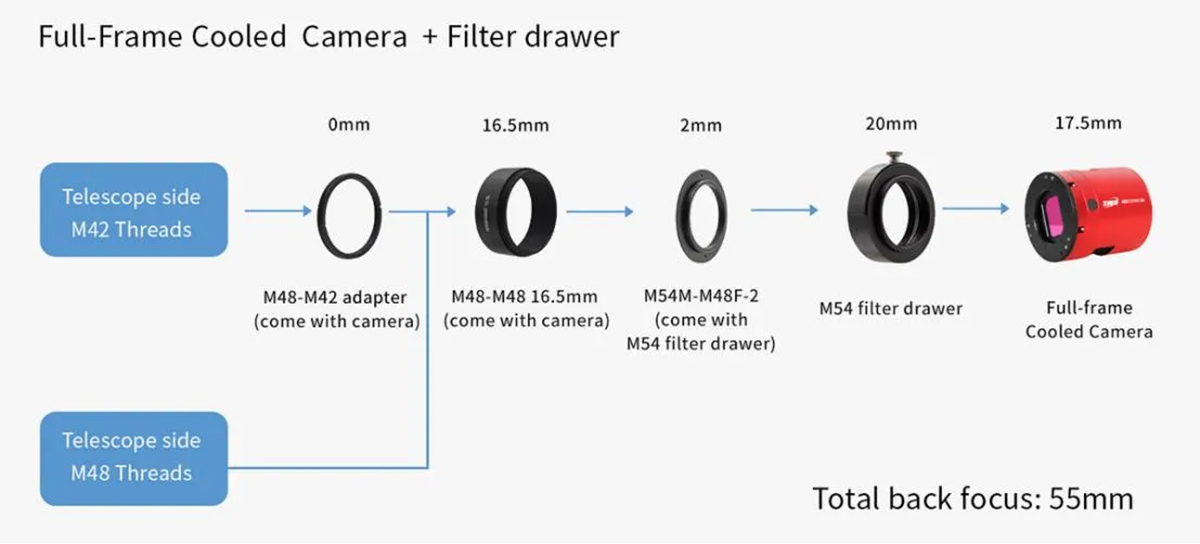

Best Solutions to Reach 55mm Back Spacing
Frequently Asked Questions
What power supply do I need?
The ASI6200MM Pro requires a 12V DC power source capable of 3–5A. You can use ZWO’s AC adapter, the DC out from an ASIAIR, or a lithium battery (11–14V). A USB 3.0 connection alone isn’t enough to power the TEC cooler.
Is this camera compatible with the ASIAIR?
Yes, the ASI6200MM Pro is fully compatible with ASIAIR, as well as ASCOM, INDI, and other astrophotography software.
How does this model differ from the previous version?
The 2025 refresh includes a new motherboard with lower read noise and faster frame rates, a matte Pro finish, an increased buffer (512MB), and added anti-dew and sensor tilt adjustment features.
Other Information
- Country of Manufacture: China
