ZWO EAF Electronic Automatic Focuser - Standard (New 5V Version)
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
This model has been discontinued and is being closed out. You can shop the latest ZWO EAF versions!
This model has been discontinued and is being closed out. You can shop the latest ZWO EAF versions!

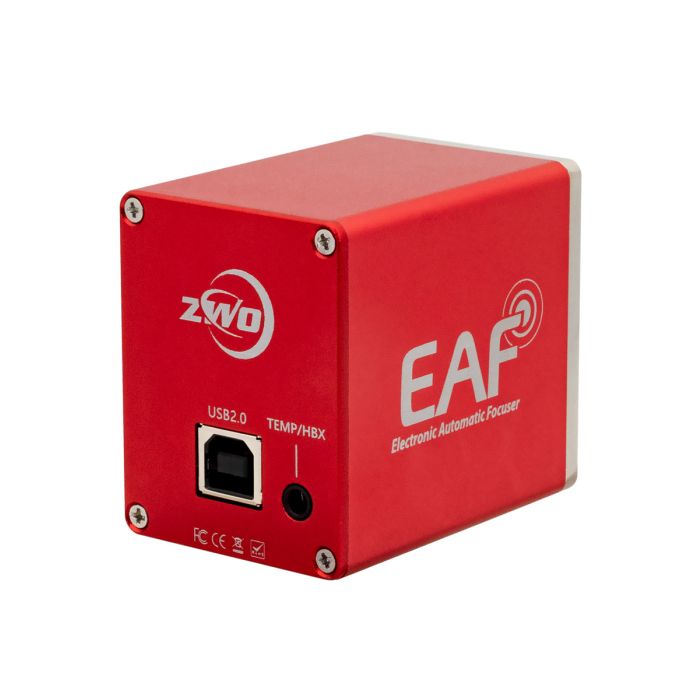

Introducing 5V EAF, the upgraded version of the original ZWO EAF. This electronic focuser enables precise, dynamic focus control for planetary and deep-sky imaging.
Compared to its old version, the main change of 5V EAF is the elimination of the 12V power supply port. Now you can directly connect the EAF to your camera, laptop or ASIAIR PRO via the USB 2.0 port & cable for both data transmission and power supply. This would not only make the cable management much easier, but also effectively reduce the supply pressure.
5 kg Capacity, ASCOM & ASIAIR Supported
The ZWO EAF works with all capture software supported by the ASCOM platform. The focuser also completes the ASIAIR WiFi imaging and control system. Now control your entire imaging runs from a smart phone or tablet, even from indoors.
Beautiful Design and All Metal Construction
The EAF is constructed from an all-metal housing in an attractive red color that matches our cameras. The innovative pattern on the EAF is inspired by the changes of Airy disk during focusing and the focusing curve, which makes it clear at a glance how this focuser works.
Features:
- Highly integrated design
- Support ASCOM platform and various ASCOM-compatible third-party software
- Support INDI
- Support original software such as ASIAIR and ASIStudio
- Support automatic focusing for DSO imaging
- Support hand controller and manual focusing
- Support temperature sensor
- USB HID device and drive-free
- Stable and durable
There are two variants of the 5V EAF:
Standard Version (This item): EAF body, flexible coupling, motor bracket, USB2.0 cable.
Advanced Version (Sold separately): EAF body, flexible coupling, motor bracket, USB2.0 cable, hand controller, temperature sensor.
You could purchase the standard version first, and then buy other accessories to upgrade.
The casing of the hand controller uses environment-friendly ABS material. It has a 3.5mm female socket. You will have a very comfortable grip when you touch its ergonomic design!
The hand controller provides an easy method of focusing the telescope, featuring IN and OUT buttons, a 2-line display, slow and fast speed rate control.
A “must-have” option for EAF users!
Supported Telescopes:
Selected telescope models from:
- SkyWatcher
- SkyWatcher Astrophotography Reflectors
- SkyWatcher EvoStar/Black Diamond Refractors
- SkyWatcher Dobsonians
- SkyWatcher Maksutov-Newtonians
- Askar telescopes
- SharpStar telescopes
- William Optics WIFD telescopes
- SkyRover telescopes
- TS Optics
- Astro Tech
- Feather Touch
- Takahashi (requires the optional EAF-TAK adapter which is sold separately)
- Sky-Watcher Esprit, Orion ED80T, Vixen VC200L (all of these require the optional EAF-TAK adapter which is sold separately)
Use of the EAF with Celestron SCTs requires the use of an additional bracket that is sold separately. The EAF is also not compatible with GSO Crayford or Linear Bearing focusers due to their curved microfocuser housings (non-commercial DIY and 3D printed solutions can be found on the internet).
The following link is an excellent resource listing tons of focusers and their connection mechanism with the ZWO EAF:
Specifications:
- Body Size: 59mm x 52mm x 41mm
- Motor: Step motor, 35mm diameter, 7.5º Step Angle
- Power port: USB 2.0 port, Type-B
- Weight: 277g
- Capacity: 5kg
Other Information
- Country of Manufacture: China
This model has been discontinued and is being closed out. You can shop the latest ZWO EAF versions!
Introducing 5V EAF, the upgraded version of the original ZWO EAF. This electronic focuser enables precise, dynamic focus control for planetary and deep-sky imaging.
Compared to its old version, the main change of 5V EAF is the elimination of the 12V power supply port. Now you can directly connect the EAF to your camera, laptop or ASIAIR PRO via the USB 2.0 port & cable for both data transmission and power supply. This would not only make the cable management much easier, but also effectively reduce the supply pressure.
5 kg Capacity, ASCOM & ASIAIR Supported
The ZWO EAF works with all capture software supported by the ASCOM platform. The focuser also completes the ASIAIR WiFi imaging and control system. Now control your entire imaging runs from a smart phone or tablet, even from indoors.
Beautiful Design and All Metal Construction
The EAF is constructed from an all-metal housing in an attractive red color that matches our cameras. The innovative pattern on the EAF is inspired by the changes of Airy disk during focusing and the focusing curve, which makes it clear at a glance how this focuser works.
Features:
- Highly integrated design
- Support ASCOM platform and various ASCOM-compatible third-party software
- Support INDI
- Support original software such as ASIAIR and ASIStudio
- Support automatic focusing for DSO imaging
- Support hand controller and manual focusing
- Support temperature sensor
- USB HID device and drive-free
- Stable and durable
There are two variants of the 5V EAF:
Standard Version (This item): EAF body, flexible coupling, motor bracket, USB2.0 cable.
Advanced Version (Sold separately): EAF body, flexible coupling, motor bracket, USB2.0 cable, hand controller, temperature sensor.
You could purchase the standard version first, and then buy other accessories to upgrade.
The casing of the hand controller uses environment-friendly ABS material. It has a 3.5mm female socket. You will have a very comfortable grip when you touch its ergonomic design!
The hand controller provides an easy method of focusing the telescope, featuring IN and OUT buttons, a 2-line display, slow and fast speed rate control.
A “must-have” option for EAF users!
Supported Telescopes:
Selected telescope models from:
- SkyWatcher
- SkyWatcher Astrophotography Reflectors
- SkyWatcher EvoStar/Black Diamond Refractors
- SkyWatcher Dobsonians
- SkyWatcher Maksutov-Newtonians
- Askar telescopes
- SharpStar telescopes
- William Optics WIFD telescopes
- SkyRover telescopes
- TS Optics
- Astro Tech
- Feather Touch
- Takahashi (requires the optional EAF-TAK adapter which is sold separately)
- Sky-Watcher Esprit, Orion ED80T, Vixen VC200L (all of these require the optional EAF-TAK adapter which is sold separately)
Use of the EAF with Celestron SCTs requires the use of an additional bracket that is sold separately. The EAF is also not compatible with GSO Crayford or Linear Bearing focusers due to their curved microfocuser housings (non-commercial DIY and 3D printed solutions can be found on the internet).
The following link is an excellent resource listing tons of focusers and their connection mechanism with the ZWO EAF:
Specifications:
- Body Size: 59mm x 52mm x 41mm
- Motor: Step motor, 35mm diameter, 7.5º Step Angle
- Power port: USB 2.0 port, Type-B
- Weight: 277g
- Capacity: 5kg
- EAF Body
- Motor Bracket
- 8#32 Screw
- Flexible Couplings (4-7mm Bore)
- 2m USB 2.0 Cable
- M5 Wrench
- M4 Wrench
- Spacers
