- 110mm f/7 flat-field APO refractor designed for sharp, detailed deep-sky imaging
- 766mm focal length offers added reach for galaxies, nebulae, star clusters, and smaller deep-sky targets
- Quadruplet optical design helps deliver well-corrected stars across the frame
- No separate field flattener required, making setup simpler and spacing less complicated
- Generous 44mm image circle provides coverage for full-frame and smaller astronomy cameras
- 3" dual-speed rack-and-pinion focuser allows for precise coarse and fine focus adjustments
- Includes essential mounting and imaging accessories to help you get your setup built faster
- Save when you bundle the ZWO FF110 with either the ZWO AM5N mount or the ZWO AM7 mount!
ZWO FF110 APO — More Aperture, More Reach, Serious Imaging Performance
ZWO is expanding their lineup of standout telescopes with the newest addition of the APO Flat-Field Apochromatic Refractors! This 110mm quadruplet features the highly regarded four-element, fully air-spaced apochromatic optical design. An integrated flat-field design eliminates the need for an external field flattener and the additional ED glass dramatically improves color correction and image clarity. No complex back focus calculations or spacing adjustments are required—simply attach your imaging setup and start capturing once focus is achieved.
A 766mm focal length and f/7 ratio ensures you strike the perfect balance between high-contrast deep-sky imaging and a highly portable, grab-and-go setup. Boasting a 44 mm image circle, this refractor is packed with features for easy astrophotography and visual astronomy. Compatible with ZWO ASI and DSLR/Mirrorless cameras, as well as 2”/1.25” diagonals. Including features like a 360° rotator, dual-speed focuser, quick-release rings, and a photographic extension with 2-inch filter threads.
ZWO FF110 is Packed with Thoughtful Features!

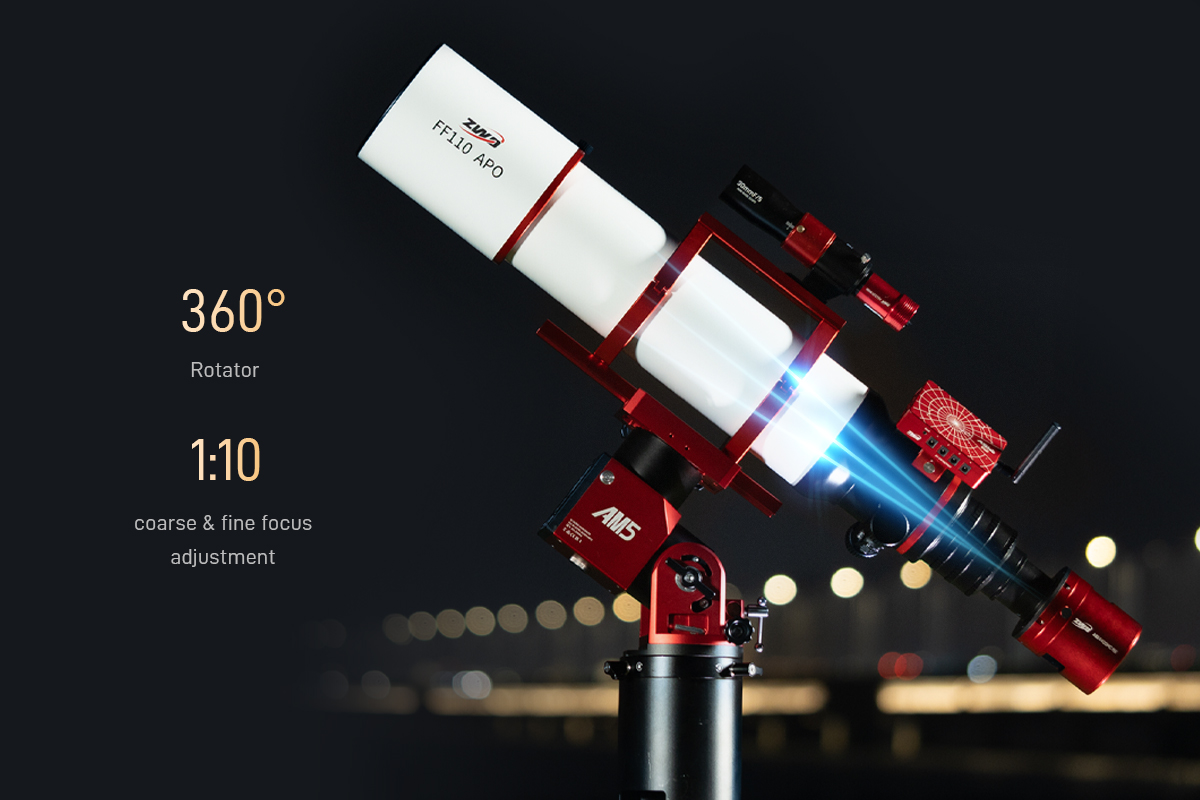

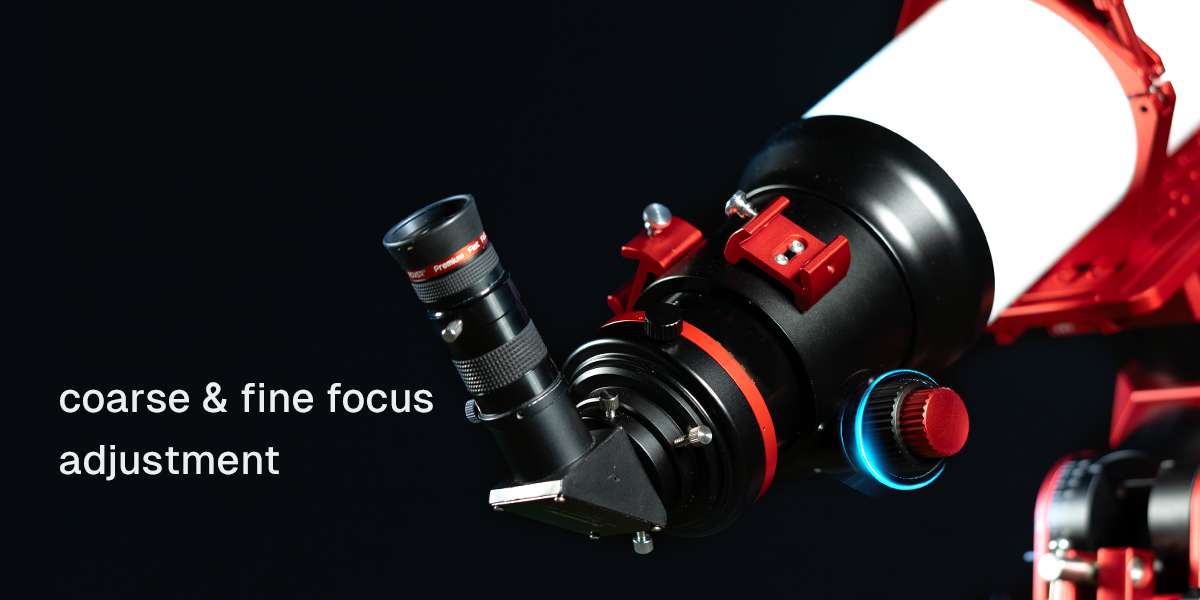

Dual-Speed Focusing
Equipped with a rigid 3-inch rack-and-pinion focuser, the FF110 APO offers precise control with a 1:10 coarse & fine focus adjustment mechanism. A built-in 360° rotator at the rear allows for smooth and accurate camera angle adjustments.
Built for All Astronomers
Highly versatile and seamlessly adapts to multiple imaging or visual setups. It provides native, plug-and-play compatibility with dedicated ZWO ASI, standard DSLR, or mirrorless cameras. Beyond deep-sky imaging, it easily converts into a high-end visual observation setup by supporting visual diagonals and eyepieces.

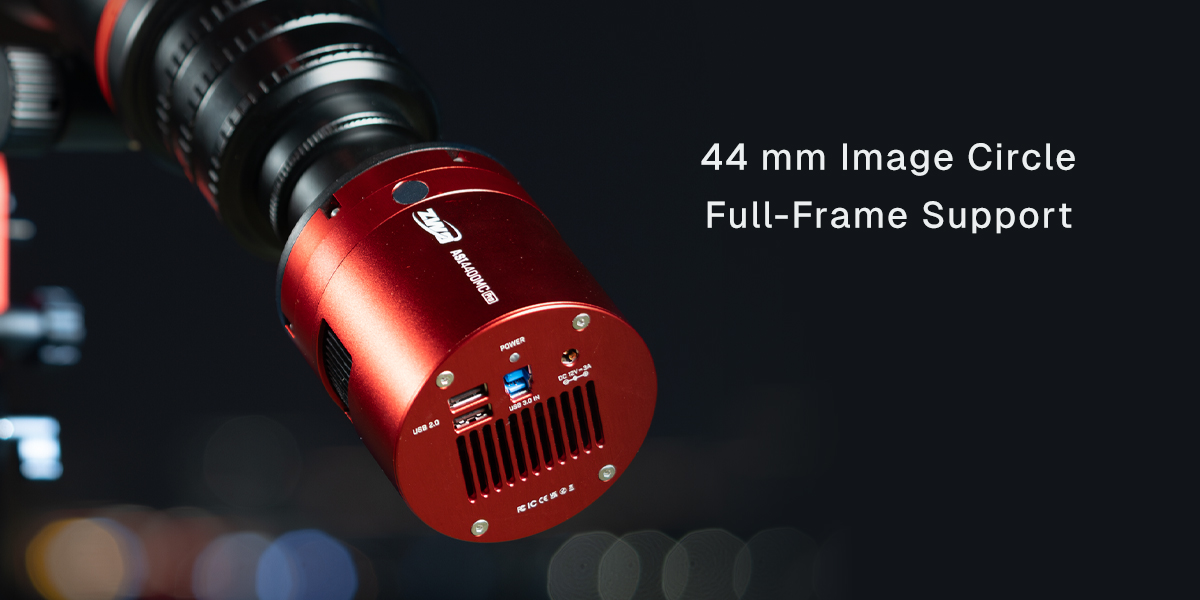

Flat-Field Design
With a 44 mm image circle, the FF110 APO fully supports full-frame sensors and a wide range of imaging setups.
It delivers sharp star fields with excellent edge-to-edge performance, ensuring consistent image quality across the entire frame.
Four-Element Optical Design
The FF110 APO features a four-element, fully air-spaced apochromatic optical design. All four elements work together to deliver a flat imaging field without the need for an additional field flattener.
One ED (extra-low dispersion) glass element is incorporated to effectively reduce chromatic aberration, resulting in improved color correction and image clarity.

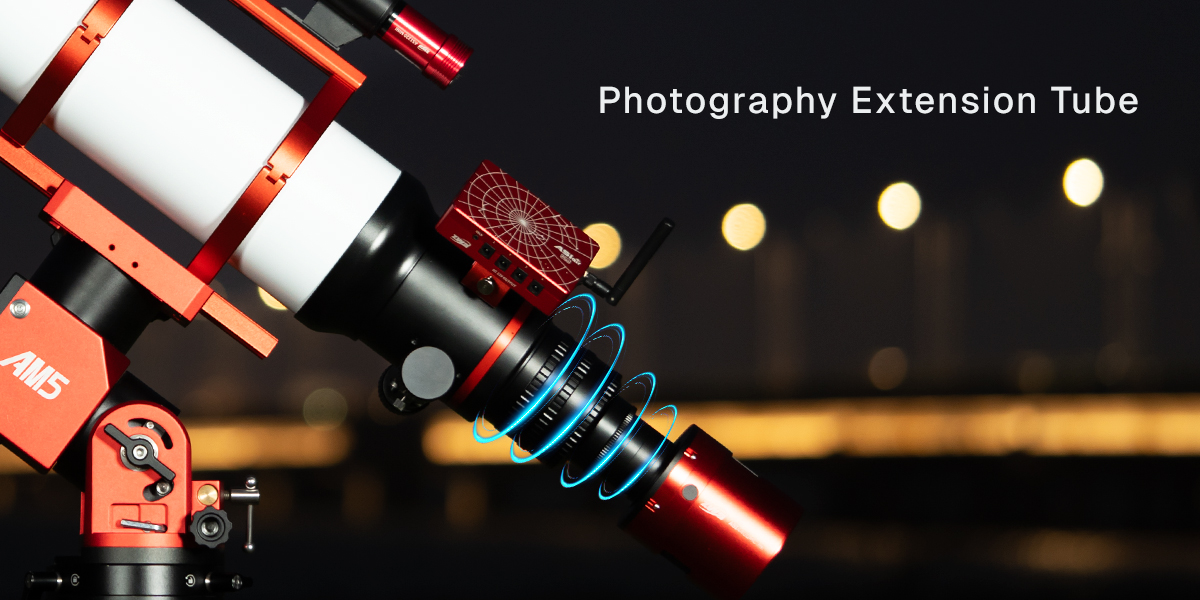

Photography Extension Tube
The FF110 APO includes a photography extension tube with a 2-inch filter thread, along with rear adapters in M48x0.75 and M54x0.75 standards. This allows for easy integration with a wide range of imaging accessories.
Native Flat-Field Design
The FF110 APO features a native flat-field optical design, eliminating the need for an additional field flattener.
No complex back focus calculations or spacing adjustments are required—simply attach your imaging setup and start capturing once focus is achieved.
Integrated Features for Ease

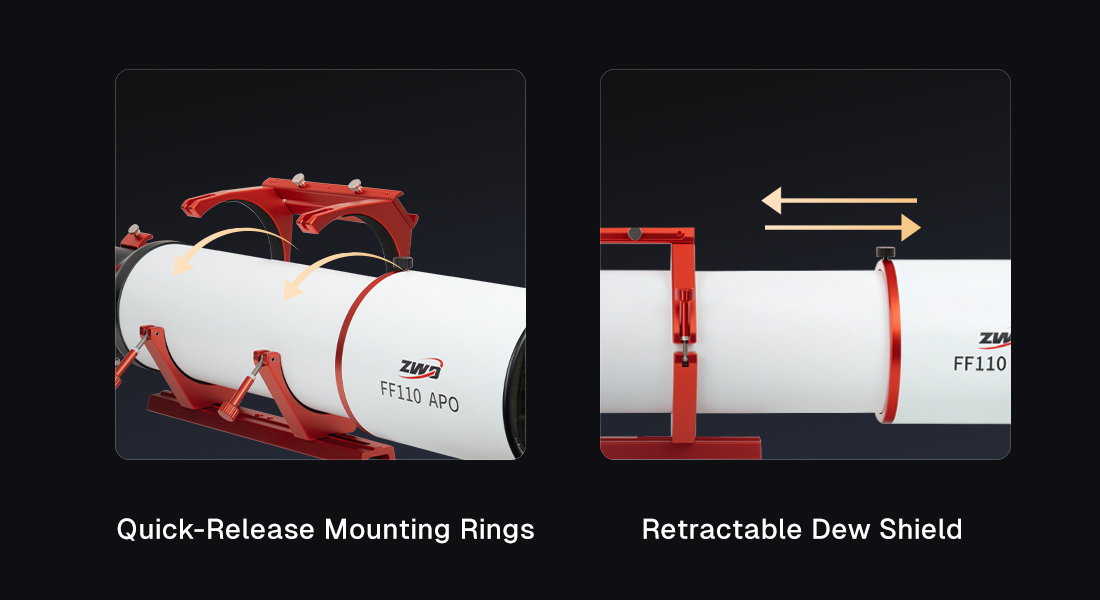

The FF110 APO features a retractable dew shield, reducing overall length for improved portability. Precision CNC machining and a high-quality painted finish, combined with an internal anti-reflection coating, help minimize stray light and enhance image contrast. The mounting rings are detachable, allowing for quick and easy setup or teardown of the telescope.
Specifications:
-
Effective Aperture: 110 mm (4.33 in)
-
Focal Length: 766 mm (30.16 in)
-
Focal Ratio: f/7.0
-
Objective Type: Four-element air-spaced APO (includes 1 ED element)
-
Image Circle: 44 mm (1.73 in)
-
Maximum Rear Connection Length (Focuser Retracted):
-
Imaging Mode:
-
73 mm (2.87 in) measured from M48x0.75 male thread
-
91 mm (3.58 in) measured from M54x0.75 male thread
-
-
Observation Mode:
-
132 mm (5.20 in) measured from 1.25 in eyepiece holder
-
142 mm (5.59 in) measured from 2 in eyepiece holder
-
-
-
Minimum Rear Connection Length (Focuser Retracted):
-
Imaging Mode:
-
42 mm (1.65 in) measured from M48x0.75 male thread
-
60 mm (2.36 in) measured from M54x0.75 male thread
-
-
Observation Mode:
-
101 mm (3.98 in) measured from 1.25 in eyepiece holder
-
111 mm (4.37 in) measured from 2 in eyepiece holder
-
-
-
Overall Length:
-
644 mm (25.35 in) with 1.25 in interface retracted
-
728 mm (28.66 in) with photography extension tube retracted
-
751 mm (29.57 in) with 1.25 in interface dew shield extended
-
815 mm (32.09 in) with photography extension tube dew shield extended
-
-
Telescope Body Weight: 5.74 kg (12.65 lb)
-
Standard Configuration Weight: 6.76 kg (14.90 lb) including handle, mounting rings, and dovetail plate
-
Rear Interfaces:
-
M78x1-55mm Extension Adapter
-
M78x1 to M54x0.75
-
M54x0.75 to M54x0.75
-
M54x0.75 to M48x0.75 (built-in M48x0.75 filter thread)
-
- Notes: *Focus can be achieved within a back focus range of 42–73 mm, measured from the M54–M48 interface shoulder.
Important FF110 Diagrams
Optical Layout
Mechnical Diagram

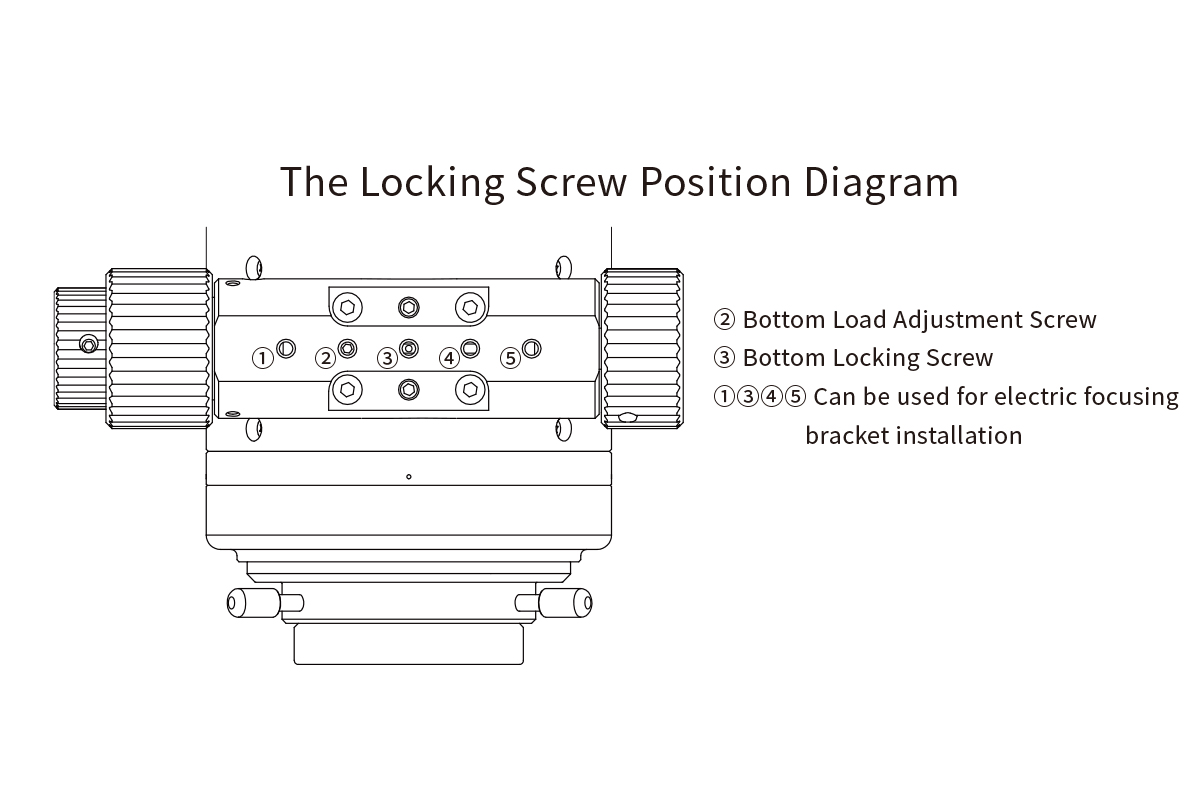

Locking Screw Position Diagram

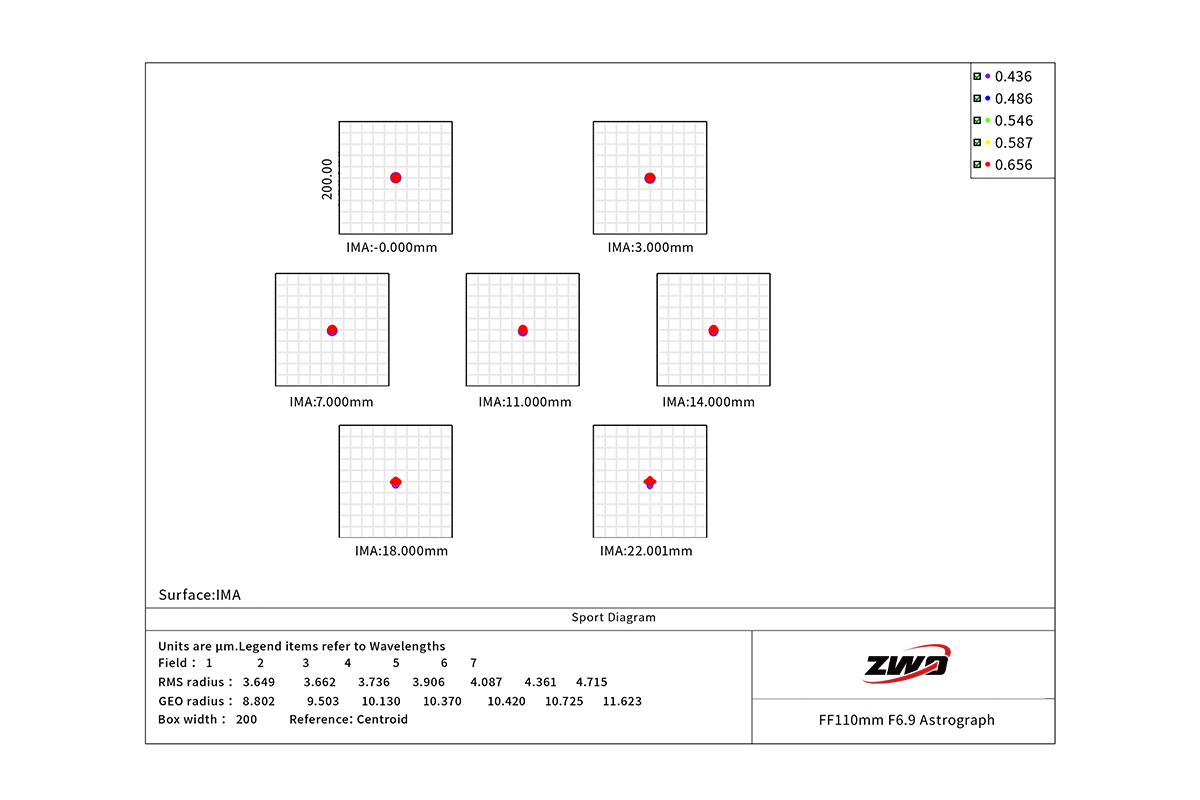

Star Field Map
Other Information
- Country of Manufacture: China
ZWO FF110 APO — More Aperture, More Reach, Serious Imaging Performance
ZWO is expanding their lineup of standout telescopes with the newest addition of the APO Flat-Field Apochromatic Refractors! This 110mm quadruplet features the highly regarded four-element, fully air-spaced apochromatic optical design. An integrated flat-field design eliminates the need for an external field flattener and the additional ED glass dramatically improves color correction and image clarity. No complex back focus calculations or spacing adjustments are required—simply attach your imaging setup and start capturing once focus is achieved.
A 766mm focal length and f/7 ratio ensures you strike the perfect balance between high-contrast deep-sky imaging and a highly portable, grab-and-go setup. Boasting a 44 mm image circle, this refractor is packed with features for easy astrophotography and visual astronomy. Compatible with ZWO ASI and DSLR/Mirrorless cameras, as well as 2”/1.25” diagonals. Including features like a 360° rotator, dual-speed focuser, quick-release rings, and a photographic extension with 2-inch filter threads.
ZWO FF110 is Packed with Thoughtful Features!
Dual-Speed Focusing
Equipped with a rigid 3-inch rack-and-pinion focuser, the FF110 APO offers precise control with a 1:10 coarse & fine focus adjustment mechanism. A built-in 360° rotator at the rear allows for smooth and accurate camera angle adjustments.
Built for All Astronomers
Highly versatile and seamlessly adapts to multiple imaging or visual setups. It provides native, plug-and-play compatibility with dedicated ZWO ASI, standard DSLR, or mirrorless cameras. Beyond deep-sky imaging, it easily converts into a high-end visual observation setup by supporting visual diagonals and eyepieces.
Flat-Field Design
With a 44 mm image circle, the FF110 APO fully supports full-frame sensors and a wide range of imaging setups.
It delivers sharp star fields with excellent edge-to-edge performance, ensuring consistent image quality across the entire frame.
Four-Element Optical Design
The FF110 APO features a four-element, fully air-spaced apochromatic optical design. All four elements work together to deliver a flat imaging field without the need for an additional field flattener.
One ED (extra-low dispersion) glass element is incorporated to effectively reduce chromatic aberration, resulting in improved color correction and image clarity.
Photography Extension Tube
The FF110 APO includes a photography extension tube with a 2-inch filter thread, along with rear adapters in M48x0.75 and M54x0.75 standards. This allows for easy integration with a wide range of imaging accessories.
Native Flat-Field Design
The FF110 APO features a native flat-field optical design, eliminating the need for an additional field flattener.
No complex back focus calculations or spacing adjustments are required—simply attach your imaging setup and start capturing once focus is achieved.
Integrated Features for Ease
The FF110 APO features a retractable dew shield, reducing overall length for improved portability. Precision CNC machining and a high-quality painted finish, combined with an internal anti-reflection coating, help minimize stray light and enhance image contrast. The mounting rings are detachable, allowing for quick and easy setup or teardown of the telescope.
Specifications:
-
Effective Aperture: 110 mm (4.33 in)
-
Focal Length: 766 mm (30.16 in)
-
Focal Ratio: f/7.0
-
Objective Type: Four-element air-spaced APO (includes 1 ED element)
-
Image Circle: 44 mm (1.73 in)
-
Maximum Rear Connection Length (Focuser Retracted):
-
Imaging Mode:
-
73 mm (2.87 in) measured from M48x0.75 male thread
-
91 mm (3.58 in) measured from M54x0.75 male thread
-
-
Observation Mode:
-
132 mm (5.20 in) measured from 1.25 in eyepiece holder
-
142 mm (5.59 in) measured from 2 in eyepiece holder
-
-
-
Minimum Rear Connection Length (Focuser Retracted):
-
Imaging Mode:
-
42 mm (1.65 in) measured from M48x0.75 male thread
-
60 mm (2.36 in) measured from M54x0.75 male thread
-
-
Observation Mode:
-
101 mm (3.98 in) measured from 1.25 in eyepiece holder
-
111 mm (4.37 in) measured from 2 in eyepiece holder
-
-
-
Overall Length:
-
644 mm (25.35 in) with 1.25 in interface retracted
-
728 mm (28.66 in) with photography extension tube retracted
-
751 mm (29.57 in) with 1.25 in interface dew shield extended
-
815 mm (32.09 in) with photography extension tube dew shield extended
-
-
Telescope Body Weight: 5.74 kg (12.65 lb)
-
Standard Configuration Weight: 6.76 kg (14.90 lb) including handle, mounting rings, and dovetail plate
-
Rear Interfaces:
-
M78x1-55mm Extension Adapter
-
M78x1 to M54x0.75
-
M54x0.75 to M54x0.75
-
M54x0.75 to M48x0.75 (built-in M48x0.75 filter thread)
-
- Notes: *Focus can be achieved within a back focus range of 42–73 mm, measured from the M54–M48 interface shoulder.
Important FF110 Diagrams
Optical Layout
Mechnical Diagram
Locking Screw Position Diagram
Star Field Map
| Manufacturer | ZWO Astronomy Cameras |
|---|---|
| Telescope Focal Length | 701 - 800mm |

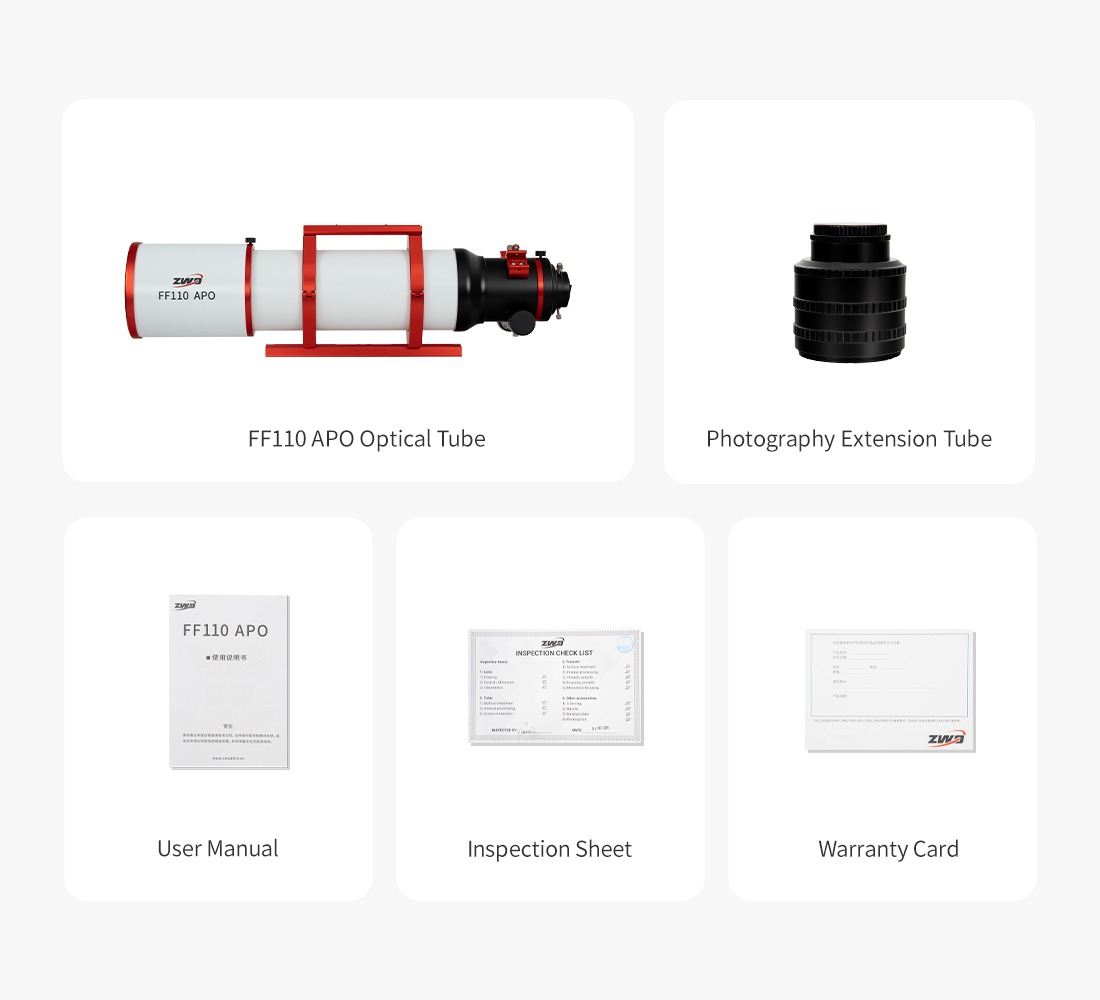

- 1x FF110 APO optical tube
