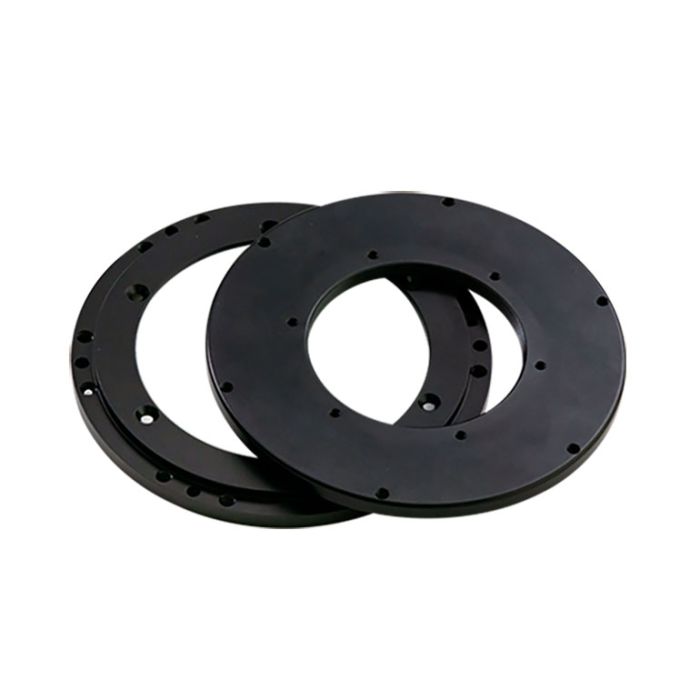

ZWO M54 Tilter Adapter for Select ZWO Cameras
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Notice: Before you purchase this M54 tilter, please consult ZWO customer service to confirm whether it fits your setup. They have not provided us with clear, detailed information yet for this item so we are unable to assist with compatibility or application inquiries until they do. Please buy this item only if you are positive that this will work for your intended application. We will update this page as we get more clarity from ZWO.
The M54 tilter makes sensor tilt adjustment much easier than before by allowing you to do the adjustment on the rear end of the camera. You now can make some adjustments during imaging, instead of taking the camera off from the telescope.
Compatible cameras:
- ASI2600MM/MC Duo
- ASI2600MM/MC Pro
- ASI6200MM/MC Pro
- ASI2400MC Pro
It also fits 7x50mm EFW.
Installation guide:
1. Use a hex wrench to take off the three M3 cylindrical screws on the adapter.
2. Disassemble the sensor tilt plate from the DSO camera.
3. Place the base of the M54-Tilter onto the cooled camera. Fix them with six 5x6 Phillips flat-head screws.
4. Then place the top cover of the M54 tilter onto the camera. Turn over them and fix the base and top cover with three M3 screws. Please do align the screws to the M3 screw holes (as shown in the mechanical drawing). The angle between each two M3 screws should be 120°.
Other Information
- Country of Manufacture: China
Notice: Before you purchase this M54 tilter, please consult ZWO customer service to confirm whether it fits your setup. They have not provided us with clear, detailed information yet for this item so we are unable to assist with compatibility or application inquiries until they do. Please buy this item only if you are positive that this will work for your intended application. We will update this page as we get more clarity from ZWO.
The M54 tilter makes sensor tilt adjustment much easier than before by allowing you to do the adjustment on the rear end of the camera. You now can make some adjustments during imaging, instead of taking the camera off from the telescope.
Compatible cameras:
- ASI2600MM/MC Duo
- ASI2600MM/MC Pro
- ASI6200MM/MC Pro
- ASI2400MC Pro
It also fits 7x50mm EFW.
Installation guide:
1. Use a hex wrench to take off the three M3 cylindrical screws on the adapter.
2. Disassemble the sensor tilt plate from the DSO camera.
3. Place the base of the M54-Tilter onto the cooled camera. Fix them with six 5x6 Phillips flat-head screws.
4. Then place the top cover of the M54 tilter onto the camera. Turn over them and fix the base and top cover with three M3 screws. Please do align the screws to the M3 screw holes (as shown in the mechanical drawing). The angle between each two M3 screws should be 120°.
- M54 tilter x 1
- 6xM2.5 countersunk screws x 6
Notice: Before you purchase this M54 tilter, please consult ZWO customer service to confirm whether it fits your setup. They have not provided us with clear, detailed information yet for this item so we are unable to assist with compatibility or application inquiries until they do. Please buy this item only if you are positive that this will work for your intended application. We will update this page as we get more clarity from ZWO.
The M54 tilter makes sensor tilt adjustment much easier than before by allowing you to do the adjustment on the rear end of the camera. You now can make some adjustments during imaging, instead of taking the camera off from the telescope.
Compatible cameras:
- ASI2600MM/MC Duo
- ASI2600MM/MC Pro
- ASI6200MM/MC Pro
- ASI2400MC Pro
It also fits 7x50mm EFW.
Installation guide:
1. Use a hex wrench to take off the three M3 cylindrical screws on the adapter.
2. Disassemble the sensor tilt plate from the DSO camera.
3. Place the base of the M54-Tilter onto the cooled camera. Fix them with six 5x6 Phillips flat-head screws.
4. Then place the top cover of the M54 tilter onto the camera. Turn over them and fix the base and top cover with three M3 screws. Please do align the screws to the M3 screw holes (as shown in the mechanical drawing). The angle between each two M3 screws should be 120°.
Other Information
- Country of Manufacture: China
- M54 tilter x 1
- 6xM2.5 countersunk screws x 6
