- Lightweight carbon fiber build for portability, high strength, and impact resistance
- High load capacity of 50 kg (110.23 lb) in a compact format
- Two-section legs for improved stability and rigidity with imaging gear
- Height adjusts from 470 mm to 800 mm (18.5 in to 31.49 in) for flexible setups
- Tripod head adapter plate supports all ZWO AM series mounts
- 3/8"-16 compatibility for use with other mounts that use a standard 3/8" connecting bolt
- Included spreader plate and weight bag increase stability in the field
TC40 Carbon Fiber Tripod: A Great Foundation for Any Mount!
The ZWO TC40 Carbon Fiber Tripod is designed as a lightweight, rigid platform that can support most modern grab-and-go astrophotography rigs. It pairs naturally with the ZWO AM3, AM5, and AM7 mount heads, while also supporting many other brands and models through a standard 3/8"-16 connection. Carbon fiber construction helps keep total weight low without sacrificing durability, all in a package that collapses down to a mere 20-inches long (500mm). The result is a tripod that travels easily and still feels planted when your telescope and camera are mounted.
Note: For larger refractors and other longer tube telescopes, the ZWO 200mm Pier Extension is strongly recommended, which adds clearance so the telescope doesn't come into contact with the TC40 tripod legs.
Simon from AstroWorkz gives a rundown of the ZWO TC40 and its performance capabilities
Lightweight & Travel-Ready
Weighing significantly less than traditional steel tripods, the TC40 is perfect for portable astrophotography. Its carbon fiber legs reduce overall carry weight without sacrificing strength, making it an excellent choice for field use, star parties, and remote imaging sessions.
Stability for Astrophotography
Constructed from high-strength carbon fiber, the TC40 tripod minimizes vibration and flex, ensuring sharp, long-exposure images even under demanding conditions. Whether you're capturing deep-sky objects or planetary detail, this tripod provides a rock-solid foundation for accurate tracking and guiding.

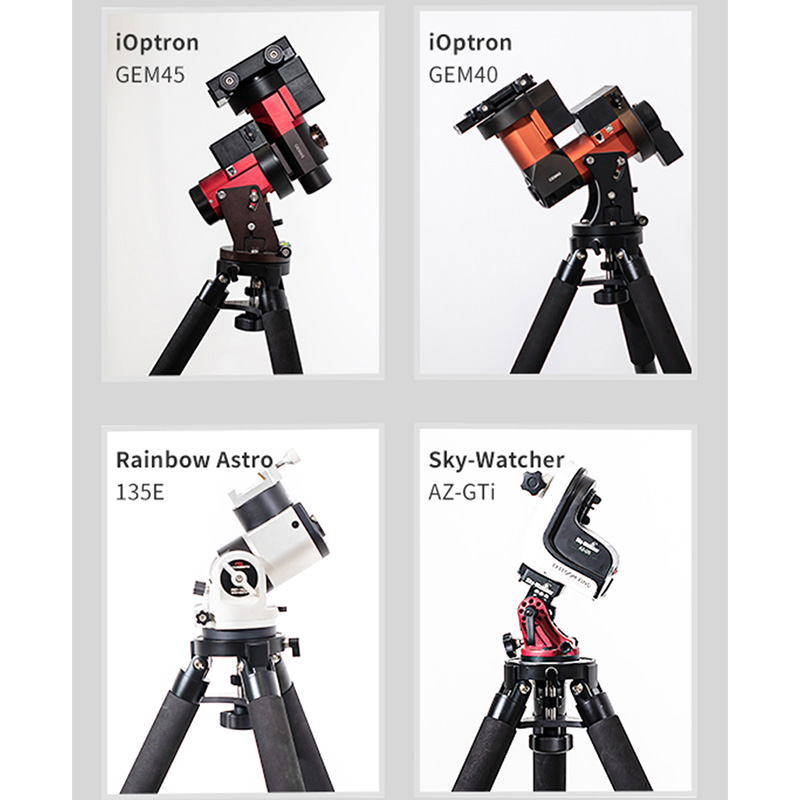

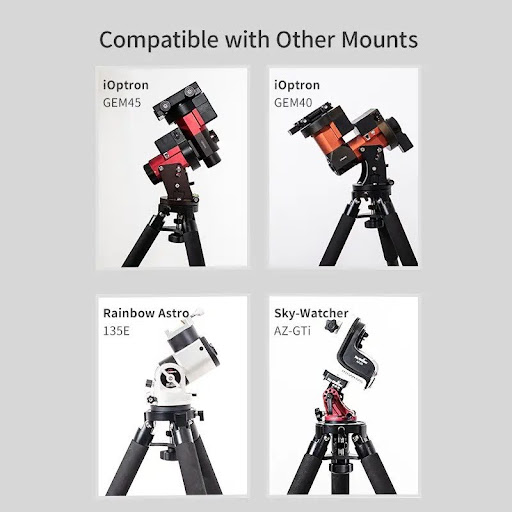

Wide Mount Compatibility
The TC40 isn’t limited to ZWO mounts—it supports a variety of popular equatorial and alt-azimuth mounts, making it a versatile addition to any setup. Compatible mounts include:
- ZWO AM3N, AM5N, AM7
- iOptron GEM45 & GEM40
- Rainbow Astro RST-135E
- Sky-Watcher AZ-GTi
Carbon Fiber Means Strength Without Bulk
The TC40 uses carbon fiber to deliver high strength and impact resistance while staying easy to carry. It weighs 2.3 kg (5.07 lb.), which makes it a strong fit for travel kits and remote sessions. This design targets users who want less mass to haul but still need a tripod that is built for serious observing and imaging payloads.
Stable Two Section Leg Design
The tripod uses a two-section design for the legs, allowing for adjustability without introducing too many potential weak points. This provides a strong, rigid, stable platform for all your astronomy equipment. The leg diameters are substantial for its class too, with an upper section of 40 mm (about 1.5 in) and a lower section of 36 mm (about 1.4 in). That geometry supports stiffness, which helps when tracking and when working on uneven ground.
Secure Mount Interface and Broad Compatibility
The tripod plate features an adapter with three mounting points that match the ZWO AM5 or AM3 mount heads, ensuring a stable connection. It also includes a center 3/8" locking knob. For other mounts, the plate can be flipped and secured using a 3/8" tapped hole, which expands compatibility with mounts that use a 3/8"-16 connecting bolt.
Compatible mount brands include Celestron, iOptron, Rainbow Astro, and Sky-Watcher, as well as others that use the same connection standard.

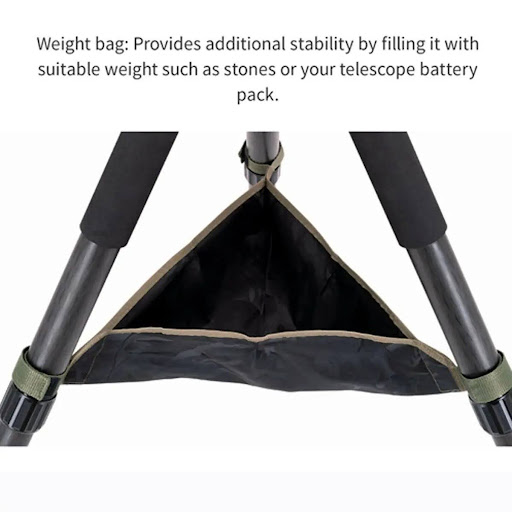

Extra Stability Accessories Included
ZWO includes a spreader plate that increases stability. Tightening the knob on this spreader applies upward pressure against the legs which spreads them out and helps lock them in place. A weight bag is also included, and it can be filled with weights, stones, or a battery pack to further improve steadiness.
Specifications
-
Material: Carbon fiber
-
Weight: 2.3 kg (5.07 lbs)
-
Load Capacity: 50 kg (110.23 lbs)
-
Folded Length: 500 mm (19.68")
-

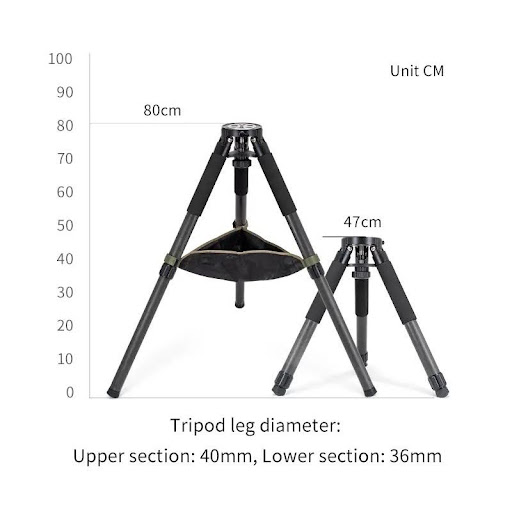

Adjustable Height: 470 mm to 800 mm (18.5" to 31.49")
-
Leg Sections: 2
-
Upper Leg Diameter: 40 mm (1.57")
-
Lower Leg Diameter: 36 mm (1.42")
-
Mount Connection Compatibility: Standard 3/8"-16 connecting bolt support
-
Country of Manufacture: China
Frequently Asked Questions
Is the ZWO TC40 tripod only for ZWO mounts?
No. It is designed as an ideal match for the ZWO AM3 and AM5, but it also supports other mounts that use a 3/8"-16 connecting bolt. Listed compatible brands include Celestron, iOptron, Rainbow Astro, and Sky-Watcher.
How portable is it?
It is built to be travel friendly. The TC40 weighs 2.3 kg (5.07 lb.) and folds down to 500 mm (19.68 in.).
What is the height range?
The tripod adjusts from 470 mm to 800 mm (18.5 in to 31.49 in).
Do I need a pier extension?
If you use a larger refractor or a longer tube telescope, a 200 mm pier extension is strongly recommended for clearance so the optical tube does not contact the tripod legs.
Mechanical Diagram
Other Information
- Country of Manufacture: China
TC40 Carbon Fiber Tripod: A Great Foundation for Any Mount!
The ZWO TC40 Carbon Fiber Tripod is designed as a lightweight, rigid platform that can support most modern grab-and-go astrophotography rigs. It pairs naturally with the ZWO AM3, AM5, and AM7 mount heads, while also supporting many other brands and models through a standard 3/8"-16 connection. Carbon fiber construction helps keep total weight low without sacrificing durability, all in a package that collapses down to a mere 20-inches long (500mm). The result is a tripod that travels easily and still feels planted when your telescope and camera are mounted.
Note: For larger refractors and other longer tube telescopes, the ZWO 200mm Pier Extension is strongly recommended, which adds clearance so the telescope doesn't come into contact with the TC40 tripod legs.
Simon from AstroWorkz gives a rundown of the ZWO TC40 and its performance capabilities
Lightweight & Travel-Ready
Weighing significantly less than traditional steel tripods, the TC40 is perfect for portable astrophotography. Its carbon fiber legs reduce overall carry weight without sacrificing strength, making it an excellent choice for field use, star parties, and remote imaging sessions.
Stability for Astrophotography
Constructed from high-strength carbon fiber, the TC40 tripod minimizes vibration and flex, ensuring sharp, long-exposure images even under demanding conditions. Whether you're capturing deep-sky objects or planetary detail, this tripod provides a rock-solid foundation for accurate tracking and guiding.
Wide Mount Compatibility
The TC40 isn’t limited to ZWO mounts—it supports a variety of popular equatorial and alt-azimuth mounts, making it a versatile addition to any setup. Compatible mounts include:
- ZWO AM3N, AM5N, AM7
- iOptron GEM45 & GEM40
- Rainbow Astro RST-135E
- Sky-Watcher AZ-GTi
Carbon Fiber Means Strength Without Bulk
The TC40 uses carbon fiber to deliver high strength and impact resistance while staying easy to carry. It weighs 2.3 kg (5.07 lb.), which makes it a strong fit for travel kits and remote sessions. This design targets users who want less mass to haul but still need a tripod that is built for serious observing and imaging payloads.
Stable Two Section Leg Design
The tripod uses a two-section design for the legs, allowing for adjustability without introducing too many potential weak points. This provides a strong, rigid, stable platform for all your astronomy equipment. The leg diameters are substantial for its class too, with an upper section of 40 mm (about 1.5 in) and a lower section of 36 mm (about 1.4 in). That geometry supports stiffness, which helps when tracking and when working on uneven ground.
Secure Mount Interface and Broad Compatibility
The tripod plate features an adapter with three mounting points that match the ZWO AM5 or AM3 mount heads, ensuring a stable connection. It also includes a center 3/8" locking knob. For other mounts, the plate can be flipped and secured using a 3/8" tapped hole, which expands compatibility with mounts that use a 3/8"-16 connecting bolt.
Compatible mount brands include Celestron, iOptron, Rainbow Astro, and Sky-Watcher, as well as others that use the same connection standard.
Extra Stability Accessories Included
ZWO includes a spreader plate that increases stability. Tightening the knob on this spreader applies upward pressure against the legs which spreads them out and helps lock them in place. A weight bag is also included, and it can be filled with weights, stones, or a battery pack to further improve steadiness.
Specifications
-
Material: Carbon fiber
-
Weight: 2.3 kg (5.07 lbs)
-
Load Capacity: 50 kg (110.23 lbs)
-
Folded Length: 500 mm (19.68")
-
Adjustable Height: 470 mm to 800 mm (18.5" to 31.49")
-
Leg Sections: 2
-
Upper Leg Diameter: 40 mm (1.57")
-
Lower Leg Diameter: 36 mm (1.42")
-
Mount Connection Compatibility: Standard 3/8"-16 connecting bolt support
-
Country of Manufacture: China
Frequently Asked Questions
Is the ZWO TC40 tripod only for ZWO mounts?
No. It is designed as an ideal match for the ZWO AM3 and AM5, but it also supports other mounts that use a 3/8"-16 connecting bolt. Listed compatible brands include Celestron, iOptron, Rainbow Astro, and Sky-Watcher.
How portable is it?
It is built to be travel friendly. The TC40 weighs 2.3 kg (5.07 lb.) and folds down to 500 mm (19.68 in.).
What is the height range?
The tripod adjusts from 470 mm to 800 mm (18.5 in to 31.49 in).
Do I need a pier extension?
If you use a larger refractor or a longer tube telescope, a 200 mm pier extension is strongly recommended for clearance so the optical tube does not contact the tripod legs.
Mechanical Diagram
- 1x Carbon fiber tripod
- 1x Tripod head plate
- 3x Spikes
- 1x Weight bag
- Lightweight carbon fiber build for portability, high strength, and impact resistance
- High load capacity of 50 kg (110.23 lb) in a compact format
- Two-section legs for improved stability and rigidity with imaging gear
- Height adjusts from 470 mm to 800 mm (18.5 in to 31.49 in) for flexible setups
- Tripod head adapter plate supports all ZWO AM series mounts
- 3/8"-16 compatibility for use with other mounts that use a standard 3/8" connecting bolt
- Included spreader plate and weight bag increase stability in the field
TC40 Carbon Fiber Tripod: A Great Foundation for Any Mount!
The ZWO TC40 Carbon Fiber Tripod is designed as a lightweight, rigid platform that can support most modern grab-and-go astrophotography rigs. It pairs naturally with the ZWO AM3, AM5, and AM7 mount heads, while also supporting many other brands and models through a standard 3/8"-16 connection. Carbon fiber construction helps keep total weight low without sacrificing durability, all in a package that collapses down to a mere 20-inches long (500mm). The result is a tripod that travels easily and still feels planted when your telescope and camera are mounted.
Note: For larger refractors and other longer tube telescopes, the ZWO 200mm Pier Extension is strongly recommended, which adds clearance so the telescope doesn't come into contact with the TC40 tripod legs.
Simon from AstroWorkz gives a rundown of the ZWO TC40 and its performance capabilities
Lightweight & Travel-Ready
Weighing significantly less than traditional steel tripods, the TC40 is perfect for portable astrophotography. Its carbon fiber legs reduce overall carry weight without sacrificing strength, making it an excellent choice for field use, star parties, and remote imaging sessions.
Stability for Astrophotography
Constructed from high-strength carbon fiber, the TC40 tripod minimizes vibration and flex, ensuring sharp, long-exposure images even under demanding conditions. Whether you're capturing deep-sky objects or planetary detail, this tripod provides a rock-solid foundation for accurate tracking and guiding.
Wide Mount Compatibility
The TC40 isn’t limited to ZWO mounts—it supports a variety of popular equatorial and alt-azimuth mounts, making it a versatile addition to any setup. Compatible mounts include:
- ZWO AM3N, AM5N, AM7
- iOptron GEM45 & GEM40
- Rainbow Astro RST-135E
- Sky-Watcher AZ-GTi
Carbon Fiber Means Strength Without Bulk
The TC40 uses carbon fiber to deliver high strength and impact resistance while staying easy to carry. It weighs 2.3 kg (5.07 lb.), which makes it a strong fit for travel kits and remote sessions. This design targets users who want less mass to haul but still need a tripod that is built for serious observing and imaging payloads.
Stable Two Section Leg Design
The tripod uses a two-section design for the legs, allowing for adjustability without introducing too many potential weak points. This provides a strong, rigid, stable platform for all your astronomy equipment. The leg diameters are substantial for its class too, with an upper section of 40 mm (about 1.5 in) and a lower section of 36 mm (about 1.4 in). That geometry supports stiffness, which helps when tracking and when working on uneven ground.
Secure Mount Interface and Broad Compatibility
The tripod plate features an adapter with three mounting points that match the ZWO AM5 or AM3 mount heads, ensuring a stable connection. It also includes a center 3/8" locking knob. For other mounts, the plate can be flipped and secured using a 3/8" tapped hole, which expands compatibility with mounts that use a 3/8"-16 connecting bolt.
Compatible mount brands include Celestron, iOptron, Rainbow Astro, and Sky-Watcher, as well as others that use the same connection standard.
Extra Stability Accessories Included
ZWO includes a spreader plate that increases stability. Tightening the knob on this spreader applies upward pressure against the legs which spreads them out and helps lock them in place. A weight bag is also included, and it can be filled with weights, stones, or a battery pack to further improve steadiness.
Specifications
-
Material: Carbon fiber
-
Weight: 2.3 kg (5.07 lbs)
-
Load Capacity: 50 kg (110.23 lbs)
-
Folded Length: 500 mm (19.68")
-
Adjustable Height: 470 mm to 800 mm (18.5" to 31.49")
-
Leg Sections: 2
-
Upper Leg Diameter: 40 mm (1.57")
-
Lower Leg Diameter: 36 mm (1.42")
-
Mount Connection Compatibility: Standard 3/8"-16 connecting bolt support
-
Country of Manufacture: China
Frequently Asked Questions
Is the ZWO TC40 tripod only for ZWO mounts?
No. It is designed as an ideal match for the ZWO AM3 and AM5, but it also supports other mounts that use a 3/8"-16 connecting bolt. Listed compatible brands include Celestron, iOptron, Rainbow Astro, and Sky-Watcher.
How portable is it?
It is built to be travel friendly. The TC40 weighs 2.3 kg (5.07 lb.) and folds down to 500 mm (19.68 in.).
What is the height range?
The tripod adjusts from 470 mm to 800 mm (18.5 in to 31.49 in).
Do I need a pier extension?
If you use a larger refractor or a longer tube telescope, a 200 mm pier extension is strongly recommended for clearance so the optical tube does not contact the tripod legs.
Mechanical Diagram
Other Information
- Country of Manufacture: China
- 1x Carbon fiber tripod
- 1x Tripod head plate
- 3x Spikes
- 1x Weight bag
