Agena Easy Adjust Heavy-Duty Guidescope Mount
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

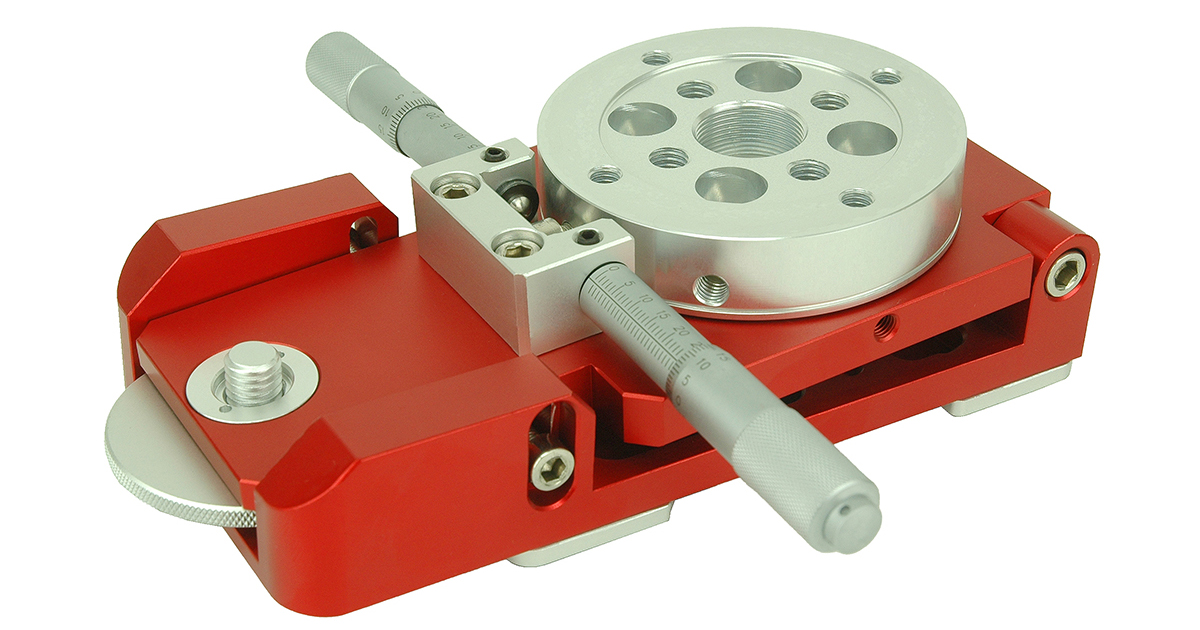

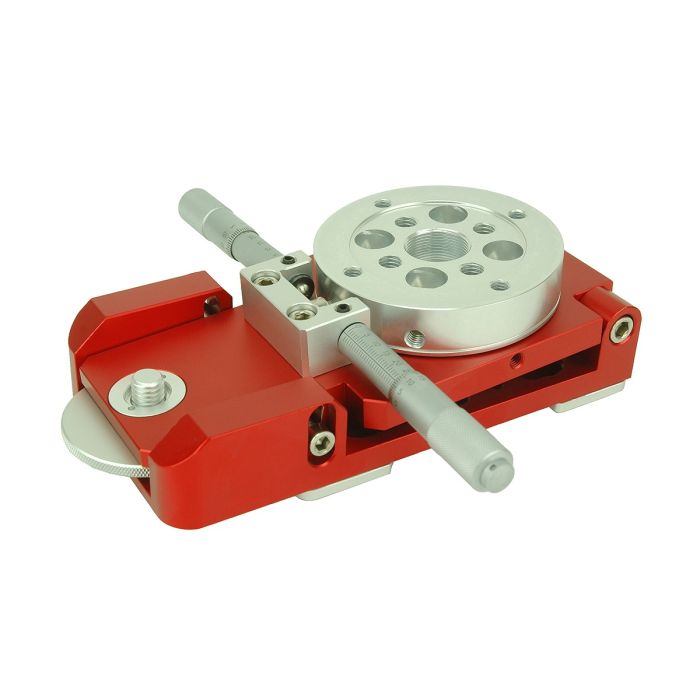

Easy Adjust Heavy-Duty Guidescope Mount
The Agena Deluxe Guidescope Mount is a heavy-duty adjustable alt-az mounting platform designed to help astrophotographers precisely align a guide scope or secondary optical tube with their main telescope. Instead of relying on traditional guide rings that use adjustment screws against the guide scope tube, this mount gives users a more controlled way to aim the guide scope while keeping the main imaging telescope fixed on target. Its robust design and 6-point locking system make it useful for setups that need a secure, repeatable alignment platform during long-exposure imaging.
On the guide scope side, the mount provides a screw-based top mounting plate for attaching a compatible guide scope assembly, small optical tube setup, or user-supplied saddle/clamp. Creating an easy to use quick-release system when paired with the appropriate clamp or saddle hardware. We recommend the Agena V Series Vixen-Style Dovetail Saddle (Silver) - 87mm (3.4") Length, which attaches via the outermost bolts. This allows the guide scope assembly to be attached and removed more easily while maintaining a rigid connection to the main telescope. On the telescope side, the base is designed for piggyback-style installation onto a suitable rail, dovetail, mounting plate, or telescope accessory surface.
Once installed, the guide scope can be aimed using separate altitude and azimuth adjustment controls. The user secures the guide scope assembly or saddle to the top mounting plate, points the main telescope at the imaging target, then adjusts the guidescope mount until a suitable guide star is centered in the guide camera’s field of view. After alignment, the locking points help hold the selected position in place, making it easier to begin autoguiding while keeping the primary telescope locked on the intended target.
Specifications
- Mount type: Heavy-duty adjustable alt-az guidescope mount
- Top mounting interface: Screw-based top mounting plate for compatible guide scope assemblies or user-supplied saddle/clamp hardware
- Alt-az adjustment range: 15° level adjustment, 5° vertical adjustment
- Base mounting: Piggyback-style mounting to a suitable rail, dovetail, plate, or telescope accessory surface
- Construction: CNC-machined aluminum
- Finish: Red anodized finish with silver hardware
- Load capacity: 15 kg (33 lb)
- Locking system: 6-point locking design
Other Information
- Country of Manufacture: China
Easy Adjust Heavy-Duty Guidescope Mount
The Agena Deluxe Guidescope Mount is a heavy-duty adjustable alt-az mounting platform designed to help astrophotographers precisely align a guide scope or secondary optical tube with their main telescope. Instead of relying on traditional guide rings that use adjustment screws against the guide scope tube, this mount gives users a more controlled way to aim the guide scope while keeping the main imaging telescope fixed on target. Its robust design and 6-point locking system make it useful for setups that need a secure, repeatable alignment platform during long-exposure imaging.
On the guide scope side, the mount provides a screw-based top mounting plate for attaching a compatible guide scope assembly, small optical tube setup, or user-supplied saddle/clamp. Creating an easy to use quick-release system when paired with the appropriate clamp or saddle hardware. We recommend the Agena V Series Vixen-Style Dovetail Saddle (Silver) - 87mm (3.4") Length, which attaches via the outermost bolts. This allows the guide scope assembly to be attached and removed more easily while maintaining a rigid connection to the main telescope. On the telescope side, the base is designed for piggyback-style installation onto a suitable rail, dovetail, mounting plate, or telescope accessory surface.
Once installed, the guide scope can be aimed using separate altitude and azimuth adjustment controls. The user secures the guide scope assembly or saddle to the top mounting plate, points the main telescope at the imaging target, then adjusts the guidescope mount until a suitable guide star is centered in the guide camera’s field of view. After alignment, the locking points help hold the selected position in place, making it easier to begin autoguiding while keeping the primary telescope locked on the intended target.
Specifications
- Mount type: Heavy-duty adjustable alt-az guidescope mount
- Top mounting interface: Screw-based top mounting plate for compatible guide scope assemblies or user-supplied saddle/clamp hardware
- Alt-az adjustment range: 15° level adjustment, 5° vertical adjustment
- Base mounting: Piggyback-style mounting to a suitable rail, dovetail, plate, or telescope accessory surface
- Construction: CNC-machined aluminum
- Finish: Red anodized finish with silver hardware
- Load capacity: 15 kg (33 lb)
- Locking system: 6-point locking design
- 1x Agena Deluxe Guidescope Mount
- 2x Helical micro rods
- 4x M6 screws
- 3x Allen keys
Easy Adjust Heavy-Duty Guidescope Mount
The Agena Deluxe Guidescope Mount is a heavy-duty adjustable alt-az mounting platform designed to help astrophotographers precisely align a guide scope or secondary optical tube with their main telescope. Instead of relying on traditional guide rings that use adjustment screws against the guide scope tube, this mount gives users a more controlled way to aim the guide scope while keeping the main imaging telescope fixed on target. Its robust design and 6-point locking system make it useful for setups that need a secure, repeatable alignment platform during long-exposure imaging.
On the guide scope side, the mount provides a screw-based top mounting plate for attaching a compatible guide scope assembly, small optical tube setup, or user-supplied saddle/clamp. Creating an easy to use quick-release system when paired with the appropriate clamp or saddle hardware. We recommend the Agena V Series Vixen-Style Dovetail Saddle (Silver) - 87mm (3.4") Length, which attaches via the outermost bolts. This allows the guide scope assembly to be attached and removed more easily while maintaining a rigid connection to the main telescope. On the telescope side, the base is designed for piggyback-style installation onto a suitable rail, dovetail, mounting plate, or telescope accessory surface.
Once installed, the guide scope can be aimed using separate altitude and azimuth adjustment controls. The user secures the guide scope assembly or saddle to the top mounting plate, points the main telescope at the imaging target, then adjusts the guidescope mount until a suitable guide star is centered in the guide camera’s field of view. After alignment, the locking points help hold the selected position in place, making it easier to begin autoguiding while keeping the primary telescope locked on the intended target.
Specifications
- Mount type: Heavy-duty adjustable alt-az guidescope mount
- Top mounting interface: Screw-based top mounting plate for compatible guide scope assemblies or user-supplied saddle/clamp hardware
- Alt-az adjustment range: 15° level adjustment, 5° vertical adjustment
- Base mounting: Piggyback-style mounting to a suitable rail, dovetail, plate, or telescope accessory surface
- Construction: CNC-machined aluminum
- Finish: Red anodized finish with silver hardware
- Load capacity: 15 kg (33 lb)
- Locking system: 6-point locking design
Other Information
- Country of Manufacture: China
- 1x Agena Deluxe Guidescope Mount
- 2x Helical micro rods
- 4x M6 screws
- 3x Allen keys
