This set contains the following products:
Product Details

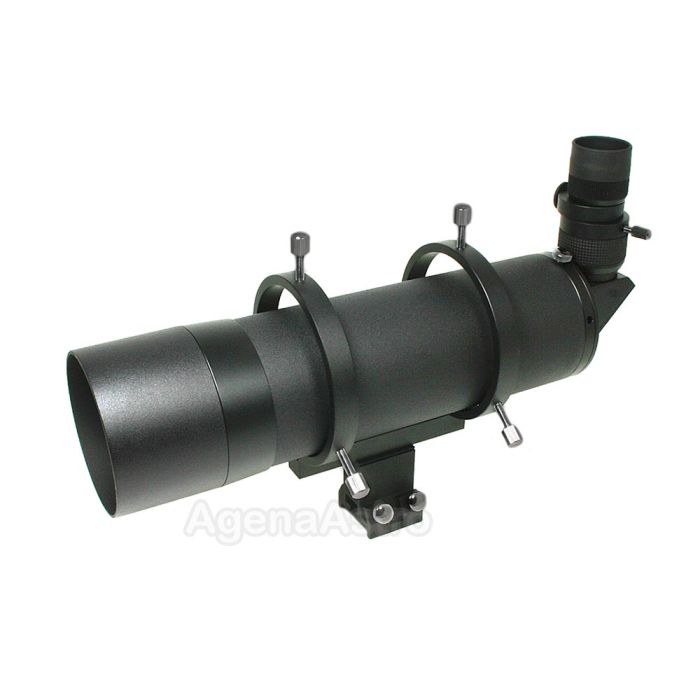

This is a large, high quality APM 80 mm right-angle finderscope with a new larger Vixen/Synta-style base with wider contact surface (see additional details below). The included 90° prism provides a correct (upright and unreversed) image. The optics and the prism are multicoated.
Included is a 1.25" 24mm crosshair eyepiece with 55° apparent field of view. This will provide an approx. magnification of 14x (13.8x to be precise) with an approx. 3.8° true field of view. Optionally, you can get an illuminator for the reticle eyepiece.
Delivery contains:
- Finderscope 80 mm
- Finder bracket with Vixen/Synta-syle base
- 1.25" 90° erect image prism diagonal
- Crosshair eyepiece 24 mm 55°
Specifications:
- Connection to eyepiece: 1 1/4"
- Connection to telescope: Finder bracket with Quick Clamp
- Coating: Fully multicoated
- Housing material: Aluminum
- Aperture: 80 mm
- Approx. magnification: 14 x
- Lenses: 2 Lenses
- Optical design: Achromat
- Type of viewfinder: 90° Finderscope
- Focal length: 330 mm
- Length: 340 mm
- Diameter: 85 mm
- Accessory: incl. Bracket with Quick Clamp and 26 mm Crosshair Eyepiece
- Weight: X oz.
Agena Note: The finder base included with this item is the same one as our XFURB base. Please review the details at this link to see if this included base with fit on your telescope or not. In most cases, please be prepared to provide your own machine screws to mount this on your telescope as the included screws may or may not work for your set-up.
