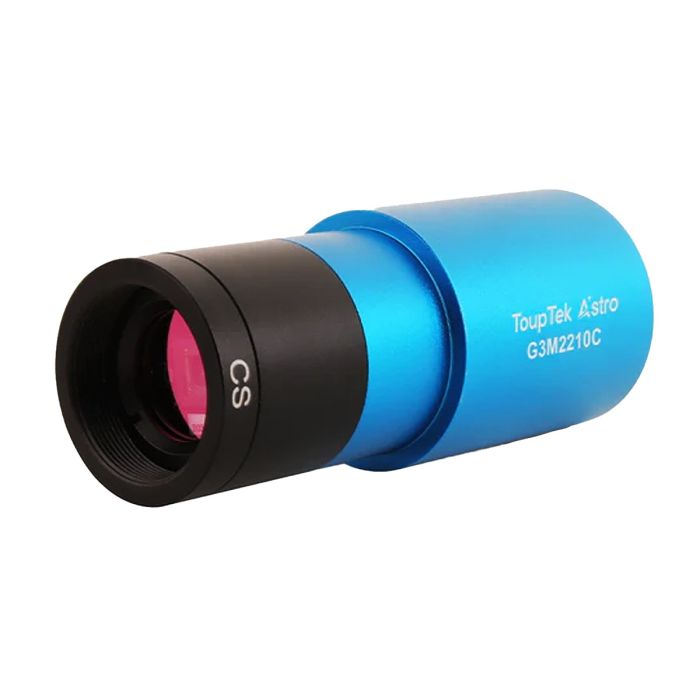

ToupTek G3M2210C Planetary Color Astronomy Camera - Extended Length Version
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Fires up to 150 FPS at full 1080p HD resolution
- Reaches down to a razor-sharp 0.47 e- minimum paired with a peak quantum efficiency exceeding 92%
- Includes an IR-cut filter for accurate color reproduction during planetary, lunar, and solar imaging
- Extended-length is specifically desgined for compatibility with Off-Axis Guiders (OAGs). The shorter flange distance provides more back-focus adjustment space, making it much easier to achieve focus across a broader range of OAG
ToupTek G3M Series Planetary Cameras
The planetary camera G3M2210C adopts SmartSens technology, making it ideal for astronomical photography, microscopy, industrial vision, and guiding applications. Featuring an extremely low readout noise down to 0.47 e-, high sensitivity, and a 12-bit ADC back-illuminated CMOS sensor, the G3M2210C delivers high-resolution monochrome astronomical images with exceptional structural detail and contrast. The camera also includes an IR filter to ensure your color planetary images feature realistic, true-to-life colors!
Sony STARVIS & Exmor R Technology
G3M2210C features Sony's advanced STARVIS and Exmor R technologies, delivering exceptional low-light sensitivity and high image quality. The back-illuminated sensor structure maximizes light collection efficiency, achieving over 90% quantum efficiency.
High-Speed Data Transfer
With USB 3.0 connectivity, G3M2210C delivers stable high-speed data transfer, achieving up to 150 FPS at full resolution in 12-bit mode. This high frame rate capability is essential for lucky imaging techniques, allowing you to capture hundreds or thousands of frames quickly to select and stack only the sharpest images affected least by atmospheric turbulence.
Ultra-Low Noise Performance
G3M2210C achieves remarkably low read noise of just 0.47 e⁻ at high gain settings, ensuring clean images even when pushing the camera's sensitivity limits. This exceptional noise performance, combined with the high full well capacity of 8.5ke⁻, provides an impressive dynamic range of 68.5dB, allowing you to capture both bright planetary features and subtle atmospheric details in a single exposure.

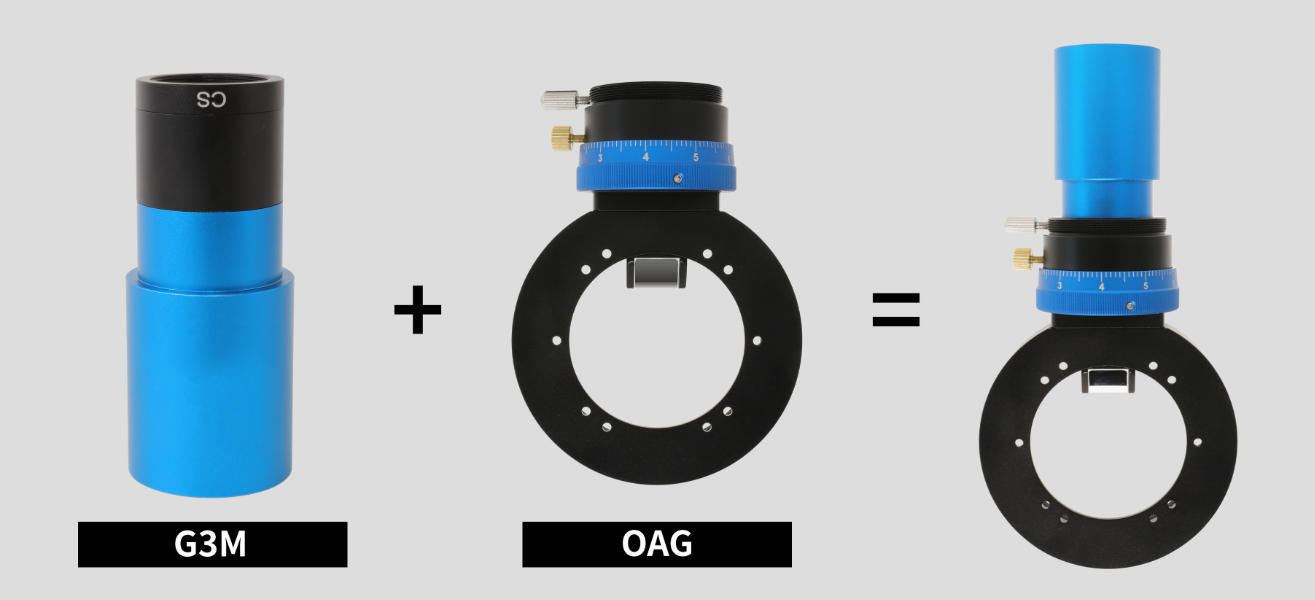

OAG Compatibility
The extended-length version supports OAGs from third-party brands ( when used with a guide camera). It's elongated design provides greater adjustable range while maintaining the original sensor flange distance.
Specifications
-

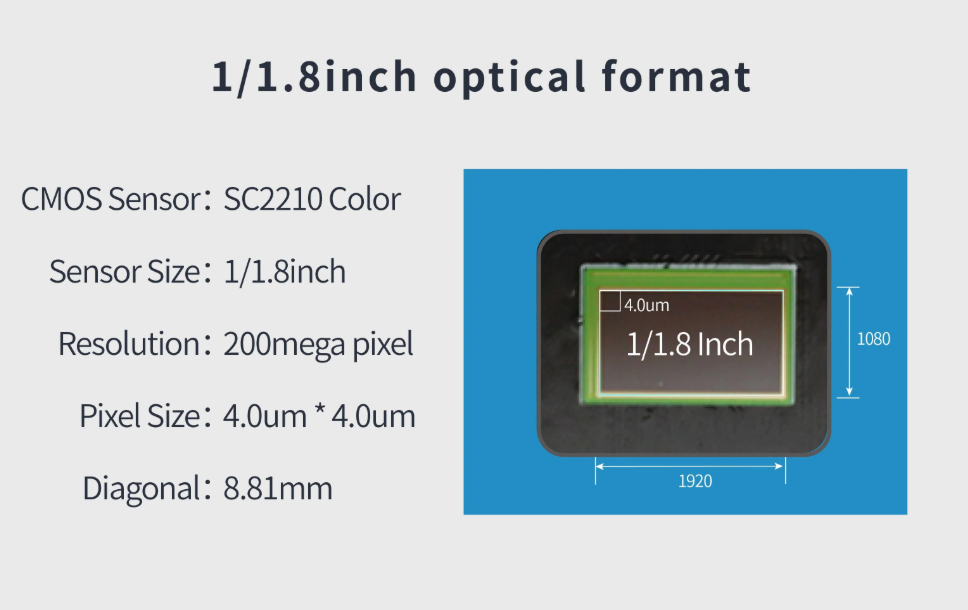

Sensor Model: SmartSens SC2210 Color Back-Illuminated CMOS
-
Sensor Size: 1/1.8-inch (8.81 mm diagonal)
-
Image Area: 7.68 mm x 4.32 mm
-
Resolution: 2.1 Megapixels (1920 x 1080)
-
Pixel Size: 4.0um x 4.0um
-
ADC Bit Depth: 12-bit
-
Peak Quantum Efficiency: Over 80% (Sensor Base)
-
Full Well Capacity: 8.5k e-
-
Read Noise: 0.47 e- to 3.20 e-
-
Dynamic Range: 68.5 dB
-
SNR Max: 39.3 dB
-
G Sensitivity: 20100 mv/lux-s
-
Optical Window Options: Available in IR-Cut filter
-
Maximum Frame Rate (12-bit Output via USB 3.0): 92.8 FPS @ 1920 x 1080
-
Maximum Frame Rate (8-bit Output via USB 3.0): 150 FPS @ 1920 x 1080
-
Exposure Time Range: 0.1 ms - 500 s
-
Gain Range: 1x - 150x
-
Shutter Type: Rolling Shutter
-
Data Interface: USB 3.0 / USB 2.0 (Includes ST4 Guide Port and 512MB DDR3 Buffer)
-
Back Focus Distance: 12.5 mm with CS adapter
-
Camera Dimensions: 37 mm Diameter x 72.4 mm Height (Standard Configuration)
-
Weight: ~70 g
-
Supported OS: Windows XP/Vista/7/8/10/11, Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain

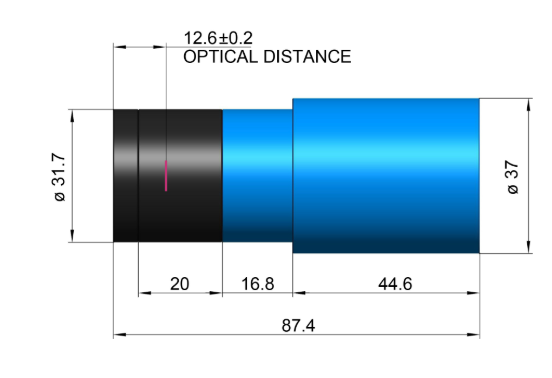

Mechanical Diagrams
Other Information
- Country of Manufacture: China
ToupTek G3M Series Planetary Cameras
The planetary camera G3M2210C adopts SmartSens technology, making it ideal for astronomical photography, microscopy, industrial vision, and guiding applications. Featuring an extremely low readout noise down to 0.47 e-, high sensitivity, and a 12-bit ADC back-illuminated CMOS sensor, the G3M2210C delivers high-resolution monochrome astronomical images with exceptional structural detail and contrast. The camera also includes an IR filter to ensure your color planetary images feature realistic, true-to-life colors!
Sony STARVIS & Exmor R Technology
G3M2210C features Sony's advanced STARVIS and Exmor R technologies, delivering exceptional low-light sensitivity and high image quality. The back-illuminated sensor structure maximizes light collection efficiency, achieving over 90% quantum efficiency.
High-Speed Data Transfer
With USB 3.0 connectivity, G3M2210C delivers stable high-speed data transfer, achieving up to 150 FPS at full resolution in 12-bit mode. This high frame rate capability is essential for lucky imaging techniques, allowing you to capture hundreds or thousands of frames quickly to select and stack only the sharpest images affected least by atmospheric turbulence.
Ultra-Low Noise Performance
G3M2210C achieves remarkably low read noise of just 0.47 e⁻ at high gain settings, ensuring clean images even when pushing the camera's sensitivity limits. This exceptional noise performance, combined with the high full well capacity of 8.5ke⁻, provides an impressive dynamic range of 68.5dB, allowing you to capture both bright planetary features and subtle atmospheric details in a single exposure.
OAG Compatibility
The extended-length version supports OAGs from third-party brands ( when used with a guide camera). It's elongated design provides greater adjustable range while maintaining the original sensor flange distance.
Specifications
-
Sensor Model: SmartSens SC2210 Color Back-Illuminated CMOS
-
Sensor Size: 1/1.8-inch (8.81 mm diagonal)
-
Image Area: 7.68 mm x 4.32 mm
-
Resolution: 2.1 Megapixels (1920 x 1080)
-
Pixel Size: 4.0um x 4.0um
-
ADC Bit Depth: 12-bit
-
Peak Quantum Efficiency: Over 80% (Sensor Base)
-
Full Well Capacity: 8.5k e-
-
Read Noise: 0.47 e- to 3.20 e-
-
Dynamic Range: 68.5 dB
-
SNR Max: 39.3 dB
-
G Sensitivity: 20100 mv/lux-s
-
Optical Window Options: Available in IR-Cut filter
-
Maximum Frame Rate (12-bit Output via USB 3.0): 92.8 FPS @ 1920 x 1080
-
Maximum Frame Rate (8-bit Output via USB 3.0): 150 FPS @ 1920 x 1080
-
Exposure Time Range: 0.1 ms - 500 s
-
Gain Range: 1x - 150x
-
Shutter Type: Rolling Shutter
-
Data Interface: USB 3.0 / USB 2.0 (Includes ST4 Guide Port and 512MB DDR3 Buffer)
-
Back Focus Distance: 12.5 mm with CS adapter
-
Camera Dimensions: 37 mm Diameter x 72.4 mm Height (Standard Configuration)
-
Weight: ~70 g
-
Supported OS: Windows XP/Vista/7/8/10/11, Mac OS X, Linux
-
SDK Support: Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain
Mechanical Diagrams
- 1x Camera Body
- 1x USB 3.0 Data Cable (2m, Type-A to Type-B)
- 1x ST4 Guide Cable (2m)
- 1x 1.25" Nosepiece
- 1x Quick Start Guide
- Fires up to 150 FPS at full 1080p HD resolution
- Reaches down to a razor-sharp 0.47 e- minimum paired with a peak quantum efficiency exceeding 92%
- Includes an IR-cut filter for accurate color reproduction during planetary, lunar, and solar imaging
- Extended-length is specifically desgined for compatibility with Off-Axis Guiders (OAGs). The shorter flange distance provides more back-focus adjustment space, making it much easier to achieve focus across a broader range of OAG
