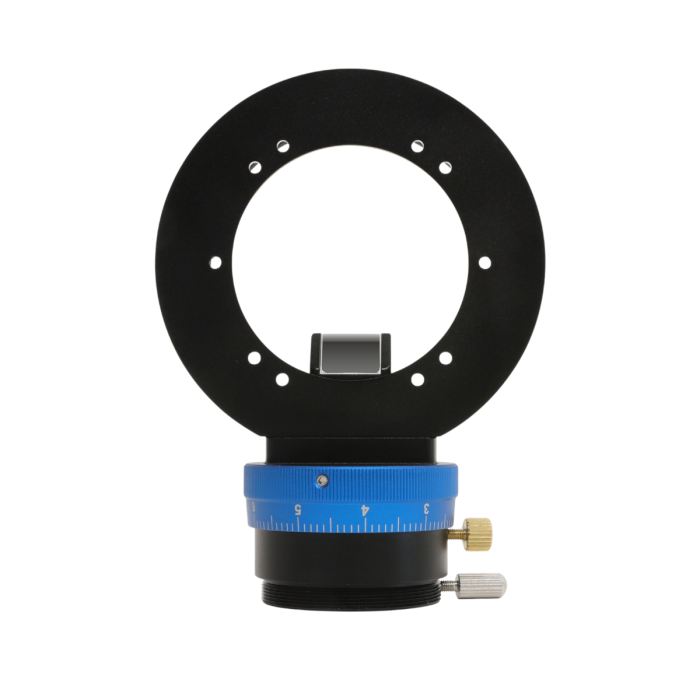

ToupTek OAG-X Large Off-Axis Guider with M54 Adapter
- This item is currently on backorder from the manufacturer.
- Orders are fulfilled in the order they are received once inventory arrives.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Large 14x10mm Prism featuring a high-transmission pick-off prism with a large 14x7mm effective aperture
- Ultra-Slim 17.5mm Profile that keeps your imaging train compact and lightweight
- Seamless Camera & Wheel Integration including a M54F camera-side connection and a removable 20mm spacer
ToupTek OAG-X Off-Axis Guider with M54 Adapter: Elevate Your Tracking Precision
The ToupTek OAG-X (Large) Off-Axis Guider is a highly efficient, lightweight tracking solution designed explicitly for deep-sky astrophotography. By capturing light directly from your telescope's primary optical path before it passes through your imaging filters, the OAG-X enables your guide camera to track using bright, unfiltered light while entirely bypassing the risks of differential flexure or shifting mirror movement. Featuring a high-transmission pick-off prism with a large 14x10mm aperture, and an M54 threaded adapter for easy telescope connection.
Crafted with premium CNC-machined aluminum alloy and finished in a sleek, anodized matte black, it introduces a mere 17.5mm of optical thickness to your imaging train—allowing easy integration into standard 55mm or 105mm backfocus requirements.
Specifications
-
Thickness: 17.5mm (0.69 in)
-
Prism Size: 14x10mm
-
Effective Aperture: 14x7mm
-
Camera Compatibility: All ToupTek ATR series and mainstream brands
-
Guide Camera Interface: 1.25-inch barrel w/ helical focuser (6mm travel distance).
-
Telescope-Side Mounting Threads: M54
-
Camera-Side Mounting Interface: Standard M54 female connection (includes a removable 20mm spacer).
-
Material: CNC-machined aluminum alloy
-
Finish: Anodized matte black

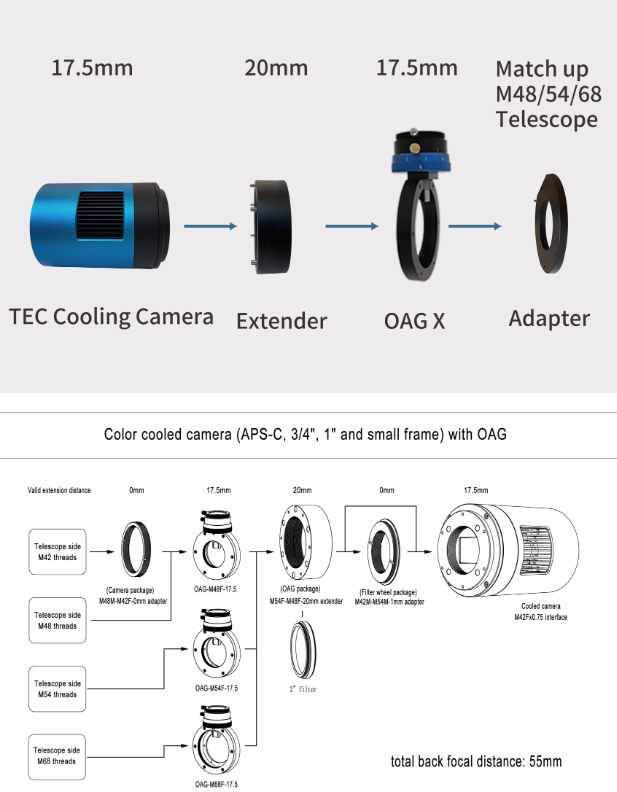

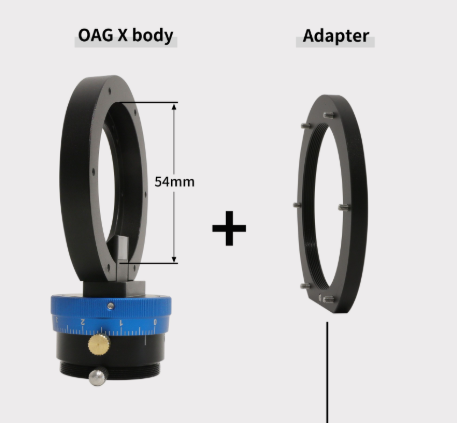

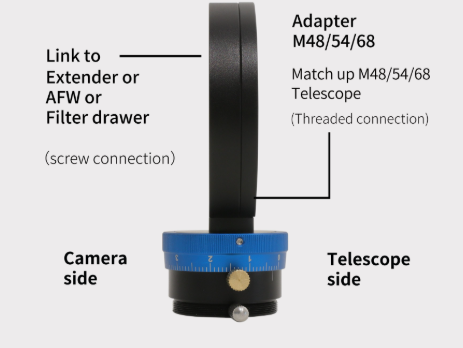

Connection Methods
Multiple connection configurations for different telescope and camera setups, ensuring maximum flexibility in your imaging train

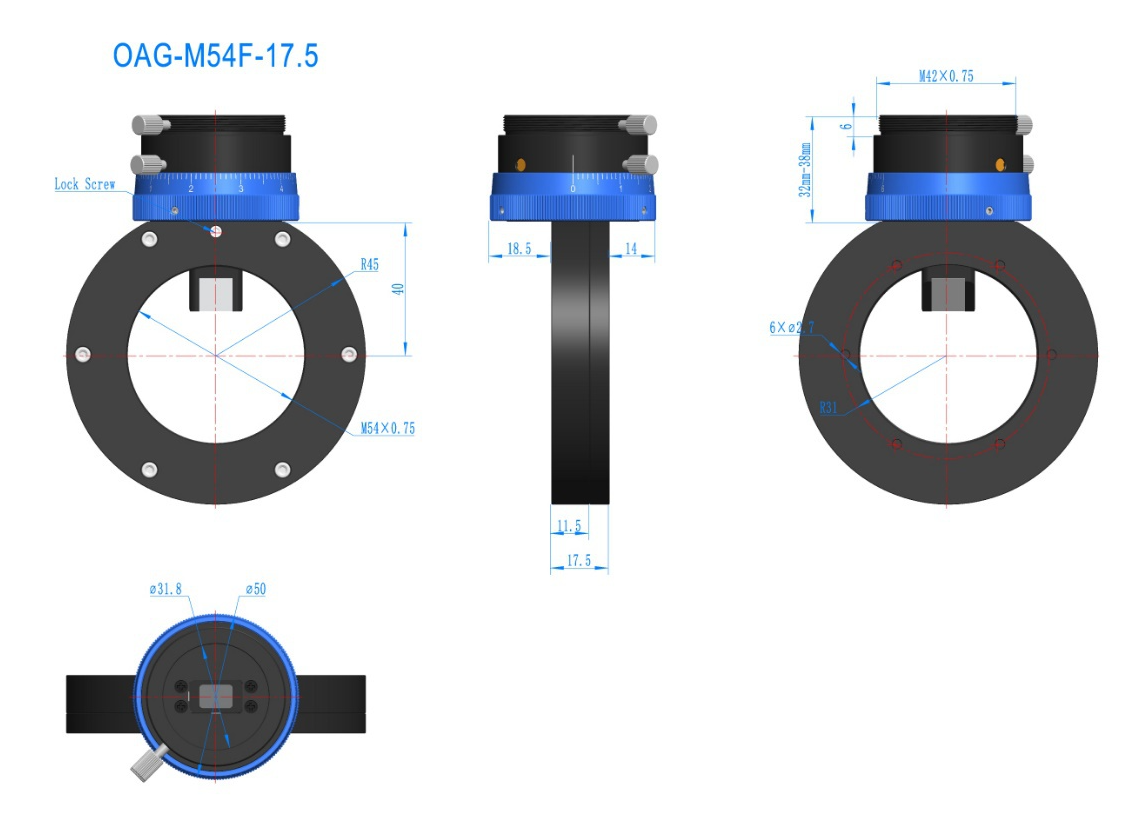

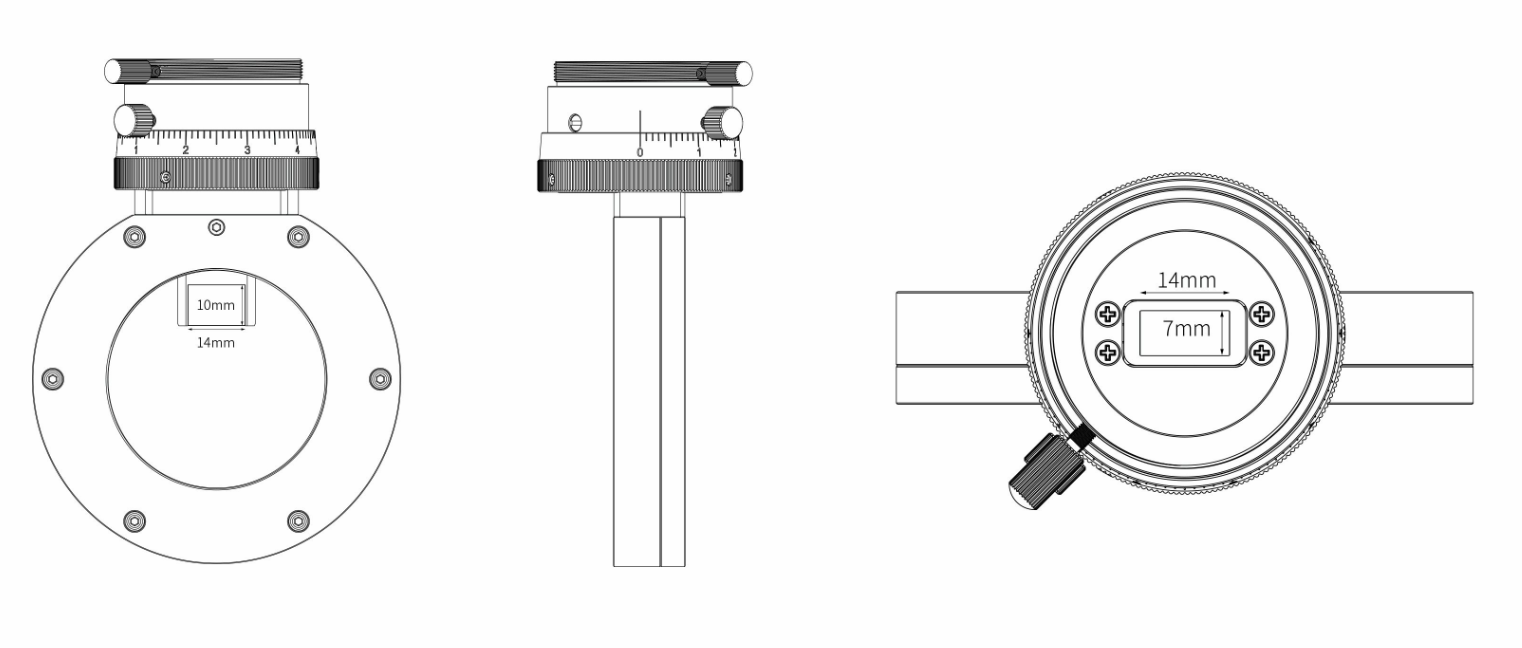

Mechanical Specifications
Detailed mechanical diagrams showing dimensions and mounting interfaces for various configurations
Other Information
- Country of Manufacture: China
ToupTek OAG-X Off-Axis Guider with M54 Adapter: Elevate Your Tracking Precision
The ToupTek OAG-X (Large) Off-Axis Guider is a highly efficient, lightweight tracking solution designed explicitly for deep-sky astrophotography. By capturing light directly from your telescope's primary optical path before it passes through your imaging filters, the OAG-X enables your guide camera to track using bright, unfiltered light while entirely bypassing the risks of differential flexure or shifting mirror movement. Featuring a high-transmission pick-off prism with a large 14x10mm aperture, and an M54 threaded adapter for easy telescope connection.
Crafted with premium CNC-machined aluminum alloy and finished in a sleek, anodized matte black, it introduces a mere 17.5mm of optical thickness to your imaging train—allowing easy integration into standard 55mm or 105mm backfocus requirements.
Specifications
-
Thickness: 17.5mm (0.69 in)
-
Prism Size: 14x10mm
-
Effective Aperture: 14x7mm
-
Camera Compatibility: All ToupTek ATR series and mainstream brands
-
Guide Camera Interface: 1.25-inch barrel w/ helical focuser (6mm travel distance).
-
Telescope-Side Mounting Threads: M54
-
Camera-Side Mounting Interface: Standard M54 female connection (includes a removable 20mm spacer).
-
Material: CNC-machined aluminum alloy
-
Finish: Anodized matte black
Connection Methods
Multiple connection configurations for different telescope and camera setups, ensuring maximum flexibility in your imaging train
Mechanical Specifications
Detailed mechanical diagrams showing dimensions and mounting interfaces for various configurations
- 1x OAG-X body
- 1x M54 adapter
- 1x Extender (20mm)
- 1x Hex wrench
- 6x long screws
- 12x short screws
