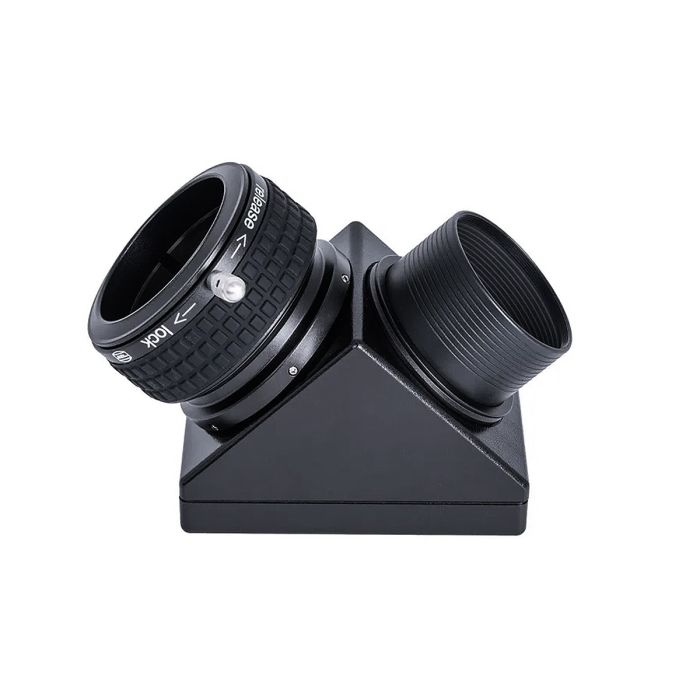

Baader 2" ClickLock 90° Adjustable Zeiss-Spec Prism Diagonal
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- 2" BBHS prism diagonal with 2" ClickLock
- BaK4 glass with sealed BBHS® prism coating
- Includes a 2" nosepiece to SCT male thread adapter
- Female M48 filter thread for cell mounted 2" filters
- CNC-milled black aluminum housing with adjustable wedge
- Reflective over most spectral range from 390 to 2000nm
- Ideal for visual observation and astrophotography
Baader 2" BBHS Prism – Adjustable Star Diagonal
The Baader 2" ClickLock 90° Star Diagonal combines a precision Carl Zeiss-spec prism with Baader’s advanced BBHS® silver coating and a fully adjustable, CNC-machined housing. Its modular design, secure ClickLock clamp, and carefully aligned optical system deliver brilliant color, high contrast, and dependable performance for demanding visual observation. The BBHS® prisms can be screwed directly onto the focuser or accessories to provide an especially tilt-proof and short optical path connection.
Check out TimTools Deep Dive on the 2" BBHS Diagonal Below!
What Makes the Baader 2" BBHS Prism Diagonal Different

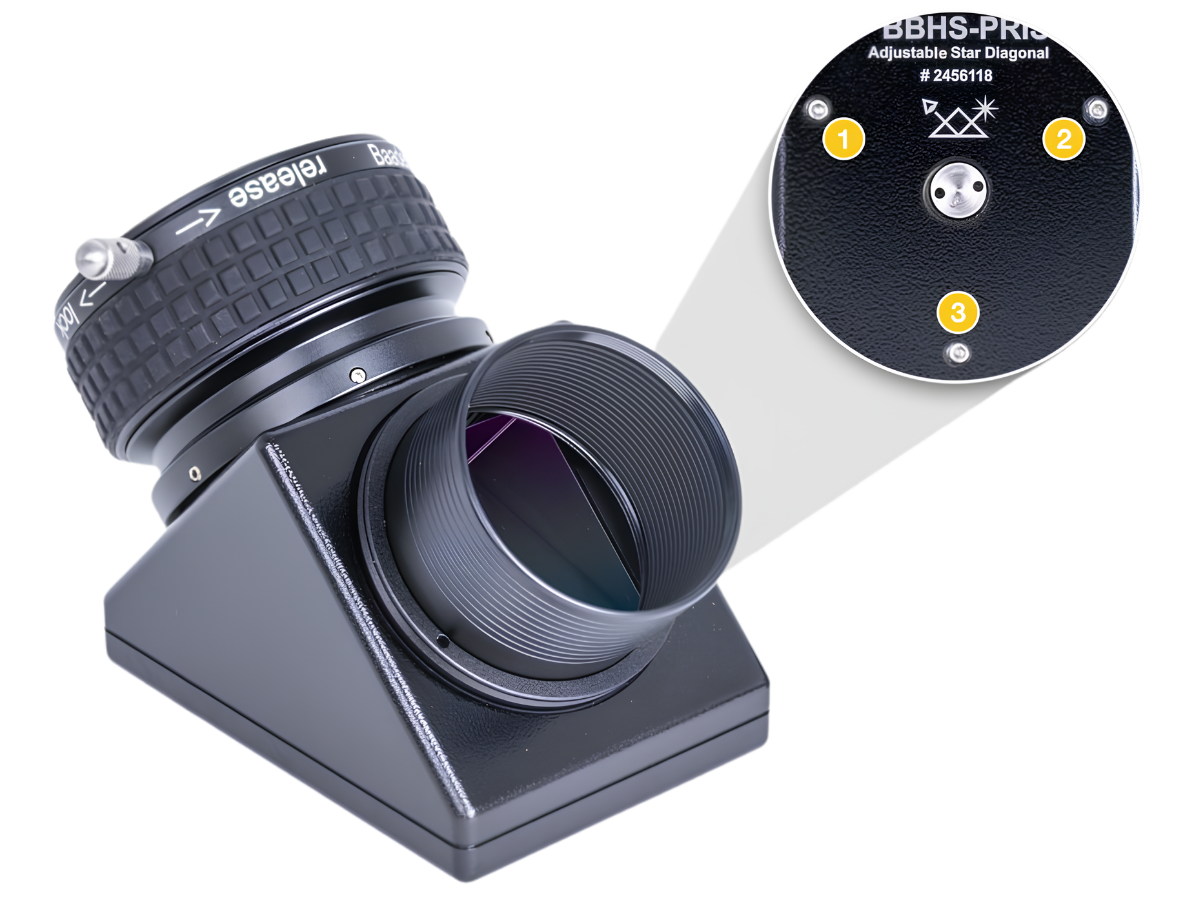

Prism Adjustment

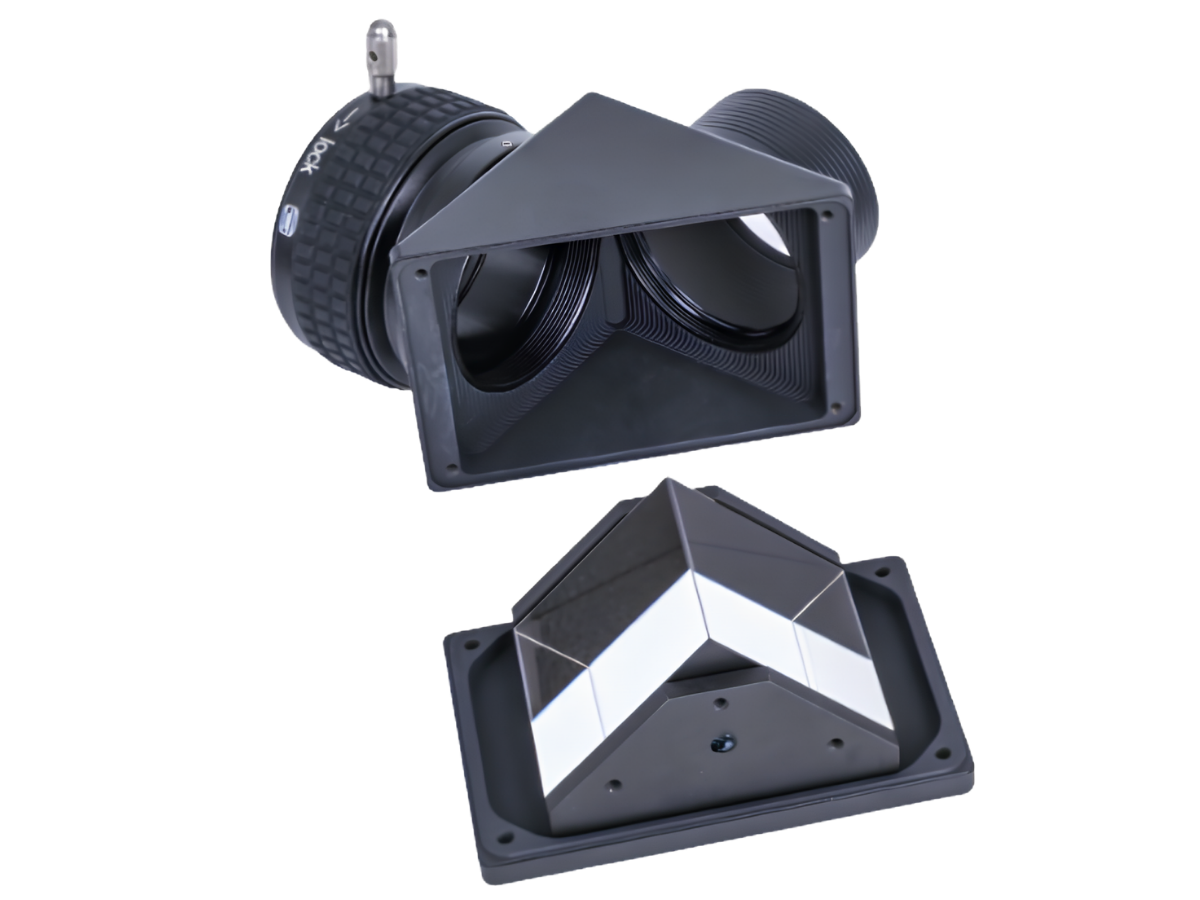

The prism rests on a three-point adjustable cradle, allowing the optical and mechanical axes to be collimated. Each diagonal is factory aligned for optimal performance and should not require adjustment during normal use. Changing the factory collimation voids the warranty covering its original alignment.
Included Adapter

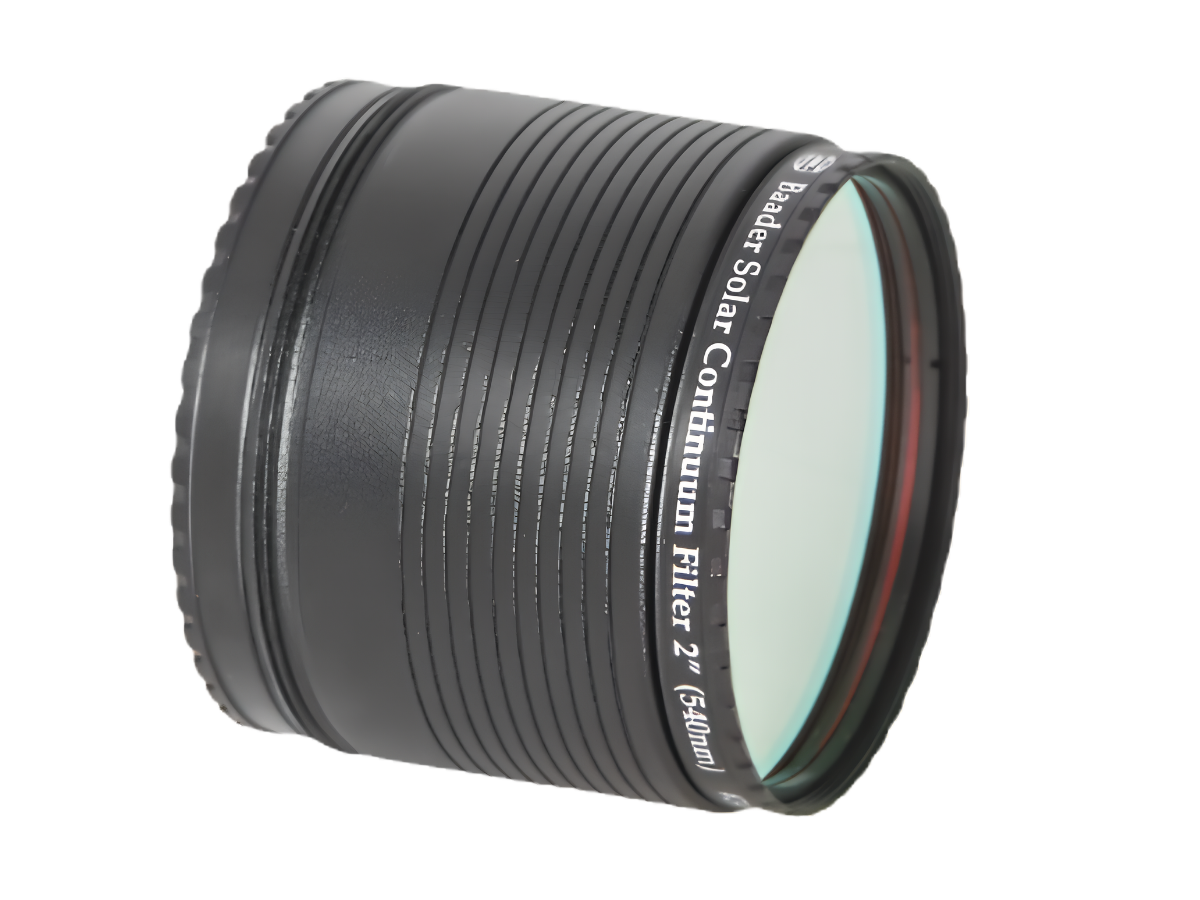

The included 2" nosepiece adapter features an integrated filter holder, allowing a 2" filter to remain installed on the eyepiece side. This keeps the telescope-side 2" filter thread available for additional accessories or connections. 2" filters not included with this diagonal.
Advanced Coatings

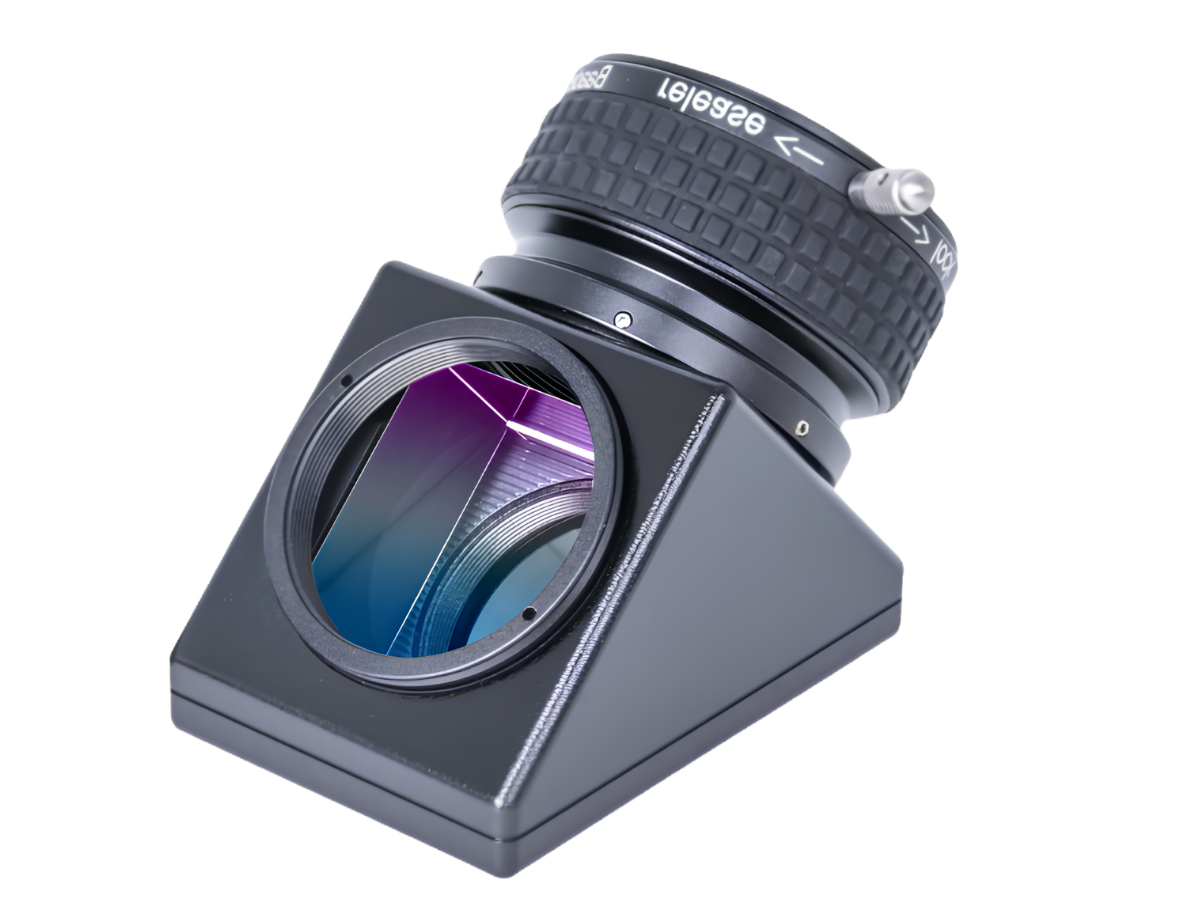

In addition to the sealed BBHS® rear-surface coating, the prism features Baader’s Phantom Coating® Group anti-reflection treatment to minimize unwanted reflections and maximize light transmission.
Secure 2" ClickLock Clamp

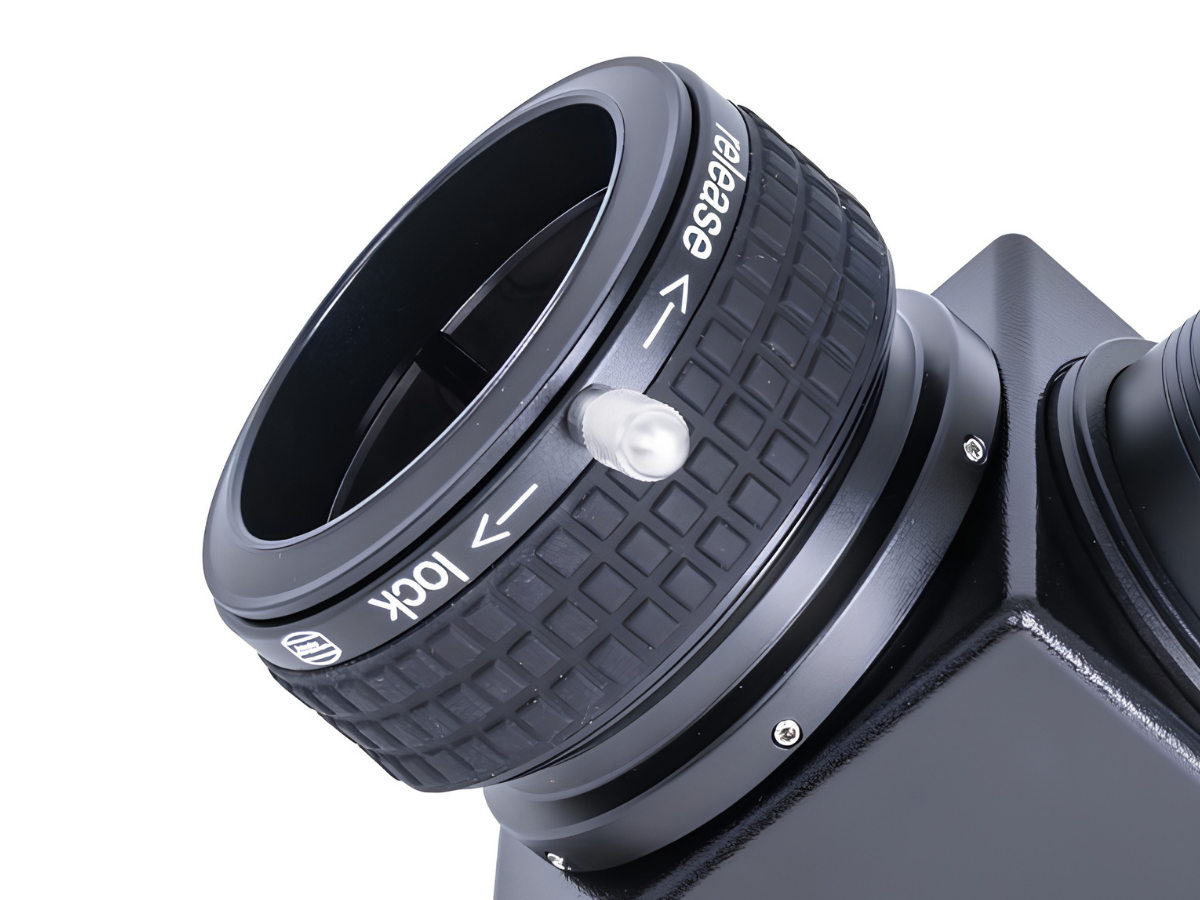

The precisely machined 2" ClickLock eyepiece clamp secures even heavy accessories with a simple 20° twist. Its three-sided clamping action centers accessories along the optical axis while preventing tilt, even when slight barrel-diameter tolerances are present.
Advanced Coatings
The sealed Broad Band Hard Silver coating delivers 98–99% reflectivity across an exceptionally wide spectral range of just over 390 to 2000 nm. Its durable protective layer stabilizes the silver coating and helps prevent corrosion.
In addition to the sealed BBHS® rear-surface coating, the prism features Baader’s Phantom Coating® Group anti-reflection treatment to minimize unwanted reflections and maximize light transmission.
Modular, Short Optical Connection

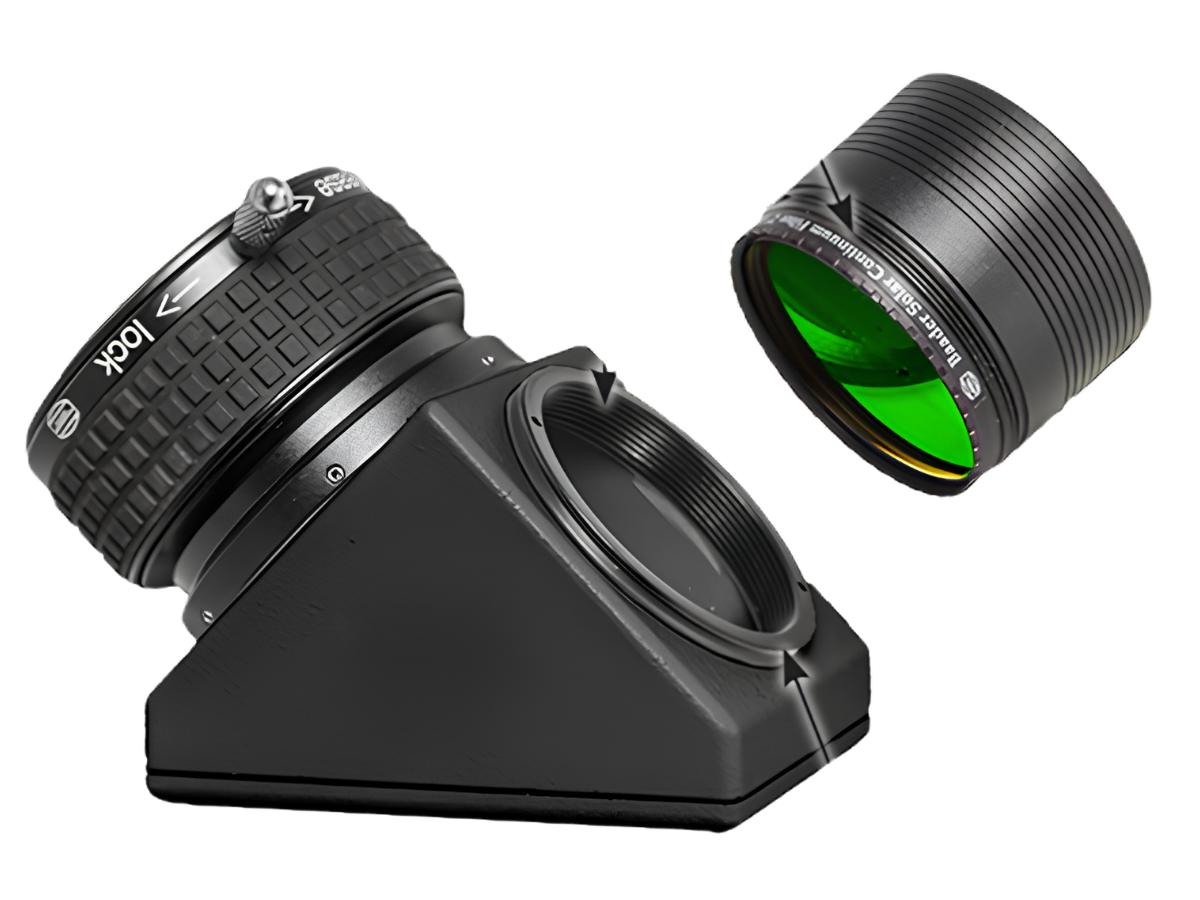

The BBHS® prism can be attached directly to compatible focusers or accessories for a short, highly rigid, and tilt-resistant optical connection. A 2" filter can also remain installed inside the eyepiece side of the 2" nosepiece, leaving the telescope-side filter thread available. 2" filters not included with this diagonal.
CNC-Machined Aluminum Housing

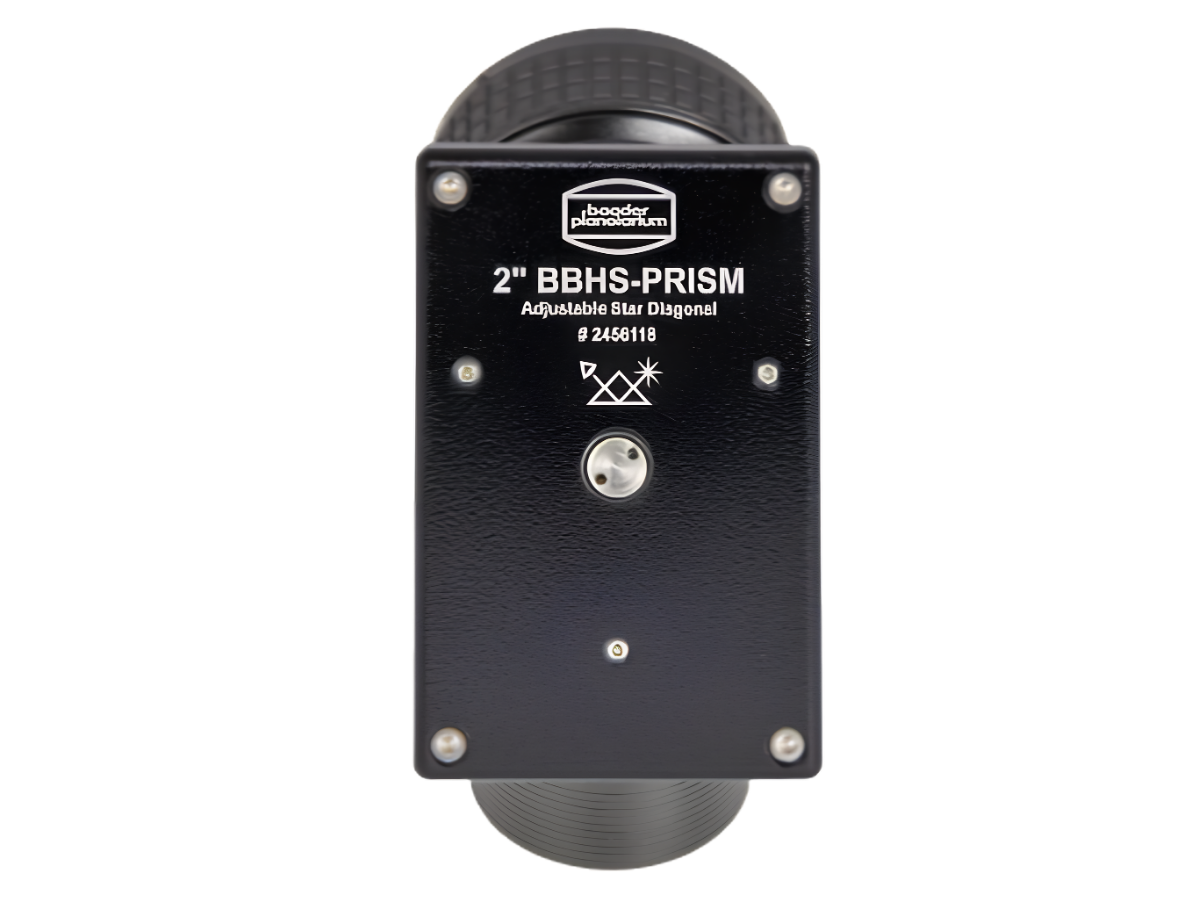

The prism is housed in precision CNC-machined aluminum for excellent rigidity, rapid temperature equalization, and stable image performance. Prism diagonals are generally recommended for telescopes operating around f/6 to f/7 or slower, while BBHS® mirror diagonals are typically better suited to faster optical systems.
Factory-Aligned Adjustable Prism
The prism rests stress-free on an adjustable three-point cradle and can be collimated when required for specialized applications, including binocular telescope systems. Each diagonal is factory aligned so its optical and mechanical axes match precisely.
Specifications
Optical Specifications
- AR-Coating: Phantom Coating® Group
- Glas path: 50 mm
- Image Orientation: Erect image, Mirror inverted
- Optical Design: Star Diagonal Prism
- Optical length (mm): 100 mm
- Reflection surface: Sealed BBHS coating
Mechanical Specifications
- Clamping System: ClickLock
- Deflection angle: 90°
- Inner Connection (eyepiece/-camera-sided): 2" (50.8 mm)
- Inner Connection (lens sided): M48 2"/SCT Thread (50.8 mm)
- Inner Diameter / Clear Aperture: 47 mm
- Outer Connection (lens sided): 2" (50.8 mm)
- Net weight: 0.63 kg (1.38 lb)
Please Note: Before changing the mirror alignment, rule out other possible sources of error, such as a tilted focuser. Adjusting the collimation voids the warranty specifically covering the original factory alignment, while all other warranty coverage remains unaffected. If the optical axis appears incorrect immediately after purchase, contact the original dealer before making adjustments.
Other Information
- Country of Manufacture: Germany
Baader 2" BBHS Prism – Adjustable Star Diagonal
The Baader 2" ClickLock 90° Star Diagonal combines a precision Carl Zeiss-spec prism with Baader’s advanced BBHS® silver coating and a fully adjustable, CNC-machined housing. Its modular design, secure ClickLock clamp, and carefully aligned optical system deliver brilliant color, high contrast, and dependable performance for demanding visual observation. The BBHS® prisms can be screwed directly onto the focuser or accessories to provide an especially tilt-proof and short optical path connection.
Check out TimTools Deep Dive on the 2" BBHS Diagonal Below!
What Makes the Baader 2" BBHS Prism Diagonal Different
Prism Adjustment
The prism rests on a three-point adjustable cradle, allowing the optical and mechanical axes to be collimated. Each diagonal is factory aligned for optimal performance and should not require adjustment during normal use. Changing the factory collimation voids the warranty covering its original alignment.
Included Adapter
The included 2" nosepiece adapter features an integrated filter holder, allowing a 2" filter to remain installed on the eyepiece side. This keeps the telescope-side 2" filter thread available for additional accessories or connections. 2" filters not included with this diagonal.
Advanced Coatings
In addition to the sealed BBHS® rear-surface coating, the prism features Baader’s Phantom Coating® Group anti-reflection treatment to minimize unwanted reflections and maximize light transmission.
Secure 2" ClickLock Clamp
The precisely machined 2" ClickLock eyepiece clamp secures even heavy accessories with a simple 20° twist. Its three-sided clamping action centers accessories along the optical axis while preventing tilt, even when slight barrel-diameter tolerances are present.
Advanced Coatings
The sealed Broad Band Hard Silver coating delivers 98–99% reflectivity across an exceptionally wide spectral range of just over 390 to 2000 nm. Its durable protective layer stabilizes the silver coating and helps prevent corrosion.
In addition to the sealed BBHS® rear-surface coating, the prism features Baader’s Phantom Coating® Group anti-reflection treatment to minimize unwanted reflections and maximize light transmission.
Modular, Short Optical Connection
The BBHS® prism can be attached directly to compatible focusers or accessories for a short, highly rigid, and tilt-resistant optical connection. A 2" filter can also remain installed inside the eyepiece side of the 2" nosepiece, leaving the telescope-side filter thread available. 2" filters not included with this diagonal.
CNC-Machined Aluminum Housing
The prism is housed in precision CNC-machined aluminum for excellent rigidity, rapid temperature equalization, and stable image performance. Prism diagonals are generally recommended for telescopes operating around f/6 to f/7 or slower, while BBHS® mirror diagonals are typically better suited to faster optical systems.
Factory-Aligned Adjustable Prism
The prism rests stress-free on an adjustable three-point cradle and can be collimated when required for specialized applications, including binocular telescope systems. Each diagonal is factory aligned so its optical and mechanical axes match precisely.
Specifications
Optical Specifications
- AR-Coating: Phantom Coating® Group
- Glas path: 50 mm
- Image Orientation: Erect image, Mirror inverted
- Optical Design: Star Diagonal Prism
- Optical length (mm): 100 mm
- Reflection surface: Sealed BBHS coating
Mechanical Specifications
- Clamping System: ClickLock
- Deflection angle: 90°
- Inner Connection (eyepiece/-camera-sided): 2" (50.8 mm)
- Inner Connection (lens sided): M48 2"/SCT Thread (50.8 mm)
- Inner Diameter / Clear Aperture: 47 mm
- Outer Connection (lens sided): 2" (50.8 mm)
- Net weight: 0.63 kg (1.38 lb)
Please Note: Before changing the mirror alignment, rule out other possible sources of error, such as a tilted focuser. Adjusting the collimation voids the warranty specifically covering the original factory alignment, while all other warranty coverage remains unaffected. If the optical axis appears incorrect immediately after purchase, contact the original dealer before making adjustments.
- 1x 2" BBHS® Prism Diagonal
- 1x 2" ClickLock®-Clamp
- 1x 2" Safety Kerf nosepiece
- 2" BBHS prism diagonal with 2" ClickLock
- BaK4 glass with sealed BBHS® prism coating
- Includes a 2" nosepiece to SCT male thread adapter
- Female M48 filter thread for cell mounted 2" filters
- CNC-milled black aluminum housing with adjustable wedge
- Reflective over most spectral range from 390 to 2000nm
- Ideal for visual observation and astrophotography
Baader 2" BBHS Prism – Adjustable Star Diagonal
The Baader 2" ClickLock 90° Star Diagonal combines a precision Carl Zeiss-spec prism with Baader’s advanced BBHS® silver coating and a fully adjustable, CNC-machined housing. Its modular design, secure ClickLock clamp, and carefully aligned optical system deliver brilliant color, high contrast, and dependable performance for demanding visual observation. The BBHS® prisms can be screwed directly onto the focuser or accessories to provide an especially tilt-proof and short optical path connection.
Check out TimTools Deep Dive on the 2" BBHS Diagonal Below!
What Makes the Baader 2" BBHS Prism Diagonal Different
Prism Adjustment
The prism rests on a three-point adjustable cradle, allowing the optical and mechanical axes to be collimated. Each diagonal is factory aligned for optimal performance and should not require adjustment during normal use. Changing the factory collimation voids the warranty covering its original alignment.
Included Adapter
The included 2" nosepiece adapter features an integrated filter holder, allowing a 2" filter to remain installed on the eyepiece side. This keeps the telescope-side 2" filter thread available for additional accessories or connections. 2" filters not included with this diagonal.
Advanced Coatings
In addition to the sealed BBHS® rear-surface coating, the prism features Baader’s Phantom Coating® Group anti-reflection treatment to minimize unwanted reflections and maximize light transmission.
Secure 2" ClickLock Clamp
The precisely machined 2" ClickLock eyepiece clamp secures even heavy accessories with a simple 20° twist. Its three-sided clamping action centers accessories along the optical axis while preventing tilt, even when slight barrel-diameter tolerances are present.
Advanced Coatings
The sealed Broad Band Hard Silver coating delivers 98–99% reflectivity across an exceptionally wide spectral range of just over 390 to 2000 nm. Its durable protective layer stabilizes the silver coating and helps prevent corrosion.
In addition to the sealed BBHS® rear-surface coating, the prism features Baader’s Phantom Coating® Group anti-reflection treatment to minimize unwanted reflections and maximize light transmission.
Modular, Short Optical Connection
The BBHS® prism can be attached directly to compatible focusers or accessories for a short, highly rigid, and tilt-resistant optical connection. A 2" filter can also remain installed inside the eyepiece side of the 2" nosepiece, leaving the telescope-side filter thread available. 2" filters not included with this diagonal.
CNC-Machined Aluminum Housing
The prism is housed in precision CNC-machined aluminum for excellent rigidity, rapid temperature equalization, and stable image performance. Prism diagonals are generally recommended for telescopes operating around f/6 to f/7 or slower, while BBHS® mirror diagonals are typically better suited to faster optical systems.
Factory-Aligned Adjustable Prism
The prism rests stress-free on an adjustable three-point cradle and can be collimated when required for specialized applications, including binocular telescope systems. Each diagonal is factory aligned so its optical and mechanical axes match precisely.
Specifications
Optical Specifications
- AR-Coating: Phantom Coating® Group
- Glas path: 50 mm
- Image Orientation: Erect image, Mirror inverted
- Optical Design: Star Diagonal Prism
- Optical length (mm): 100 mm
- Reflection surface: Sealed BBHS coating
Mechanical Specifications
- Clamping System: ClickLock
- Deflection angle: 90°
- Inner Connection (eyepiece/-camera-sided): 2" (50.8 mm)
- Inner Connection (lens sided): M48 2"/SCT Thread (50.8 mm)
- Inner Diameter / Clear Aperture: 47 mm
- Outer Connection (lens sided): 2" (50.8 mm)
- Net weight: 0.63 kg (1.38 lb)
Please Note: Before changing the mirror alignment, rule out other possible sources of error, such as a tilted focuser. Adjusting the collimation voids the warranty specifically covering the original factory alignment, while all other warranty coverage remains unaffected. If the optical axis appears incorrect immediately after purchase, contact the original dealer before making adjustments.
Other Information
- Country of Manufacture: Germany
- 1x 2" BBHS® Prism Diagonal
- 1x 2" ClickLock®-Clamp
- 1x 2" Safety Kerf nosepiece
