Lunt Solar Systems 40mm B500 Hydrogen Alpha Telescope with Rack & Pinion Focuser
This item is discontinued by the manufacturer and is no longer available.
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- Compact and travel-friendly 40mm doublet refractor.
- Dedicated Hydrogen-Alpha for detailed and safe views of solar prominences, flares, and filaments.
- Featuring a robust rack and pinion focuser, and Tele Vue Sol-Seacher.
- Internal B500 blocking filter, with double stacking options for increased contrast.

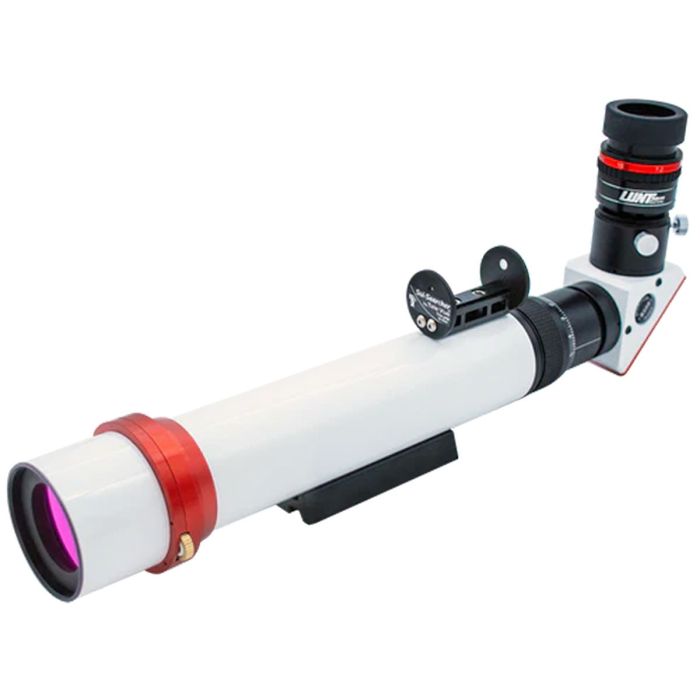

Lunt Solar Systems Dedicated Hydrogen-Alpha Telescope - B500 filter and Rack & Pinion Focuser
Portable and easy to use, this 40 mm Hydrogen-Alpha (Ha) doublet refractor joins the Lunt Solar Systems lineup as the most compact aperture, while also providing power! Despite its travel-friendly design, this Ha telescope still offers the amazing solar detail, and quality you expect from a Lunt Telescope.
The perfect beginner setup for those wanting to dip their toes in Ha solar imaging, you will receive a B500 (5 mm) blocking filter, sturdy rack & pinion focuser, and a Tele Vue Sol Searcher. Lunt telescopes deliver world-class optical performance, engineered in the USA with the highest-grade materials with attention to every detail! Please note: This package comes with a 1.25-inch rack and pinion focuser, helical focuser is pictured but not included.
Check out this 360 view of the 40mm travel telescope!
B500 Powerhouse
This 40 mm doublet refractor includes a Etalon system to safely show the Sun's chromosphere, isolating Ha (656.28 nm) and blocking all other wavelengths, including harmful UV/IR. This allows you to safely see fiery features like prominences, flares, and filaments, not just the bright surface! If you are looking to get more from your solar session, double stacking is critical! By adding a second Etalon you get a dramatically narrower bandpass (from <0.70Å to <0.50Å), revealing significantly higher contrast and finer surface details.
Tele Vue Sol Searcher
The included Sol-Searcher is a safe and easy way to find the Sun! Finding the Sun through a highly filtered telescope is tricky, and you don't ever want to chance a direct gaze, let alone a magnified image of it. Creating a miniature pinhole projection of the Sun onto a translucent screen, it makes Solar alignment a breeze!

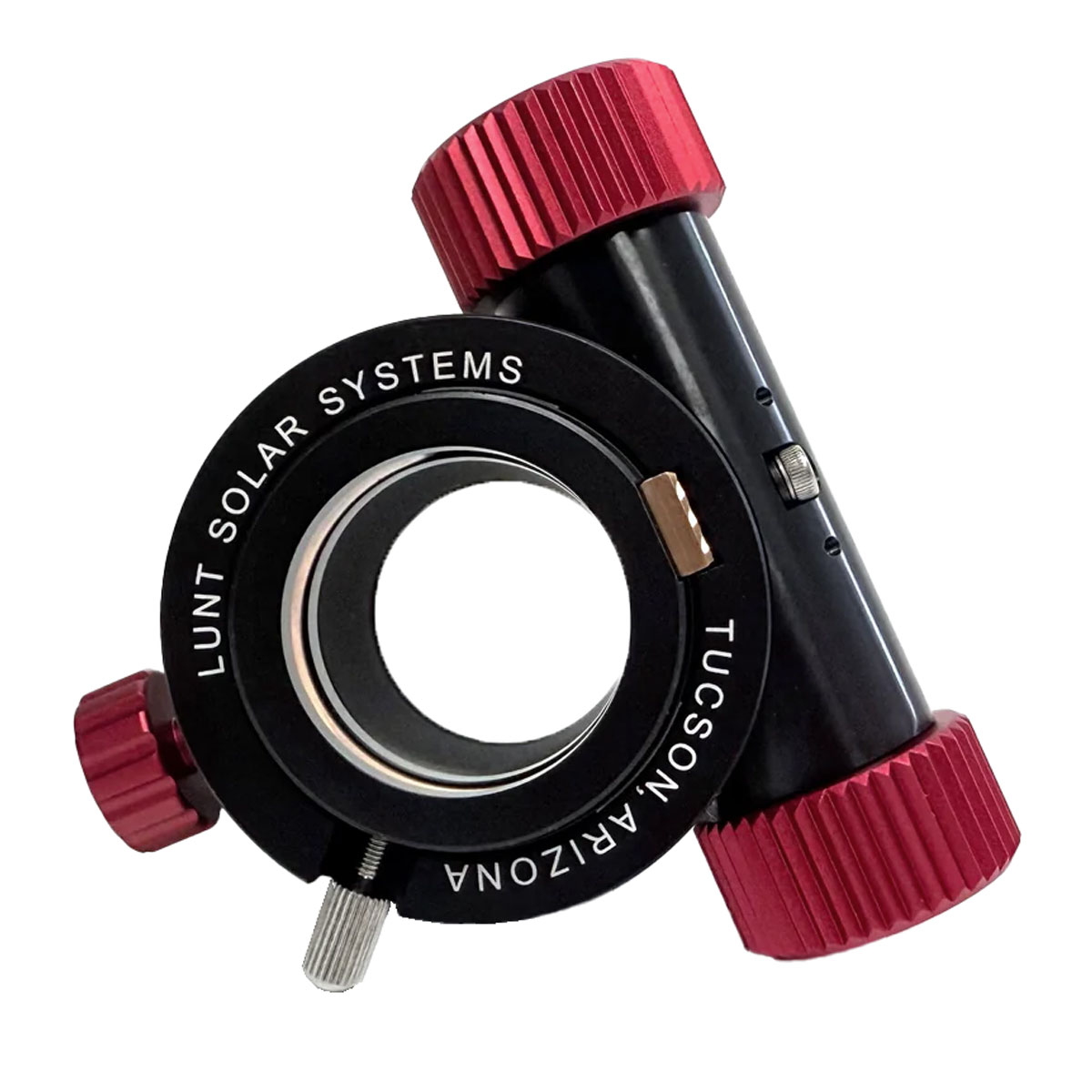

Rack & Pinion Ready
One of the standout features of this 40 mm package is the included 1.25-inch rack & pinion focuser. It uses a gear-based mechanism that delivers smooth, accurate, and repeatable focusing - even when using heavy eyepieces or imaging gear. Because it’s built with tight tolerances and strong materials, the focuser stays stable and secure under load, so you don’t have to worry about slippage or drift during long observing or imaging sessions.
Specifications
Focal Ratio: F/10
Focal Length: 400 mm
Focuser: Rack & Pinion - 1.25"
Objective Type: Custom Doublet Optimized at 656 nm
Objective Coating: Ion Assist Ultra-Narrowband AR (656 nm)
Mounting: Mounting Foot
Storage: Box with Fitted Foam
H-alpha Etalon Type: Internal, Dedicated
Etalon Wavelength: 656.28 nm
Etalon Bandpass: <0.7 Å Single Stack, <0.5 Å Double Stack (sold seperately)
Etalon Material: UV Grade Fused Silica
Etalon Tuning: Tilt
Doppler Shifting: Instant
Blocking Filter Size: 5 mm
Blocking Filter Bandpass: 6 Å
Sun Finder: TeleVue Sol Searcher built in
Other Information
- Country of Manufacture: United States
Lunt Solar Systems Dedicated Hydrogen-Alpha Telescope - B500 filter and Rack & Pinion Focuser
Portable and easy to use, this 40 mm Hydrogen-Alpha (Ha) doublet refractor joins the Lunt Solar Systems lineup as the most compact aperture, while also providing power! Despite its travel-friendly design, this Ha telescope still offers the amazing solar detail, and quality you expect from a Lunt Telescope.
The perfect beginner setup for those wanting to dip their toes in Ha solar imaging, you will receive a B500 (5 mm) blocking filter, sturdy rack & pinion focuser, and a Tele Vue Sol Searcher. Lunt telescopes deliver world-class optical performance, engineered in the USA with the highest-grade materials with attention to every detail! Please note: This package comes with a 1.25-inch rack and pinion focuser, helical focuser is pictured but not included.
Check out this 360 view of the 40mm travel telescope!
B500 Powerhouse
This 40 mm doublet refractor includes a Etalon system to safely show the Sun's chromosphere, isolating Ha (656.28 nm) and blocking all other wavelengths, including harmful UV/IR. This allows you to safely see fiery features like prominences, flares, and filaments, not just the bright surface! If you are looking to get more from your solar session, double stacking is critical! By adding a second Etalon you get a dramatically narrower bandpass (from <0.70Å to <0.50Å), revealing significantly higher contrast and finer surface details.
Tele Vue Sol Searcher
The included Sol-Searcher is a safe and easy way to find the Sun! Finding the Sun through a highly filtered telescope is tricky, and you don't ever want to chance a direct gaze, let alone a magnified image of it. Creating a miniature pinhole projection of the Sun onto a translucent screen, it makes Solar alignment a breeze!
Rack & Pinion Ready
One of the standout features of this 40 mm package is the included 1.25-inch rack & pinion focuser. It uses a gear-based mechanism that delivers smooth, accurate, and repeatable focusing - even when using heavy eyepieces or imaging gear. Because it’s built with tight tolerances and strong materials, the focuser stays stable and secure under load, so you don’t have to worry about slippage or drift during long observing or imaging sessions.
Specifications
Focal Ratio: F/10
Focal Length: 400 mm
Focuser: Rack & Pinion - 1.25"
Objective Type: Custom Doublet Optimized at 656 nm
Objective Coating: Ion Assist Ultra-Narrowband AR (656 nm)
Mounting: Mounting Foot
Storage: Box with Fitted Foam
H-alpha Etalon Type: Internal, Dedicated
Etalon Wavelength: 656.28 nm
Etalon Bandpass: <0.7 Å Single Stack, <0.5 Å Double Stack (sold seperately)
Etalon Material: UV Grade Fused Silica
Etalon Tuning: Tilt
Doppler Shifting: Instant
Blocking Filter Size: 5 mm
Blocking Filter Bandpass: 6 Å
Sun Finder: TeleVue Sol Searcher built in
