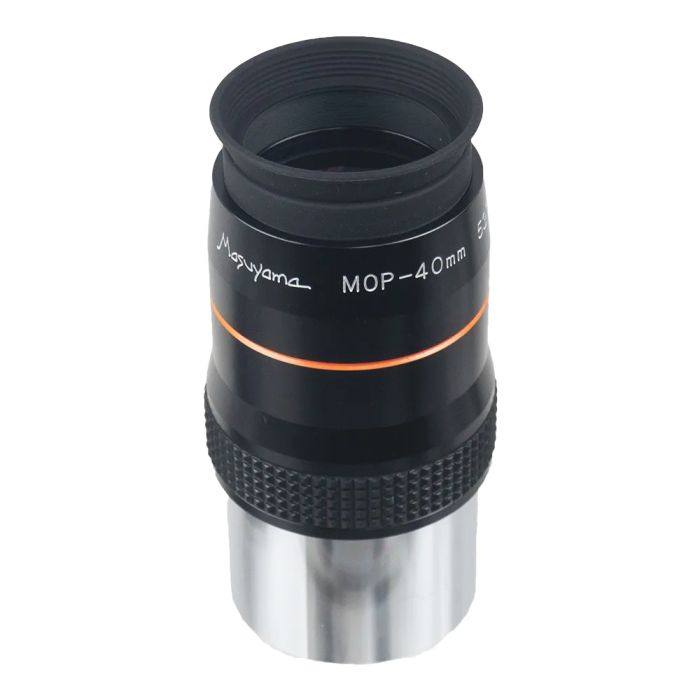

Masuyama 2" Eyepiece with 53° AFOV - 40mm
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Ultra-premium Masuyama eyepieces were offered briefly in the mid-1980s before going out of production a few years later. Since then, these legendary eyepieces have only been available - fleetingly - on the resale market. Now, after nearly 30 years, Masuyama eyepieces are back in production and updated with modern glass and multi-coating technology.
Coveted for their clean, high-contrast views on velvet-black backgrounds, Masuyama eyepieces incorporate a five-element "hybrid Plossl" design. They have much better performance towards the edge of the field and improved color performance compared to Plossls and other competing designs. Masuyama eyepieces achieve high contrast through a much smoother polish than nearly all premium eyepieces and through superior internal baffling in their long bodies.
The eyepieces are the signature design of the renowned optician Dr. Masuyama who designed many of the finest Japanese eyepieces of the 1960s and 1970s. Dr. Masuyama even designed the 100 mm focal-length eyepiece used for visual observing at the historic 60" telescope at Mount Wilson Observatory in California.
This 40mm focal-length Masuyama eyepiece with 2" barrel makes an ideal match for long focal ratio telescopes. With a 53-degree apparent field of view, this eyepiece offers superb contrast for observing the Moon, planets, double stars, and deep-sky objects. When their rubber grips are removed, a pair of these Masuyama eyepieces can also fit in many 2" binoviewers.
- Legendary Masuyama eyepiece with 40mm focal length and 2" barrel
- Incorporates latest glass and multi-coating technology
- Provides ultra-high-contrast views of the Moon, planets, and deep-sky objects
- Ideal for long focal ratio telescopes
- 115mm long and weighs 328g (11.5 oz)
Other Information
- Country of Manufacture: Japan
Ultra-premium Masuyama eyepieces were offered briefly in the mid-1980s before going out of production a few years later. Since then, these legendary eyepieces have only been available - fleetingly - on the resale market. Now, after nearly 30 years, Masuyama eyepieces are back in production and updated with modern glass and multi-coating technology.
Coveted for their clean, high-contrast views on velvet-black backgrounds, Masuyama eyepieces incorporate a five-element "hybrid Plossl" design. They have much better performance towards the edge of the field and improved color performance compared to Plossls and other competing designs. Masuyama eyepieces achieve high contrast through a much smoother polish than nearly all premium eyepieces and through superior internal baffling in their long bodies.
The eyepieces are the signature design of the renowned optician Dr. Masuyama who designed many of the finest Japanese eyepieces of the 1960s and 1970s. Dr. Masuyama even designed the 100 mm focal-length eyepiece used for visual observing at the historic 60" telescope at Mount Wilson Observatory in California.
This 40mm focal-length Masuyama eyepiece with 2" barrel makes an ideal match for long focal ratio telescopes. With a 53-degree apparent field of view, this eyepiece offers superb contrast for observing the Moon, planets, double stars, and deep-sky objects. When their rubber grips are removed, a pair of these Masuyama eyepieces can also fit in many 2" binoviewers.
- Legendary Masuyama eyepiece with 40mm focal length and 2" barrel
- Incorporates latest glass and multi-coating technology
- Provides ultra-high-contrast views of the Moon, planets, and deep-sky objects
- Ideal for long focal ratio telescopes
- 115mm long and weighs 328g (11.5 oz)
| Manufacturer | Masuyama |
|---|---|
| Eyepiece Series | Masuyama 46°-53° |
| Focal Length | 40mm |
| Barrel Size | 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 53° |
| Eye Relief (Designed) | 28mm |
| Filter Threads | Standard 2" Filter Thread (M48 x 0.75) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 5 |
| Lens Groups | 3 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 65x120mm |
| Height (With Eyeguard Extended) | 115mm |
| Maximum Width | 57mm with rubber grip |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
| Warranty | One year |
| Weight | 11.5 oz / 328 g |
| Country of Manufacture | Japan |
Ultra-premium Masuyama eyepieces were offered briefly in the mid-1980s before going out of production a few years later. Since then, these legendary eyepieces have only been available - fleetingly - on the resale market. Now, after nearly 30 years, Masuyama eyepieces are back in production and updated with modern glass and multi-coating technology.
Coveted for their clean, high-contrast views on velvet-black backgrounds, Masuyama eyepieces incorporate a five-element "hybrid Plossl" design. They have much better performance towards the edge of the field and improved color performance compared to Plossls and other competing designs. Masuyama eyepieces achieve high contrast through a much smoother polish than nearly all premium eyepieces and through superior internal baffling in their long bodies.
The eyepieces are the signature design of the renowned optician Dr. Masuyama who designed many of the finest Japanese eyepieces of the 1960s and 1970s. Dr. Masuyama even designed the 100 mm focal-length eyepiece used for visual observing at the historic 60" telescope at Mount Wilson Observatory in California.
This 40mm focal-length Masuyama eyepiece with 2" barrel makes an ideal match for long focal ratio telescopes. With a 53-degree apparent field of view, this eyepiece offers superb contrast for observing the Moon, planets, double stars, and deep-sky objects. When their rubber grips are removed, a pair of these Masuyama eyepieces can also fit in many 2" binoviewers.
- Legendary Masuyama eyepiece with 40mm focal length and 2" barrel
- Incorporates latest glass and multi-coating technology
- Provides ultra-high-contrast views of the Moon, planets, and deep-sky objects
- Ideal for long focal ratio telescopes
- 115mm long and weighs 328g (11.5 oz)
Other Information
- Country of Manufacture: Japan
| Manufacturer | Masuyama |
|---|---|
| Eyepiece Series | Masuyama 46°-53° |
| Focal Length | 40mm |
| Barrel Size | 2" (50.8mm) |
| Apparent Field of View (Mfg Specified) | 53° |
| Eye Relief (Designed) | 28mm |
| Filter Threads | Standard 2" Filter Thread (M48 x 0.75) |
| Coatings | Fully Multi-Coated |
| Lens Elements | 5 |
| Lens Groups | 3 |
| Blackened Lens Edges | Yes |
| Barrel Type | Smooth sided |
| Protective Storage Container Included | No |
| Protective Plastic Storage Container Size (Sold Separately) | Agena 65x120mm |
| Height (With Eyeguard Extended) | 115mm |
| Maximum Width | 57mm with rubber grip |
| End Caps | 2 |
| Rubber Eye Guard | Yes |
| Warranty | One year |
| Weight | 11.5 oz / 328 g |
| Country of Manufacture | Japan |
