- Built-in ThirdLynx electronics eliminate the need for an external controller
- Designed for Feather Touch 2-inch Crayford focusers
- Best-in-class clutch system allows smooth manual override
- USB-C connectivity with included USB to 12V DC power cable

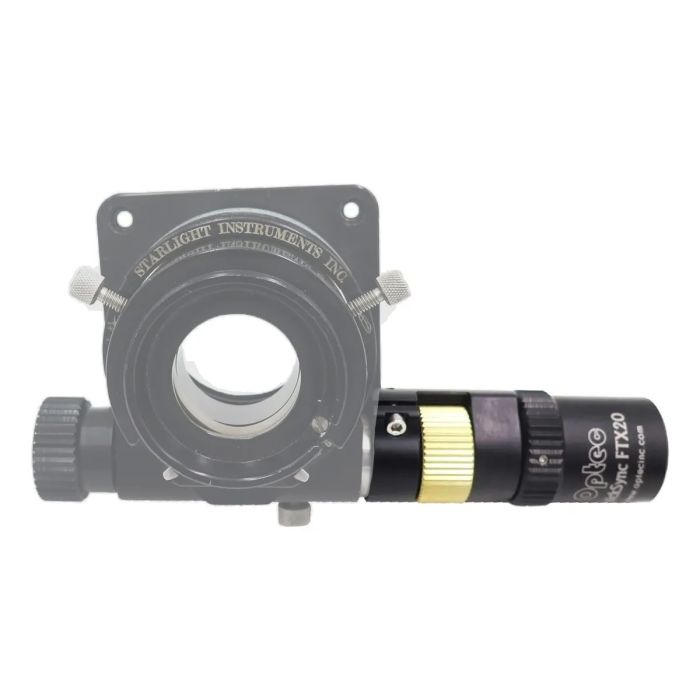

OPTEC ThirdLynx QuickSync FTX20 for FeatherTouch FTF20
The Optec QuickSync FTX20 motor is a compact, all-in-one electronic focusing upgrade designed specifically for Feather Touch 2-inch Crayford style focusers. Featuring Optec’s third-generation ThirdLynx control circuit built directly into the motor housing, the FTX20 eliminates the need for an external controller while delivering the smooth, reliable performance QuickSync motors are known for. It retains Optec’s best-in-class clutch mechanism for dependable operation and easy manual override when needed. Now equipped with a modern USB-C interface, the FTX20 includes a USB to 12V DC power cable, with an optional desktop 12V power supply available for permanent observatory installations. Optional accessories include: #17064-2.1 12VDC Power supply with wall cord, and #19799 QuickSync/DirectSync clutch lock for permanent remote installations.
Focuser Compatibility List:
- Feather Touch FTF2008, FTF2015, FTF2020, FTF2025 focusers
- Feather Touch FTM series Micros
- Feather Touch MPA series Micro Pinion Assembly
- Televue-85 f/7 APO Refractor focuser
- TeleVue TV-NP101is, TV-NP127is focusers
- NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FTX30 motor
Specifications:
- Material: 6061 aluminum, anodized black with a gold knob,
- Length: 3.4 in (87 mm)
- Width: 1.9 in (48 mm)
- Weight: 5.1 oz (145 g)
- Step Resolution: approx 1.0 micron per step
- Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
- Connectivity: USB A-C cable 1m (3-ft) included in package
- Temperature Sensor: Analog Devices ADT7302 embedded
- Current Draw: Maximum draw approx. 350mA
Other Information
- Country of Manufacture: United States
OPTEC ThirdLynx QuickSync FTX20 for FeatherTouch FTF20
The Optec QuickSync FTX20 motor is a compact, all-in-one electronic focusing upgrade designed specifically for Feather Touch 2-inch Crayford style focusers. Featuring Optec’s third-generation ThirdLynx control circuit built directly into the motor housing, the FTX20 eliminates the need for an external controller while delivering the smooth, reliable performance QuickSync motors are known for. It retains Optec’s best-in-class clutch mechanism for dependable operation and easy manual override when needed. Now equipped with a modern USB-C interface, the FTX20 includes a USB to 12V DC power cable, with an optional desktop 12V power supply available for permanent observatory installations. Optional accessories include: #17064-2.1 12VDC Power supply with wall cord, and #19799 QuickSync/DirectSync clutch lock for permanent remote installations.
Focuser Compatibility List:
- Feather Touch FTF2008, FTF2015, FTF2020, FTF2025 focusers
- Feather Touch FTM series Micros
- Feather Touch MPA series Micro Pinion Assembly
- Televue-85 f/7 APO Refractor focuser
- TeleVue TV-NP101is, TV-NP127is focusers
- NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FTX30 motor
Specifications:
- Material: 6061 aluminum, anodized black with a gold knob,
- Length: 3.4 in (87 mm)
- Width: 1.9 in (48 mm)
- Weight: 5.1 oz (145 g)
- Step Resolution: approx 1.0 micron per step
- Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
- Connectivity: USB A-C cable 1m (3-ft) included in package
- Temperature Sensor: Analog Devices ADT7302 embedded
- Current Draw: Maximum draw approx. 350mA
- 1x ThirdLynx Motor,
- 1x 1m (3-ft) USB A-C Cable,
- 1x #17070 - USB Power Converter cable
- 1x Allen hex wrench tool kit
- Built-in ThirdLynx electronics eliminate the need for an external controller
- Designed for Feather Touch 2-inch Crayford focusers
- Best-in-class clutch system allows smooth manual override
- USB-C connectivity with included USB to 12V DC power cable
OPTEC ThirdLynx QuickSync FTX20 for FeatherTouch FTF20
The Optec QuickSync FTX20 motor is a compact, all-in-one electronic focusing upgrade designed specifically for Feather Touch 2-inch Crayford style focusers. Featuring Optec’s third-generation ThirdLynx control circuit built directly into the motor housing, the FTX20 eliminates the need for an external controller while delivering the smooth, reliable performance QuickSync motors are known for. It retains Optec’s best-in-class clutch mechanism for dependable operation and easy manual override when needed. Now equipped with a modern USB-C interface, the FTX20 includes a USB to 12V DC power cable, with an optional desktop 12V power supply available for permanent observatory installations. Optional accessories include: #17064-2.1 12VDC Power supply with wall cord, and #19799 QuickSync/DirectSync clutch lock for permanent remote installations.
Focuser Compatibility List:
- Feather Touch FTF2008, FTF2015, FTF2020, FTF2025 focusers
- Feather Touch FTM series Micros
- Feather Touch MPA series Micro Pinion Assembly
- Televue-85 f/7 APO Refractor focuser
- TeleVue TV-NP101is, TV-NP127is focusers
- NOTE: 2-inch FeatherTouch rack-and-pinion focusers require the FTX30 motor
Specifications:
- Material: 6061 aluminum, anodized black with a gold knob,
- Length: 3.4 in (87 mm)
- Width: 1.9 in (48 mm)
- Weight: 5.1 oz (145 g)
- Step Resolution: approx 1.0 micron per step
- Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
- Connectivity: USB A-C cable 1m (3-ft) included in package
- Temperature Sensor: Analog Devices ADT7302 embedded
- Current Draw: Maximum draw approx. 350mA
Other Information
- Country of Manufacture: United States
- 1x ThirdLynx Motor,
- 1x 1m (3-ft) USB A-C Cable,
- 1x #17070 - USB Power Converter cable
- 1x Allen hex wrench tool kit
