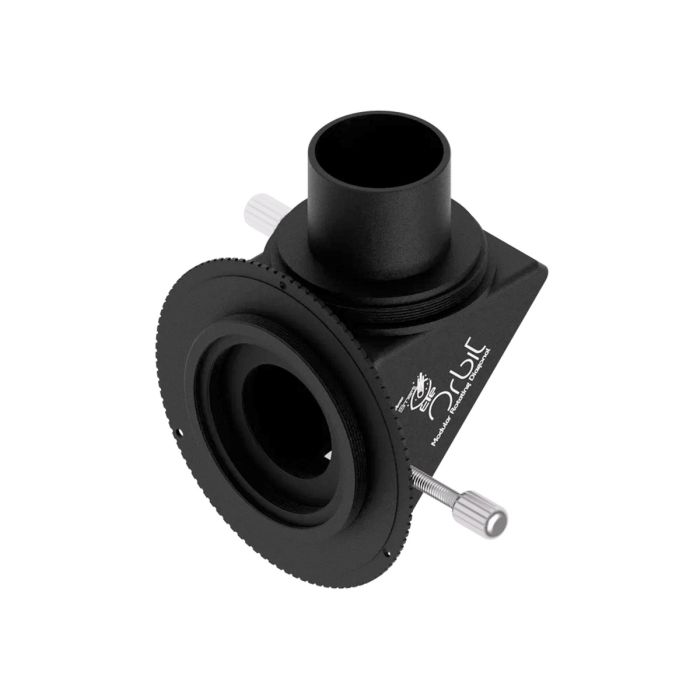

Pegasus Astro 1.25" Orbit Rotating Mirror Diagonal
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Compact 1.25" Design: Short backfocus with full IMX533 illumination and no vignetting
- Enhanced BK7 Mirror: First-surface aluminum mirror with protective coatings
- Dual Thumb Screws: Independent rotation for the nosepiece and SmartEye
- Threading: Dual-thread connections on both sides of the diagonal
- Optimized Backfocus: Model-specific spacing for reliable focus
- Integrated Filter Thread: Accepts standard 1.25" filters directly in the diagonal
Pegasus Astro Orbit Diagonal Basic Edition
The Pegasus Astro Orbit Diagonal Basic Edition is a compact, modular 1.25" rotating diagonal designed for setups with extremely limited backfocus, including the Pegasus Astro SmartEye. Its dual-axis rotation provides flexible, comfortable viewing at different telescope orientations, while the precision BK7 first-surface mirror delivers high optical performance. With only 58mm of backfocus, integrated 1.25" filter support, and versatile M48/M42 threading, the Orbit provides a compact connection between your telescope and SmartEye or other compatible accessories.
Specifications
- Diagonal Size: 1.25"
- Rotation: Dual-axis, independently adjustable
- Mirror: BK7 first-surface
- Mirror Quality: λ/10 at 633nm
- Mirror Coating: Enhanced aluminum with protective overcoat
- Average Reflectivity: ≥92% from 450–650nm at 45° AOI
- Telescope Connection: 1.25" nosepiece
- Threading: M48 male / M42 female on both sides
- Backfocus: 58mm from M48F to M48F thread base
- Filter Thread: Integrated 1.25" filter thread
- Adjustment: Dual thumb screws for independent rotation
- SmartEye Connection: Includes M54 male to M48 male adapter
Other Information
- Country of Manufacture: Greece
Pegasus Astro Orbit Diagonal Basic Edition
The Pegasus Astro Orbit Diagonal Basic Edition is a compact, modular 1.25" rotating diagonal designed for setups with extremely limited backfocus, including the Pegasus Astro SmartEye. Its dual-axis rotation provides flexible, comfortable viewing at different telescope orientations, while the precision BK7 first-surface mirror delivers high optical performance. With only 58mm of backfocus, integrated 1.25" filter support, and versatile M48/M42 threading, the Orbit provides a compact connection between your telescope and SmartEye or other compatible accessories.
Specifications
- Diagonal Size: 1.25"
- Rotation: Dual-axis, independently adjustable
- Mirror: BK7 first-surface
- Mirror Quality: λ/10 at 633nm
- Mirror Coating: Enhanced aluminum with protective overcoat
- Average Reflectivity: ≥92% from 450–650nm at 45° AOI
- Telescope Connection: 1.25" nosepiece
- Threading: M48 male / M42 female on both sides
- Backfocus: 58mm from M48F to M48F thread base
- Filter Thread: Integrated 1.25" filter thread
- Adjustment: Dual thumb screws for independent rotation
- SmartEye Connection: Includes M54 male to M48 male adapter
- 1x Orbit Diagonal
- 1x 1.25” Nosepiece
- 2x Silicone Protective Caps
- 1x M54M-M48F Adapter
- Compact 1.25" Design: Short backfocus with full IMX533 illumination and no vignetting
- Enhanced BK7 Mirror: First-surface aluminum mirror with protective coatings
- Dual Thumb Screws: Independent rotation for the nosepiece and SmartEye
- Threading: Dual-thread connections on both sides of the diagonal
- Optimized Backfocus: Model-specific spacing for reliable focus
- Integrated Filter Thread: Accepts standard 1.25" filters directly in the diagonal
Pegasus Astro Orbit Diagonal Basic Edition
The Pegasus Astro Orbit Diagonal Basic Edition is a compact, modular 1.25" rotating diagonal designed for setups with extremely limited backfocus, including the Pegasus Astro SmartEye. Its dual-axis rotation provides flexible, comfortable viewing at different telescope orientations, while the precision BK7 first-surface mirror delivers high optical performance. With only 58mm of backfocus, integrated 1.25" filter support, and versatile M48/M42 threading, the Orbit provides a compact connection between your telescope and SmartEye or other compatible accessories.
Specifications
- Diagonal Size: 1.25"
- Rotation: Dual-axis, independently adjustable
- Mirror: BK7 first-surface
- Mirror Quality: λ/10 at 633nm
- Mirror Coating: Enhanced aluminum with protective overcoat
- Average Reflectivity: ≥92% from 450–650nm at 45° AOI
- Telescope Connection: 1.25" nosepiece
- Threading: M48 male / M42 female on both sides
- Backfocus: 58mm from M48F to M48F thread base
- Filter Thread: Integrated 1.25" filter thread
- Adjustment: Dual thumb screws for independent rotation
- SmartEye Connection: Includes M54 male to M48 male adapter
Other Information
- Country of Manufacture: Greece
- 1x Orbit Diagonal
- 1x 1.25” Nosepiece
- 2x Silicone Protective Caps
- 1x M54M-M48F Adapter
