Pegasus Astro 2" Orbit Rotating Mirror Diagonal for SCT Telescopes
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Direct SCT Connection: Threads directly to standard 2" SCT optical connections
- 105mm Backfocus: Optimized for reducers and corrected SCT systems
- Rigid Connection: Threaded design provides stable, tilt-resistant support
- Dual-Axis Rotation: Easily adjust viewing orientation
- Threading: M48 male and M42 female threads on the SmartEye side
- Enhanced BK7 Mirror: First-surface mirror with enhanced aluminum coating
Pegasus Astro Orbit Diagonal SCT 2-Inch Edition

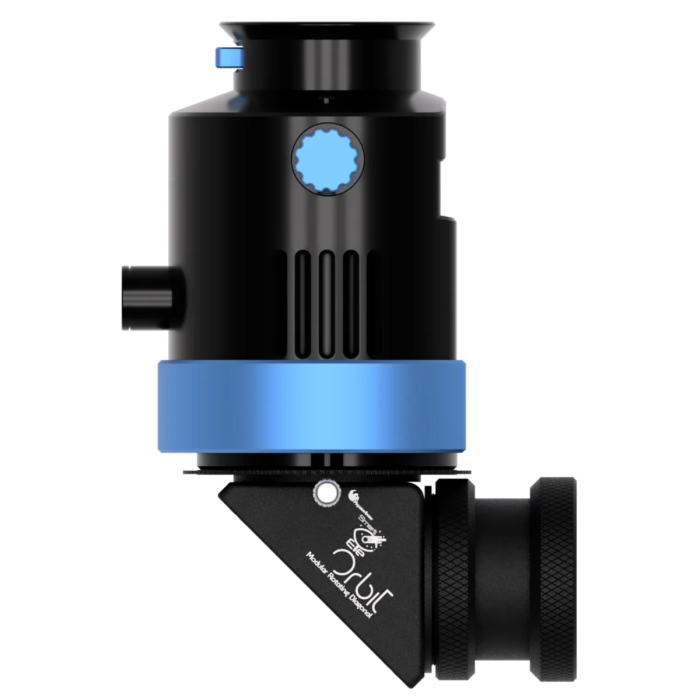

The Pegasus Astro Orbit Diagonal SCT 2-Inch Edition brings the compact, modular Orbit design to Schmidt-Cassegrain telescopes and accessories with a standard 2" SCT optical connection. Its direct threaded coupling creates a rigid, tilt-resistant connection, while dual-axis rotation provides comfortable viewing at different telescope orientations. The optical path is optimized to help achieve a 105mm backfocus, making it well suited for SCT focal reducers and corrected optical systems. The SmartEye side retains versatile M48 male and M42 female threading for flexible accessory connections.
Specifications
- Model: Orbit Diagonal SCT 2-Inch Edition
- Telescope Connection: Standard 2" SCT threaded connection
- Recommended Backfocus: 105mm
- Rotation: Dual-axis
- Mirror: BK7 first-surface
- Mirror Quality: λ/10 at 633nm
- Mirror Coating: Enhanced aluminum with protective overcoat
- Average Reflectivity: ≥92% from 450–650nm at 45° AOI
- SmartEye-Side Threads: M48 male / M42 female
- Filter Support: Integrated 1.25" filter thread
- Adjustment: Dual thumb screws
Other Information
- Country of Manufacture: Greece
Pegasus Astro Orbit Diagonal SCT 2-Inch Edition
The Pegasus Astro Orbit Diagonal SCT 2-Inch Edition brings the compact, modular Orbit design to Schmidt-Cassegrain telescopes and accessories with a standard 2" SCT optical connection. Its direct threaded coupling creates a rigid, tilt-resistant connection, while dual-axis rotation provides comfortable viewing at different telescope orientations. The optical path is optimized to help achieve a 105mm backfocus, making it well suited for SCT focal reducers and corrected optical systems. The SmartEye side retains versatile M48 male and M42 female threading for flexible accessory connections.
Specifications
- Model: Orbit Diagonal SCT 2-Inch Edition
- Telescope Connection: Standard 2" SCT threaded connection
- Recommended Backfocus: 105mm
- Rotation: Dual-axis
- Mirror: BK7 first-surface
- Mirror Quality: λ/10 at 633nm
- Mirror Coating: Enhanced aluminum with protective overcoat
- Average Reflectivity: ≥92% from 450–650nm at 45° AOI
- SmartEye-Side Threads: M48 male / M42 female
- Filter Support: Integrated 1.25" filter thread
- Adjustment: Dual thumb screws
- 1x Orbit Diagonal
- 1x M54M-M48F Adapter
- 1x Compression Ring
- 1x SCT 2” Neck & Lock
- 2x Silicone Protective Caps
- Direct SCT Connection: Threads directly to standard 2" SCT optical connections
- 105mm Backfocus: Optimized for reducers and corrected SCT systems
- Rigid Connection: Threaded design provides stable, tilt-resistant support
- Dual-Axis Rotation: Easily adjust viewing orientation
- Threading: M48 male and M42 female threads on the SmartEye side
- Enhanced BK7 Mirror: First-surface mirror with enhanced aluminum coating
Pegasus Astro Orbit Diagonal SCT 2-Inch Edition
The Pegasus Astro Orbit Diagonal SCT 2-Inch Edition brings the compact, modular Orbit design to Schmidt-Cassegrain telescopes and accessories with a standard 2" SCT optical connection. Its direct threaded coupling creates a rigid, tilt-resistant connection, while dual-axis rotation provides comfortable viewing at different telescope orientations. The optical path is optimized to help achieve a 105mm backfocus, making it well suited for SCT focal reducers and corrected optical systems. The SmartEye side retains versatile M48 male and M42 female threading for flexible accessory connections.
Specifications
- Model: Orbit Diagonal SCT 2-Inch Edition
- Telescope Connection: Standard 2" SCT threaded connection
- Recommended Backfocus: 105mm
- Rotation: Dual-axis
- Mirror: BK7 first-surface
- Mirror Quality: λ/10 at 633nm
- Mirror Coating: Enhanced aluminum with protective overcoat
- Average Reflectivity: ≥92% from 450–650nm at 45° AOI
- SmartEye-Side Threads: M48 male / M42 female
- Filter Support: Integrated 1.25" filter thread
- Adjustment: Dual thumb screws
Other Information
- Country of Manufacture: Greece
- 1x Orbit Diagonal
- 1x M54M-M48F Adapter
- 1x Compression Ring
- 1x SCT 2” Neck & Lock
- 2x Silicone Protective Caps
