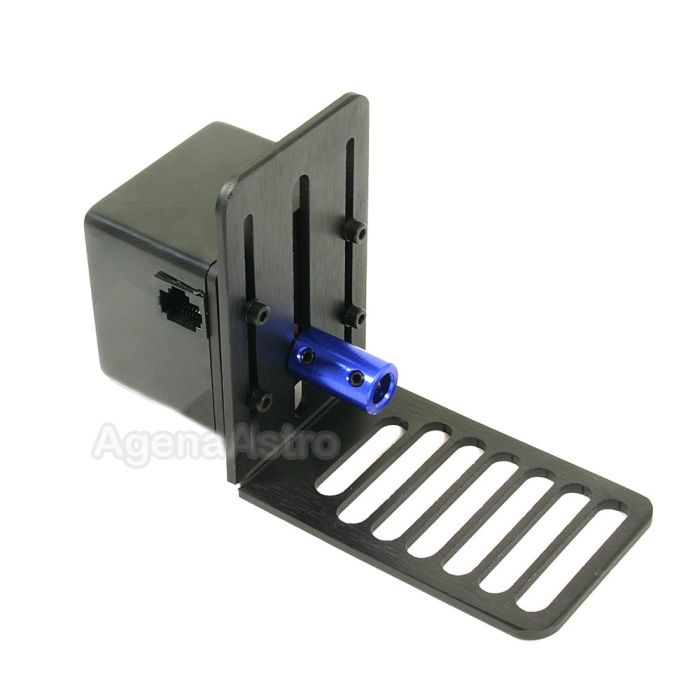

Pegasus Astro Motor Focus Kit - With Universal L-Bracket (Requires Controller)

More Views

Product Details

Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.

Focus accurate and fast your telescope using our powerful Motor Focus Kit. This high resolution geared box has a 0,06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover motor’s gearbox has a low backlash which can easily tuned using backlash compensation in imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.

An L-shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers. In fact we have successfully installed it on:

  • Orion Optics UK default focuser
  • GSO (RC focuser)
  • Takahashi (FSQ106)
  • Moonlite (2", 2.5")
  • Baader (Steel track)
  • Synta Focuser Refractors
  • Altair Astro (2", 2.5", 3")
  • Starlight Focusers (2", 2.5", 3")
Included in the box:
  • High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ration 1:120). Its gearbox has very low backlash and high torque suitable to focus in micron scale.
  • Universal Black Anodised Aluminium L shaped bracket for Motor
  • Motor Coupler (5mm to 10mm) with 3 grub-screws
  • Different sizes of bolts and spacers

Specifications

  • Step Angle (Deg): 7.5 / 120 = 0.0625
  • Gear Ratio: 1:120
  • Phases: 4 (Unipolar Motor)
  • Voltage: 12V DC
  • Current (A): 0.27
  • Pull-in Rate (PPS): 400
  • Pull-in Torque (N.cm): 60 (100pps)
  • Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler weight in total 250g

Useful Resources

  • Installation Guide: Universal Motor Focus Kit Installation (PDF format, 1.6MB)
  • Reference Guide: Port Pinout (PDF format, 484KB)
