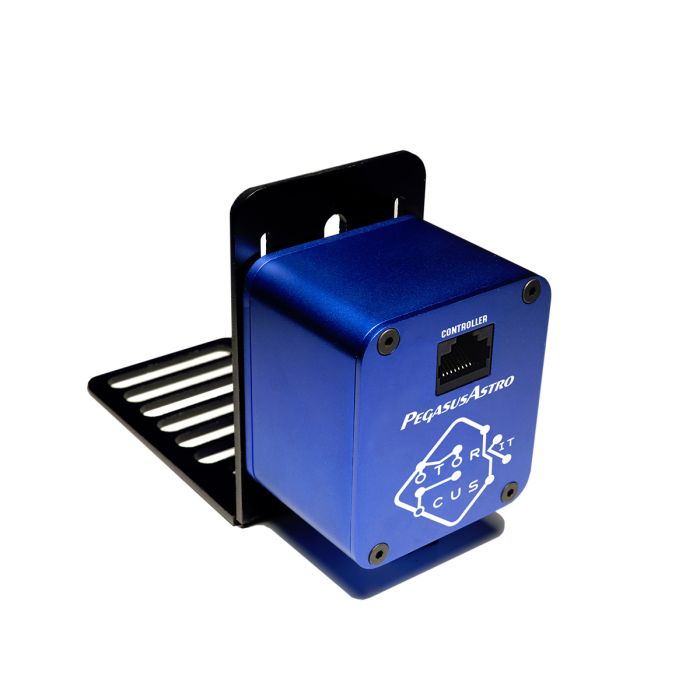

Pegasus Astro Motor Focus Kit v2 - With Universal L-Bracket (Requires Controller)
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Pegasus products that can drive this Motor Focus Kit Universal are:
- Dual Motor Focus Controller
- Ultimate Power Box v1, v2 or v3
- eXternal Motor Controller
Focus your telescope quickly and accurately using Pegasus Astro's powerful Motor Focus Kit v2. This high resolution geared box has a 0.06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover, the motor’s gearbox has low backlash which can easily be tuned out using backlash compensation in imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.
1. Universal L-shaped bracket (black anodized)
We have redesigned the L shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focusers.
This L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
In fact we have successfully installed it on:
- Baader Diamond Steeltrack
- Baader Steeltrack
- Explore Scientific Focuser
- MoonLite Focusers
- Skywatcher Esprit Series Focuser
- Starlight Feathertouch Series
- Stellarvue Focusers
- Takahashi FS-60, TSA-120, Epsilon Focusers
- Takahashi FSQ & TOA Focuser
- Vixen ED81S
- William Optics GT71
- William Optics RedCat
- High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ratio 1:120)
- Universal Black Anodised Aluminium L shaped bracket for Motor
- 6 x Solid Motor Couplers (3mm to 8mm)
- Different sizes (Pairs of M3x10, M4x10, M4x30 M5x10, M6x10, ) of metric screws and washers
- Four M3x6mm length screws (to attach the enclosure on the bracket)
3. Technical Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625, with 5755 steps per circle of rotation
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler weight in total 350g
Other Information
- Country of Manufacture: Greece
Focus your telescope quickly and accurately using Pegasus Astro's powerful Motor Focus Kit v2. This high resolution geared box has a 0.06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover, the motor’s gearbox has low backlash which can easily be tuned out using backlash compensation in imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.
1. Universal L-shaped bracket (black anodized)
We have redesigned the L shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focusers.
This L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
In fact we have successfully installed it on:
- Baader Diamond Steeltrack
- Baader Steeltrack
- Explore Scientific Focuser
- MoonLite Focusers
- Skywatcher Esprit Series Focuser
- Starlight Feathertouch Series
- Stellarvue Focusers
- Takahashi FS-60, TSA-120, Epsilon Focusers
- Takahashi FSQ & TOA Focuser
- Vixen ED81S
- William Optics GT71
- William Optics RedCat
- High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ratio 1:120)
- Universal Black Anodised Aluminium L shaped bracket for Motor
- 6 x Solid Motor Couplers (3mm to 8mm)
- Different sizes (Pairs of M3x10, M4x10, M4x30 M5x10, M6x10, ) of metric screws and washers
- Four M3x6mm length screws (to attach the enclosure on the bracket)
3. Technical Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625, with 5755 steps per circle of rotation
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler weight in total 350g
Please Note: You will need a stepper controller to drive this motor. The controller is not included and is available separately.
Pegasus products that can drive this Motor Focus Kit Universal are:
- Dual Motor Focus Controller
- Ultimate Power Box v1, v2 or v3
- eXternal Motor Controller
Focus your telescope quickly and accurately using Pegasus Astro's powerful Motor Focus Kit v2. This high resolution geared box has a 0.06 degree step size can can easily lift more than 6 Kg (per cm). Its high torque is suitable for lifting heavy imaging equipment. Moreover, the motor’s gearbox has low backlash which can easily be tuned out using backlash compensation in imaging software. The RJ45 socket can be converted to compatible Robofocus Pinout.
1. Universal L-shaped bracket (black anodized)
We have redesigned the L shaped bracket to easily fit onto most focusers in the market. The lower part of the redesigned bracket can be replaced with a slimmer rail (included) for better compatibility with Newtonian and other low profile focusers.
This L shaped black anodised aluminium bracket, hard to bend, has cut rails and can be attached to a wide range of focusers.
In fact we have successfully installed it on:
- Baader Diamond Steeltrack
- Baader Steeltrack
- Explore Scientific Focuser
- MoonLite Focusers
- Skywatcher Esprit Series Focuser
- Starlight Feathertouch Series
- Stellarvue Focusers
- Takahashi FS-60, TSA-120, Epsilon Focusers
- Takahashi FSQ & TOA Focuser
- Vixen ED81S
- William Optics GT71
- William Optics RedCat
- High Resolution Stepper Geared Motor Enclosure (Step Angle 7.5, Deg 120, Gear Ratio 1:120)
- Universal Black Anodised Aluminium L shaped bracket for Motor
- 6 x Solid Motor Couplers (3mm to 8mm)
- Different sizes (Pairs of M3x10, M4x10, M4x30 M5x10, M6x10, ) of metric screws and washers
- Four M3x6mm length screws (to attach the enclosure on the bracket)
3. Technical Specifications
- Step Angle (Deg): 7.5 / 120 = 0.0625, with 5755 steps per circle of rotation
- Gear Ratio: 1:120
- Phases: 4 (Unipolar Motor)
- Voltage: 12V DC
- Current (A): 0.27
- Pull-in Rate (PPS): 400
- Pull-in Torque (N.cm): 60 (100pps)
- Weight: Stepper Motor, Universal L Shaped Adapter & Motor Coupler weight in total 350g
Other Information
- Country of Manufacture: Greece
