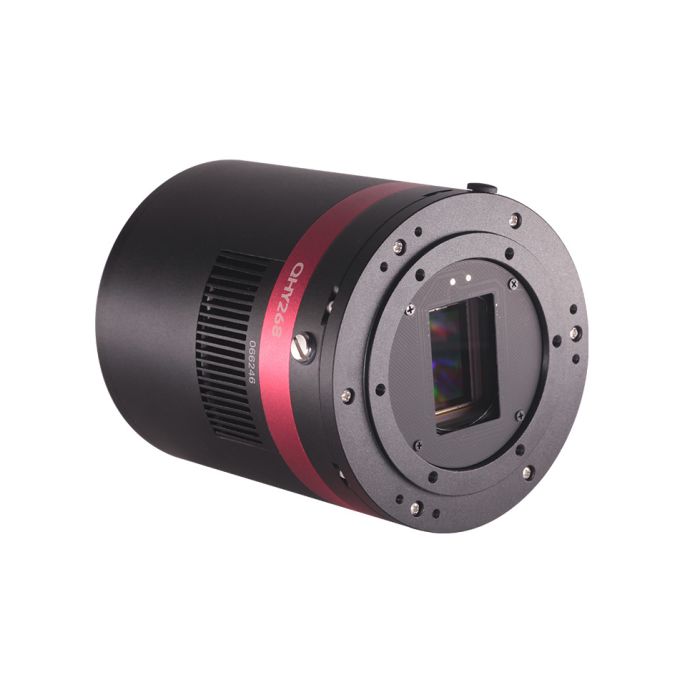

QHY 268M (Short BFL Version) 26 MP Photographic CMOS APS-C Monochrome Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Back Focal Length: 12.5mm (with CAA)
If used with the QHY filter wheel, the actual calculated intercept is 12.5mm.The actual BFL (the intercept from the CMOS chip to the top of the camera) is 14.5mm. Since most uses will match CFW with monochrome cams, please take 12.5mm as major reference. Check the mechanical drawing for details. Note 14.5mm rear intercept does not include adapter thread, which must be used with adapters of various sizes through the top 6 screw holes. - Telescope Interface:Support M54 and M48 (with standard adapters )
1. Ultra High Resolution: 26 Megapixels, APS-C format
The QHY268M is a 26 Megapixel cooled, back-illuminated, monochrome CMOS camera based on the Sony IMX571 sensor with native 16-bit A/D and 3.76um pixels.
2. Native 16-Bit: On-chip 16-bit A/D, 65536 Levels
The Sony IMX571 sensor has on-chip 16-bit A/D for highest resolution of greyscale. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, 16-bit A/D provides higher sampling resolution. At high gain, the camera yields close to 1e-/ADU with low read noise and no sampling error.
3. High Dynamic Range: 51ke- Full Well at 3.76um, 75ke- in extended mode
One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned 3.76um pixels the QHY268M has a full well capacity of 51ke-. QHY268M also offers a unique read mode up to 75ke per pixel. When binned 2x2 to 7.5um the full well is 176ke- and when binned 3x3 to 11um the full well is 396ke-.
4. Ultra Low Read Noise: 0.7e- Noise at High gain, 3.5e- Noise at Low Gain
The QHY268M has only 0.7 electron of read noise at its highest gain and 6.8 FPS at full resolution readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging, etc., making this large area sensor ideal for sky surveys and time domain astronomy
5. Back-Illuminated, High QE: Very Low Dark current, Electronic Shutter, Round Body
The back-illuminated Sony Exmor sensor has about twice the QE of similar front illuminated sensors. The QHY268M has extremely low dark current using SONY's Exmor BSI CMOS technology (only 0.0005e/pixel/sec @ -20C). In addition, the camera uses QHYCCD's proprietary thermal noise reduction technology and 2-stage TE cooling to reduce the dark current noise to extremely low levels.
In general, a fan-blade mechanical shutter may fail after several hundred thousand cycles and is subject to intermittent problems in very cold weather. The advantage of an electronic shutter over a mechanical shutter is high reliability and stability when the observer takes a large number of images.
The round body and sensor size make this camera ideal for Hyperstar and RASA systems. The camera has a USB3.0 interface to the computer.
6. Built-In Buffer for Reliable Data Transfer
1GB Image Buffer: In order to get smooth uninterrupted high speed transfer of data, the QHY 268C has a large 1 GB DDR3 memory buffer.
7. Short 12.5mm Backfocus
The mono camera is expected to be used with a filter wheel so the mono version uses the ultra short back focus design (12.5mm) to facilitate this configuration.
Other Information
- Country of Manufacture: China
- Back Focal Length: 12.5mm (with CAA)
If used with the QHY filter wheel, the actual calculated intercept is 12.5mm.The actual BFL (the intercept from the CMOS chip to the top of the camera) is 14.5mm. Since most uses will match CFW with monochrome cams, please take 12.5mm as major reference. Check the mechanical drawing for details. Note 14.5mm rear intercept does not include adapter thread, which must be used with adapters of various sizes through the top 6 screw holes. - Telescope Interface:Support M54 and M48 (with standard adapters )
1. Ultra High Resolution: 26 Megapixels, APS-C format
The QHY268M is a 26 Megapixel cooled, back-illuminated, monochrome CMOS camera based on the Sony IMX571 sensor with native 16-bit A/D and 3.76um pixels.
2. Native 16-Bit: On-chip 16-bit A/D, 65536 Levels
The Sony IMX571 sensor has on-chip 16-bit A/D for highest resolution of greyscale. The output is real 16-bits with 65536 levels. Compared to 12-bit and 14-bit A/D, 16-bit A/D provides higher sampling resolution. At high gain, the camera yields close to 1e-/ADU with low read noise and no sampling error.
3. High Dynamic Range: 51ke- Full Well at 3.76um, 75ke- in extended mode
One benefit of the back-illuminated CMOS structure is improved full well capacity. This is particularly helpful for sensors with small pixels. Even with unbinned 3.76um pixels the QHY268M has a full well capacity of 51ke-. QHY268M also offers a unique read mode up to 75ke per pixel. When binned 2x2 to 7.5um the full well is 176ke- and when binned 3x3 to 11um the full well is 396ke-.
4. Ultra Low Read Noise: 0.7e- Noise at High gain, 3.5e- Noise at Low Gain
The QHY268M has only 0.7 electron of read noise at its highest gain and 6.8 FPS at full resolution readout speed. One electron of read noise means the camera can achieve a SNR>3 at only 4 to 6 photons. This is perfect performance when conditions are photon limited, i.e., short exposures, narrow band imaging, etc., making this large area sensor ideal for sky surveys and time domain astronomy
5. Back-Illuminated, High QE: Very Low Dark current, Electronic Shutter, Round Body
The back-illuminated Sony Exmor sensor has about twice the QE of similar front illuminated sensors. The QHY268M has extremely low dark current using SONY's Exmor BSI CMOS technology (only 0.0005e/pixel/sec @ -20C). In addition, the camera uses QHYCCD's proprietary thermal noise reduction technology and 2-stage TE cooling to reduce the dark current noise to extremely low levels.
In general, a fan-blade mechanical shutter may fail after several hundred thousand cycles and is subject to intermittent problems in very cold weather. The advantage of an electronic shutter over a mechanical shutter is high reliability and stability when the observer takes a large number of images.
The round body and sensor size make this camera ideal for Hyperstar and RASA systems. The camera has a USB3.0 interface to the computer.
6. Built-In Buffer for Reliable Data Transfer
1GB Image Buffer: In order to get smooth uninterrupted high speed transfer of data, the QHY 268C has a large 1 GB DDR3 memory buffer.
7. Short 12.5mm Backfocus
The mono camera is expected to be used with a filter wheel so the mono version uses the ultra short back focus design (12.5mm) to facilitate this configuration.
| Manufacturer | QHYCCD |
|---|
- Model: QHY268PH-M
- Image Sensor: SONY APS-C CMOS Sensor IMX571
- Sensor Type: Back Illuminated (BSI)
- Pixel Size: 3.76um x 3.76um
- Color / Mono Version: Monochrome
- Sensor Surface Glass: Multi Layer AR coating
- Effective Pixels: 26 Megapixels
- Effective Image Area: 6280x4210 (includes the optically black area and overscan area)
- Full Well Capacity: 51ke- (More than 75ke- in extended full well mode)
- A/D: Native 16-bit (0-65535 greyscale) A/D
- Sensor Size: APS-C format, 23.5mm x 15.7mm (28.3mm Diagonal)
- Full Frame Rate:
- USB3.0 Port:
- Full Resolution 6.8FPS @8BIT 6FPS @16BIT
- 2048 lines 13.6FPS @8BIT 11.5FPS@16BIT
- 1080 lines 25.4FPS @8BIT 19.5FPS@16BIT
- 768 lines 35FPS @8BIT 25FPS@16BIT
- 480 lines 50FPS @8BIT 34FPS@16BIT
- Read Noise:
- 0.7e- High Gain, 3.5e- Low Gain
- (2.7e- to 5.5e- in extended full well mode)
- Dark Current:
- 0.0005e/pixel/sec @ -20C
- 0.001e/pixel/sec @ -10C
- Exposure Time Range: 30us - 3600sec
- Firmware/FPGA remotely upgradeable: Yes, via Camera USB port
- Non-volatile memory / On camera storage:
- Build-in total 64MByte Flash Memory. 10MBytes user-accessible space for stellar ROI frames for analysis for exoplanet investigation, occultations, atmospheric seeing measurements, focus, optical analysis, etc. Supports 100*100 image x 500 frames; 50*50 image x 4000frames; 25*25 image x 16000 frames; 10*10 image x 250000 frames.
- Shutter Type: Electronic Rolling Shutter
- Computer Interface: USB 3.0
- Built-in Image Buffer: 1GByte/2GByte DDR3 Memory
- Cooling System: Dual Stage TEC cooler（-35C below ambient）
- Anti-Dew Heater: Yes
- Telescope Interface: M54x0.75
- Optic Window Type: AR+AR High Quality Multi-Layer Anti-Reflection Coating
- Back Focal Length: 12.5mm（±0.3）
- Weigth: 1006g
- 268M Camera
