QHY miniCAM8C Color Camera with Deep Sky Combo 4 Filter Set
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.

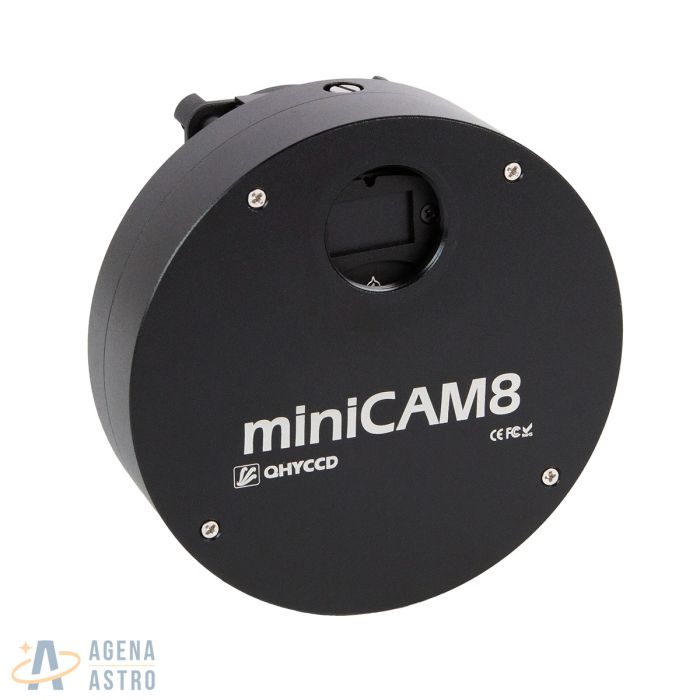

QHY miniCAM8C Overview - Deep Sky Combo (Color 4 Filter Set & Filter Wheel)
At just over 4 inches in diameter and a few inches thick, the new miniCAM8 is a compact, high resolution, high performance, cooled imaging system capable of exceptional, high quality deep space images as well as high quality, high resolution planetary images.
So often, compactness in astroimaging is achieved at the expense of some other critical feature found in multi- component cooled systems, such sensor quality or thermoelectric cooling, etc. Such is not the case with the new miniCAM8. Based on Sony’s IMX585 8 MP sensor, the miniCAM8 includes full TE cooling capable of reaching a delta of -45C from ambient along with a built- in 8-position filter wheel for complete LRGB and narrowband imaging.
Features
High Near-Infrared Sensitivity
The IMX585 is a Sony Starvis II processor that enables high sensitivity and high dynamic range (HDR). It also improves sensitivity in the near-infrared range by approximately 1.7 times compared to the IMX485. The new camera QHY miniCAM8 has a maximum quantum efficiency of 60% in the near-infrared band and 92% in the visible wavelength band.
BSI
One benefit of the back-illuminated CMOS structure is improved full-well capacity. This is particularly helpful for sensors with small pixels. In a typical front-illuminated sensor, photons from the target entering the photosensitive layer of the sensor must first pass through the metal wiring that is embedded just above the photosensitive layer. The wiring structure reflects some of the photons and reduces the efficiency of the sensor.
In the back-illuminated sensor, the light is allowed to enter the photosensitive surface from the reverse side. In this case, the sensor’s embedded wiring structure is below the photosensitive layer. As a result, more incoming photons strike the photosensitive layer, and more electrons are generated and captured in the pixel well. This ratio of photon to electron production is called quantum efficiency. The higher the quantum efficiency, the more efficient the sensor is at converting photons to electrons, and hence the more sensitive the sensor is to capturing an image of something dim.
Zero Amplify Glow
QHY miniCAM8 is also a zero amplifer glow camera.
Anti-Dew Technology
Based on almost 20-years of cooled camera design experience, QHY cooled cameras have implemented full dew control solutions. The optic window has a built-in dew heater, and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window can prevent the formation of dew, and the sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber.
Cooling
In addition to dual-stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise.
Linearity HDR Mode
The native ADC of the IMX585 sensor is 12-bit. Compared to 16-bit, the 12-bit depth offers fewer bits, resulting in a relatively narrower dynamic range, which may lead to issues such as insufficient color gradation and potential information loss. During the product development of miniCAM8, QHYCCD merged high and low gain to extend the data to 16-bit. However, since this 16-bit depth is not native, a sudden shift in linearity might occur, affecting the smooth transition in images. To address this, QHYCCD developed the “Linearity HDR” mode, which uses an algorithm-based approach to correct image linearity through software, ensuring smoother transitions and richer color representation.
Filters Included
This camera version comes with the following filter set pre-installed:
- LPF + HLP + FCE + UV/IR Cut filters
QHY also sells other filter sets separately for other imaging applications with this camera.
Specifications
-
Model: QHY miniCAM8C
-
CMOS Sensor: Sony IMX585
-
Version: Color
-
BSI/FSI: BSI
-
Sensor Size: 1/1.2inch
-
Pixel Size: 2.9μm*2.9μm
-
Total Pixel Area: 3856*2180
-
Effective Pixels: 8 MP
-
Full Well Capacity: 54ke-
-
Readout Noise: 0.76 – 7.8 e-
-
A/D: 12bit (output as 16-bit)
-
Full Frame Rates: Full Resolution: 41.5FPS@8bit，23.5FPS @16bit
-
ROI Frame Rates: Full Resolution 1080Lines, 82FPS@8bit, 47FPS@16bit；640Lines, 177FPS@8bit, 105FPS@16bit
-
Exposure Time Range: 11μs-900sec
-
Shutter Type: Electronic Rolling Shutter
-
Built-in Image Buffer: 512MB DDR3
-
Computer Interface: USB3.0
-
Telescope Interface: 1.25 inch
-
Optic Window Type: AR+AR
-
Filter Wheel: Built-in 8-Position Carousel
-
Back Focal Length (sensor to front plate): 17.5mm
- Back Focal Length (front plate to 2" M48 adapter threads): 37.5mm
-
Cooling System:
-
Dual Stage TEC cooler: Long exposures (> 1 second) typically -45℃ below ambient
Weight
-
- Weight: 480g

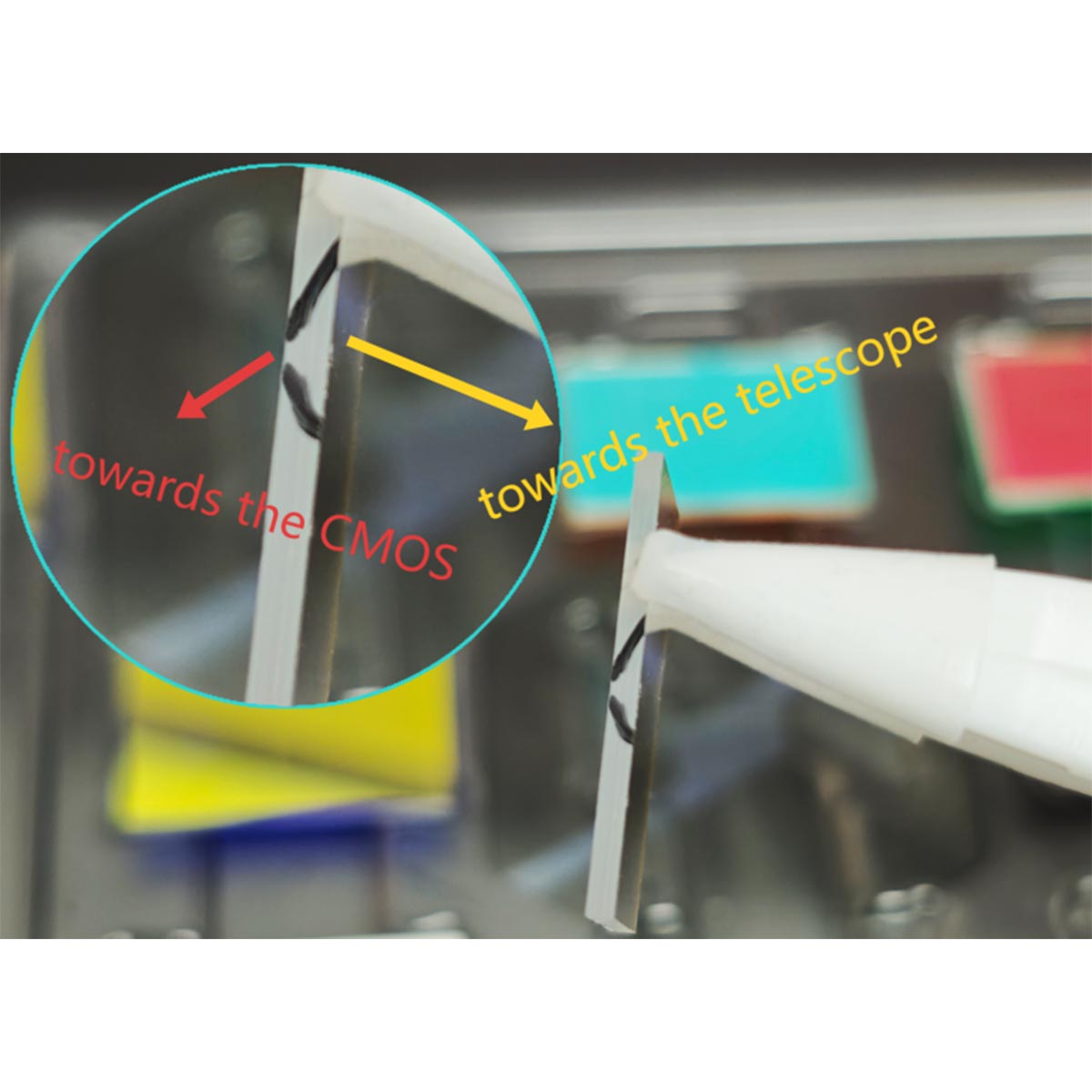

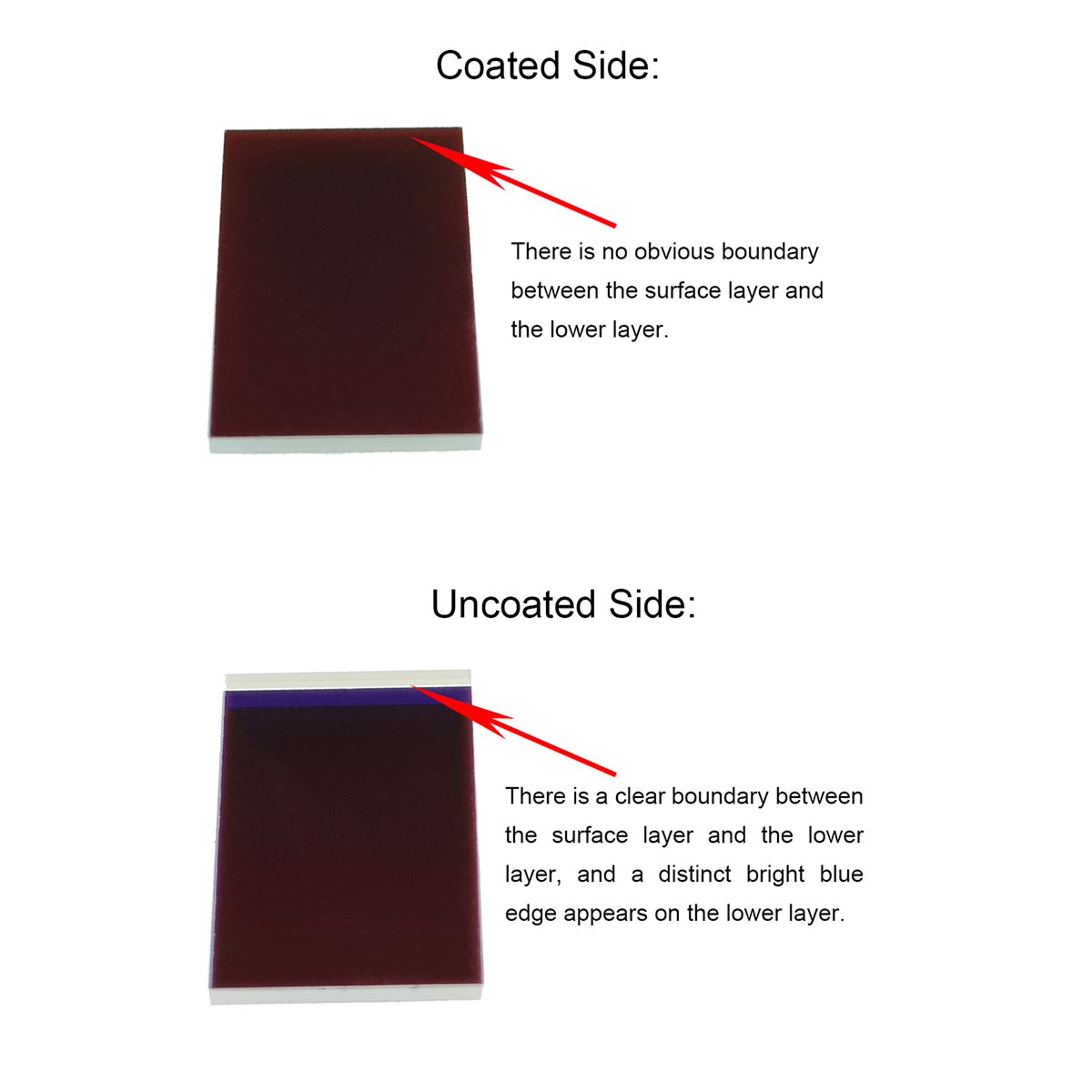

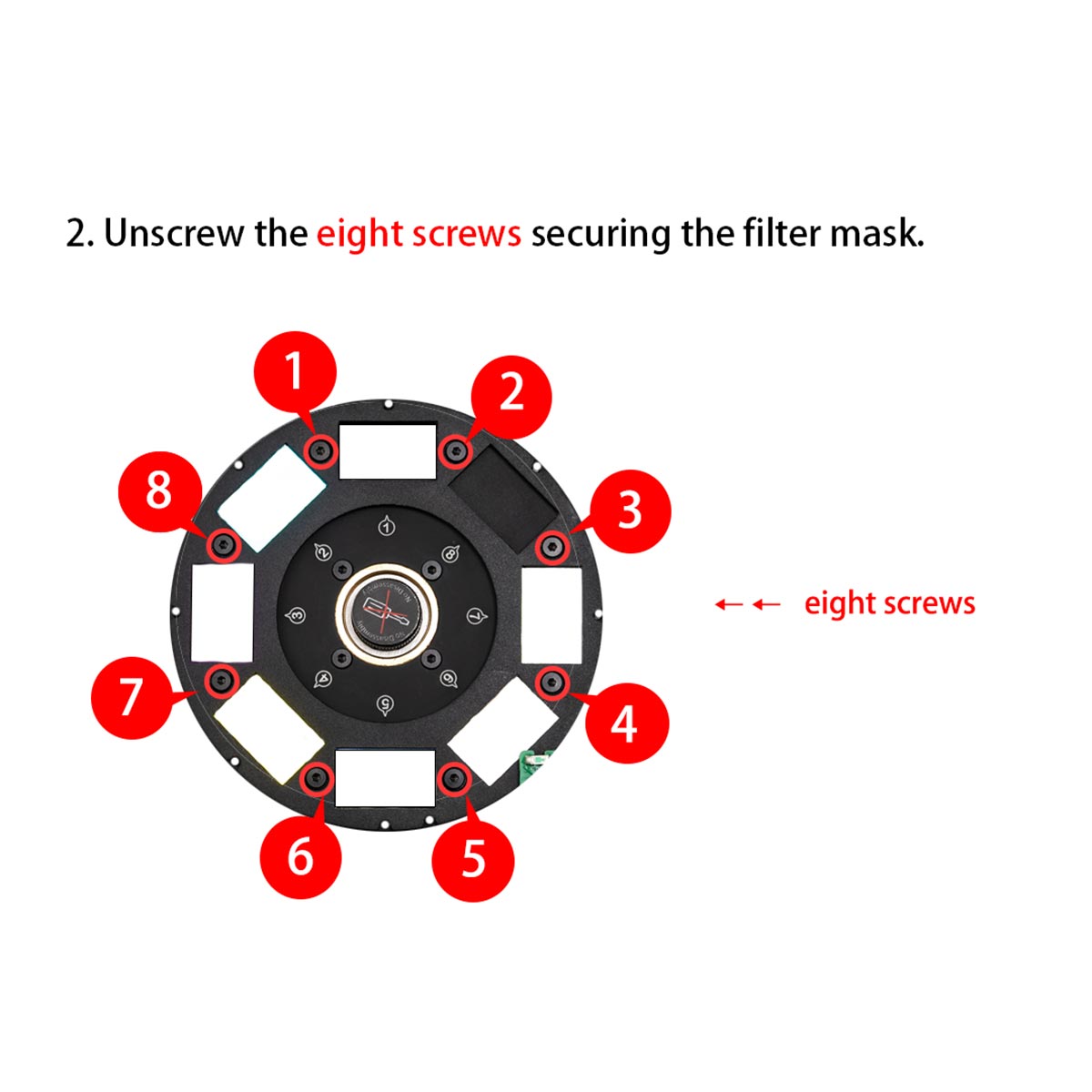

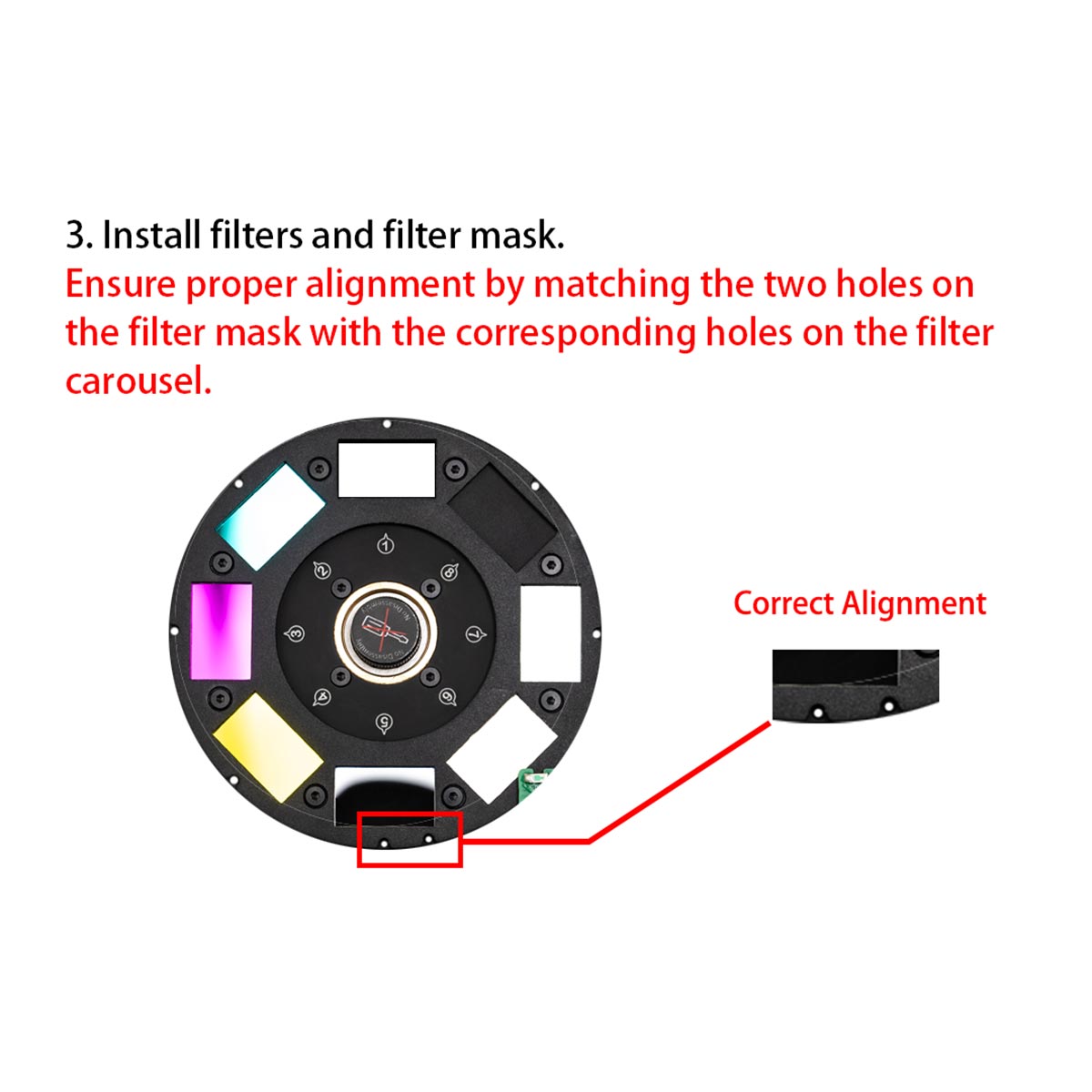

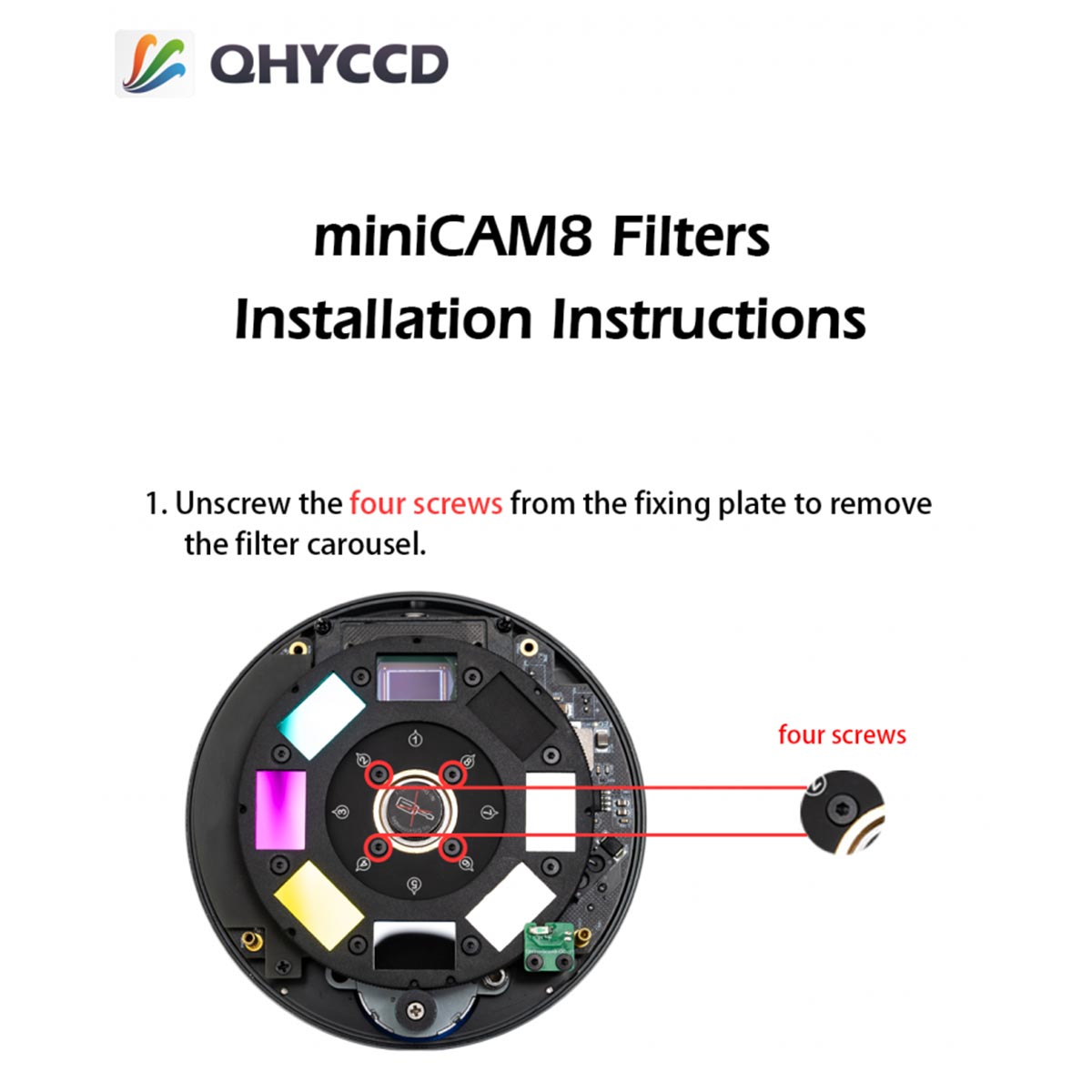

How to Install the Filters on the MiniCAM8
Other Information
- Country of Manufacture: China
QHY miniCAM8C Overview - Deep Sky Combo (Color 4 Filter Set & Filter Wheel)
At just over 4 inches in diameter and a few inches thick, the new miniCAM8 is a compact, high resolution, high performance, cooled imaging system capable of exceptional, high quality deep space images as well as high quality, high resolution planetary images.
So often, compactness in astroimaging is achieved at the expense of some other critical feature found in multi- component cooled systems, such sensor quality or thermoelectric cooling, etc. Such is not the case with the new miniCAM8. Based on Sony’s IMX585 8 MP sensor, the miniCAM8 includes full TE cooling capable of reaching a delta of -45C from ambient along with a built- in 8-position filter wheel for complete LRGB and narrowband imaging.
Features
High Near-Infrared Sensitivity
The IMX585 is a Sony Starvis II processor that enables high sensitivity and high dynamic range (HDR). It also improves sensitivity in the near-infrared range by approximately 1.7 times compared to the IMX485. The new camera QHY miniCAM8 has a maximum quantum efficiency of 60% in the near-infrared band and 92% in the visible wavelength band.
BSI
One benefit of the back-illuminated CMOS structure is improved full-well capacity. This is particularly helpful for sensors with small pixels. In a typical front-illuminated sensor, photons from the target entering the photosensitive layer of the sensor must first pass through the metal wiring that is embedded just above the photosensitive layer. The wiring structure reflects some of the photons and reduces the efficiency of the sensor.
In the back-illuminated sensor, the light is allowed to enter the photosensitive surface from the reverse side. In this case, the sensor’s embedded wiring structure is below the photosensitive layer. As a result, more incoming photons strike the photosensitive layer, and more electrons are generated and captured in the pixel well. This ratio of photon to electron production is called quantum efficiency. The higher the quantum efficiency, the more efficient the sensor is at converting photons to electrons, and hence the more sensitive the sensor is to capturing an image of something dim.
Zero Amplify Glow
QHY miniCAM8 is also a zero amplifer glow camera.
Anti-Dew Technology
Based on almost 20-years of cooled camera design experience, QHY cooled cameras have implemented full dew control solutions. The optic window has a built-in dew heater, and the chamber is protected from internal humidity condensation. An electric heating board for the chamber window can prevent the formation of dew, and the sensor itself is kept dry with our silicon gel tube socket design for control of humidity within the sensor chamber.
Cooling
In addition to dual-stage TE cooling, QHYCCD implements proprietary technology in hardware to control the dark current noise.
Linearity HDR Mode
The native ADC of the IMX585 sensor is 12-bit. Compared to 16-bit, the 12-bit depth offers fewer bits, resulting in a relatively narrower dynamic range, which may lead to issues such as insufficient color gradation and potential information loss. During the product development of miniCAM8, QHYCCD merged high and low gain to extend the data to 16-bit. However, since this 16-bit depth is not native, a sudden shift in linearity might occur, affecting the smooth transition in images. To address this, QHYCCD developed the “Linearity HDR” mode, which uses an algorithm-based approach to correct image linearity through software, ensuring smoother transitions and richer color representation.
Filters Included
This camera version comes with the following filter set pre-installed:
- LPF + HLP + FCE + UV/IR Cut filters
QHY also sells other filter sets separately for other imaging applications with this camera.
Specifications
-
Model: QHY miniCAM8C
-
CMOS Sensor: Sony IMX585
-
Version: Color
-
BSI/FSI: BSI
-
Sensor Size: 1/1.2inch
-
Pixel Size: 2.9μm*2.9μm
-
Total Pixel Area: 3856*2180
-
Effective Pixels: 8 MP
-
Full Well Capacity: 54ke-
-
Readout Noise: 0.76 – 7.8 e-
-
A/D: 12bit (output as 16-bit)
-
Full Frame Rates: Full Resolution: 41.5FPS@8bit，23.5FPS @16bit
-
ROI Frame Rates: Full Resolution 1080Lines, 82FPS@8bit, 47FPS@16bit；640Lines, 177FPS@8bit, 105FPS@16bit
-
Exposure Time Range: 11μs-900sec
-
Shutter Type: Electronic Rolling Shutter
-
Built-in Image Buffer: 512MB DDR3
-
Computer Interface: USB3.0
-
Telescope Interface: 1.25 inch
-
Optic Window Type: AR+AR
-
Filter Wheel: Built-in 8-Position Carousel
-
Back Focal Length (sensor to front plate): 17.5mm
- Back Focal Length (front plate to 2" M48 adapter threads): 37.5mm
-
Cooling System:
-
Dual Stage TEC cooler: Long exposures (> 1 second) typically -45℃ below ambient
Weight
-
- Weight: 480g
How to Install the Filters on the MiniCAM8
- 1x camera body
- 1x 12V 5A power adapter
- 1x 12V power cable
- 1x 12V self-locking power cable
- 1x USB 3.0 cable (1.3m)
- 1x C-mount to 1.25" adapter
- 1x C-mount to M48 (2" adapter)
- 1x filters mounting tweezer
- 1x screwdriver
- 1x camera packaging bag
- 4x filters
- light pollution LPF (19x12x1.1 mm)
- heavy light polution HLP (19*12*1.1 mm)
- 4-channel enhancement FCE (19*12*1.1 mm)
- UV/IR Cut (19*12*1.1 mm)
