- Doublet apochromatic optical design with FPL-53 glass
- Two-element, air-spaced optical assembly minimizes false color
- 120mm aperture, 900mm focal length, f/7.5 focal ratio
- 2.8-inch dual-speed Crayford-style focuser
- Thread-on dew shield
- Aluminum tube coated with glossy, white metal-flake finish
EvoStar 120EDX APO Doublet

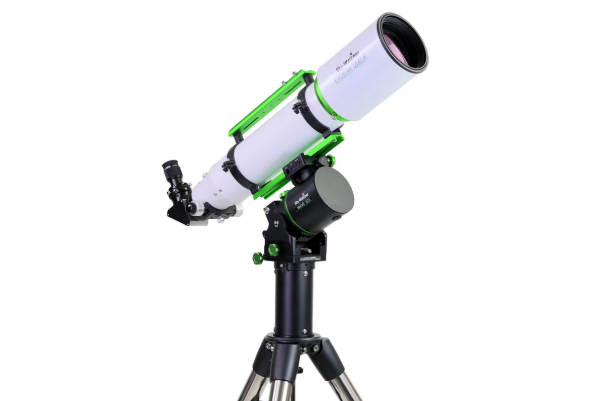

The Sky-Watcher Evostar 120EDX combines premium ED doublet optics with a versatile 120mm aperture, 900mm focal length, and f/7.5 focal ratio for both visual astronomy and astrophotography. The Evostar EDX refractor series are designed to deliver sharp, high-contrast views for both visual astronomy and astrophotography. Their doublet optics produce dark sky backgrounds and detailed views of planets and deep-sky objects, making the EDX series a strong choice for astronomers looking for high-quality, versatile performance.

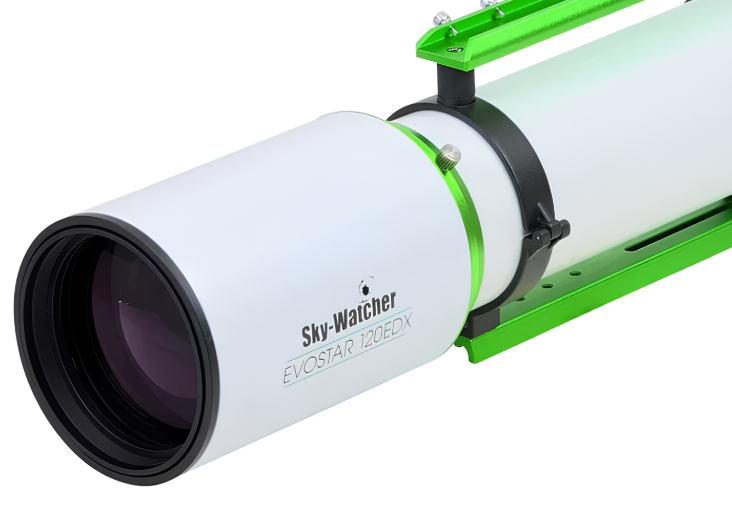

Metallic High-Transmission Coatings
The Evostar 120EDX pairs a 120mm aperture with a 900mm focal length and f/7.5 focal ratio, making it well suited for detailed imaging of the Moon, planets, star clusters, and smaller deep-sky targets such as galaxies. Its matched ED doublet optics use FPL-53 glass and Sky-Watcher’s Metallic High-Transmission Coatings™ (MHTC™) to minimize false color and produce sharp, high-contrast images. Internal baffling helps control stray light, while the aluminum optical tube keeps the telescope lighter and easier to manage.
Doublet Affordability
Choosing a doublet refractor offers several advantages, including less glass, lower weight, and easier portability. The simpler design can also help keep costs down, leaving more room in your budget for a mount, camera, or accessories while maintaining a lightweight astrophotography setup! Please note any camera, mount, tripod, and other visual accessories imaged are not included.

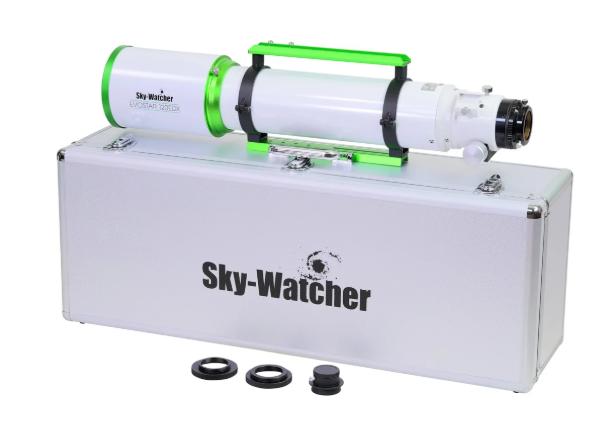

Everything You Need to Get Started
Evostar EDX refractors come packed in a protective, foam-lined aluminum case with key accessories included. Each telescope features a 2.8" Crayford-style focuser, tube rings, camera angle adjuster, thread-on dew shield, focuser adapter ring, spacer, 1.25"-to-2" adapter, and V-style dovetail.
Mechanical:
- Focuser: 2.8" Dual-speed Crayford
- Rotatable Focuser: No
- Camera Angle Adjuster: Yes
- Compression Ring: Yes
- Dew Shield: Thread-on
- OTA Material: Aluminum
- Tube Length:
-
- 33.38-30.47"
- 847.9-774.0mm
-
- Dew Shield: ⌀ 5.91"/150mm
- OTA Weight: 13.9 lb/6.3kg
- Dovetail: V-style
- Dovetail Length: 8"/203.2mm
- Mounting Ring Threads: 1/4"-20
- Shipping Weight: 15.0 kg/33 lb
- Shipping Dimensions:
-
- 38.25 x 17 x 14.5"
- 97.2 x 43.2 x 36.8cm
-
Optical:
- Optical Design: Apochromatic
- Lens Coatings: Fully multi-coated
- Lens Design: ED air-spaced doublet
- ED Glass: FPL-53
- Quality: Diffraction limited (1/4 wave)
- Collimatable Cell: No; self-aligning
- Aperture: 120 mm/4.72"
- Focal Ratio: f/7.5
- Focal Length: 900 mm
Observational:
- Dawes Limit: 0.97"
- Rayleigh Limit: 1.16"
- Limiting Magnitude: 12.9
- Minimum Magnification: 17x
- Maximum Magnification: 236x
- Intended Use: Visual / Imaging
Other Information
- Country of Manufacture: China
EvoStar 120EDX APO Doublet
The Sky-Watcher Evostar 120EDX combines premium ED doublet optics with a versatile 120mm aperture, 900mm focal length, and f/7.5 focal ratio for both visual astronomy and astrophotography. The Evostar EDX refractor series are designed to deliver sharp, high-contrast views for both visual astronomy and astrophotography. Their doublet optics produce dark sky backgrounds and detailed views of planets and deep-sky objects, making the EDX series a strong choice for astronomers looking for high-quality, versatile performance.
Metallic High-Transmission Coatings
The Evostar 120EDX pairs a 120mm aperture with a 900mm focal length and f/7.5 focal ratio, making it well suited for detailed imaging of the Moon, planets, star clusters, and smaller deep-sky targets such as galaxies. Its matched ED doublet optics use FPL-53 glass and Sky-Watcher’s Metallic High-Transmission Coatings™ (MHTC™) to minimize false color and produce sharp, high-contrast images. Internal baffling helps control stray light, while the aluminum optical tube keeps the telescope lighter and easier to manage.
Doublet Affordability
Choosing a doublet refractor offers several advantages, including less glass, lower weight, and easier portability. The simpler design can also help keep costs down, leaving more room in your budget for a mount, camera, or accessories while maintaining a lightweight astrophotography setup! Please note any camera, mount, tripod, and other visual accessories imaged are not included.
Everything You Need to Get Started
Evostar EDX refractors come packed in a protective, foam-lined aluminum case with key accessories included. Each telescope features a 2.8" Crayford-style focuser, tube rings, camera angle adjuster, thread-on dew shield, focuser adapter ring, spacer, 1.25"-to-2" adapter, and V-style dovetail.
Mechanical:
- Focuser: 2.8" Dual-speed Crayford
- Rotatable Focuser: No
- Camera Angle Adjuster: Yes
- Compression Ring: Yes
- Dew Shield: Thread-on
- OTA Material: Aluminum
- Tube Length:
-
- 33.38-30.47"
- 847.9-774.0mm
-
- Dew Shield: ⌀ 5.91"/150mm
- OTA Weight: 13.9 lb/6.3kg
- Dovetail: V-style
- Dovetail Length: 8"/203.2mm
- Mounting Ring Threads: 1/4"-20
- Shipping Weight: 15.0 kg/33 lb
- Shipping Dimensions:
-
- 38.25 x 17 x 14.5"
- 97.2 x 43.2 x 36.8cm
-
Optical:
- Optical Design: Apochromatic
- Lens Coatings: Fully multi-coated
- Lens Design: ED air-spaced doublet
- ED Glass: FPL-53
- Quality: Diffraction limited (1/4 wave)
- Collimatable Cell: No; self-aligning
- Aperture: 120 mm/4.72"
- Focal Ratio: f/7.5
- Focal Length: 900 mm
Observational:
- Dawes Limit: 0.97"
- Rayleigh Limit: 1.16"
- Limiting Magnitude: 12.9
- Minimum Magnification: 17x
- Maximum Magnification: 236x
- Intended Use: Visual / Imaging
| Manufacturer | Sky Watcher |
|---|---|
| Telescope Focal Length | 801 - 900mm |
- 1x Evostar 120EDX APO Doublet
- 1x Tube Rings
- 1x 2.8-inch Crayford-style Focuser
- 1x Camera Angle Adjuster
- 1x Thread-on Dew Shield
- 1x Focuser Adapter Ring
- 1x Spacer
- 1x 1.25 to 2-inch Adapter
- 1x V-style Dovetail
- Doublet apochromatic optical design with FPL-53 glass
- Two-element, air-spaced optical assembly minimizes false color
- 120mm aperture, 900mm focal length, f/7.5 focal ratio
- 2.8-inch dual-speed Crayford-style focuser
- Thread-on dew shield
- Aluminum tube coated with glossy, white metal-flake finish
EvoStar 120EDX APO Doublet
The Sky-Watcher Evostar 120EDX combines premium ED doublet optics with a versatile 120mm aperture, 900mm focal length, and f/7.5 focal ratio for both visual astronomy and astrophotography. The Evostar EDX refractor series are designed to deliver sharp, high-contrast views for both visual astronomy and astrophotography. Their doublet optics produce dark sky backgrounds and detailed views of planets and deep-sky objects, making the EDX series a strong choice for astronomers looking for high-quality, versatile performance.
Metallic High-Transmission Coatings
The Evostar 120EDX pairs a 120mm aperture with a 900mm focal length and f/7.5 focal ratio, making it well suited for detailed imaging of the Moon, planets, star clusters, and smaller deep-sky targets such as galaxies. Its matched ED doublet optics use FPL-53 glass and Sky-Watcher’s Metallic High-Transmission Coatings™ (MHTC™) to minimize false color and produce sharp, high-contrast images. Internal baffling helps control stray light, while the aluminum optical tube keeps the telescope lighter and easier to manage.
Doublet Affordability
Choosing a doublet refractor offers several advantages, including less glass, lower weight, and easier portability. The simpler design can also help keep costs down, leaving more room in your budget for a mount, camera, or accessories while maintaining a lightweight astrophotography setup! Please note any camera, mount, tripod, and other visual accessories imaged are not included.
Everything You Need to Get Started
Evostar EDX refractors come packed in a protective, foam-lined aluminum case with key accessories included. Each telescope features a 2.8" Crayford-style focuser, tube rings, camera angle adjuster, thread-on dew shield, focuser adapter ring, spacer, 1.25"-to-2" adapter, and V-style dovetail.
Mechanical:
- Focuser: 2.8" Dual-speed Crayford
- Rotatable Focuser: No
- Camera Angle Adjuster: Yes
- Compression Ring: Yes
- Dew Shield: Thread-on
- OTA Material: Aluminum
- Tube Length:
-
- 33.38-30.47"
- 847.9-774.0mm
-
- Dew Shield: ⌀ 5.91"/150mm
- OTA Weight: 13.9 lb/6.3kg
- Dovetail: V-style
- Dovetail Length: 8"/203.2mm
- Mounting Ring Threads: 1/4"-20
- Shipping Weight: 15.0 kg/33 lb
- Shipping Dimensions:
-
- 38.25 x 17 x 14.5"
- 97.2 x 43.2 x 36.8cm
-
Optical:
- Optical Design: Apochromatic
- Lens Coatings: Fully multi-coated
- Lens Design: ED air-spaced doublet
- ED Glass: FPL-53
- Quality: Diffraction limited (1/4 wave)
- Collimatable Cell: No; self-aligning
- Aperture: 120 mm/4.72"
- Focal Ratio: f/7.5
- Focal Length: 900 mm
Observational:
- Dawes Limit: 0.97"
- Rayleigh Limit: 1.16"
- Limiting Magnitude: 12.9
- Minimum Magnification: 17x
- Maximum Magnification: 236x
- Intended Use: Visual / Imaging
Other Information
- Country of Manufacture: China
| Manufacturer | Sky Watcher |
|---|---|
| Telescope Focal Length | 801 - 900mm |
- 1x Evostar 120EDX APO Doublet
- 1x Tube Rings
- 1x 2.8-inch Crayford-style Focuser
- 1x Camera Angle Adjuster
- 1x Thread-on Dew Shield
- 1x Focuser Adapter Ring
- 1x Spacer
- 1x 1.25 to 2-inch Adapter
- 1x V-style Dovetail
