- Compatible with Mewlon series OTAs.
- All encompassing optical correction with 0.8x reduction and field flattener.
- ED glass elements and fully-multi coatings for chromatic aberration and color fringing correction.
Takahashi 0.8x Reducer/Flattener for Mewlon Series OTAs
This Takahashi reducer-flattener combination for the Mewlon Cassegrain reflector series shortens the focal length and ratio by 0.8x! This transforms the Dall-Kirkham into a faster ≈ f/9, along with increasing the field of view, it helps make targets brighter and accessible with shorter exposure times compared to prime focus alone!
Built with Extra-low Dispersion (ED) glass and fully-multi coated, it not only compresses focal length but also acts as a field flattener and coma corrector. On a Mewlon-210, for example, it enlarges the usable image circle to about 30 mm in diameter, making it suitable for larger imaging sensors while maintaining excellent optical performance from center to edge.

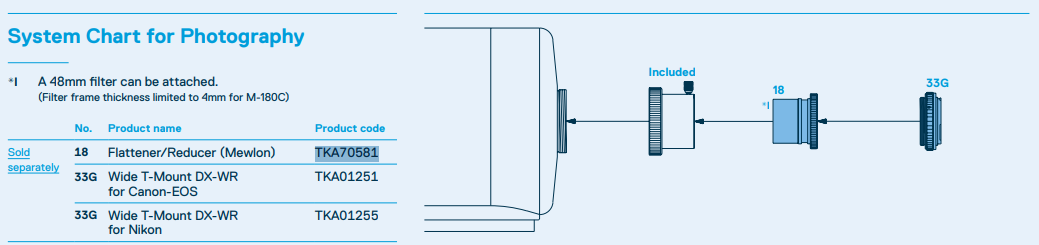

Train Connection Chart
Specifications:
-
Reduction: 0.8x
- Optical design: Extra-low dispersion
- Coatings: Fully multi-coated
-
OTA side Interface: 2 in nosepiece
- Camera side interface: M54x0.75 - female
-
Back focus: 2.2 in (56.2 mm)
-
Used with M-180C
-
-
Focal length: 1760 mm
-
Focal ratio: f/9.8
-
Image circle: 30 mm
-
-
-
Used with M-210
-
-
Focal length: 1961 mm
-
Focal ratio: f/9.2
-
Image circle: 30 mm
-
-
Other Information
- Country of Manufacture: Japan
