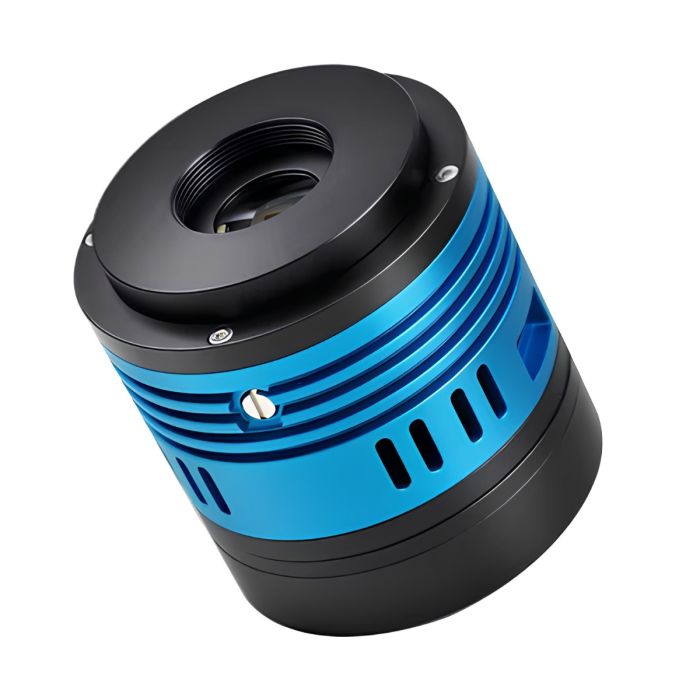

ToupTek AE676M Mono Astronomy Camera
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Sony IMX676 12.5MP monochrome sensor with a 1/1.6" square format
- High infrared sensitivity with near-monochrome-level quantum efficiency
- Detachable magnetic cooling fan for vibration-free or enhanced cooling
- Built-in 512MB DDR3 buffer for stable, frame-drop-free data transfer
- Native 12-bit ADC with 16-bit HDR output for enhanced dynamic range
- HCG, LCG, and HDR gain modes for versatile imaging
- Compatible with tripods, telescopes, guide scopes, and wide-angle lenses
ToupTek AE676M Mono Astro Camera: One Camera, Endless Possibilites!
Powered by the Sony IMX676 monochrome CMOS sensor, the AE676M combines exceptional full-spectrum sensitivity, sharp Bayer-free imaging, and impressive near-infrared (NIR) performance in an ultra-compact design. From high-resolution lunar and solar mosaics to narrowband deep-sky imaging, planetary photography, meteors, and the Milky Way, this versatile camera is built to capture it all!
Multi-Purpose Astronomy Camera

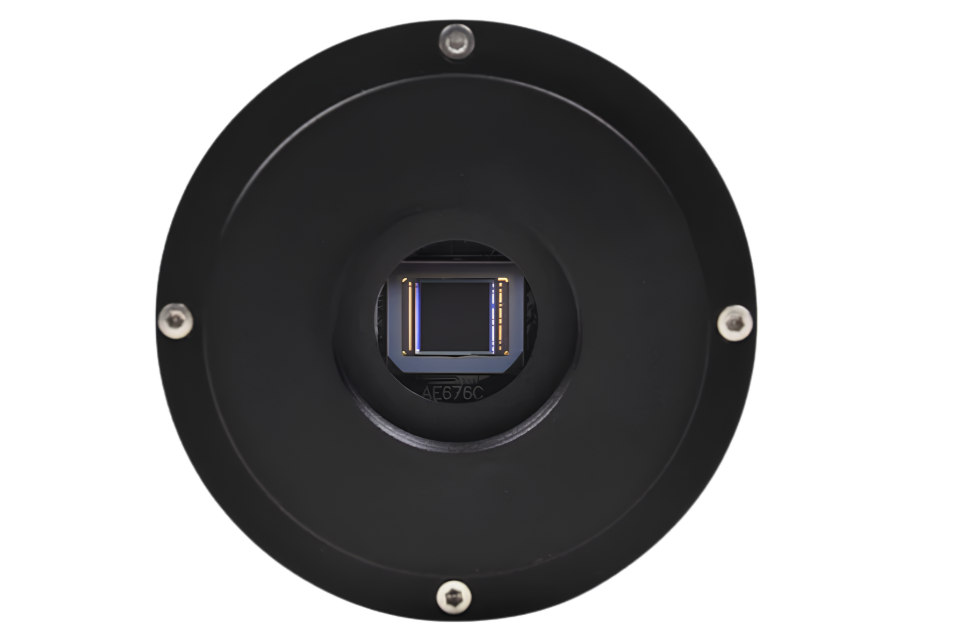

Square Sensor, Flexible Framing
Featuring a 1/1.6" square format, this camera simplifies framing, mosaic stitching, and post-processing. Ideal for wide-angle and fisheye lenses, it maximizes sky coverage for meteor detection and all-sky monitoring.

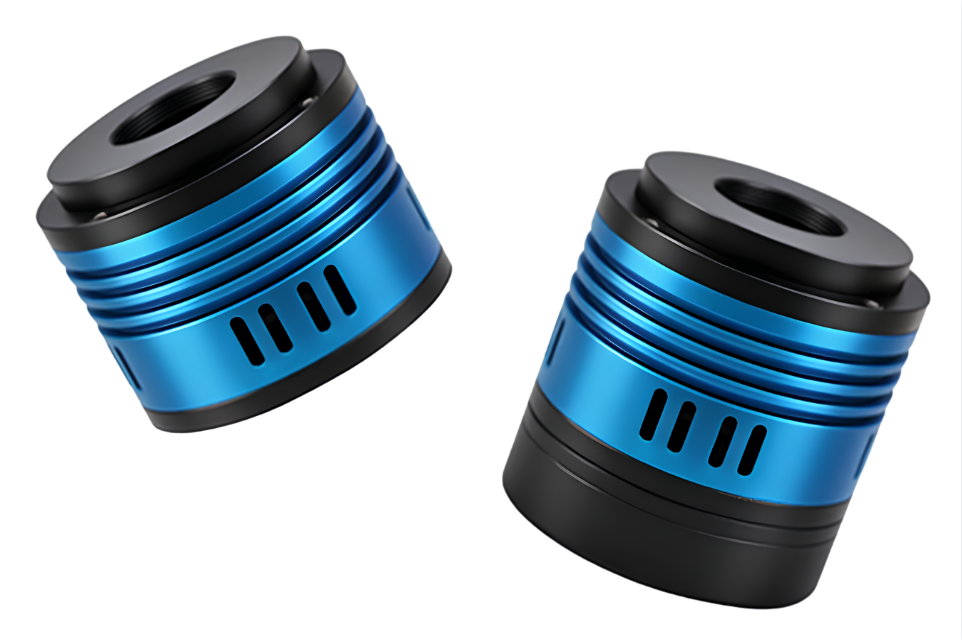

Magnetic Cooling System
Switch between fanless, vibration-free TEC cooling down to 5°C below ambient and enhanced cooling up to 20°C below ambient with the detachable magnetic fan. Both modes provide precise temperature control to reduce thermal noise for cleaner astrophotography.

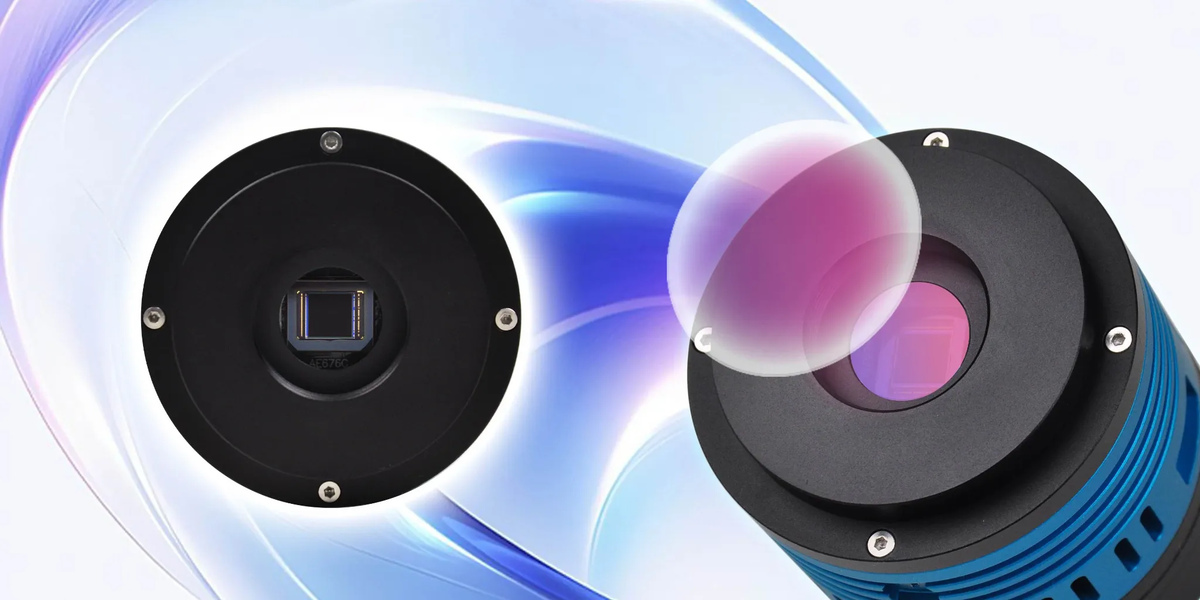

AR-Coated Window
The dual-sided AR-coated optical window reduces reflections and light loss, and protects against physical damage. Enhancing light transmission across the 400–1100nm spectrum, supporting infrared Milky Way imaging when paired with an LP825 filter (Sold Separately).
What Can You Capture with AE676M?
Designed to cover a wide range of multi-role imaging needs, the AE676M features a 1/1.6” square mono sensor, giving imagers the flexibility to capture solar, lunar, planetary, and deep-sky targets with a single camera. From high-resolution lunar mosaics to near-infrared planetary details and narrowband DSO imaging, AE676M combines full-spectrum sensitivity, ultra-high NIR quantum efficiency, low read noise, and high-speed framing for consistently crisp, detailed results.
Why Sony IMX676 Square Sensor?
- Seamless Mosaic Stitching: Perfect symmetry reduces overlap waste and removes tedious cropping when assembling high-resolution solar and lunar panoramas.
- 360° All-Sky & Wide-Field Coverage: Pairs seamlessly with fisheye and short-focal-length lenses for round field-of-view targets, meteor tracking, and all-sky monitoring without wasting active sensor area.
- Rotation-Free Target Framing: Center emission nebulae, globular clusters, or planetary disks effortlessly without constantly re-rotating your camera train.
- Faster Post-Processing Workflow: Standardized 1:1 square frames simplify stacking, alignment, and channel combination across LRGB and narrowband workflows.

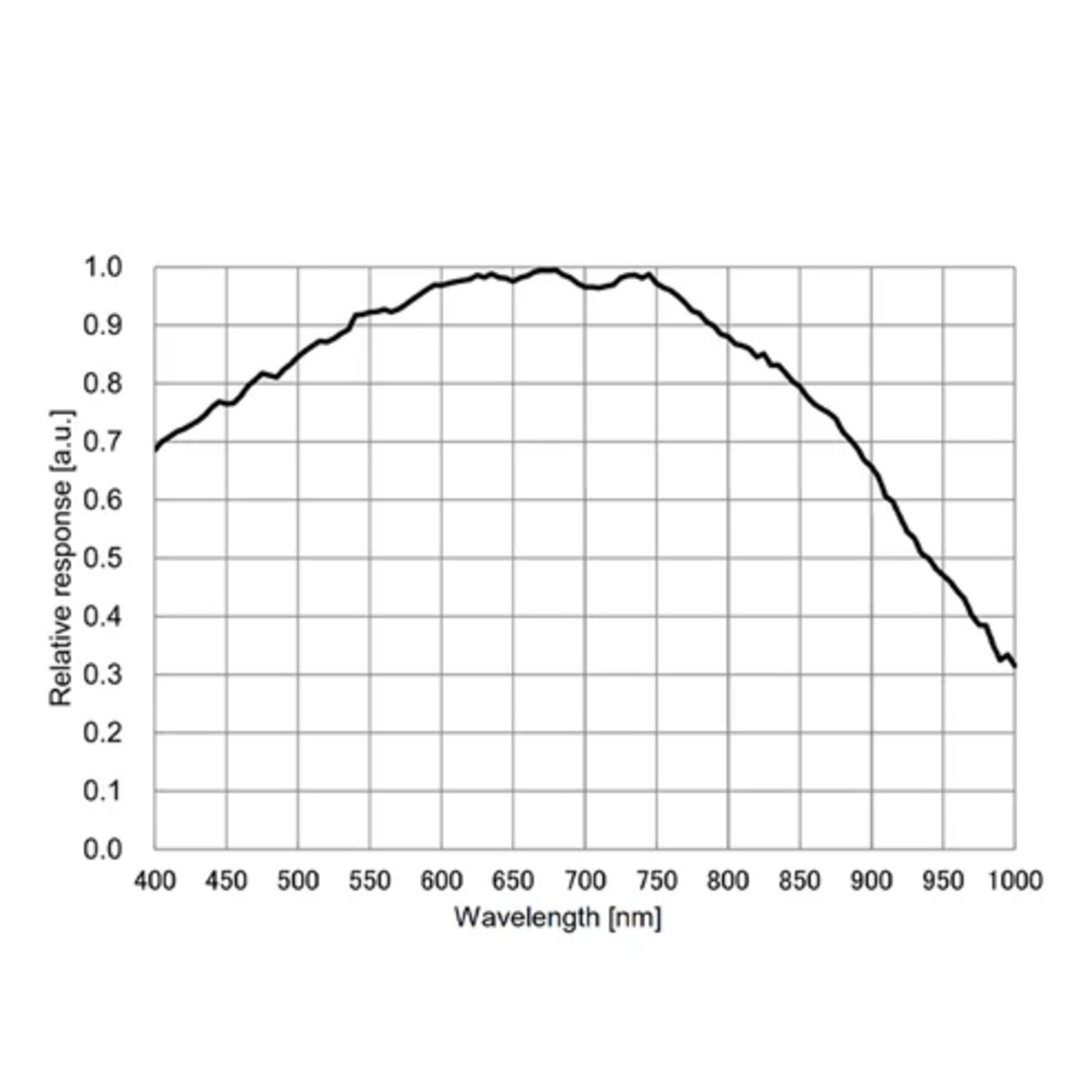

Exceptional H-alpha & Near-Infrared Sensitivity
Powered by STARVIS 2 technology, the AE676M delivers over 95% relative response efficiency across the 600–750nm range, maximizing the capture of H-alpha-rich targets, including solar prominences, flares, and emission nebula details.
Its outstanding sensitivity beyond 800nm in the near-infrared spectrum enables stunning infrared Milky Way imaging through light pollution when paired with IR825/850 filters. Combined with narrowband filters, it provides efficient deep-sky signal acquisition even in light-polluted urban environments.
Native 12-bit ADC & Hardware ROI
Capture 12-bit images natively with software binning from 1x1 to 8x8 and hardware binning from 1x1 to 2x2. Hardware ROI allows frame rates up to 993 FPS at reduced resolution (8-bit mode), making it perfect for high-speed planetary and solar/lunar detail capture.
Equipped with a 512MB DDR3 buffer, the AE676M ensures ultra-low readout noise (as low as 1.01 e⁻) and a high dynamic range of 69.7dB without frame drops, preserving details in both highlights and shadows.
Software Capabilities
Seamlessly connect via the StellaVita App, ToupSky software, or use ASCOM, INDI, and DirectShow SDKs for broad third-party software integration.
Specifications
-
Sensor: Sony IMX676 Monochrome CMOS (STARVIS 2 Technology)
-
Image Resolution: 12.5 Megapixels (3536 x 3536)
-
Pixel Size: 2.0 µm x 2.0 µm
-
Sensor Size: 1/1.6" Square Format
-
Imaging Area: 7.07 x 7.07 mm
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: Native 12-bit ADC / 16-bit HDR Output
-
Quantum Efficiency (QE): >83%
-
Full-Well Capacity: 11,696 e⁻
-
Read Noise: 1.04–3.83 e⁻
-
Dynamic Range: 69.7 dB
-
Maximum Signal-to-Noise Ratio: 40.6 dB
-
DDR3 Cache: 512 MB
-

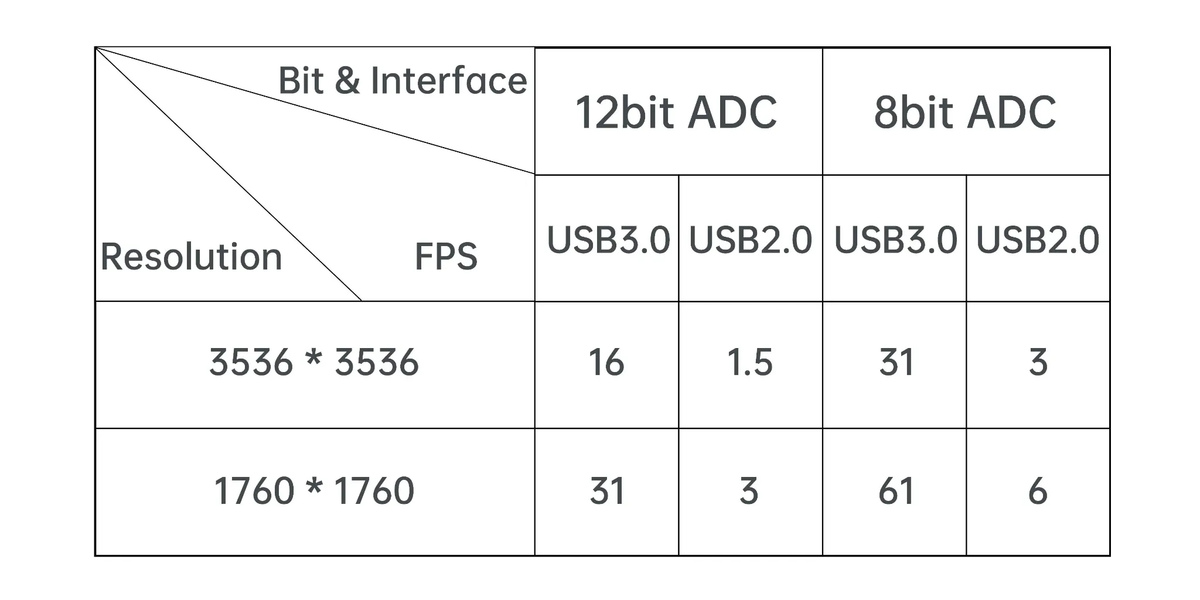

Maximum Frame Rate:
-
Full Resolution (3536 x 3536): 31 FPS (8-bit) / 16 FPS (12-bit) via USB 3.0
-
Hardware ROI: Up to 993 FPS at reduced resolution (8-bit)
-
-
Binning: 1x1 to 2x2 Hardware / 1x1 to 8x8 Software
-
Cooling Method: Single-Stage TEC with PID Temperature Control and Detachable Magnetic Fan
-
Fanless Mode: Up to 5°C below ambient (±0.1°C stability)
-
Enhanced Mode: Up to 20°C below ambient with magnetic fan
-
-
Gain Modes: HCG (High Conversion Gain), LCG (Low Conversion Gain), and HDR
-
Protective Window: Dual-Sided AR-Coated Glass (400–1100 nm)
-
Data Interface: USB 3.0 Type-C (USB 2.0 Compatible)
-
Camera Connections: M42 x 0.75, 1.25", C-Mount, and CS-Mount (with appropriate adapters)
-
Backfocus: 12.5 mm (0.49") with M42 connection
-
Weight: 210 g (0.46 lb)

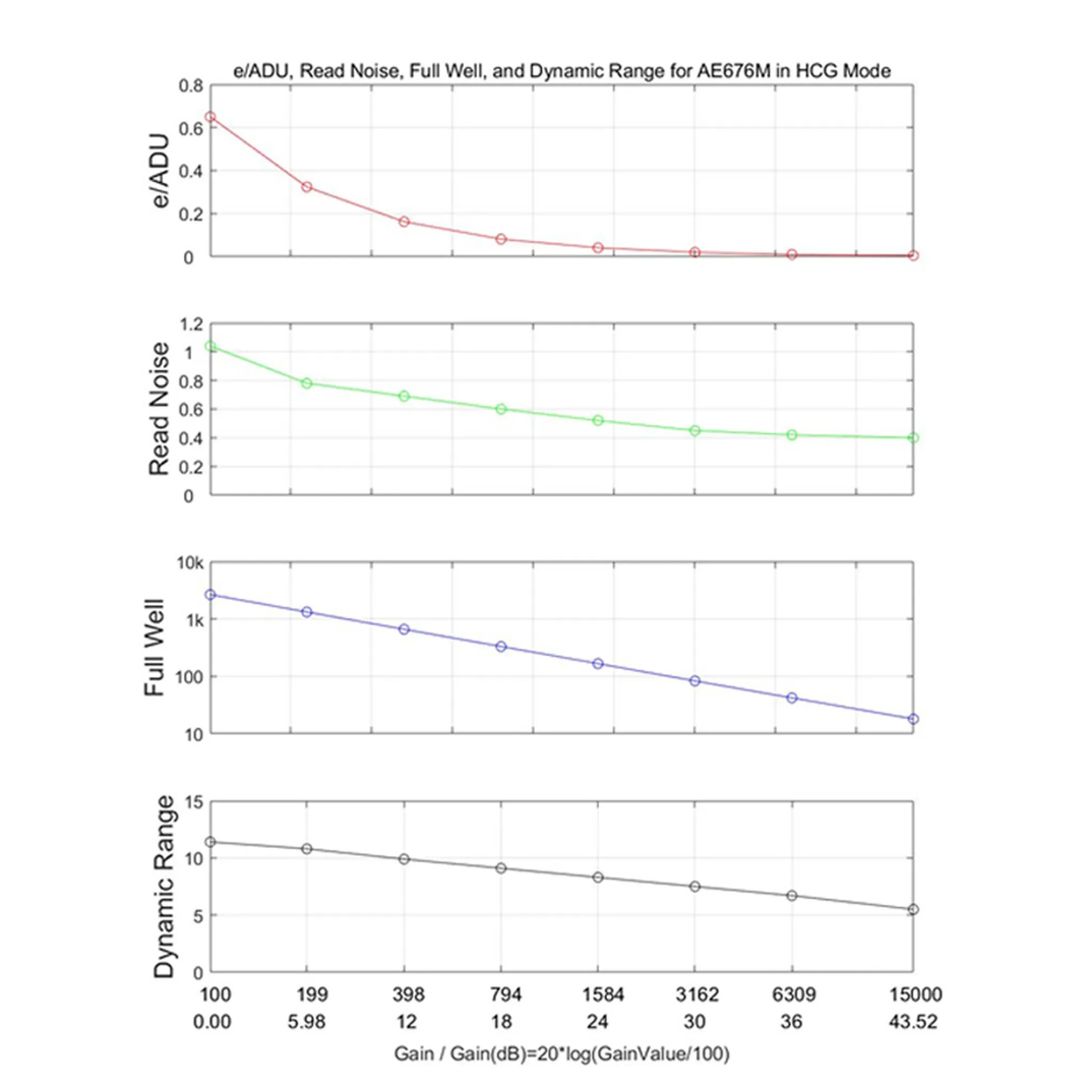

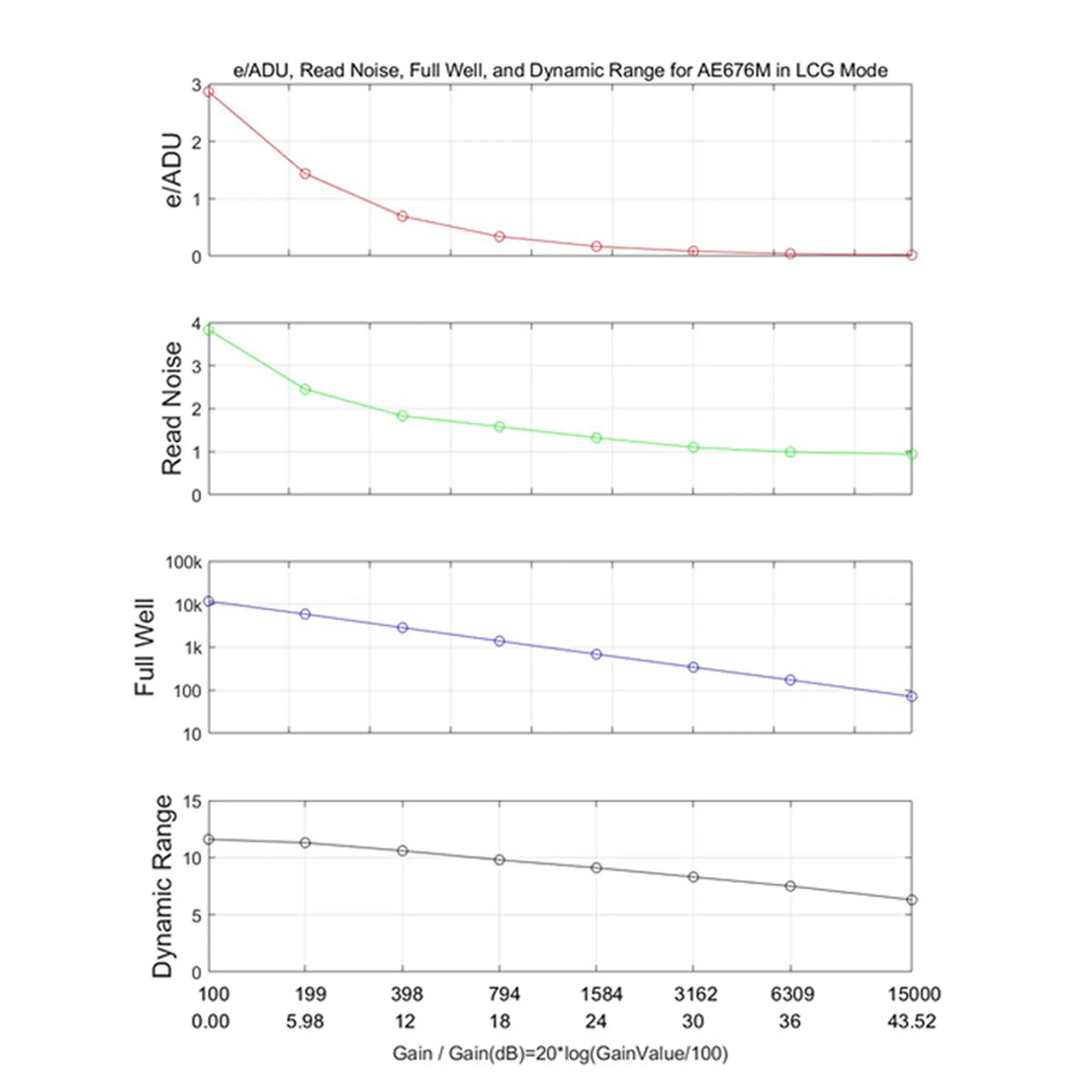

Gain Modes for Diverse Imaging Scenarios

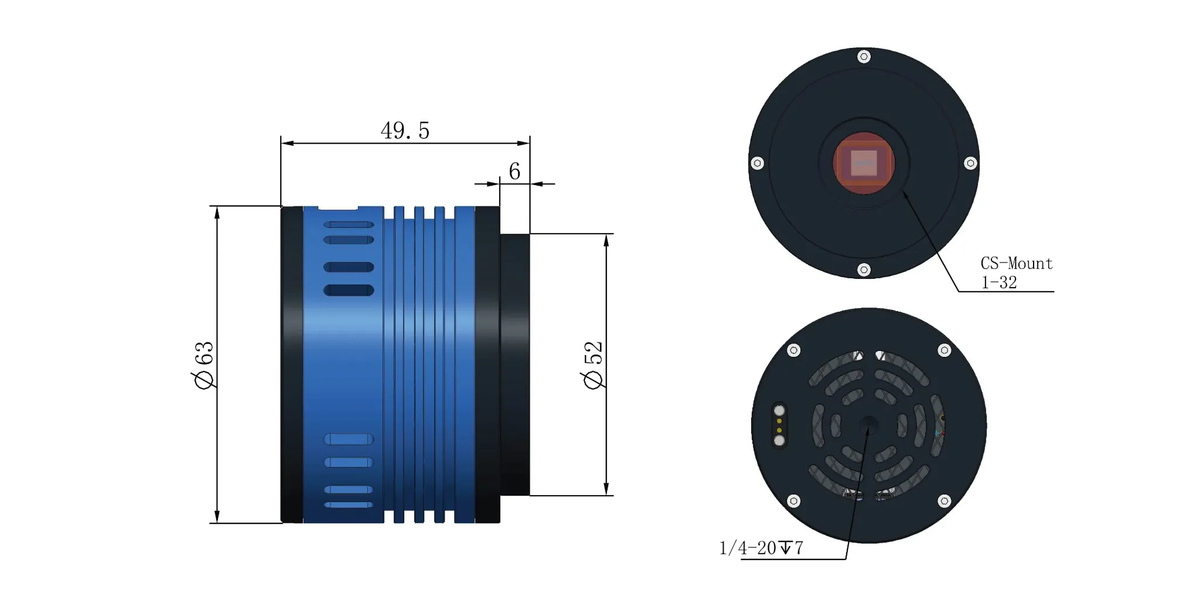

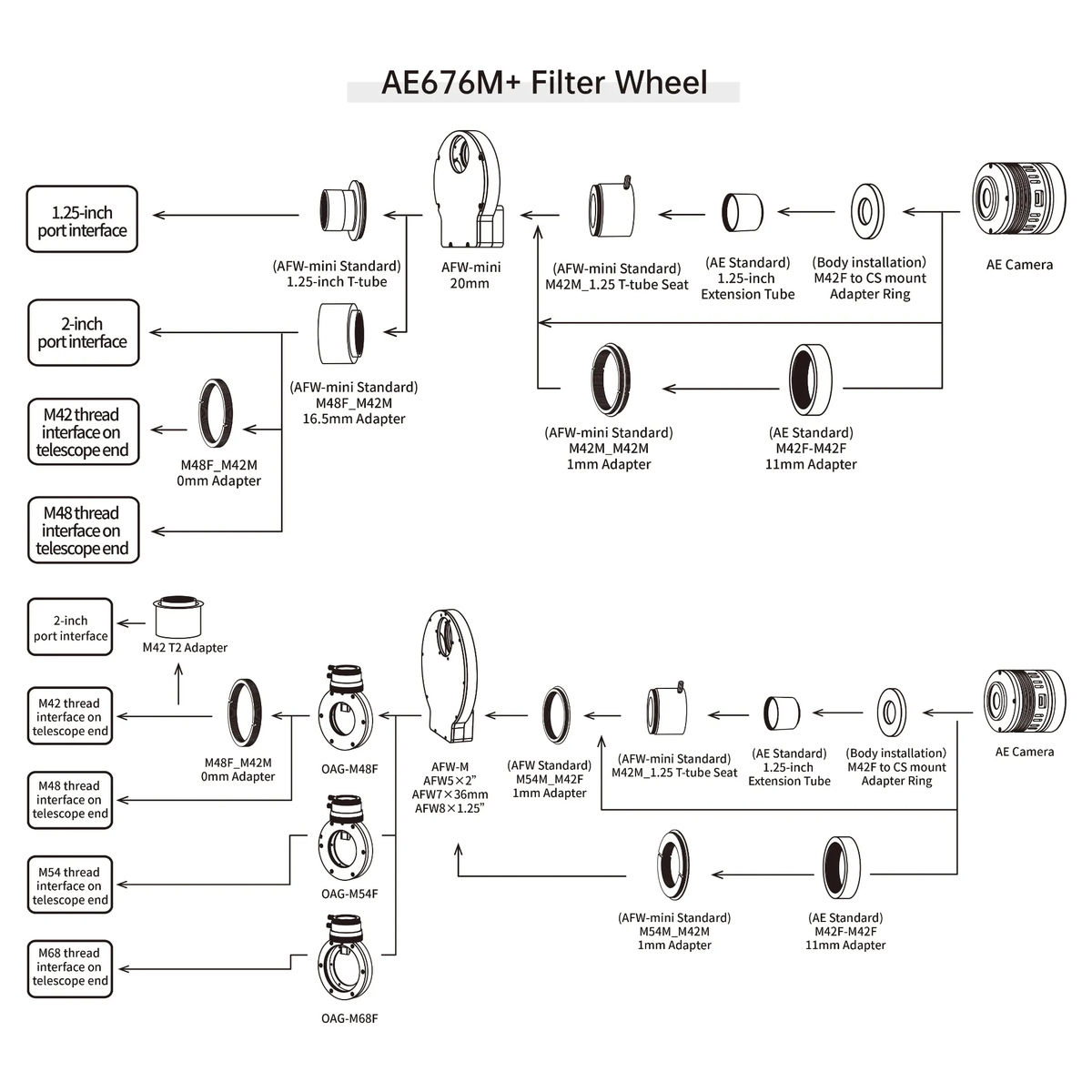

Flexible Back Focus & Mechanical Connectivity
- CS Mount: 12.5mm back focus
- C Mount: 17.5mm back focus (with 5mm extension ring)
- M42M Interface: 6.5mm back focus (by removing top adapter ring)
- M42F Interface: 17.5mm back focus (by removing top adapter ring & adding 11mm M54a adapter ring)
- 1.25" Extension Tube: Included for filters or eyepiece insertion
- USB-C Port: High-speed data transfer and power supply
Other Information
- Country of Manufacture: China
ToupTek AE676M Mono Astro Camera: One Camera, Endless Possibilites!
Powered by the Sony IMX676 monochrome CMOS sensor, the AE676M combines exceptional full-spectrum sensitivity, sharp Bayer-free imaging, and impressive near-infrared (NIR) performance in an ultra-compact design. From high-resolution lunar and solar mosaics to narrowband deep-sky imaging, planetary photography, meteors, and the Milky Way, this versatile camera is built to capture it all!
Multi-Purpose Astronomy Camera
Square Sensor, Flexible Framing
Featuring a 1/1.6" square format, this camera simplifies framing, mosaic stitching, and post-processing. Ideal for wide-angle and fisheye lenses, it maximizes sky coverage for meteor detection and all-sky monitoring.
Magnetic Cooling System
Switch between fanless, vibration-free TEC cooling down to 5°C below ambient and enhanced cooling up to 20°C below ambient with the detachable magnetic fan. Both modes provide precise temperature control to reduce thermal noise for cleaner astrophotography.
AR-Coated Window
The dual-sided AR-coated optical window reduces reflections and light loss, and protects against physical damage. Enhancing light transmission across the 400–1100nm spectrum, supporting infrared Milky Way imaging when paired with an LP825 filter (Sold Separately).
What Can You Capture with AE676M?
Designed to cover a wide range of multi-role imaging needs, the AE676M features a 1/1.6” square mono sensor, giving imagers the flexibility to capture solar, lunar, planetary, and deep-sky targets with a single camera. From high-resolution lunar mosaics to near-infrared planetary details and narrowband DSO imaging, AE676M combines full-spectrum sensitivity, ultra-high NIR quantum efficiency, low read noise, and high-speed framing for consistently crisp, detailed results.
Why Sony IMX676 Square Sensor?
- Seamless Mosaic Stitching: Perfect symmetry reduces overlap waste and removes tedious cropping when assembling high-resolution solar and lunar panoramas.
- 360° All-Sky & Wide-Field Coverage: Pairs seamlessly with fisheye and short-focal-length lenses for round field-of-view targets, meteor tracking, and all-sky monitoring without wasting active sensor area.
- Rotation-Free Target Framing: Center emission nebulae, globular clusters, or planetary disks effortlessly without constantly re-rotating your camera train.
- Faster Post-Processing Workflow: Standardized 1:1 square frames simplify stacking, alignment, and channel combination across LRGB and narrowband workflows.
Exceptional H-alpha & Near-Infrared Sensitivity
Powered by STARVIS 2 technology, the AE676M delivers over 95% relative response efficiency across the 600–750nm range, maximizing the capture of H-alpha-rich targets, including solar prominences, flares, and emission nebula details.
Its outstanding sensitivity beyond 800nm in the near-infrared spectrum enables stunning infrared Milky Way imaging through light pollution when paired with IR825/850 filters. Combined with narrowband filters, it provides efficient deep-sky signal acquisition even in light-polluted urban environments.
Native 12-bit ADC & Hardware ROI
Capture 12-bit images natively with software binning from 1x1 to 8x8 and hardware binning from 1x1 to 2x2. Hardware ROI allows frame rates up to 993 FPS at reduced resolution (8-bit mode), making it perfect for high-speed planetary and solar/lunar detail capture.
Equipped with a 512MB DDR3 buffer, the AE676M ensures ultra-low readout noise (as low as 1.01 e⁻) and a high dynamic range of 69.7dB without frame drops, preserving details in both highlights and shadows.
Software Capabilities
Seamlessly connect via the StellaVita App, ToupSky software, or use ASCOM, INDI, and DirectShow SDKs for broad third-party software integration.
Specifications
-
Sensor: Sony IMX676 Monochrome CMOS (STARVIS 2 Technology)
-
Image Resolution: 12.5 Megapixels (3536 x 3536)
-
Pixel Size: 2.0 µm x 2.0 µm
-
Sensor Size: 1/1.6" Square Format
-
Imaging Area: 7.07 x 7.07 mm
-
Shutter Type: Rolling Shutter
-
ADC Bit Depth: Native 12-bit ADC / 16-bit HDR Output
-
Quantum Efficiency (QE): >83%
-
Full-Well Capacity: 11,696 e⁻
-
Read Noise: 1.04–3.83 e⁻
-
Dynamic Range: 69.7 dB
-
Maximum Signal-to-Noise Ratio: 40.6 dB
-
DDR3 Cache: 512 MB
-
Maximum Frame Rate:
-
Full Resolution (3536 x 3536): 31 FPS (8-bit) / 16 FPS (12-bit) via USB 3.0
-
Hardware ROI: Up to 993 FPS at reduced resolution (8-bit)
-
-
Binning: 1x1 to 2x2 Hardware / 1x1 to 8x8 Software
-
Cooling Method: Single-Stage TEC with PID Temperature Control and Detachable Magnetic Fan
-
Fanless Mode: Up to 5°C below ambient (±0.1°C stability)
-
Enhanced Mode: Up to 20°C below ambient with magnetic fan
-
-
Gain Modes: HCG (High Conversion Gain), LCG (Low Conversion Gain), and HDR
-
Protective Window: Dual-Sided AR-Coated Glass (400–1100 nm)
-
Data Interface: USB 3.0 Type-C (USB 2.0 Compatible)
-
Camera Connections: M42 x 0.75, 1.25", C-Mount, and CS-Mount (with appropriate adapters)
-
Backfocus: 12.5 mm (0.49") with M42 connection
-
Weight: 210 g (0.46 lb)
Gain Modes for Diverse Imaging Scenarios
Flexible Back Focus & Mechanical Connectivity
- CS Mount: 12.5mm back focus
- C Mount: 17.5mm back focus (with 5mm extension ring)
- M42M Interface: 6.5mm back focus (by removing top adapter ring)
- M42F Interface: 17.5mm back focus (by removing top adapter ring & adding 11mm M54a adapter ring)
- 1.25" Extension Tube: Included for filters or eyepiece insertion
- USB-C Port: High-speed data transfer and power supply

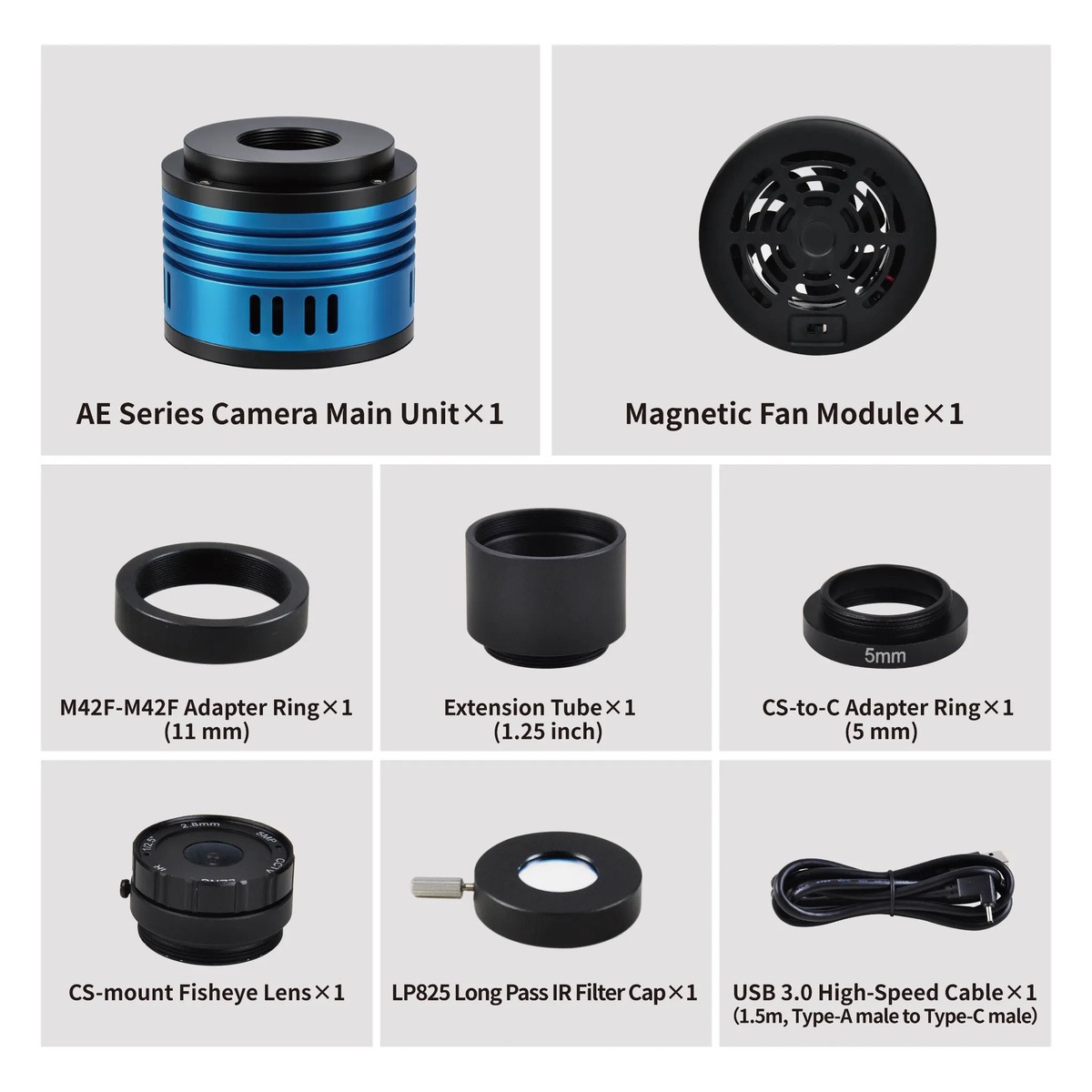

- 1x AE Series Camera
