ToupTek AFW-MINI 5x1.25 Filter Wheel for 1.25" Filters
Stock count is accurate & shown in real time.
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
- This item is out of stock.
- Sign up for back-in-stock alerts to be notified when this item becomes available (account login required).
Contiguous US / Lower 48:
Free shipping applies to orders over $50 using our chosen carrier/method. Faster paid options are available at checkout.
Alaska, Hawaii & US Territories:
Free shipping applies to many—but not all—products. Enter your ZIP code in cart or upon checkout to confirm options and costs.
International:
International orders do not qualify for free shipping. Shipping, duties, brokerage, tariffs, and taxes are the customer’s responsibility. Some items may be restricted due to export, size, or manufacturer limitations.
- Weighs just 340 g (0.75 lb) with a slim 20 mm (0.79") profile
- Holds five 1.25" filters for fast, precise multi-channel imaging
- Dual-bearing support prevents filter tilt, while two motor speeds ensure stable performance
- Includes 1.25" and M48/M42 adapters for flexible telescope and camera connections

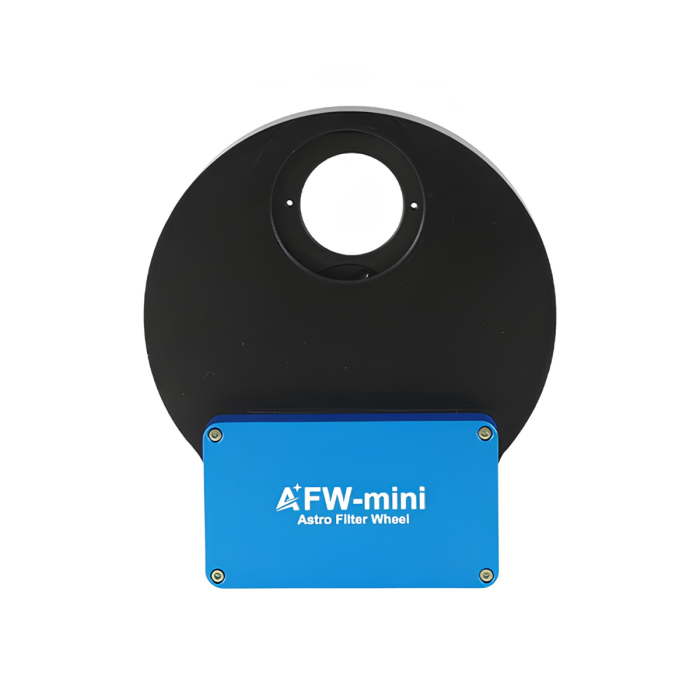

AFW-mini Electronic Filter Wheel
The AFW-mini is compatible with planetary cameras, AstroEye Series multifunction cameras, and deep-sky cameras with smaller sensors. Its compact, lightweight design holds five 1.25" astronomical filters, allowing fast, precise automatic switching without repeated disassembly. Perfect for LRGB, narrowband, and multi-channel imaging, the AFW-mini makes automated astrophotography simpler and more efficient!
Lightweight 340 g Compact Design
Ideal for planetary, solar, lunar, and deep-sky imaging with smaller sensors, the AFW-mini features a slim 20 mm profile that integrates easily into most imaging setups. Its lightweight design minimizes added stress on 1.25" and 2" connections, helping prevent adapter tilt while supporting multiple filters.

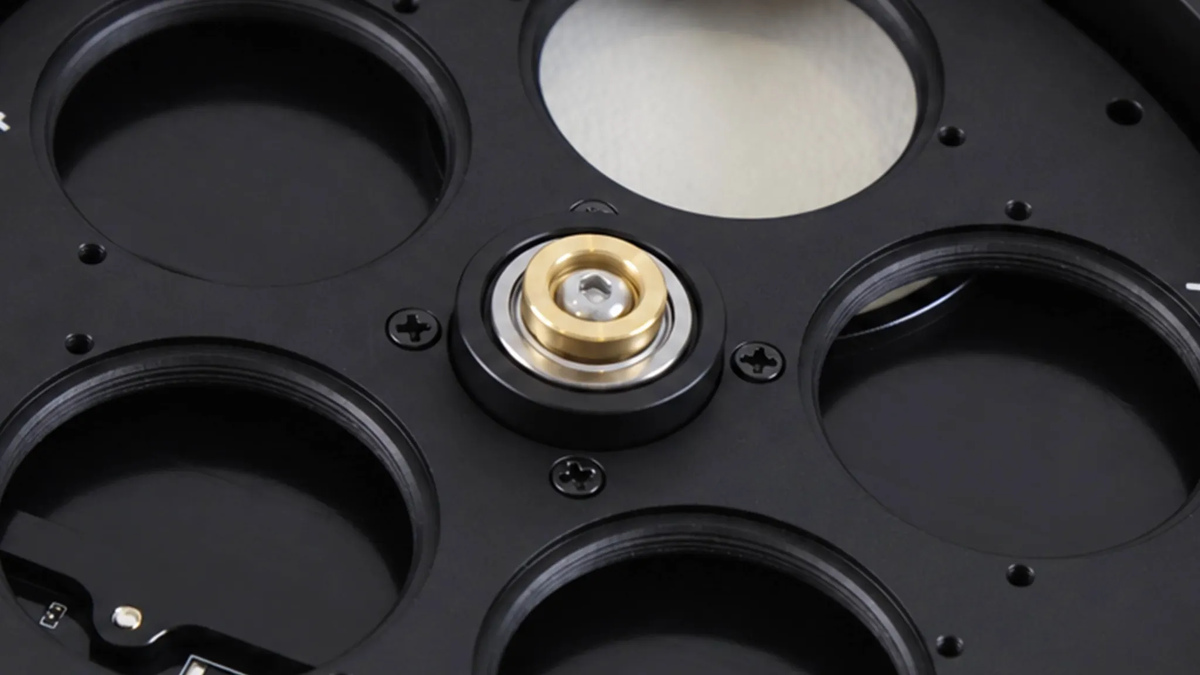

Upgraded Support for Smooth Operation
A dual-support structure combining a thrust bearing and a deep-groove ball bearing ensures smooth, stable rotation of the filter carousel. This effectively prevents filter tilt or wobble from affecting image quality.
- Unidirectional rotation is recommended for greater positioning accuracy.

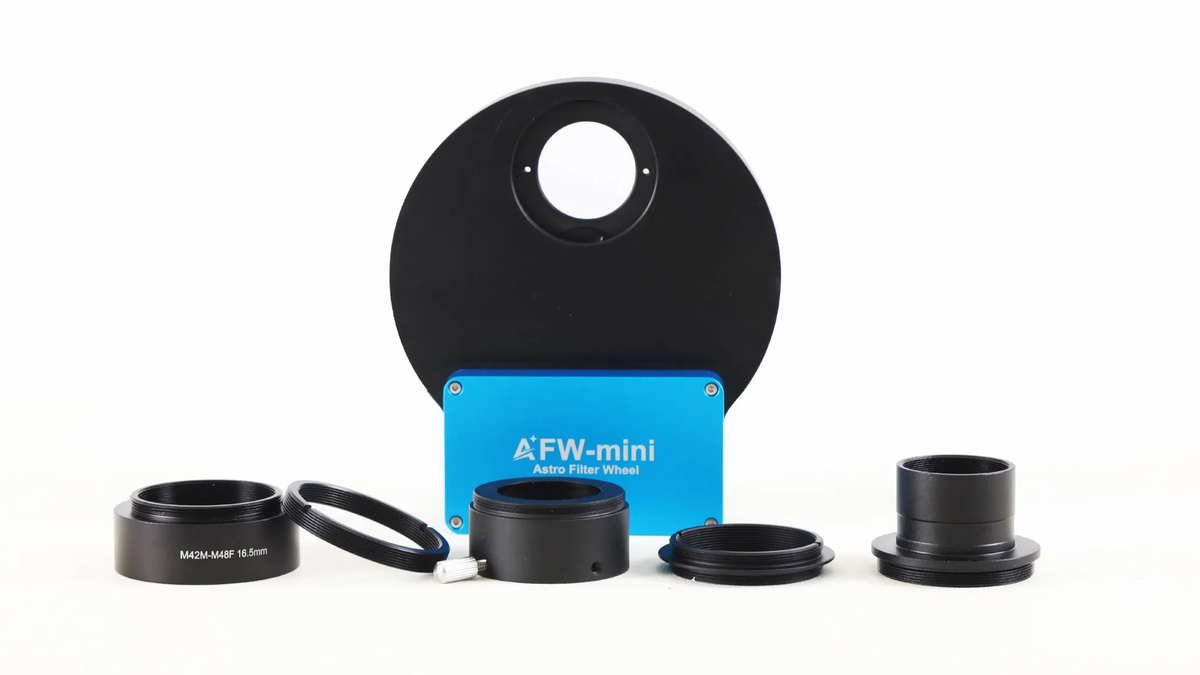

Multiple Adapters for Broad Compatibility
The AFW-mini includes a redesigned M42-to-1.25" T-mount holder with an insertion stop to prevent interference during filter changes. A 1.25" nosepiece, 16.5 mm M48-to-M42 adapter, and protective dust caps provide flexible connections while keeping your equipment protected.

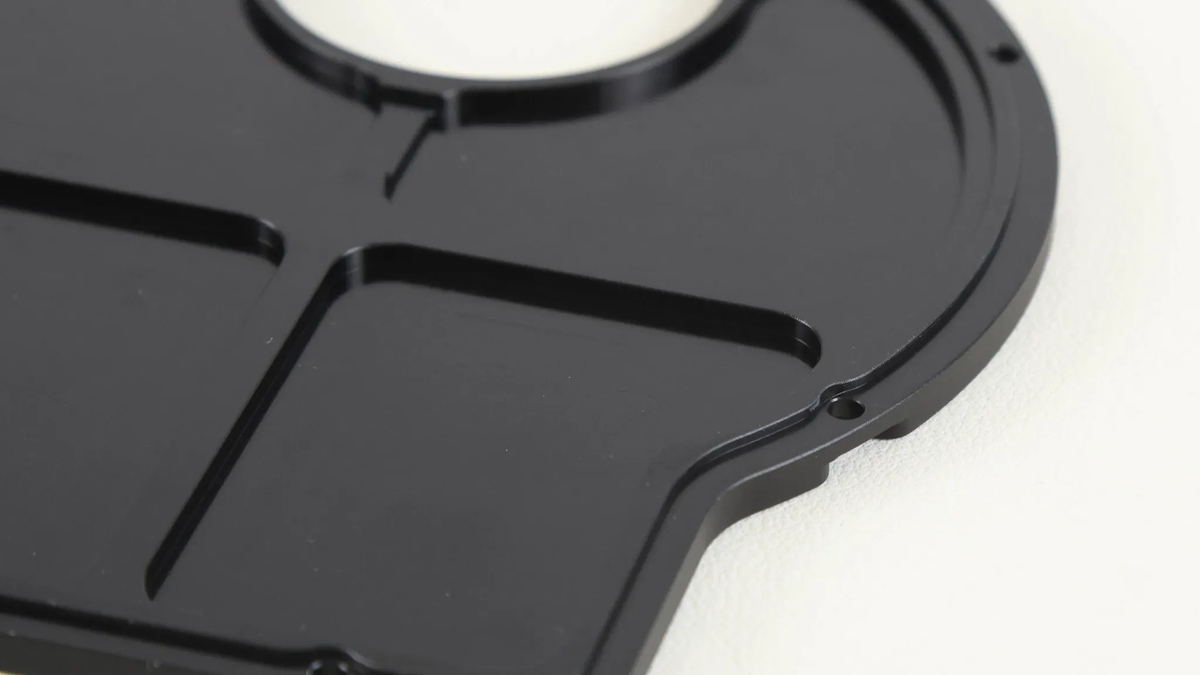

Light Sealing for Uniform Flats
The tightly sealed, light-blocking design prevents stray light from compromising flat-field calibration, ensuring clean and accurate images.

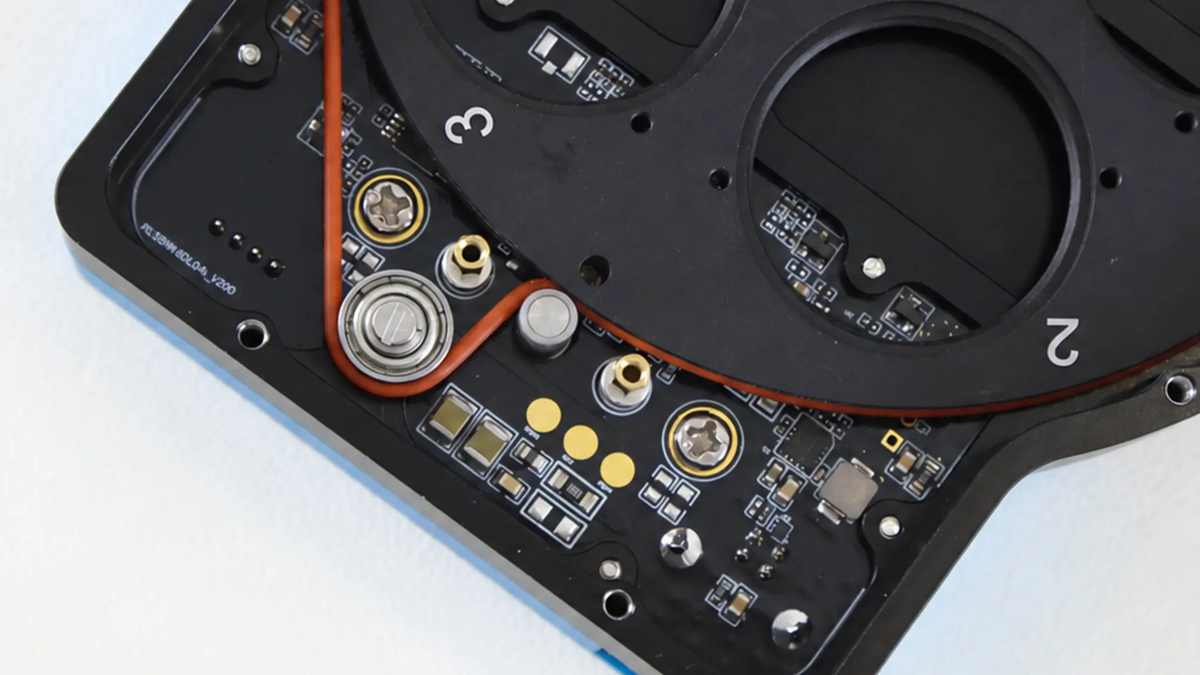

Reliable Performance in Low Temperatures
A high-performance stepper motor and tensioned drive mechanism provide dependable operation even in demanding cold conditions. Two selectable switching speeds improve load capacity and operating stability in low-temperature environments.
- Standard speed: 6 seconds per revolution; Low speed: 12 seconds per revolution.
Specifications
-
Filter Capacity: 5 Positions
-
Supported Filter Size: 1.25" round mounted
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB

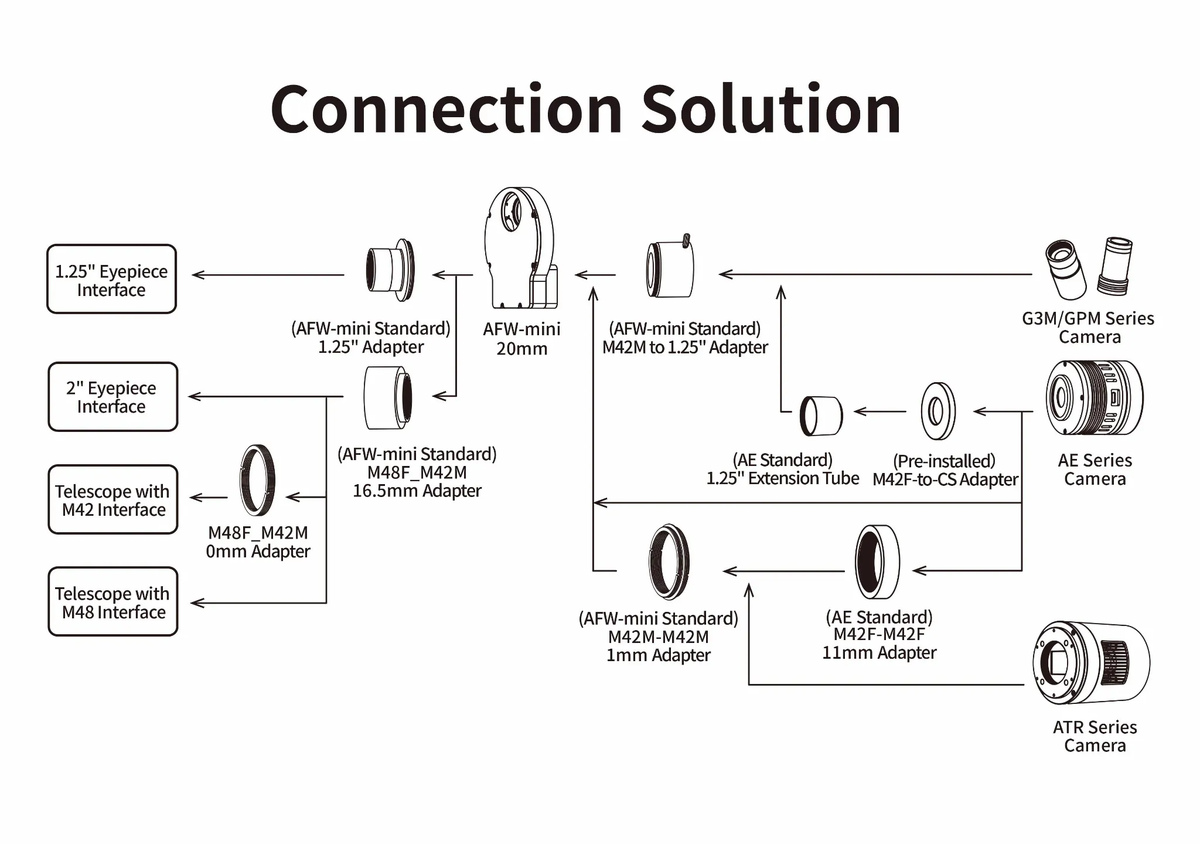

Connection Configurations
Other Information
- Country of Manufacture: China
AFW-mini Electronic Filter Wheel
The AFW-mini is compatible with planetary cameras, AstroEye Series multifunction cameras, and deep-sky cameras with smaller sensors. Its compact, lightweight design holds five 1.25" astronomical filters, allowing fast, precise automatic switching without repeated disassembly. Perfect for LRGB, narrowband, and multi-channel imaging, the AFW-mini makes automated astrophotography simpler and more efficient!
Lightweight 340 g Compact Design
Ideal for planetary, solar, lunar, and deep-sky imaging with smaller sensors, the AFW-mini features a slim 20 mm profile that integrates easily into most imaging setups. Its lightweight design minimizes added stress on 1.25" and 2" connections, helping prevent adapter tilt while supporting multiple filters.
Upgraded Support for Smooth Operation
A dual-support structure combining a thrust bearing and a deep-groove ball bearing ensures smooth, stable rotation of the filter carousel. This effectively prevents filter tilt or wobble from affecting image quality.
- Unidirectional rotation is recommended for greater positioning accuracy.
Multiple Adapters for Broad Compatibility
The AFW-mini includes a redesigned M42-to-1.25" T-mount holder with an insertion stop to prevent interference during filter changes. A 1.25" nosepiece, 16.5 mm M48-to-M42 adapter, and protective dust caps provide flexible connections while keeping your equipment protected.
Light Sealing for Uniform Flats
The tightly sealed, light-blocking design prevents stray light from compromising flat-field calibration, ensuring clean and accurate images.
Reliable Performance in Low Temperatures
A high-performance stepper motor and tensioned drive mechanism provide dependable operation even in demanding cold conditions. Two selectable switching speeds improve load capacity and operating stability in low-temperature environments.
- Standard speed: 6 seconds per revolution; Low speed: 12 seconds per revolution.
Specifications
-
Filter Capacity: 5 Positions
-
Supported Filter Size: 1.25" round mounted
-
Motor Type: High-Precision Stepper Motor
-
Compatible Sensor Formats: Full-Frame and Smaller Astronomy Cameras
-
Filter Selection: Automated Electronic Positioning
-
Control Interface: USB Control
-
Material: CNC-Machined Aluminum Alloy
-
Camera Compatibility: Compatible with ToupTek Astro and other ASCOM-supported imaging systems
-
Power Supply: Via USB
Connection Configurations
- 1x AFW Mini Filter Wheel
- 1x USB 2.0 Cable 2M
- 1x Screwdriver
- 7x M2.5*6 Screw
- 10x Red steel paper gasket
- 10x M2*4 Panhead Screw
- 10x M2*2 Screw
- 1x M42M-M42M-1mm Adapter
- 1x M48M-M42F-0mm Adapter
- 1x M42M-M48F-16.5mm Adapter
- 1x T2 Adapter
- 1x M42M to 1.25" Adapter
- 2x M3*8 Adjustment Screws
- Weighs just 340 g (0.75 lb) with a slim 20 mm (0.79") profile
